Product Description
Danfoss MBS5150 060N1072
The Danfoss MBS 5150 is a high-performance block-type pressure transmitter specifically engineered for demanding marine and offshore applications. This model is designed to withstand harsh environmental conditions, offering exceptional vibration resistance, robust construction, and a high degree of EMC/EMI protection. The MBS 5150 holds multiple ship approvals, including LR, DNV GL, BV, ABS, and RINA, making it a reliable choice for critical systems such as engine control, monitoring, and hydraulic power packs. Its compact design and reliable performance ensure accurate pressure measurement in the most challenging marine environments.

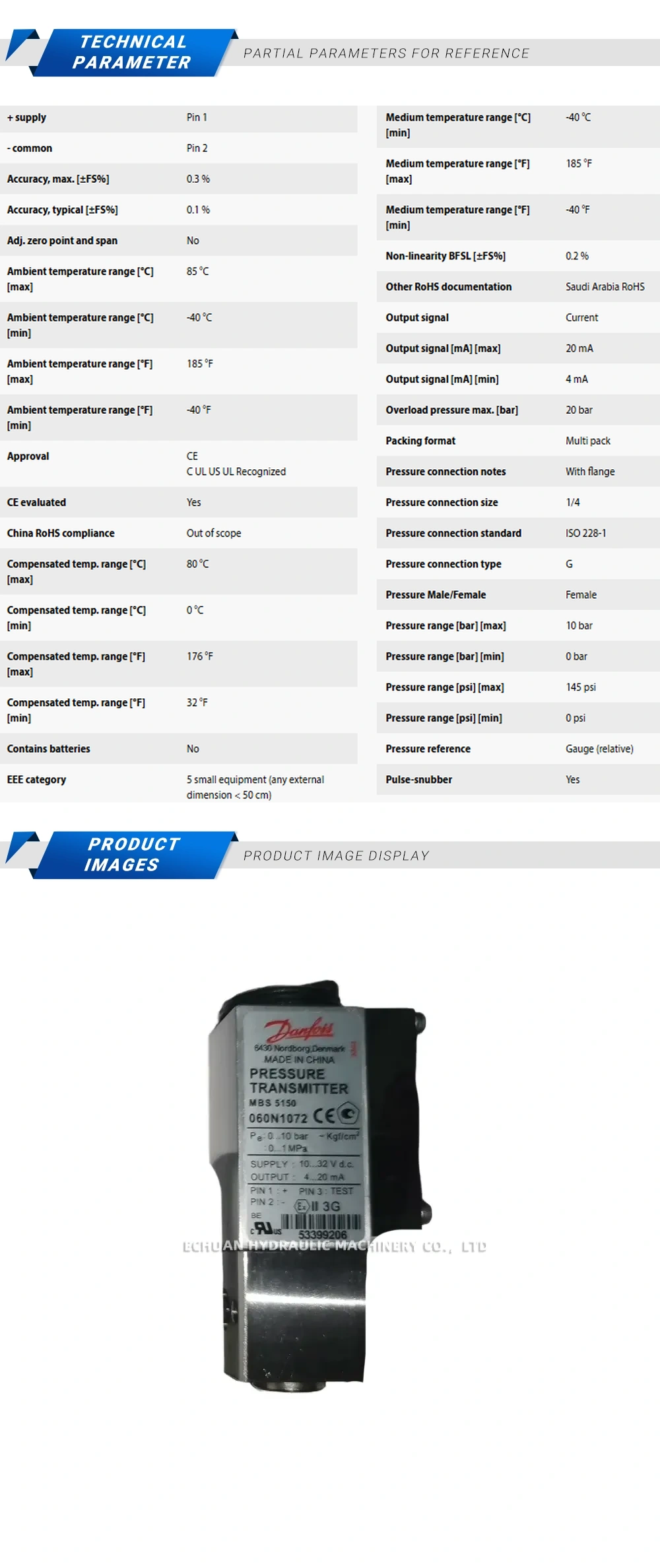

Technical Specifications:
- Type: Pressure Transmitter, MBS 5150
- Pressure Range: 0 – 10 bar
- Output Signal: 4 – 20 mA
- Pressure Connection: G 1/4 A (EN 837)
- Electrical Connection: Plug, DIN 43650-A, PG 9
- Supply Voltage: 10 – 32 V d.c.
- Approvals: DNV GL, LR, BV, ABS, RINA, CCS, NKK, KRS
Danfoss MBS5150 060N1072
Danfoss MBS 5150 pressure transmitter (060N1072) with 0-10 bar range and 4-20mA output, designed for harsh marine and offshore applications. Features robust construction and multiple ship approvals.
| Brand | DANFOSS |
|---|---|
| Model | MBS5150 060N1072 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/danfoss-mbs5150-060n1072 |
