Product Description

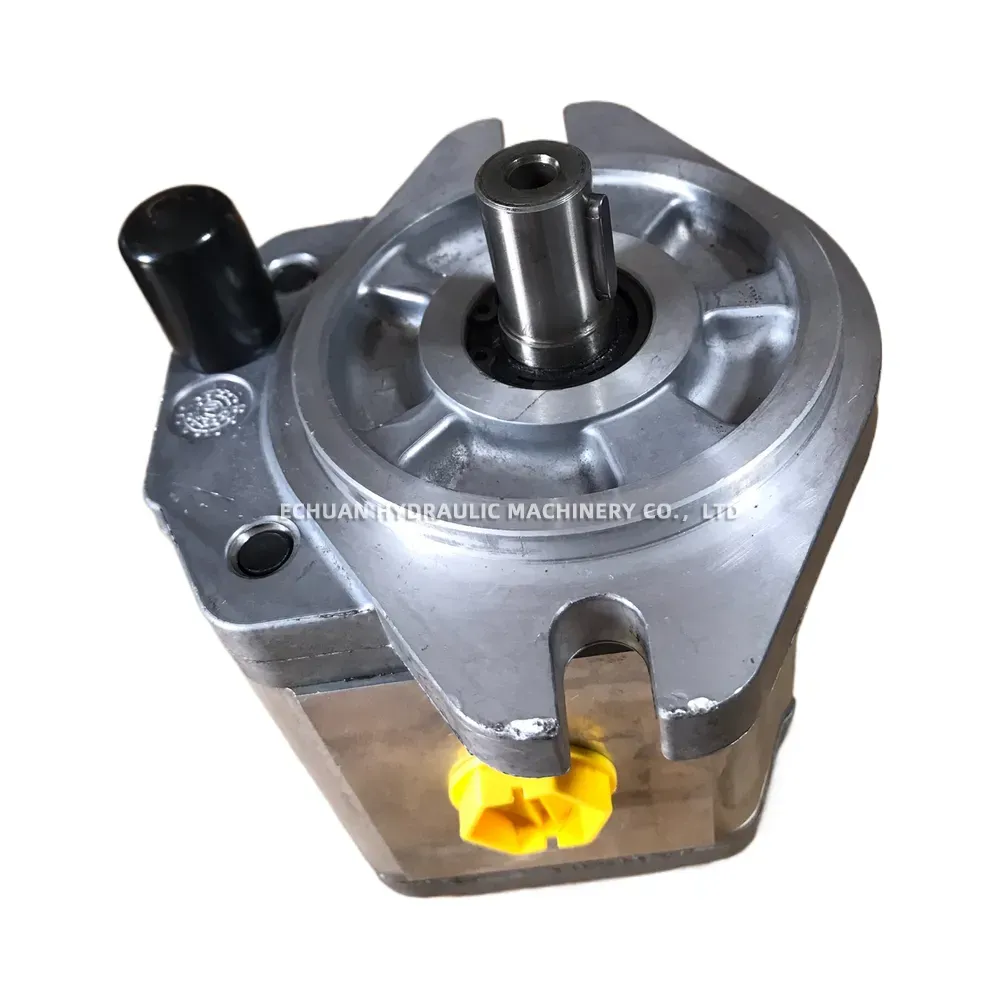

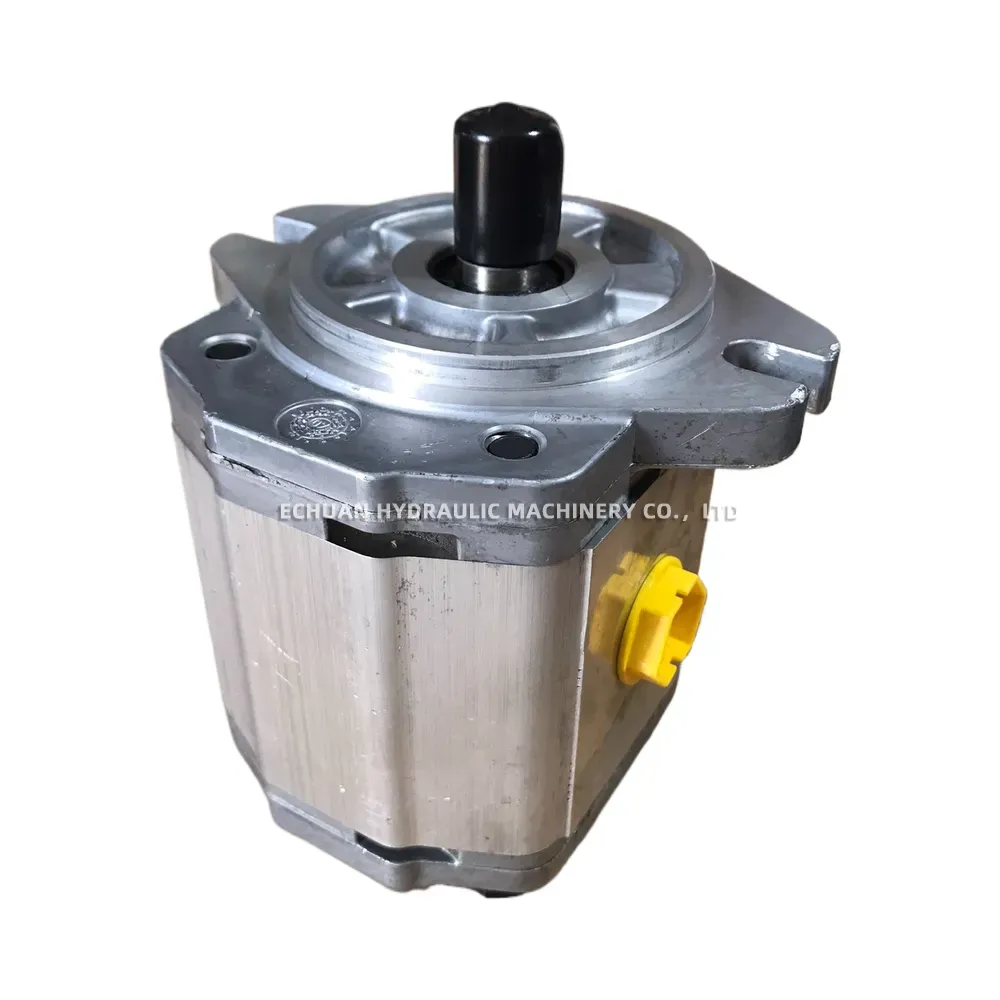

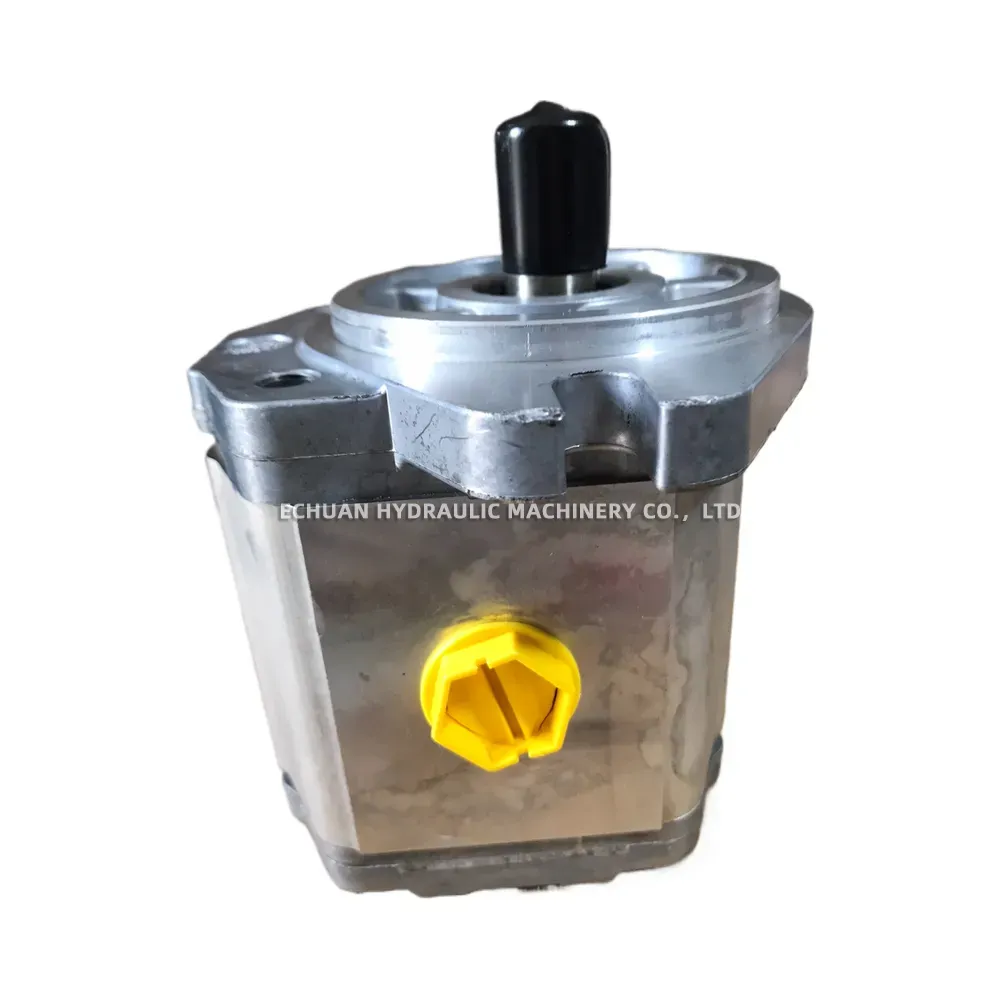

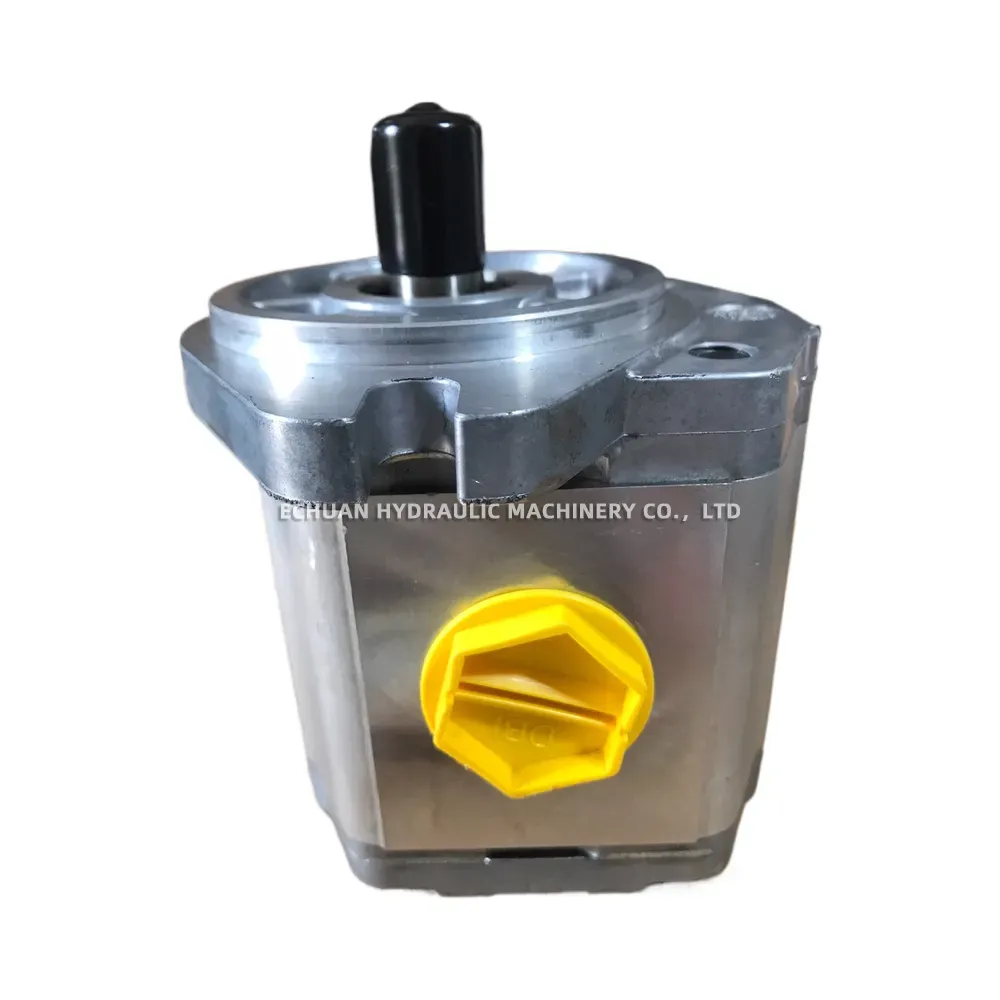

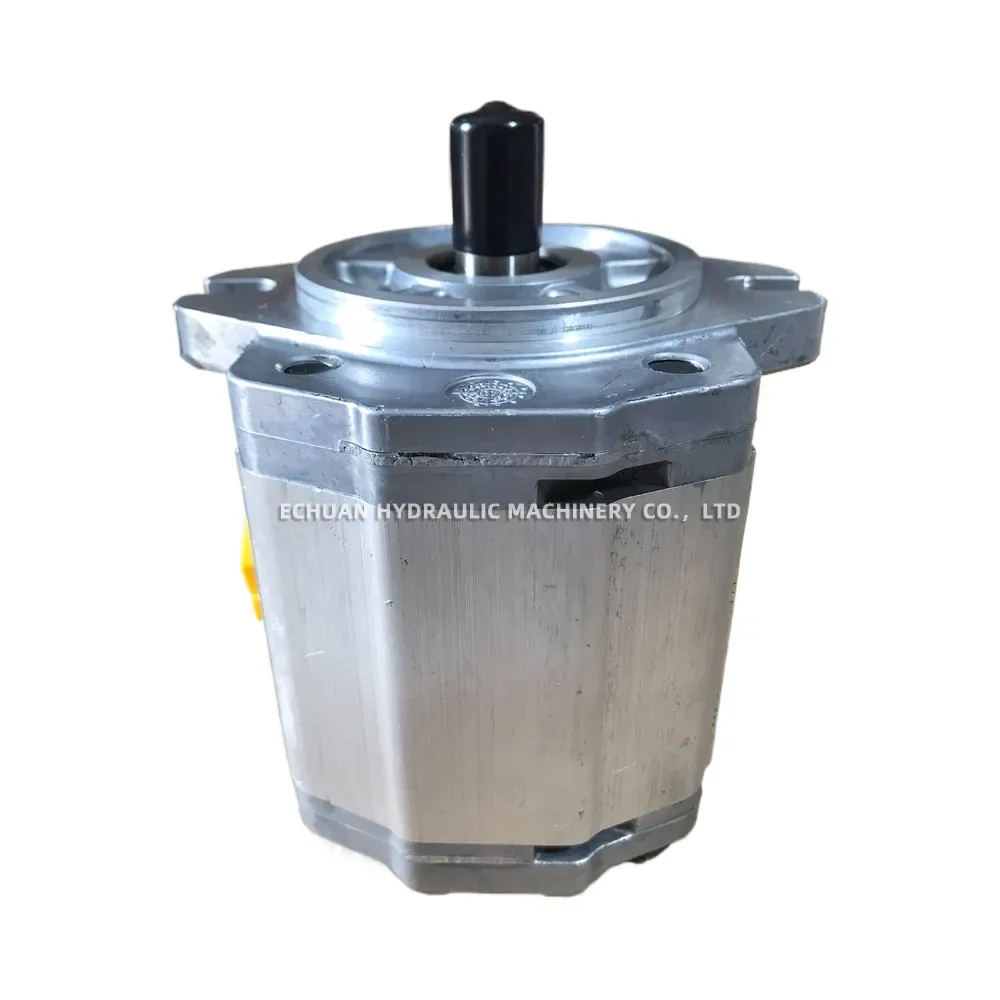

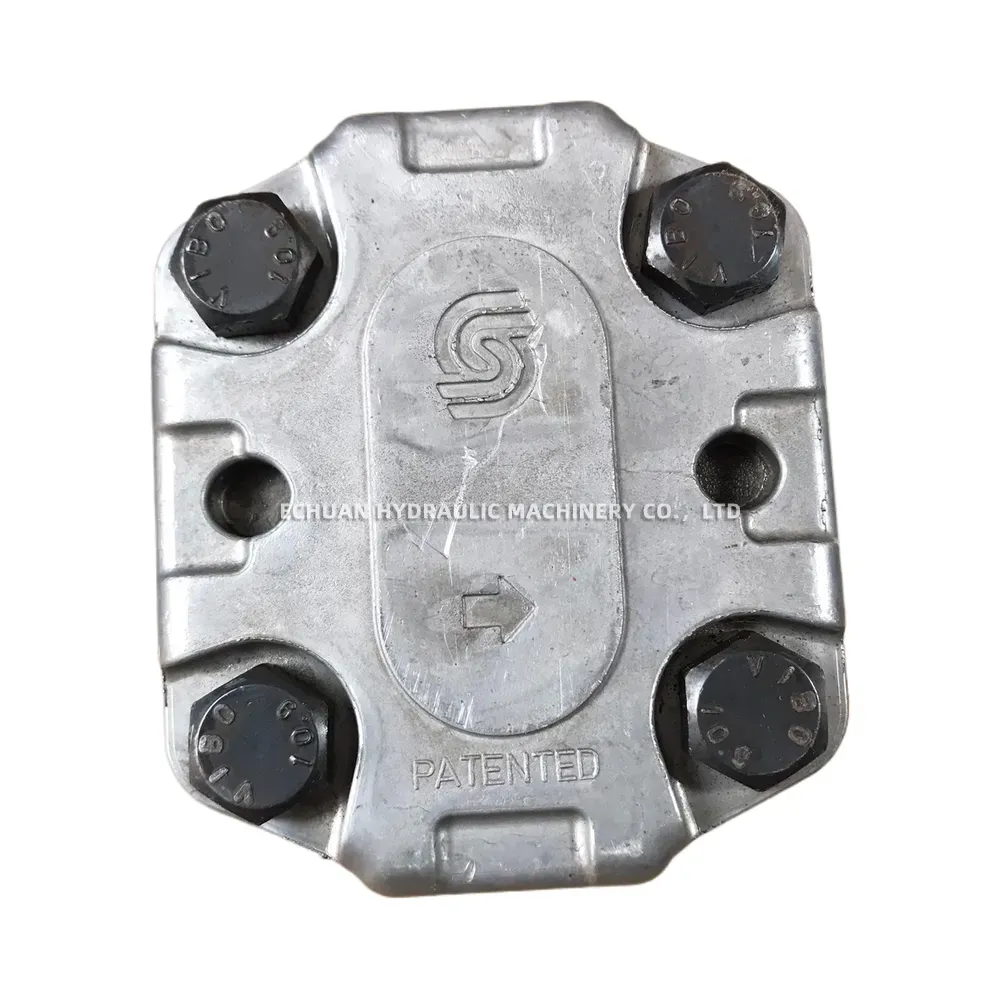

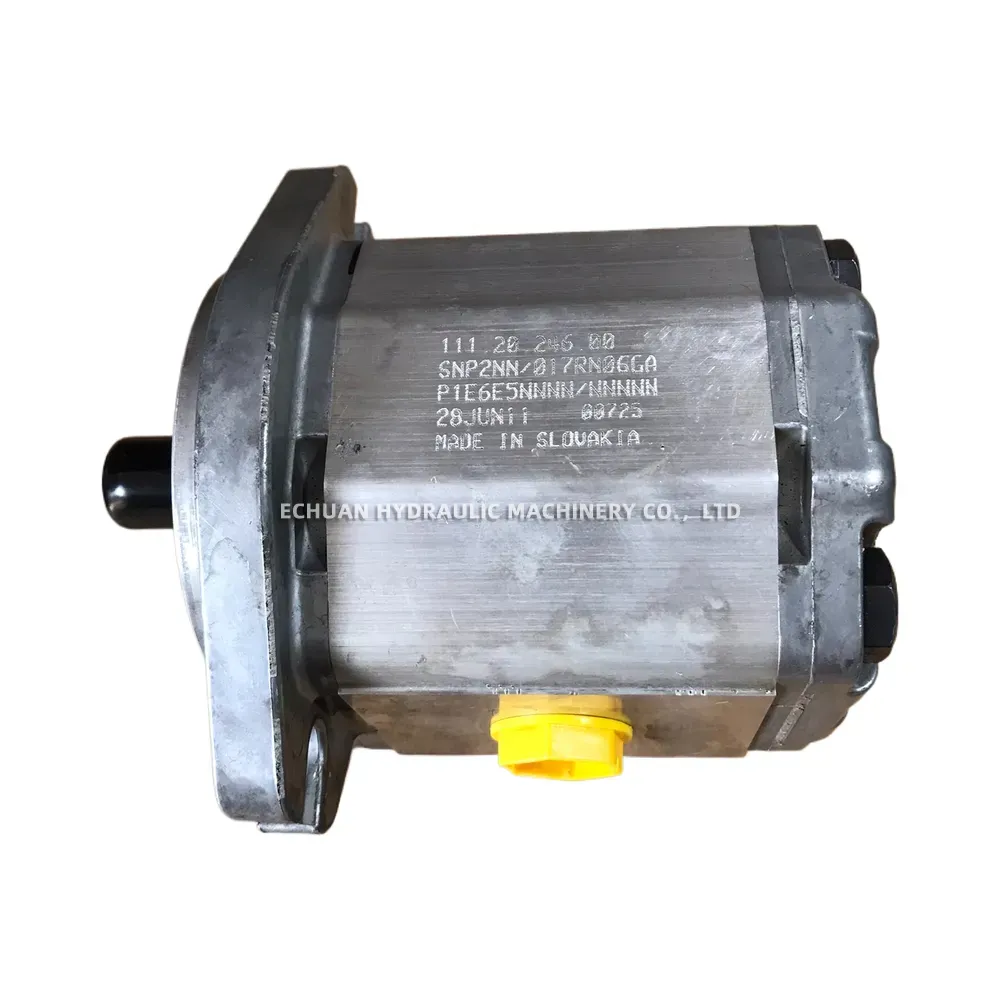

Danfoss SNP2NN/017RN06GA
The Danfoss SNP2NN/017RN06GA is a high-performance, fixed displacement gear pump belonging to the robust Group 2 category. Engineered for reliability and efficiency, this pump is designed to meet the rigorous demands of both mobile and industrial hydraulic systems. Its construction features a high-strength aluminum alloy body, ensuring durability and a long service life even in challenging operating conditions. The SNP2NN series is well-regarded for its low noise operation and high volumetric efficiency, achieved through an optimized gear profile and pressure-balanced design, making it an ideal choice for applications requiring precise and consistent hydraulic power.
Technical Specifications:
- Group Size: 2
- Geometric Displacement: 17.0 cm³/rev
- Direction of Rotation: Clockwise (Right-hand)
- Mounting Flange: European 4-bolt (36.5 mm pilot diameter)
- Shaft Type: Tapered 1:8 with parallel key
- Port Type: BSPP (G) threaded ports
- Maximum Continuous Pressure: 250 bar (3625 psi)
- Maximum Intermittent Pressure: 270 bar (3916 psi)
- Maximum Peak Pressure: 290 bar (4206 psi)
- Maximum Continuous Speed: 3500 rpm
Danfoss SNP2NN/017RN06GA
Model:Danfoss SNP2NN/017RN06GA
