Product Description

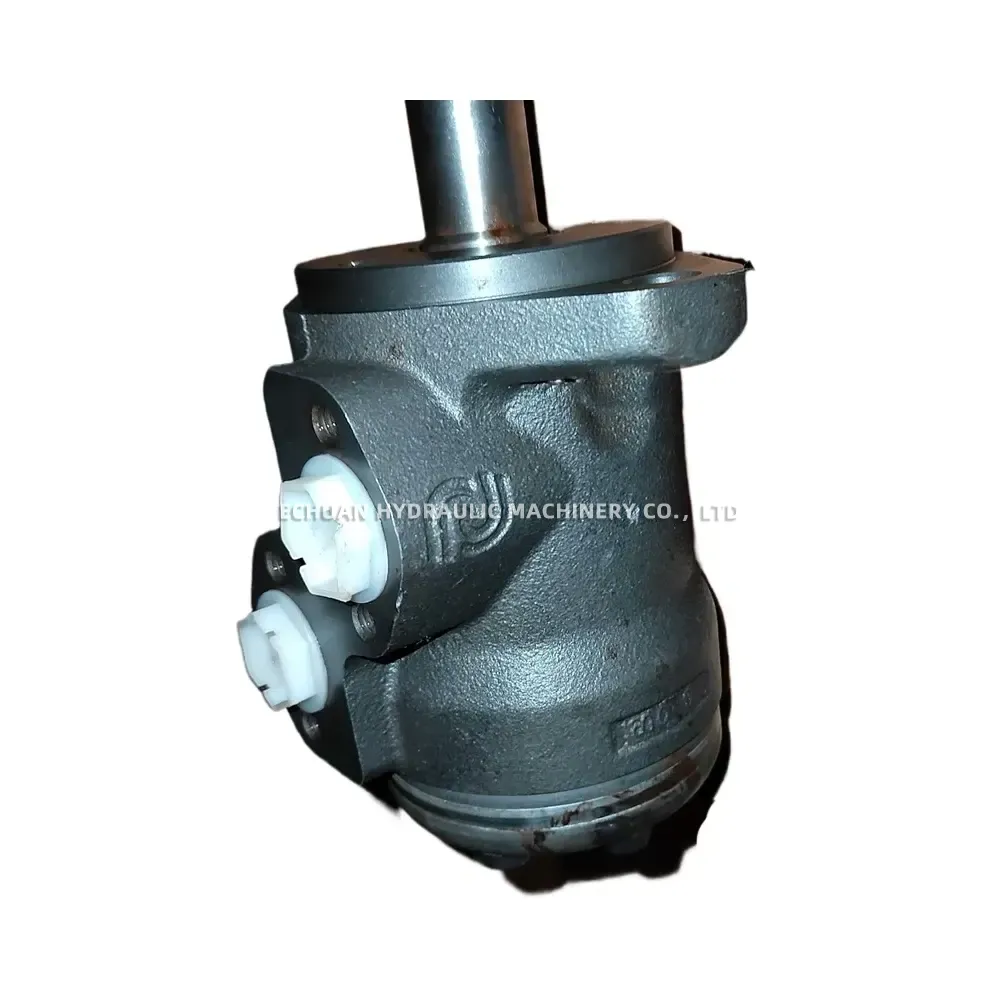

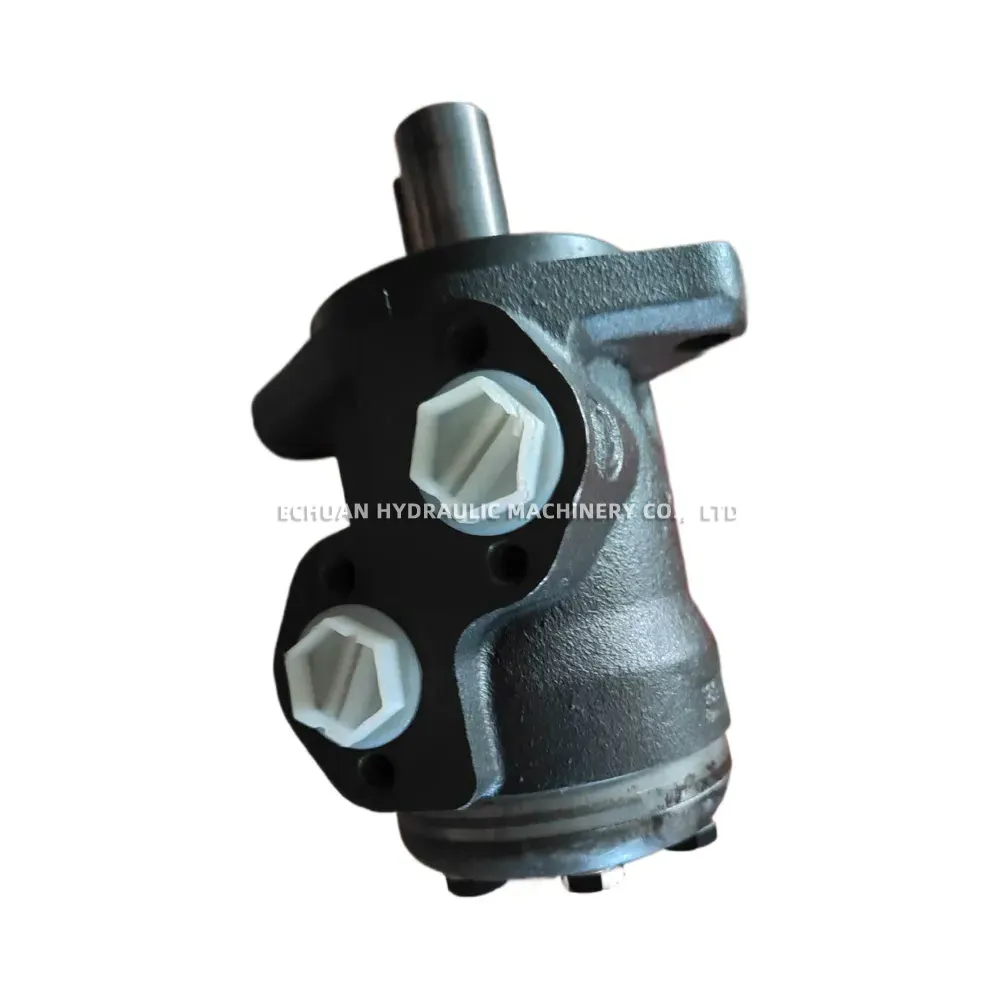

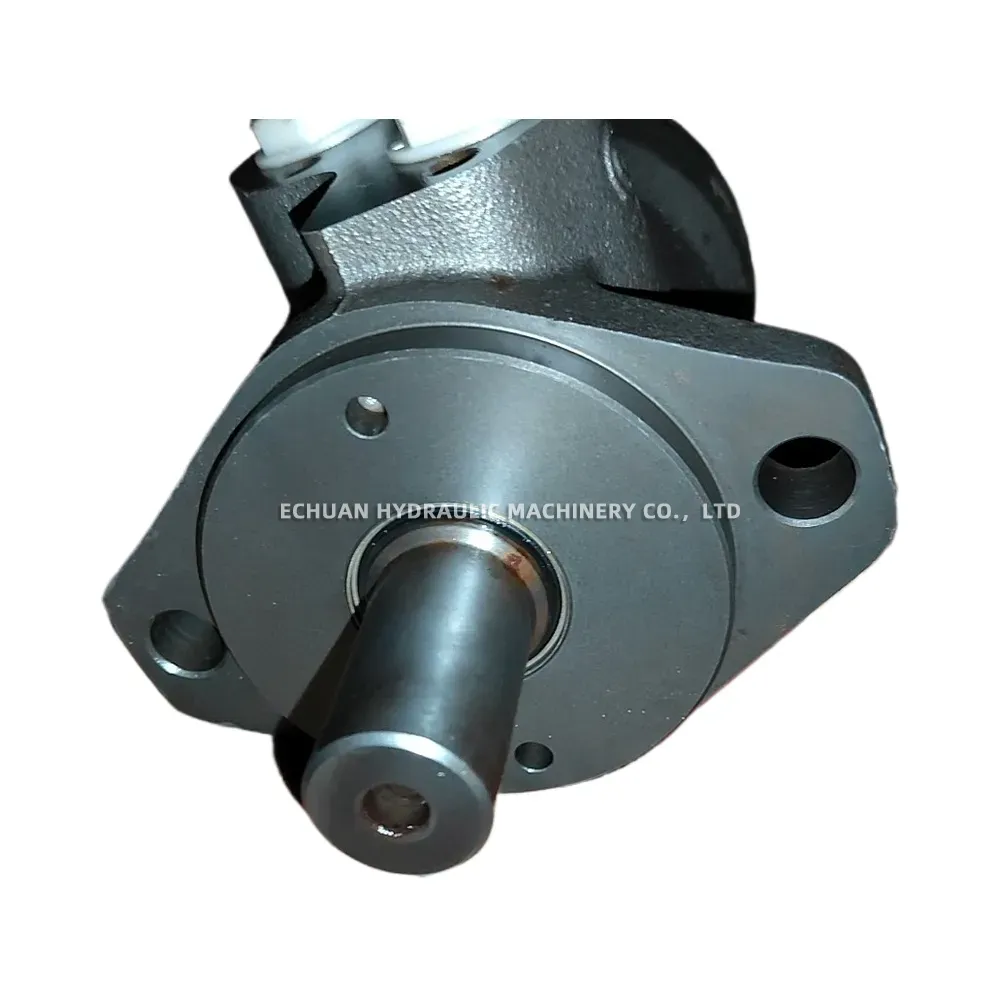

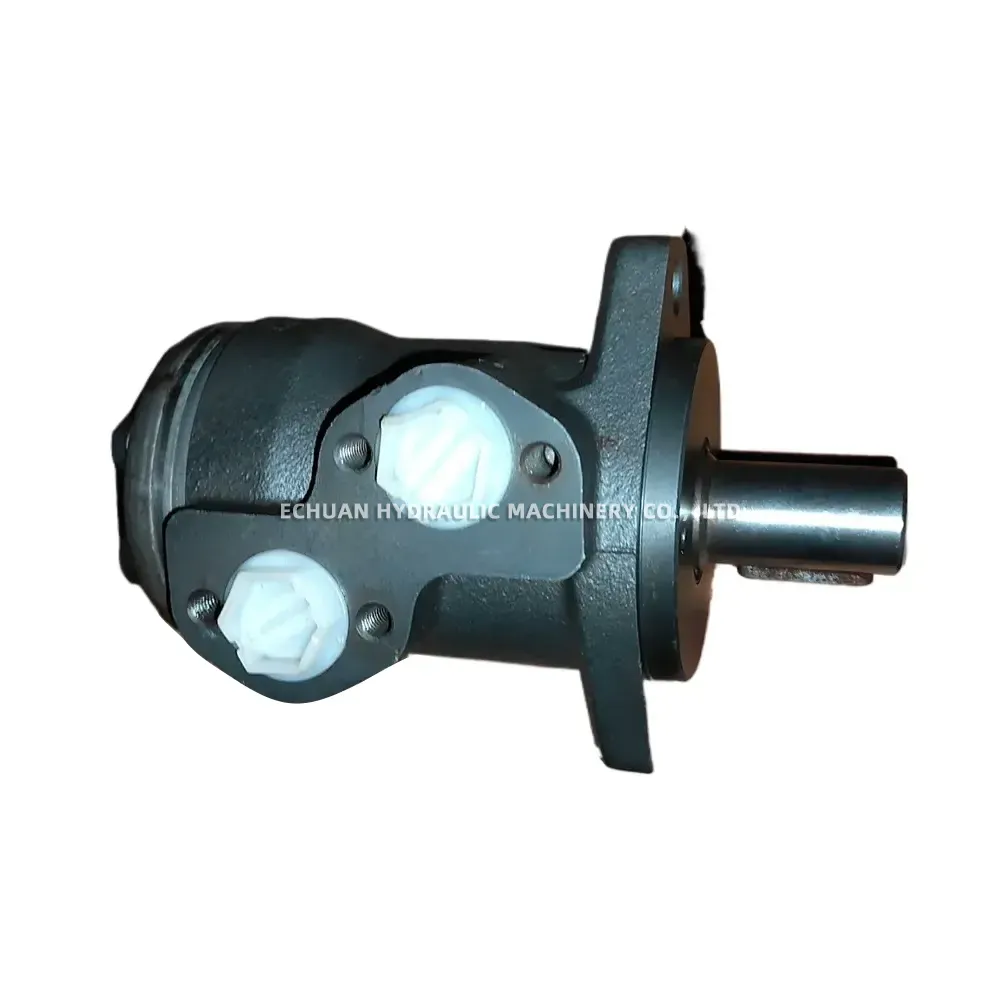

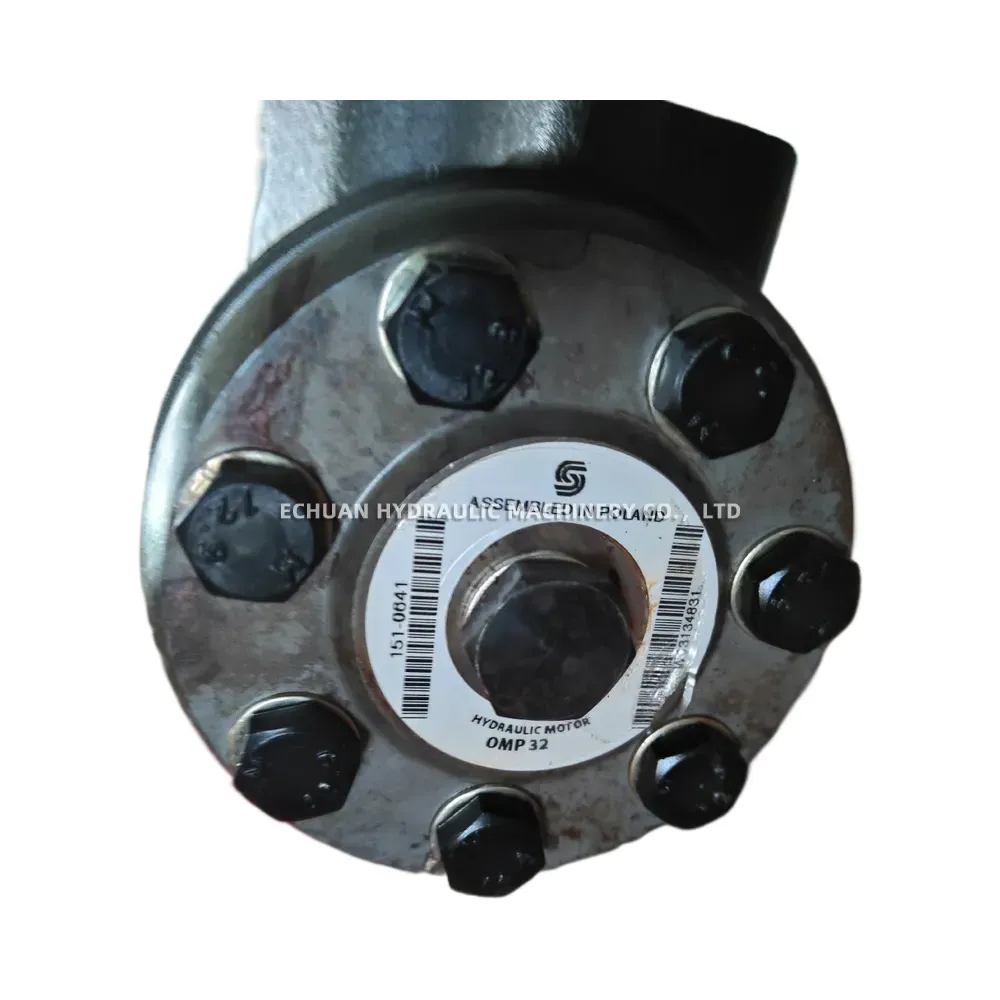

Danfoss OMP 32 151-0641
The Danfoss OMP 32 151-0641 is a compact, light-duty orbital hydraulic motor designed for medium-duty applications. As part of the OMP series, it is well-suited for systems requiring a balance of power and efficiency in a small package. This low-speed, high-torque (LSHT) motor features a gerotor gear set, which ensures smooth and reliable operation across a wide speed range. Its robust construction and high-quality seals provide long service life even under demanding conditions. The OMP 32 is a versatile choice for various mobile and industrial applications, including agricultural machinery, conveyors, sweepers, and machine tools.
Technical Specifications:
- Product Number: 151-0641
- Series: OMP
- Displacement: 32.6 cm³/rev [2.00 in³/rev]
- Max. Continuous Speed: 775 rpm
- Max. Continuous Torque: 41 Nm
- Max. Continuous Pressure Drop: 100 bar
- Max. Continuous Oil Flow: 25 L/min
- Shaft Type: ø25 mm cylindrical with parallel key (A8 x 7 x 32 DIN 6885)
- Port Type: G 1/2 (BSP) Main Ports
- Mounting Flange: 2-bolt SAE A
Danfoss OMP 32 151-0641
Model:Danfoss OMP 32 151-0641
