Product Description

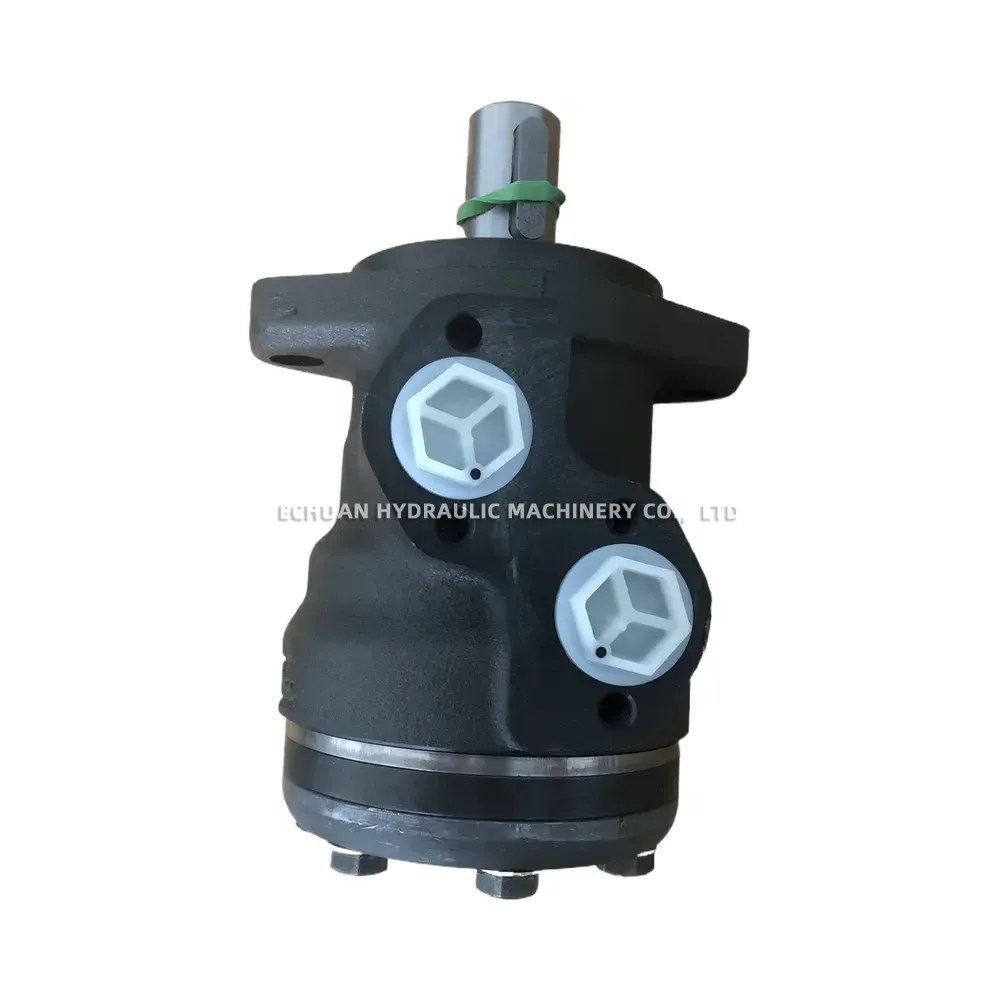

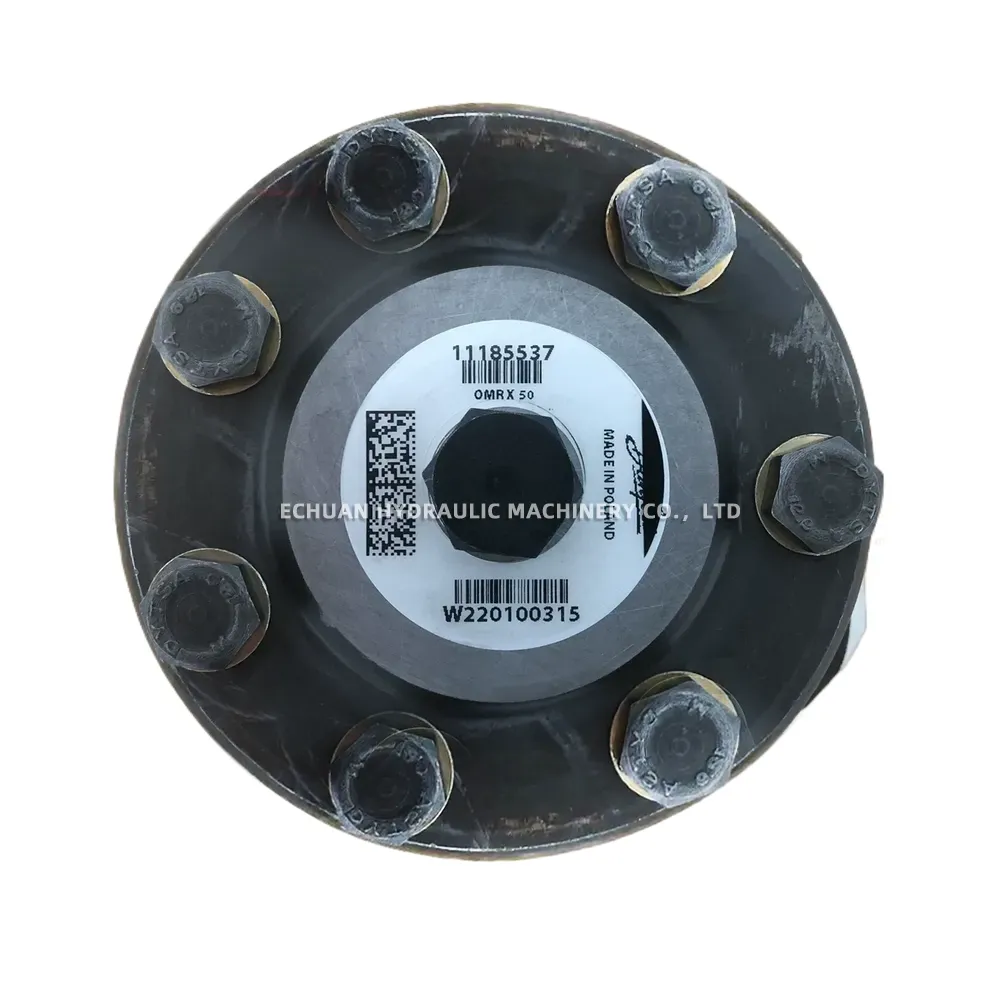

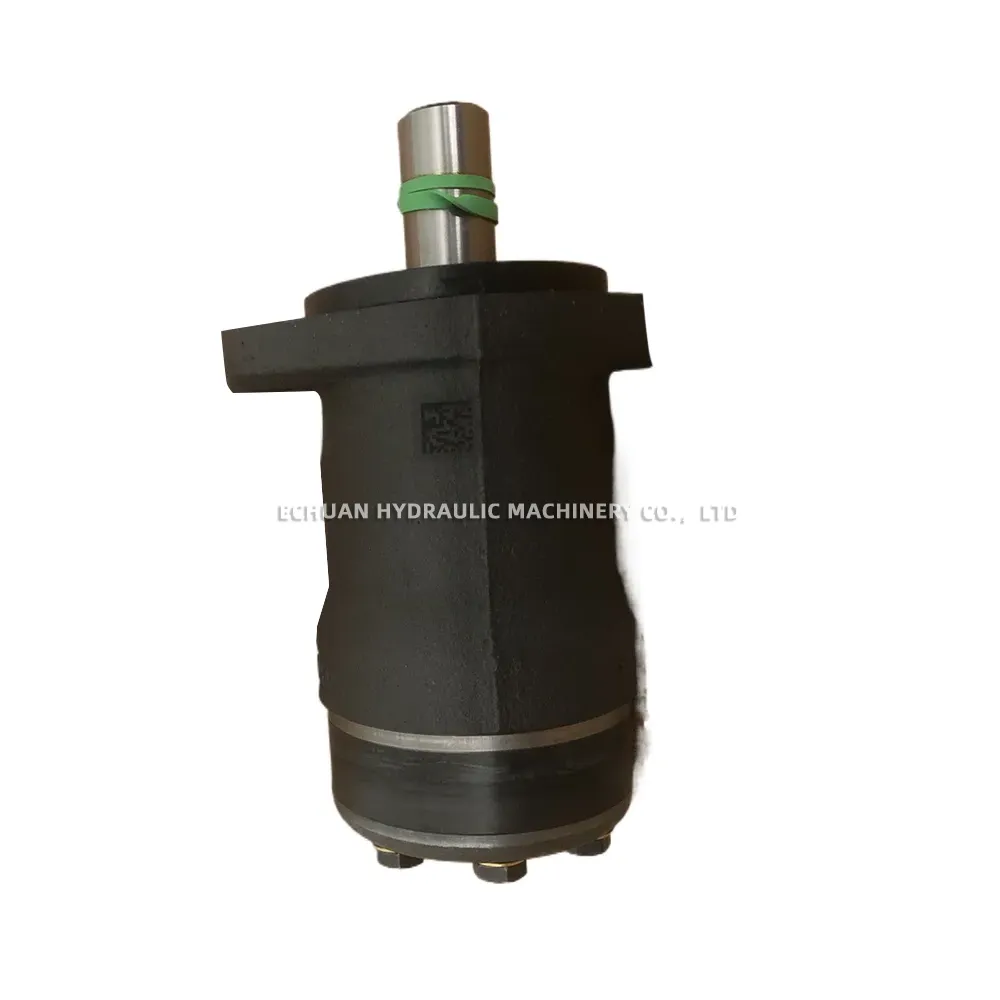

Danfoss OMRX50 11185537 Hydraulic Motor

The Danfoss OMRX50 (part number 11185537) is a compact, low-speed, high-torque (LSHT) orbital hydraulic motor. Part of the reliable OMR/OMRX series, it is designed for continuous operation under tough conditions. Featuring a robust construction with roller bearings (Geroler type), it offers high efficiency, smooth performance across a wide speed range, and a long service life. The OMRX variant typically includes enhanced features like improved shaft seals suitable for higher back pressures. This motor is well-suited for various mobile and industrial applications such as conveyors, agricultural machinery, construction equipment, machine tools, and more.

Technical Specifications:

  • Manufacturer: Danfoss
  • Part Number: 11185537
  • Series: OMRX
  • Geometric Displacement: 50.0 cm³/rev [3.05 in³/rev]
  • Mounting: SAE A 2 Bolt Flange (Pilot Ø 82.55 mm [3.25 in])
  • Shaft: Cylindrical Ø25 mm with Woodruff Key (8 x 7 x 32 mm DIN 6885)
  • Ports: G 1/2 Main Ports (BSPP, ISO 228/1)
  • Drain Port: G 1/4 (BSPP, ISO 228/1)
  • Max Continuous Speed: 750 rpm
  • Max Continuous Torque: 90 Nm [797 lb-in]
  • Max Continuous Pressure Drop: 140 bar [2030 psi]
  • Max Intermittent Pressure Drop: 175 bar [2540 psi]
  • Max Peak Pressure Drop: 200 bar [2900 psi]
  • Max Continuous Return Pressure (with drain line): 140 bar [2030 psi]
  • Paint: Black

Danfoss OMRX50 11185537

Model:Danfoss OMRX50 11185537
