Product Description

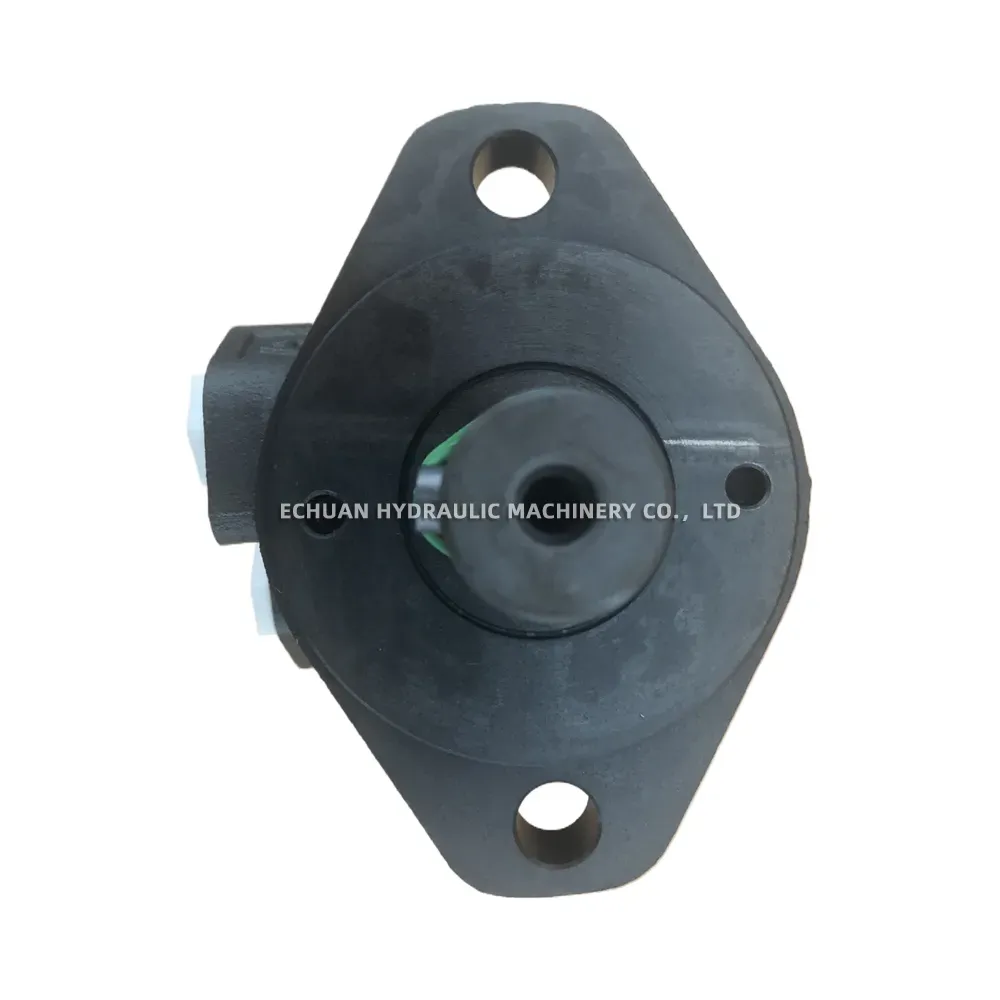

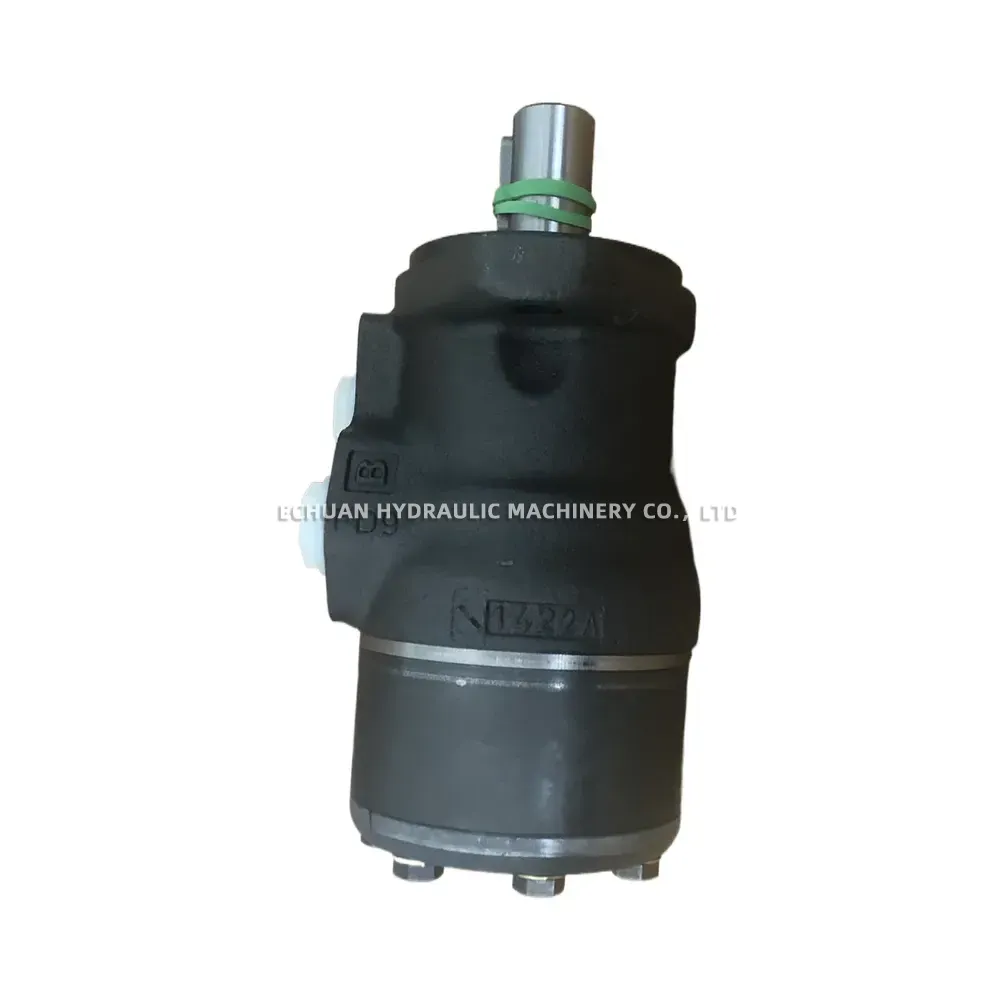

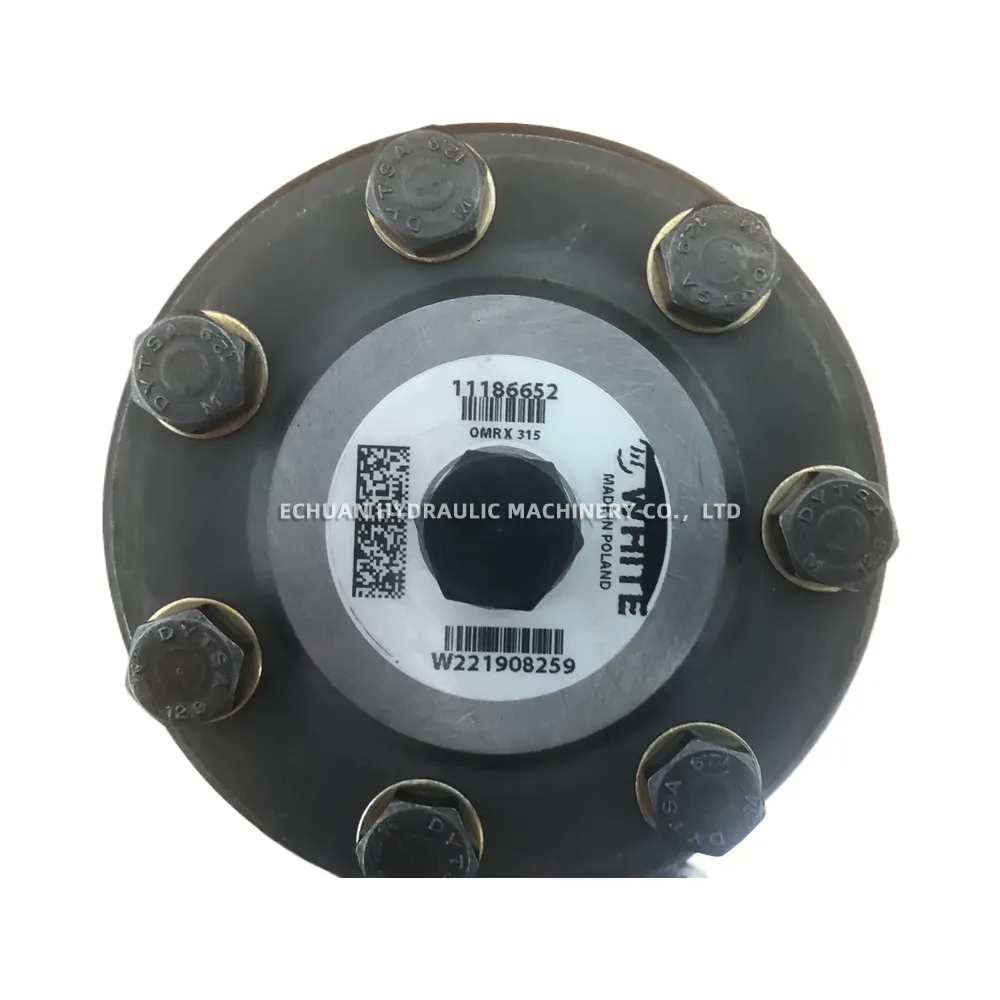

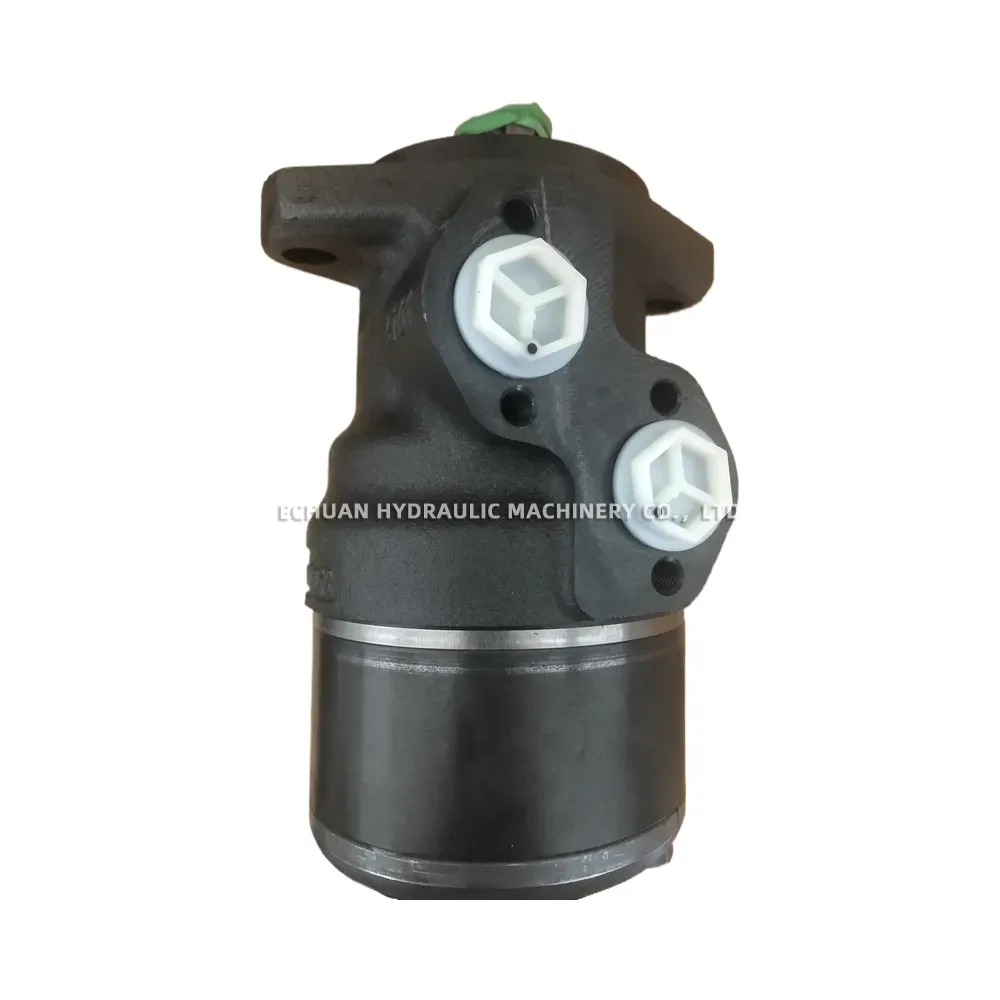

Danfoss OMRX315 11186652

The Danfoss OMRX 315, part number 11186652, is a medium-duty orbital hydraulic motor designed for durability and high performance in various mobile and industrial hydraulic systems. Belonging to the OMRX series, it features enhanced roller bearings compared to the standard OMR series, providing higher radial load capacity and extended operational life. This motor offers high starting torque, smooth running characteristics over a wide speed range, and a compact design suitable for applications requiring robust power transmission, such as conveyors, agricultural machinery, construction equipment, and machine tools.

Technical Specifications:

  • Manufacturer: Danfoss
  • Type: Orbital Hydraulic Motor
  • Series: OMRX
  • Model: OMRX315
  • Part Number: 11186652
  • Displacement: 314.9 cm³/rev (19.21 in³/rev)
  • Max. Continuous Speed: 240 rpm
  • Max. Intermittent Speed: 300 rpm
  • Max. Continuous Torque: 640 Nm (5670 lb-in)
  • Max. Intermittent Torque: 770 Nm (6815 lb-in)
  • Max. Continuous Pressure Drop: 175 bar (2550 psi)
  • Max. Intermittent Pressure Drop: 200 bar (2900 psi)
  • Max. Continuous Oil Flow: 75 l/min (20 US gal/min)
  • Shaft Type: Ø32 mm cylindrical with parallel key A10 x 8 x 45 (DIN 6885)
  • Mounting Flange: 4-Bolt Square Flange (Ø82.55 mm pilot dia.)
  • Port Type (Main): G 1/2 (BSP)
  • Port Type (Drain): G 1/4 (BSP)
  • Rotation: Reversible

Danfoss OMRX315 11186652

Model:Danfoss OMRX315 11186652
