Product Description

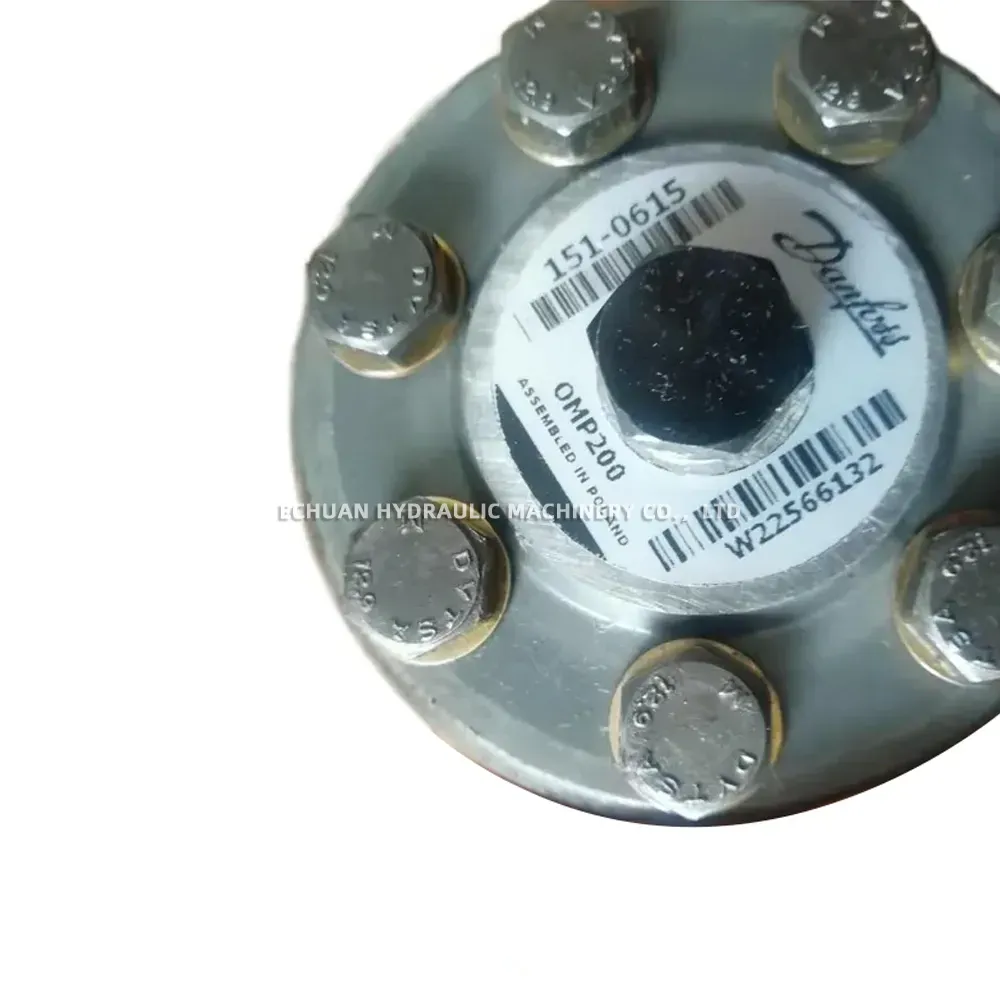

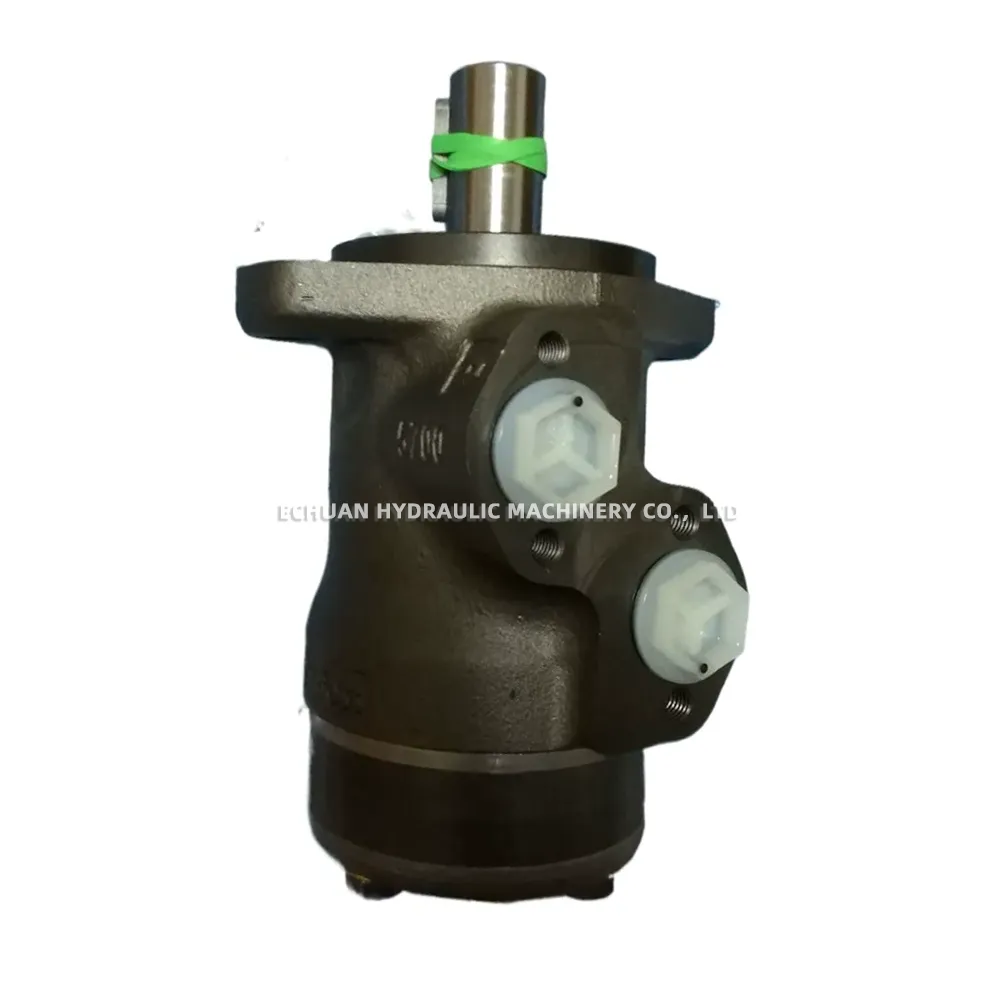

Danfoss OMP200 151-0615 Hydraulic Motor
The Danfoss OMP200 (part number 151-0615) is a light-duty, low-speed high-torque (LSHT) orbital hydraulic motor. Part of the OMP series, it is designed for continuous operation under moderate conditions. Featuring a compact design and robust construction with a gerotor gear set, it offers good efficiency and reliability for various mobile and industrial applications, such as conveyors, agricultural machinery, light construction equipment, and machine tools. This specific model features a standard 2-bolt mounting flange, a cylindrical shaft, and BSPP threaded ports.
Technical Specifications:
- Displacement: 194.8 cm³/rev [11.89 in³/rev]
- Mounting Flange: SAE A 2 Bolt (Ø82.55 mm pilot, Ø106.4 mm bolt circle)
- Shaft Type: Ø32 mm Cylindrical with Woodruff Key (10 x 8 x 45 mm DIN 6885)
- Port Type: Main Ports G 1/2 (BSPP), Drain Port G 1/4 (BSPP)
- Max Continuous Speed: 308 rpm
- Max Intermittent Speed: 385 rpm
- Max Continuous Torque: 350 Nm [3098 lb-in]
- Max Intermittent Torque: 440 Nm [3894 lb-in]
- Max Continuous Pressure Drop: 100 bar [1450 psi]
- Max Intermittent Pressure Drop: 125 bar [1810 psi]
- Max Peak Pressure Drop: 140 bar [2030 psi]
- Oil Flow (Continuous): 60 L/min [15.8 US gal/min]
- Rotation: Standard (Bi-directional)
Danfoss OMP200 151-0615
Model:Danfoss OMP200 151-0615
| Brand | DANFOSS |
|---|---|
| Model | OMP200 151-0615 |
| Part No. | Danfoss OMP200 151-0615 |
| Category | Hydraulic pumps |
| Link | https://www.echuan-hydraulic.com/product/danfoss-omp200-151-0615 |
