Product Description

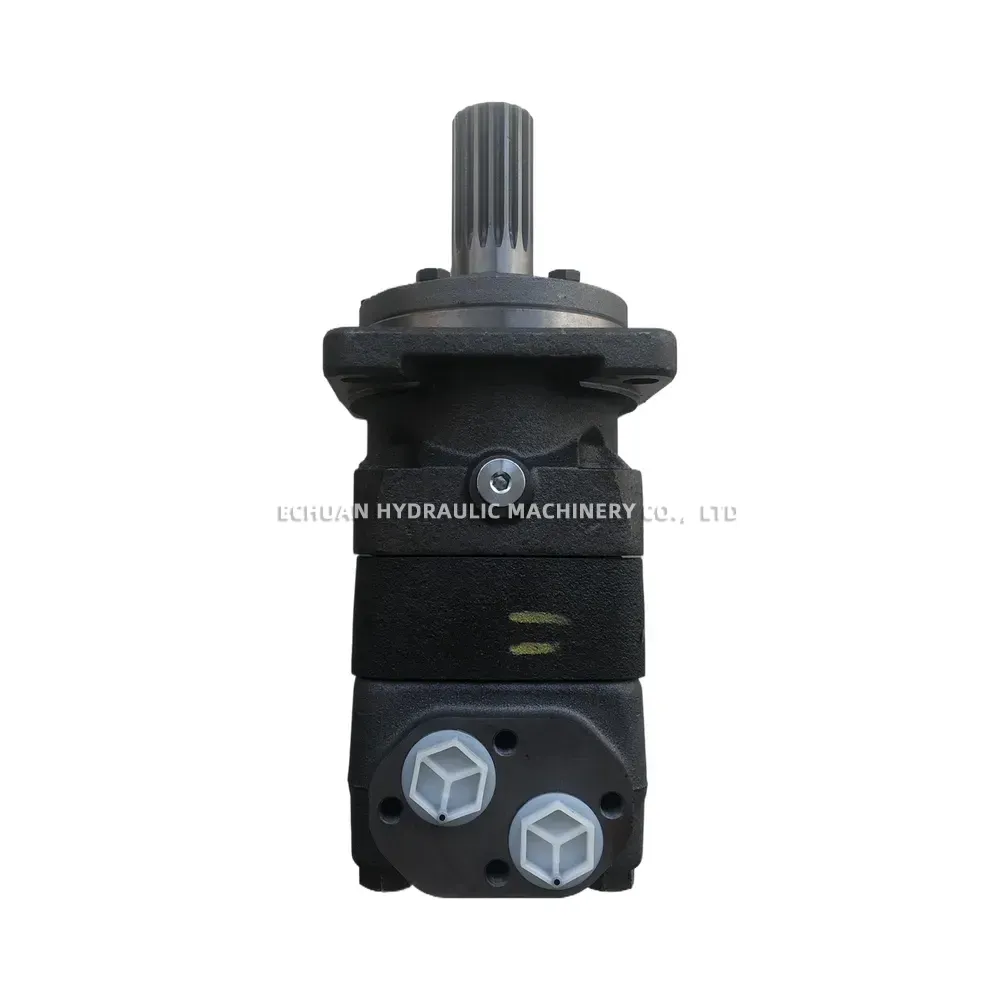

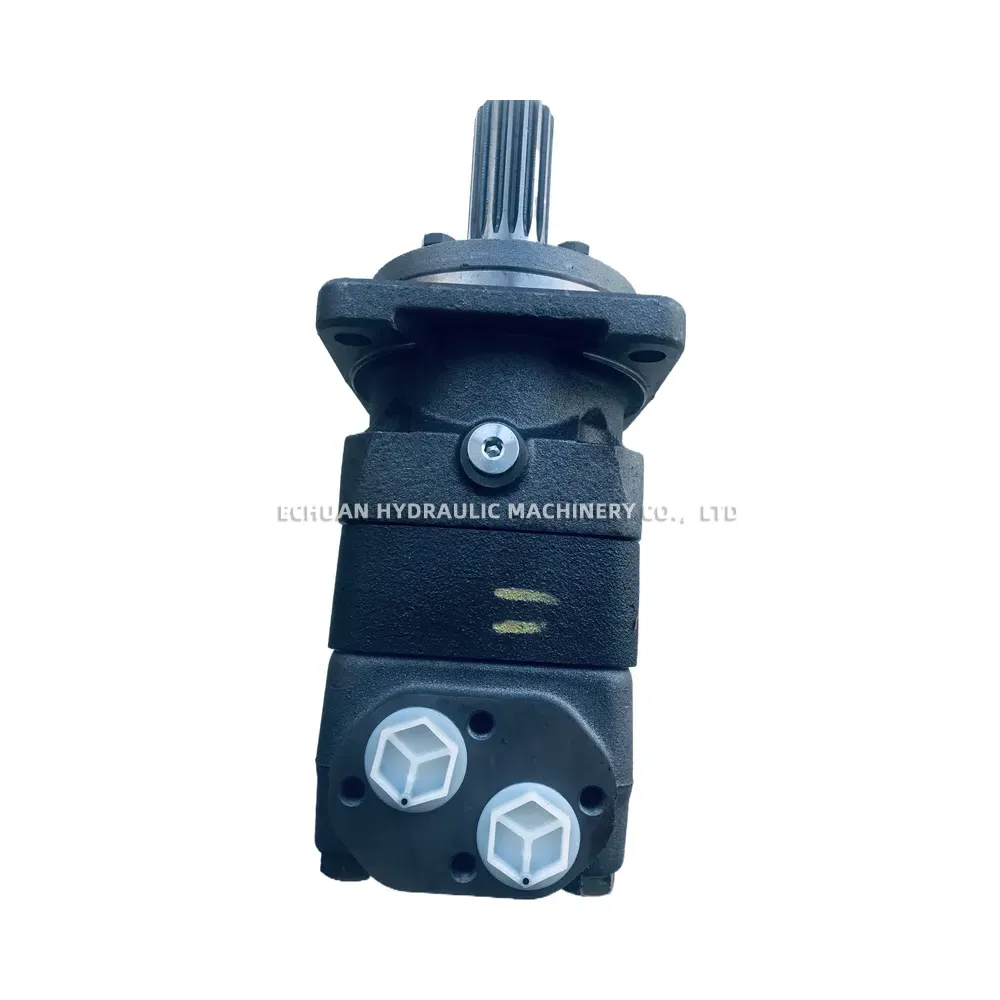

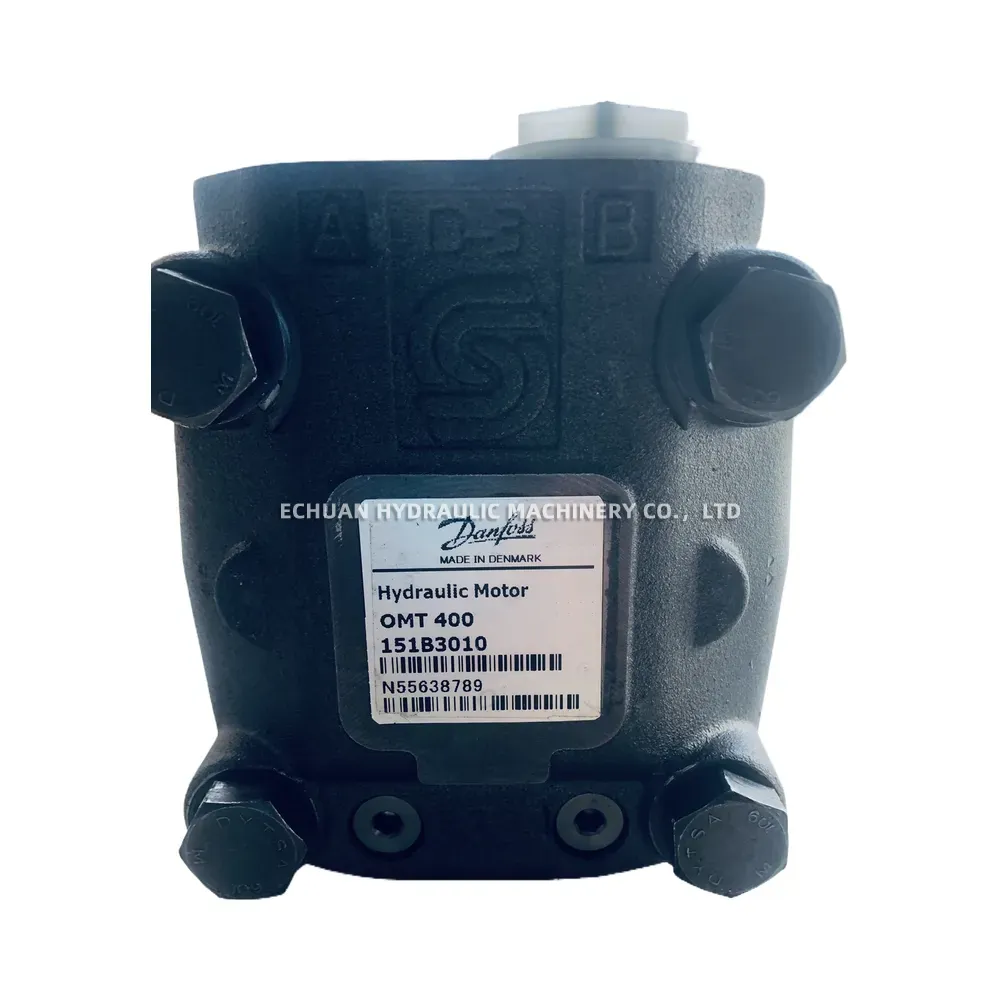

Danfoss OMT400 151B3010 Hydraulic Motor

The Danfoss OMT 400 (151B3010) is a robust, high-torque orbital hydraulic motor designed for demanding applications. Part of the OMT series, it features a Gerotor gear set and is known for its high starting torque, smooth operation over a wide speed range, and long service life even under heavy loads and extreme operating conditions. Its compact design, high radial and axial bearing capacity, and high-pressure shaft seal make it suitable for various industrial, mobile, agricultural, and marine hydraulic systems requiring reliable power transmission.

Technical Specifications:

  • Manufacturer: Danfoss
  • Part Number: 151B3010
  • Series: OMT
  • Displacement: 400 cm³/rev (24.41 in³/rev)
  • Mounting Flange: SAE C 4-Bolt (Ø127 mm pilot, Ø162 mm bolt circle)
  • Shaft Type: Tapered shaft 1:10, Ø45 mm, with Woodruff key (DIN 6885 – B8x7x32)
  • Port Type: Main Ports – G 1 (BSP), Side ported
  • Drain Port: G 1/4 (BSP), Side ported
  • Max Continuous Speed: 470 rpm
  • Max Continuous Torque: 1310 Nm (11600 lbf·in)
  • Max Continuous Pressure Drop: 200 bar (2900 psi)
  • Max Return Pressure (with drain line): 210 bar (3050 psi)

Danfoss OMT400 151B3010

Model:Danfoss OMT400 151B3010
