Product Description

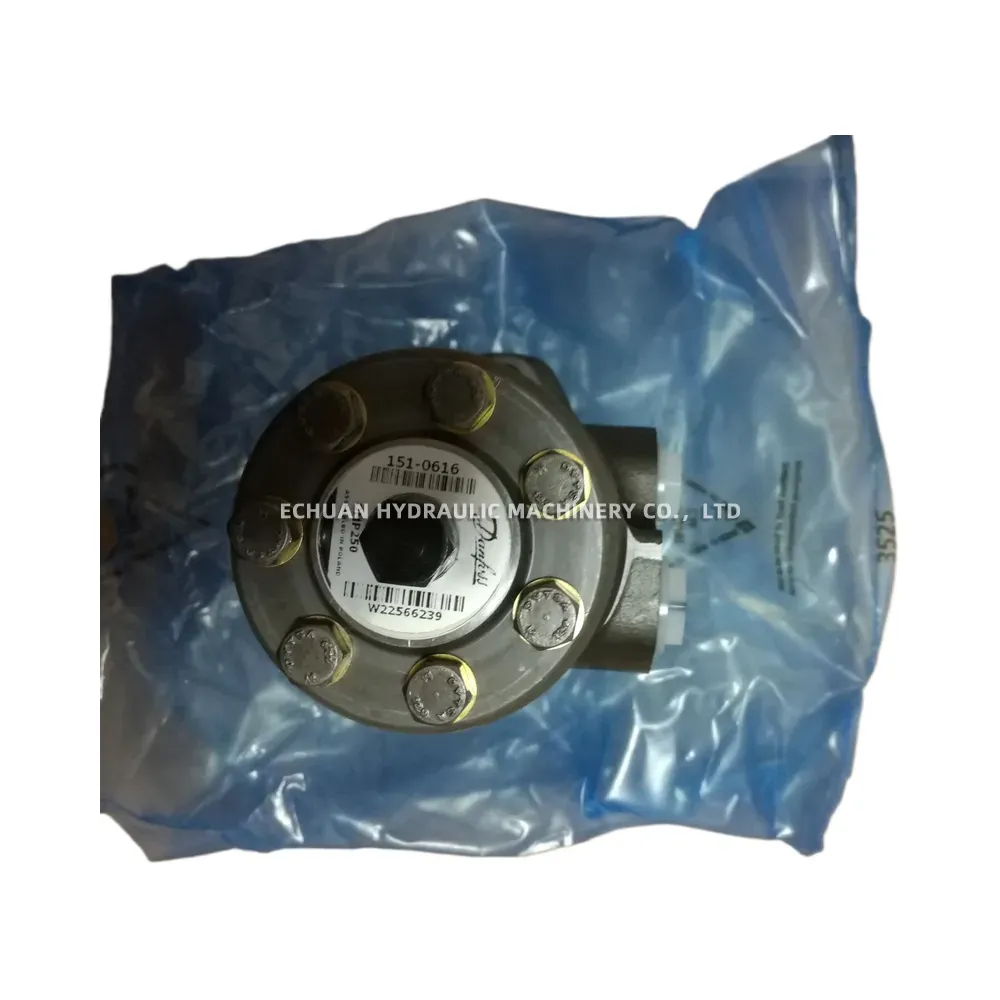

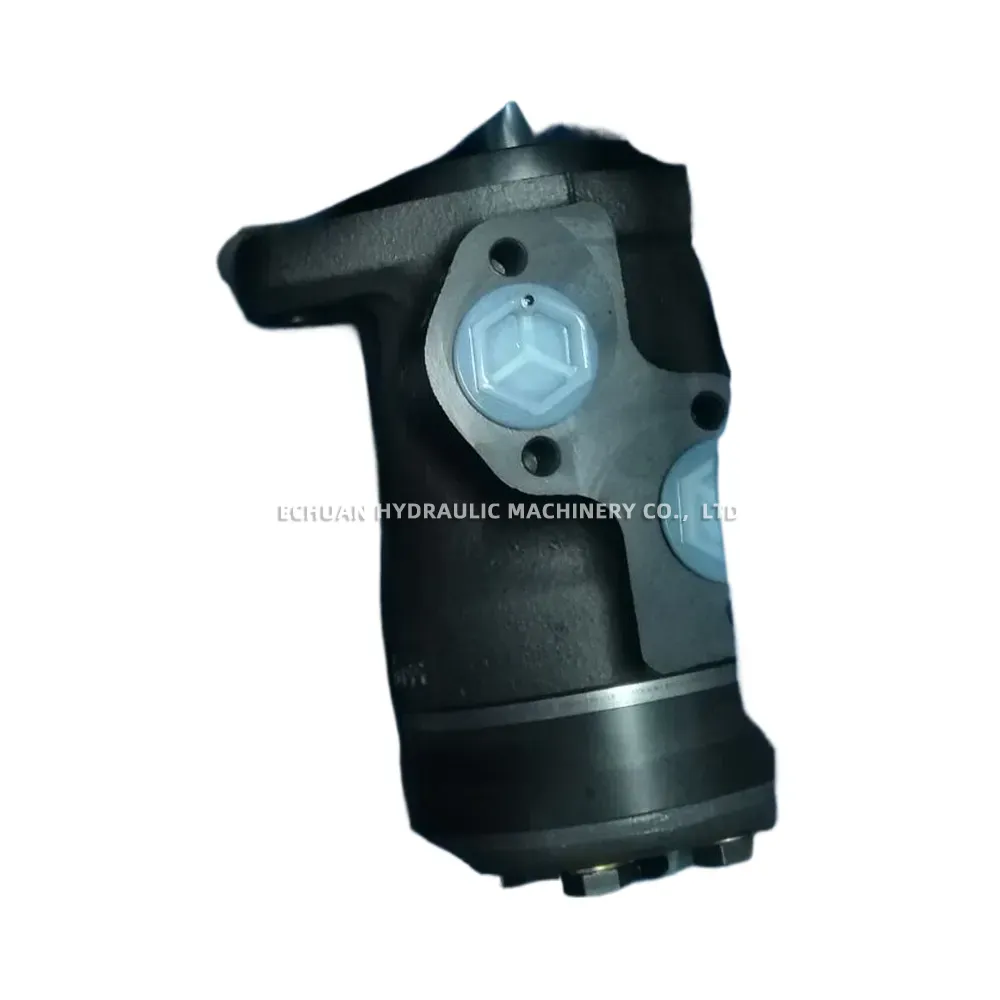

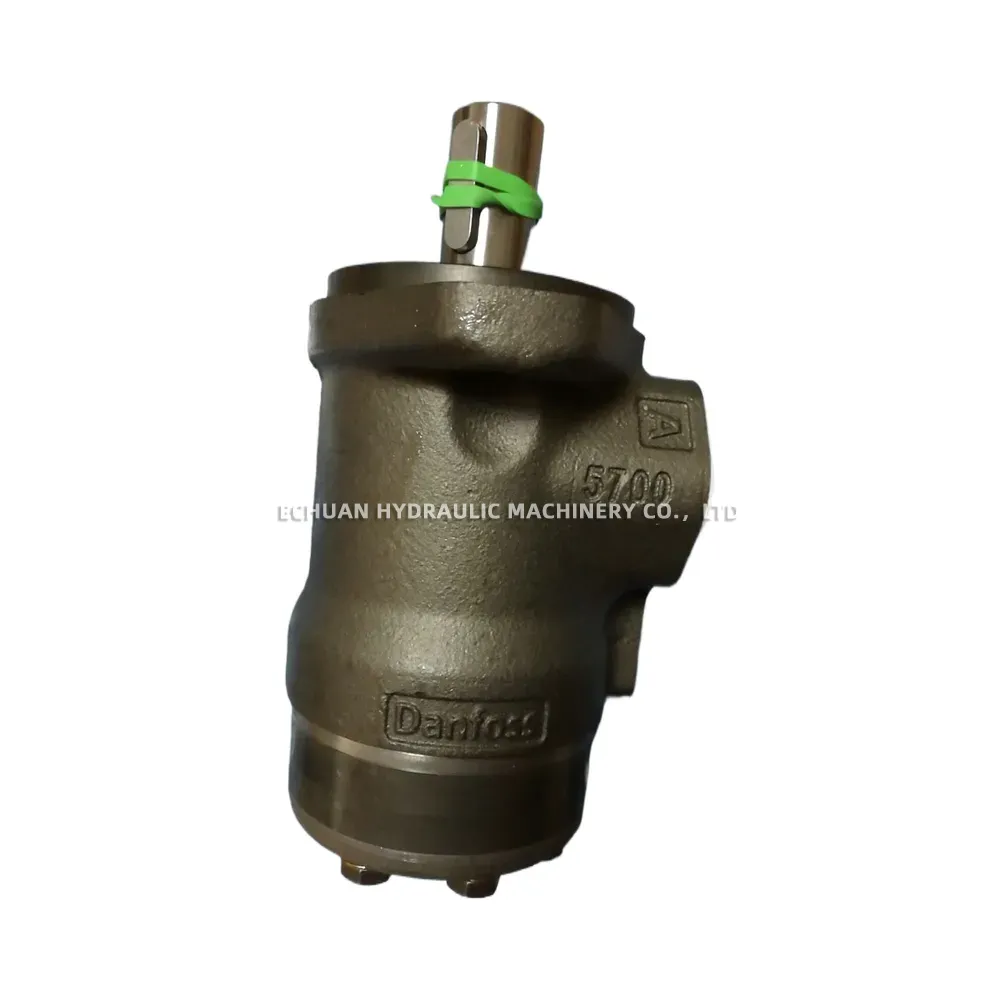

Danfoss OMP250 151-0616 Hydraulic Motor

The Danfoss OMP 250 (part number 151-0616) is a compact, medium-duty orbital hydraulic motor designed for efficiency and durability. Belonging to the OMP series, it features a gerotor gear set, providing smooth operation and high starting torque. This motor is well-suited for a wide range of mobile and stationary hydraulic applications requiring low speed and high torque, such as conveyors, agricultural machinery, construction equipment, and machine tools. Its robust construction ensures reliable performance even in demanding conditions.

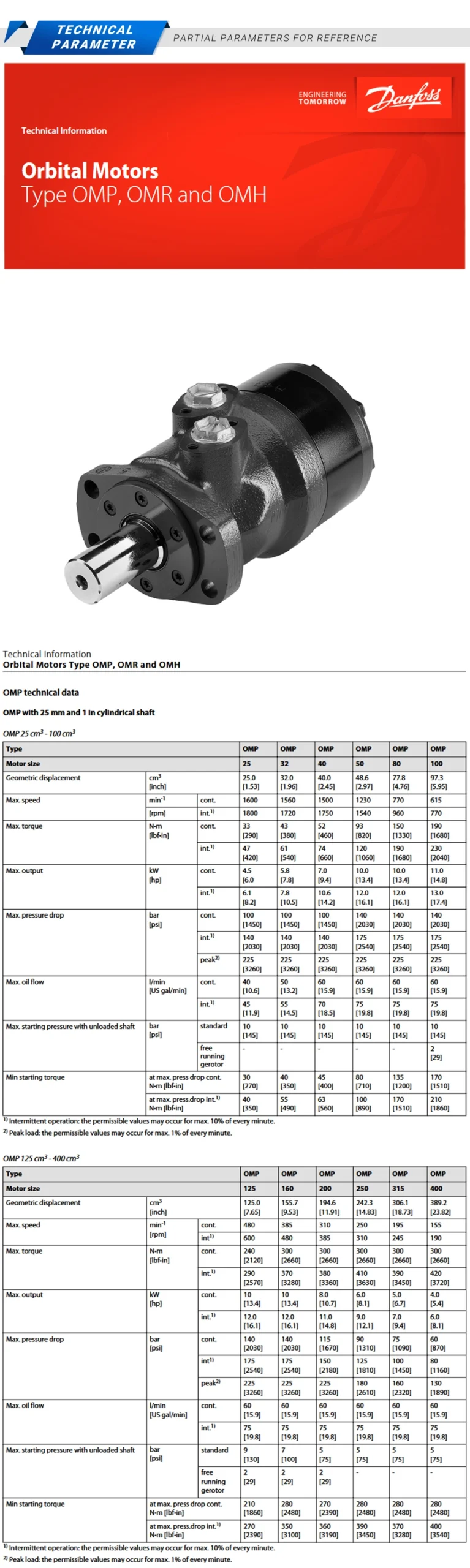

Technical Specifications:

  • Part Number: 151-0616
  • Series: OMP
  • Displacement: 251.3 cm³/rev (15.33 in³/rev)
  • Max Continuous Speed: 240 rpm
  • Max Intermittent Speed: 300 rpm
  • Max Continuous Torque: 400 Nm (3540 lb-in)
  • Max Intermittent Torque: 485 Nm (4300 lb-in)
  • Max Continuous Pressure Drop: 140 bar (2030 psi)
  • Max Intermittent Pressure Drop: 175 bar (2540 psi)
  • Max Continuous Flow: 60 L/min (15.8 US gal/min)
  • Max Intermittent Flow: 75 L/min (19.8 US gal/min)
  • Shaft Type: Ø32 mm Cylindrical with Woodruff Key 10 x 8 x 45 mm (DIN 6885)
  • Port Type: G 1/2 (BSPP – ISO 228/1)

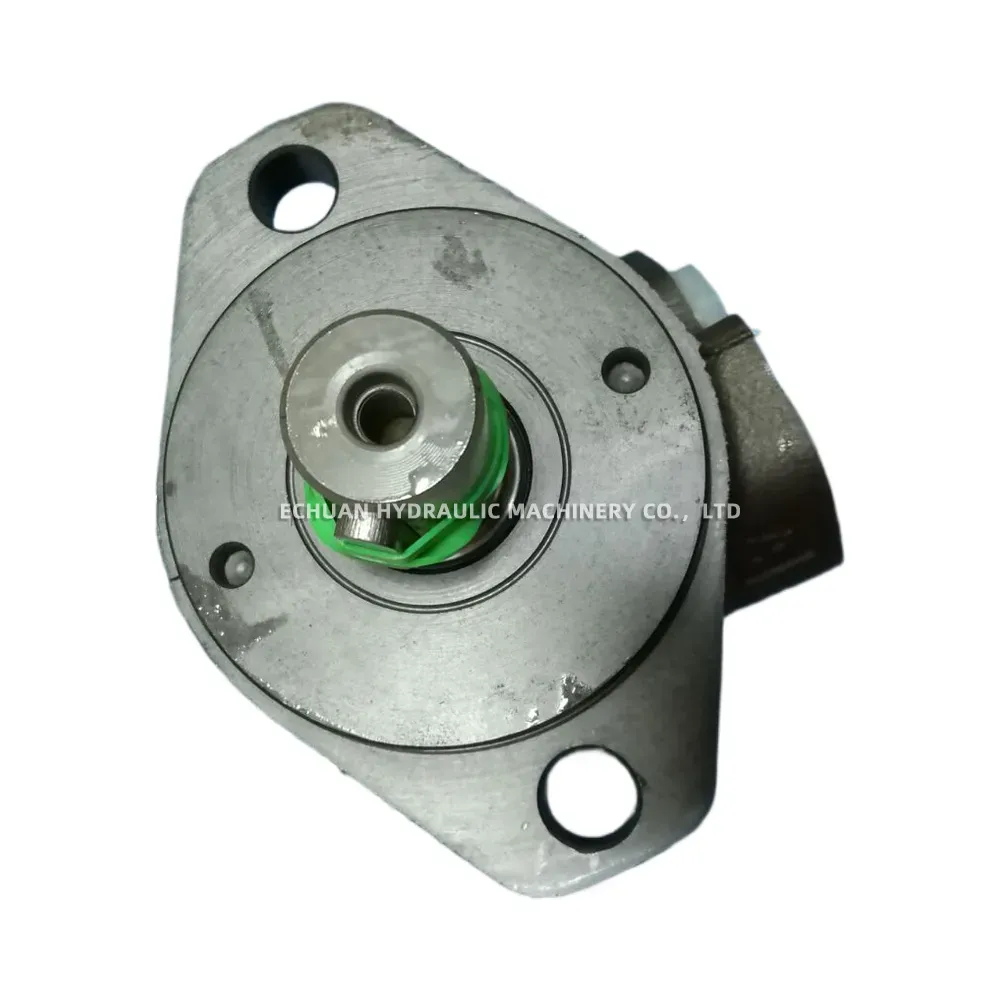

  • Mounting Flange: 4 Bolt Square – Pilot Ø82.55 mm x 6.3 mm

Danfoss OMP250 151-0616

Model:Danfoss OMP250 151-0616
