Product Description

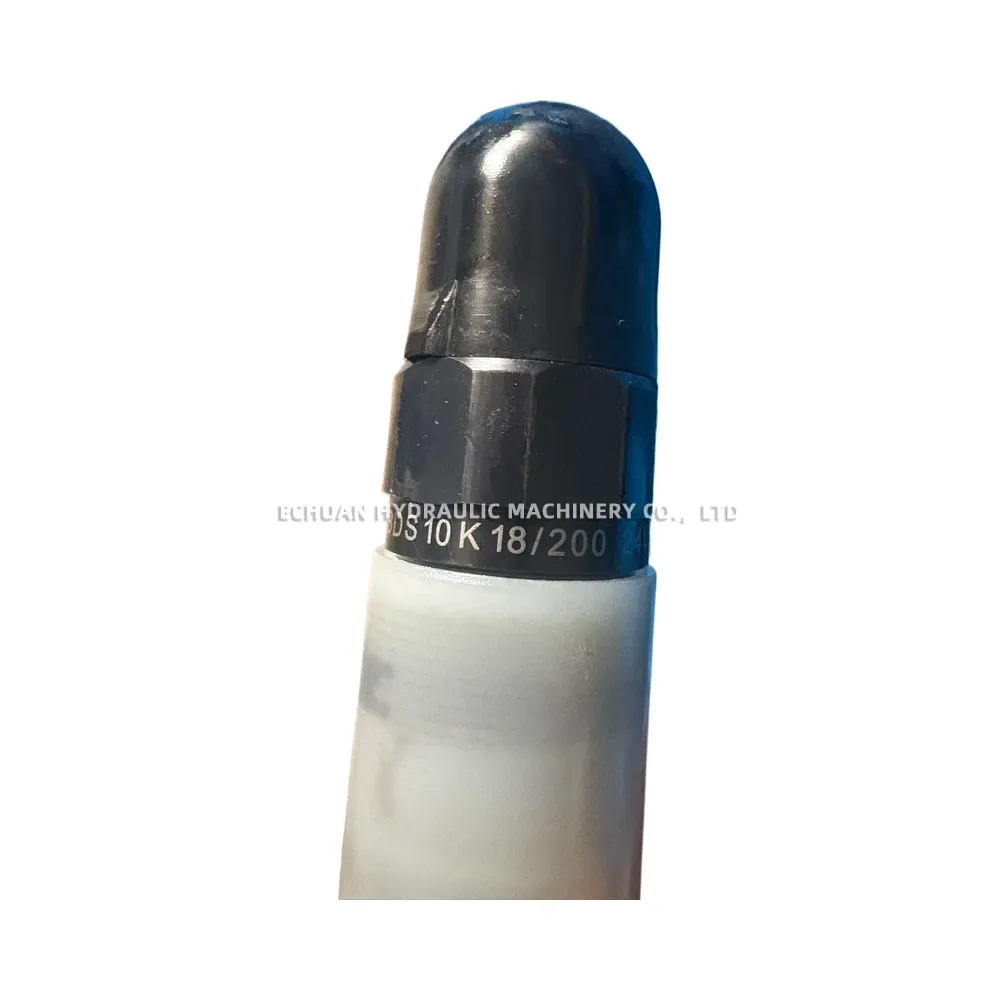

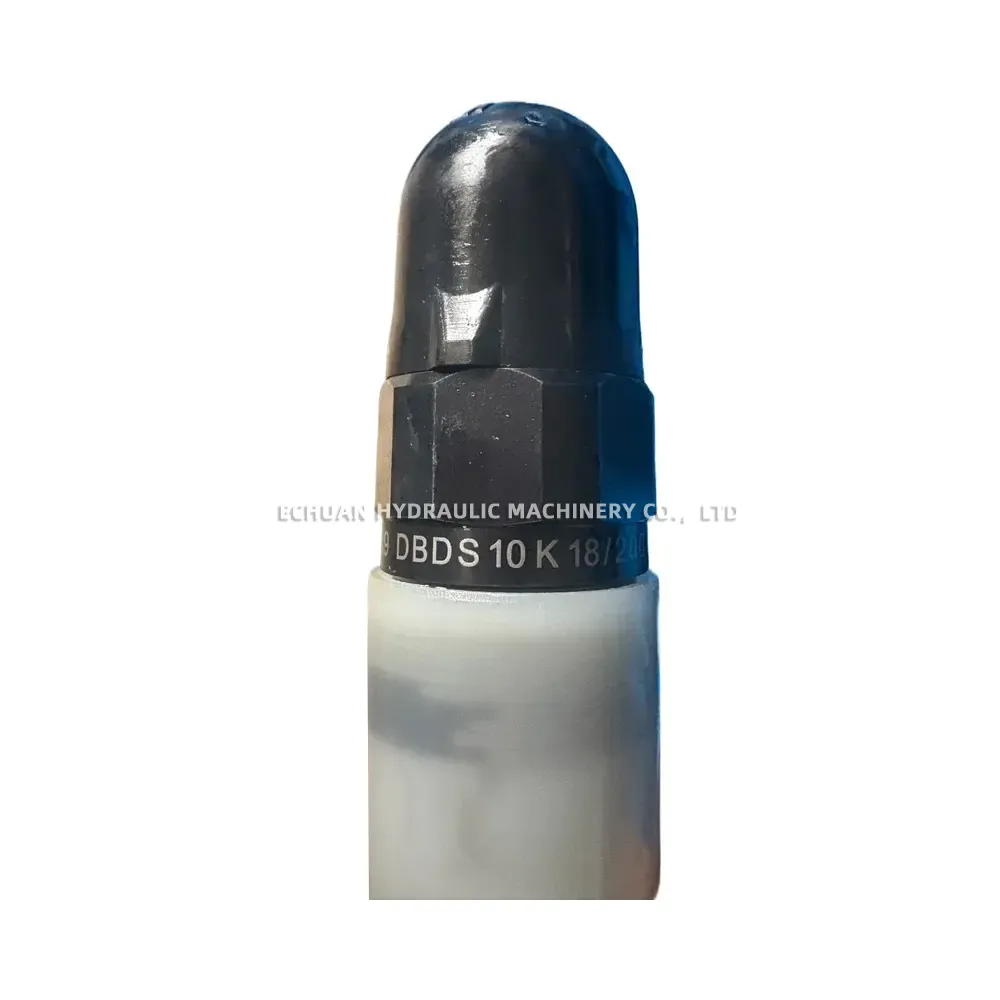

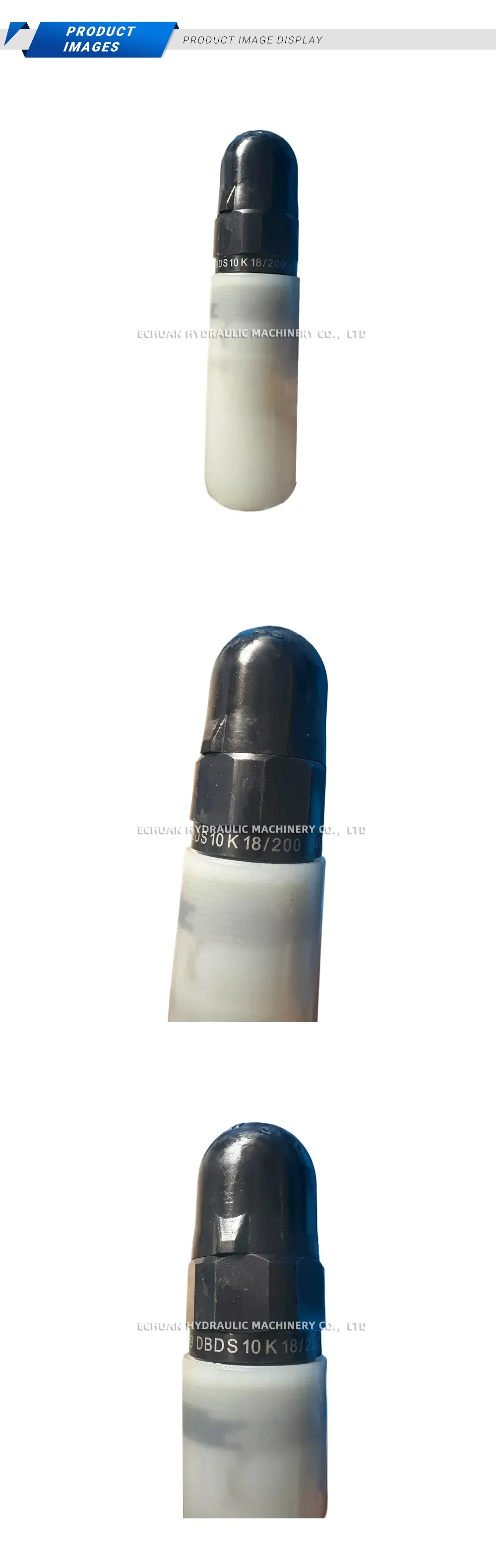

DBDS 10 K 18/200 Hydraulic Pressure Relief Valve
The DBDS 10 K 18/200 is a high-performance, direct-acting pressure relief valve engineered to safely limit and control system pressure within hydraulic circuits. Designed as a size NG10 cartridge valve, it allows for compact, space-saving installation directly into hydraulic manifolds and blocks. This specific model is rated for a maximum operating pressure of 200 bar and features a robust hexagonal setscrew adjustment mechanism shielded by a protective cap to prevent unauthorized or accidental modifications. Built to rigorous industrial standards, the DBDS 10 K 18/200 ensures rapid response times, excellent pressure stability, and long-lasting durability in demanding heavy-duty hydraulic applications.
Technical Specifications:
- Valve Type: Direct-acting pressure relief valve
- Nominal Size: Size 10 (NG10)
- Mounting Style: Cartridge valve (Designation ‘K’)
- Maximum Operating Pressure: 200 bar (Approx. 2900 psi)
- Adjustment Mechanism: Hexagon socket/setscrew with protective cap (Designation ‘S’)
- Component Series: 18 (Series 1X)
DBDS 10 K 18/200 Hydraulic Pressure Relief Valve
Optimize your hydraulic system’s safety with the DBDS 10 K 18/200 direct-acting pressure relief valve. This NG10 cartridge-style valve delivers reliable pressure control up to 200 bar and features a secure hex adjustment with a protective cap, making it ideal for compact industrial manifold installations.
