Product Description

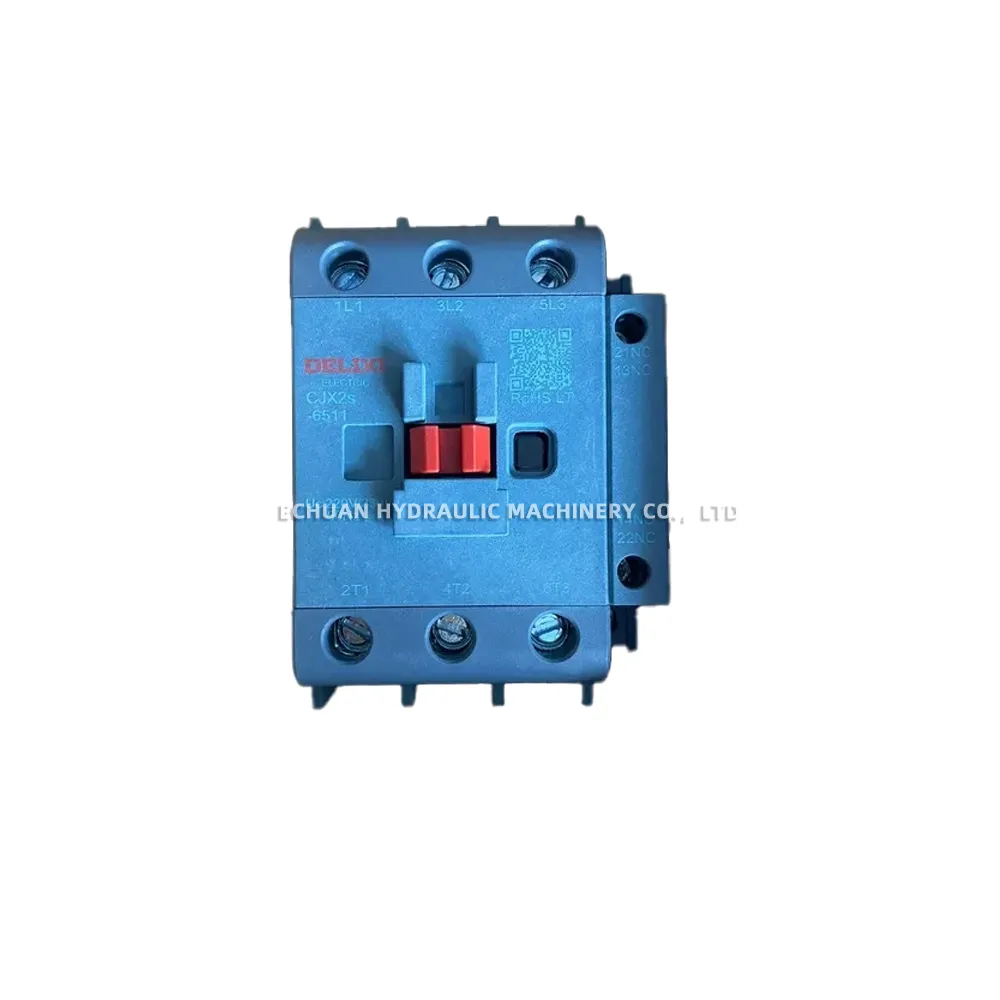

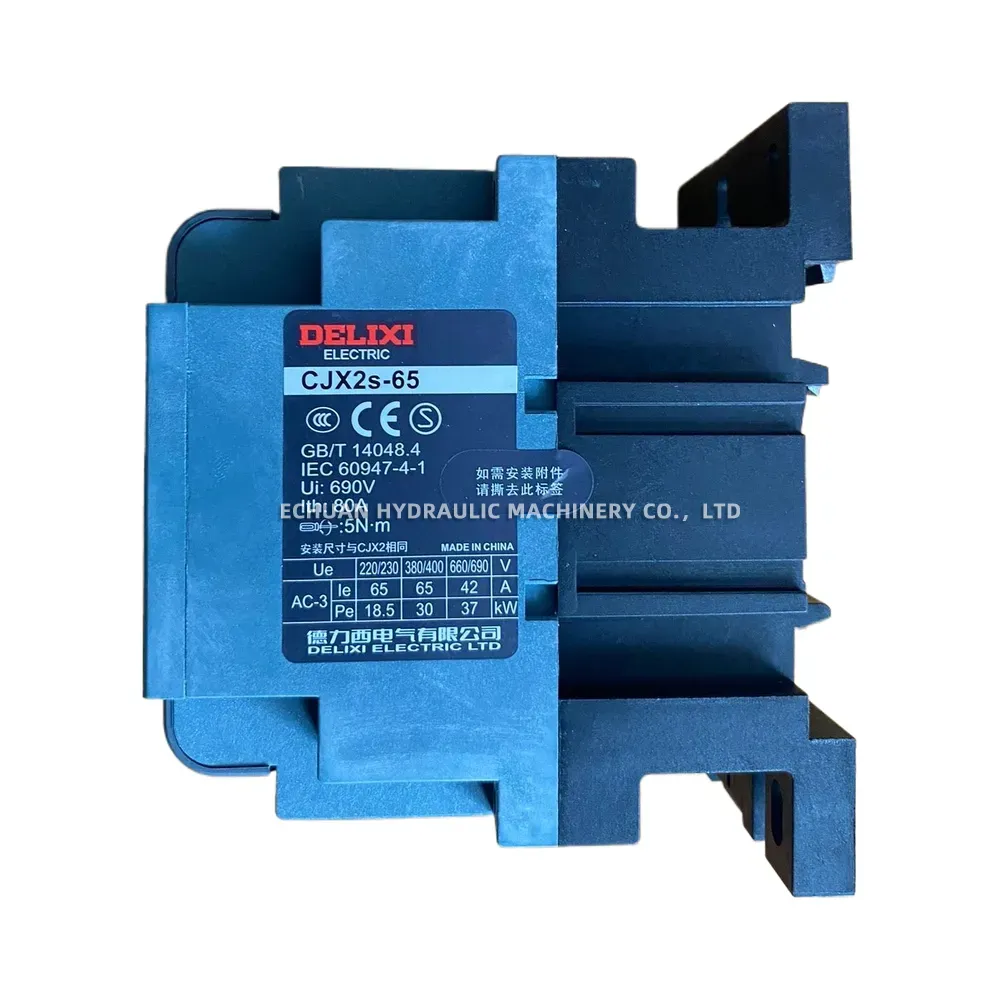

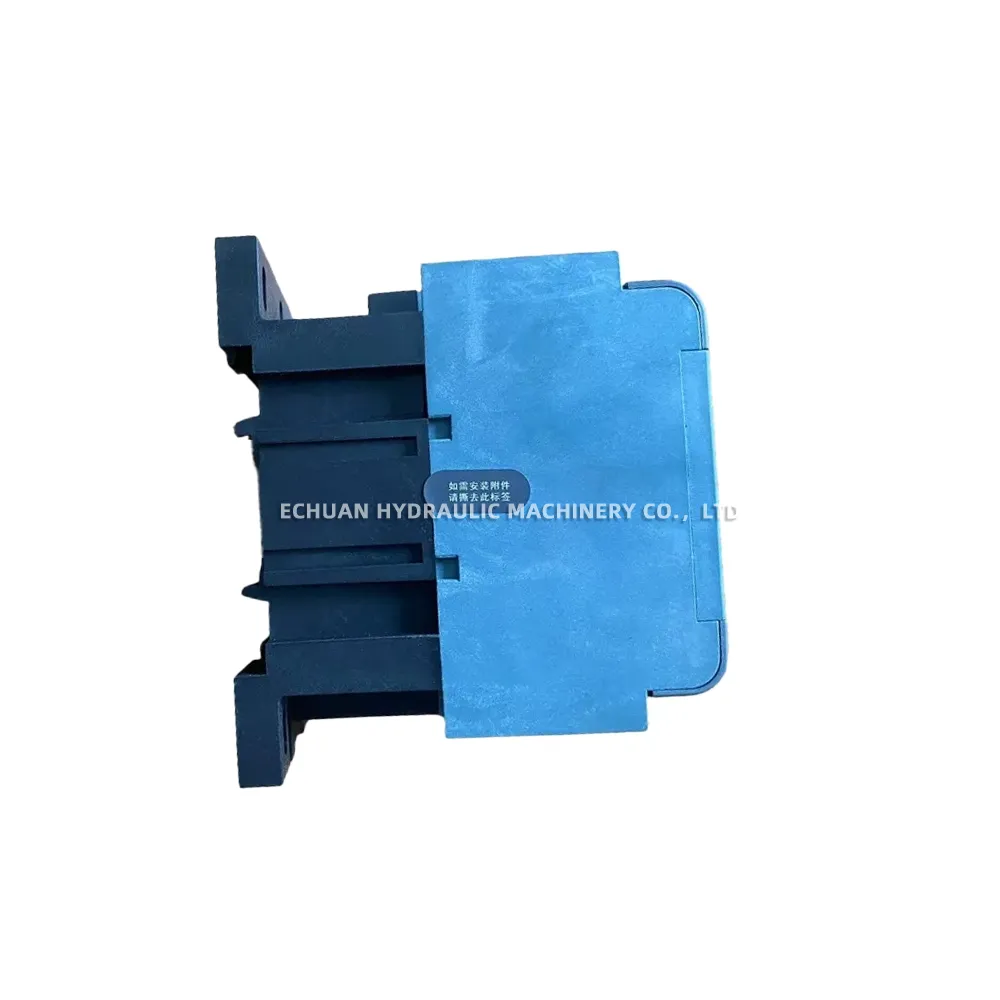

Delixi CJX2S-6511
The Delixi CJX2S-6511 is a high-performance 3-pole AC contactor designed for reliable switching and control of electrical circuits. It is primarily used for making, breaking, frequently starting, and controlling AC motors (AC-3 duty). This contactor is engineered for long electrical and mechanical life, ensuring durability in demanding industrial environments. Its compact design allows for easy installation on a DIN rail or with screws, making it a versatile solution for motor control centers, HVAC systems, and various machinery applications.
Technical Specifications:
- Model: CJX2S-6511
- Rated Operational Current (Ie) at AC-3, 380V: 65A
- Main Contacts: 3 Normally Open (3NO)
- Auxiliary Contacts: 1 Normally Open (1NO) + 1 Normally Closed (1NC)
- Rated Insulation Voltage (Ui): 690V
- Coil Voltage: Available in various AC voltages (e.g., 24V, 110V, 220V, 380V)
- Mounting: 35mm DIN Rail or Screw Mount
- Standard Compliance: IEC/EN 60947-4-1
Delixi CJX2S-6511
Discover the reliable Delixi CJX2S-6511 AC Contactor, featuring a 65A current rating, 3-pole configuration with 1NO+1NC auxiliary contacts. Ideal for industrial motor control, HVAC, and power switching applications.
