Product Description

DELIXI JSZ3A-B Time Delay Relay

The DELIXI JSZ3A-B Time Delay Relay is a highly reliable electronic timer engineered for precise timing control in industrial automation and electrical systems. Operating at a rated voltage of 220 VAC, this versatile relay features an adjustable mechanical dial with a 0-60 scale for accurate and easy time setting. It is equipped with intuitive ‘UP’ and ‘ON’ LED indicator lights to provide real-time operational status. The JSZ3A-B offers exceptional flexibility with multiple selectable delay ranges—1 second, 10 seconds, 60 seconds, and 6 minutes—which can be easily configured via specific 8-pin terminal connections. Manufactured by Delixi Group Co., Ltd., this CCC-certified relay ensures robust performance and durability for various control circuit applications.

Technical Specifications:

  • Brand: DELIXI
  • Model: JSZ3A-B
  • Rated Operating Voltage: 220 VAC

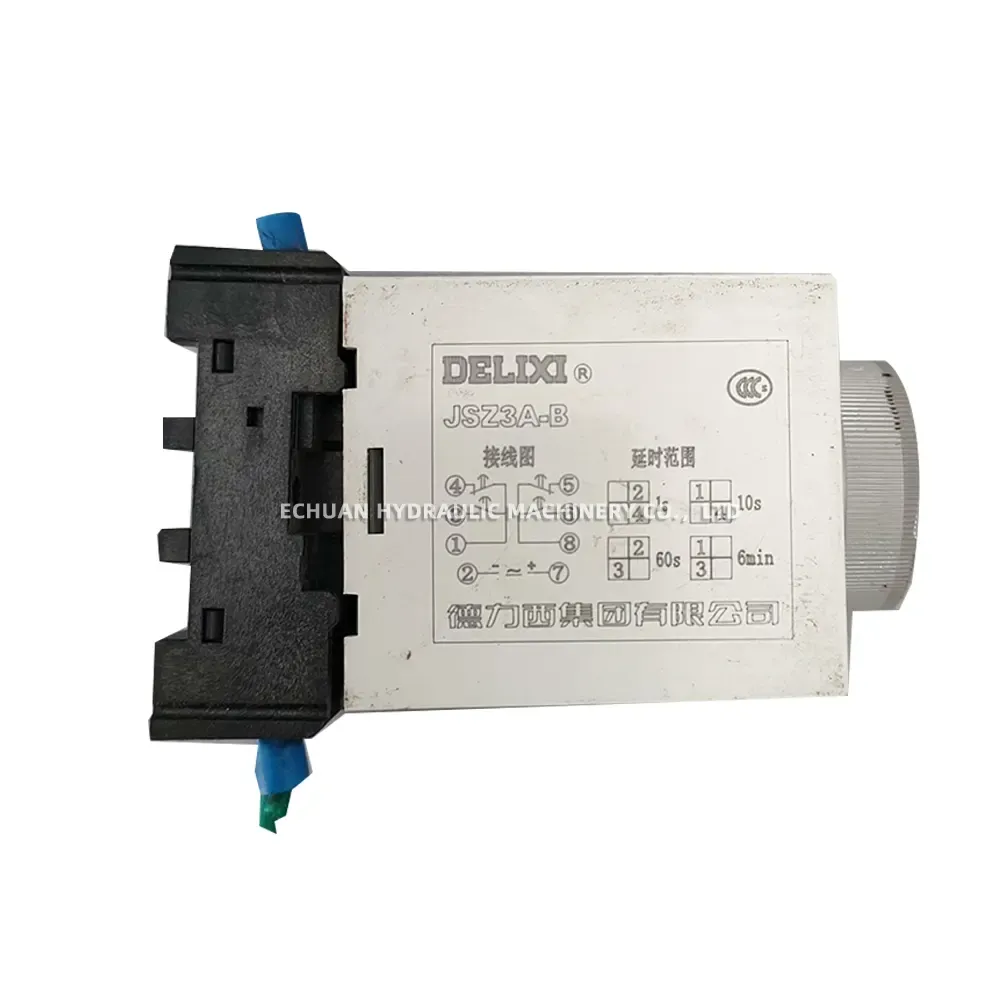

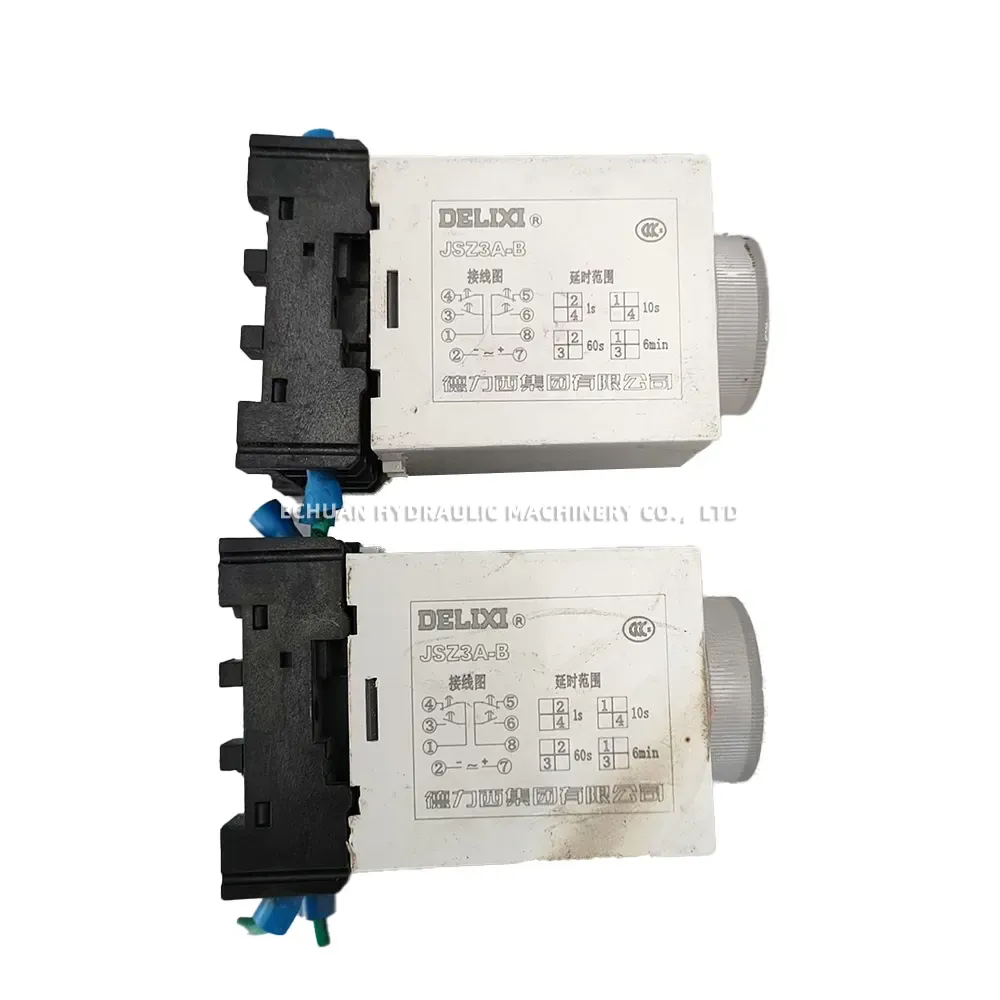

  • Selectable Delay Ranges: 1s (Terminals 2/4), 10s (Terminals 1/4), 60s (Terminals 2/3), and 6min (Terminals 1/3)

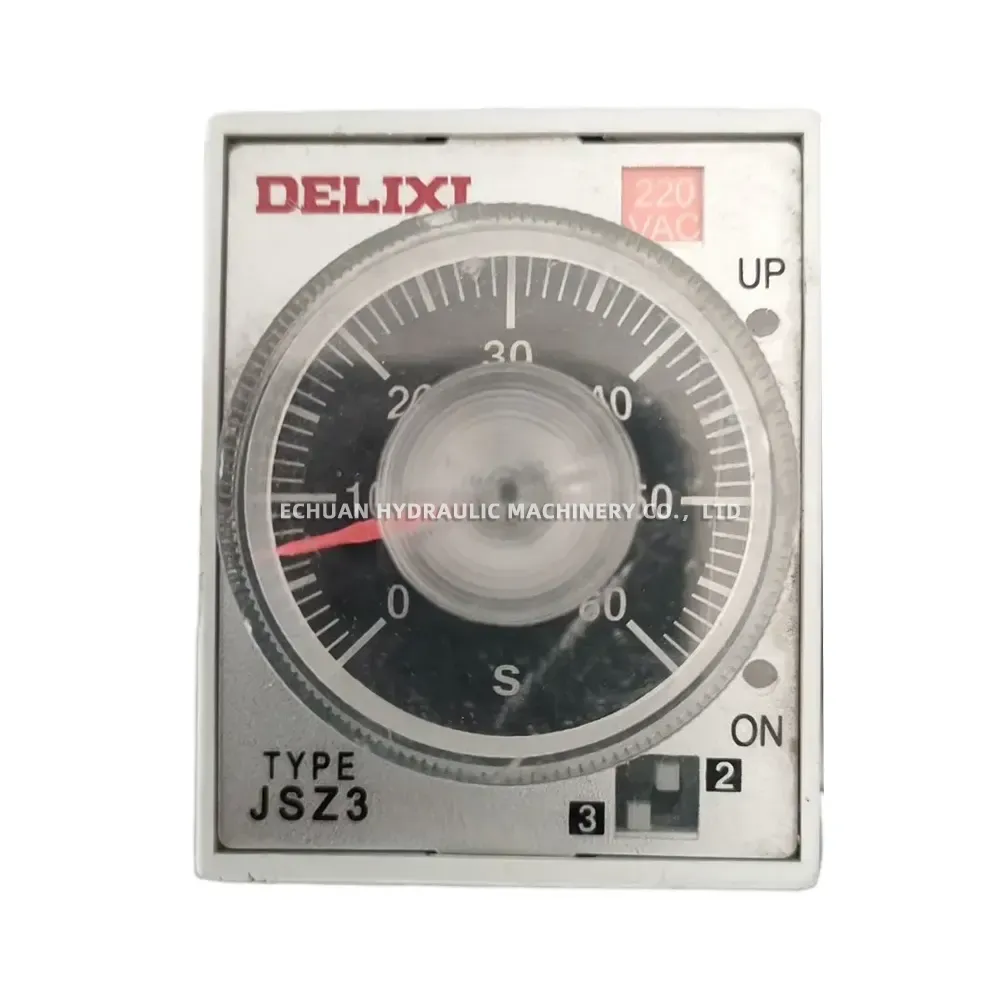

  • Timer Scale: Adjustable mechanical dial (0-60)

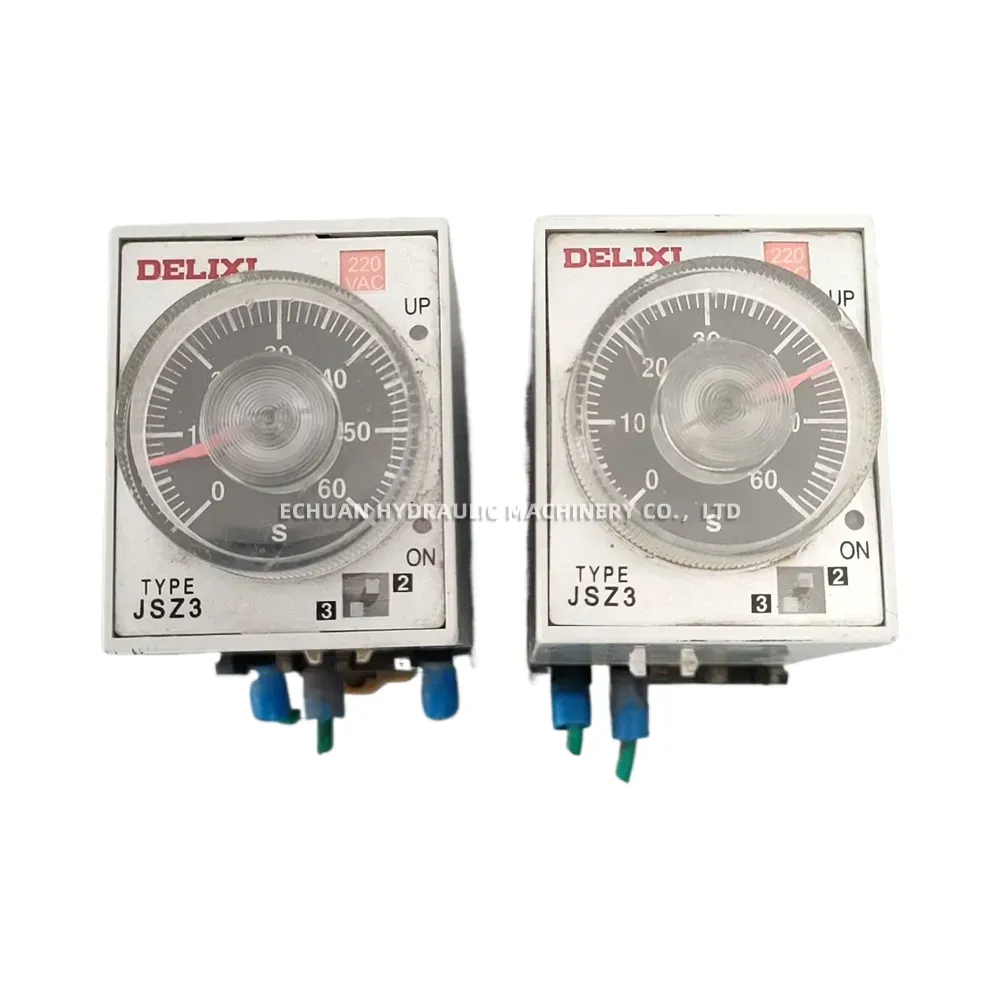

  • Indicators: ‘UP’ and ‘ON’ status lights
  • Terminal Configuration: Standard 8-pin wiring

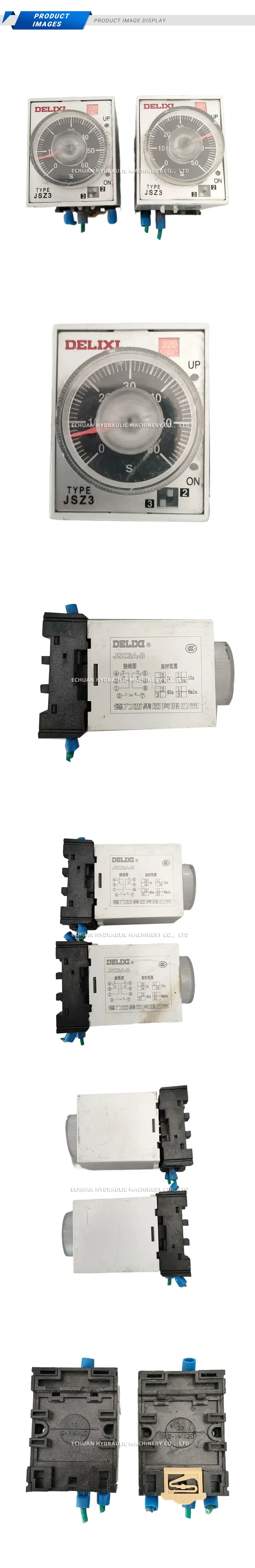

DELIXI JSZ3A-B Time Delay Relay Description

DELIXI JSZ3A-B Time Delay Relay

Upgrade your control circuits with the DELIXI JSZ3A-B Time Delay Relay. This 220VAC electronic timer features an adjustable 0-60 dial, dual LED indicators, and multiple selectable delay ranges from 1 second to 6 minutes. Ideal for precise and reliable industrial automation.
