Product Description

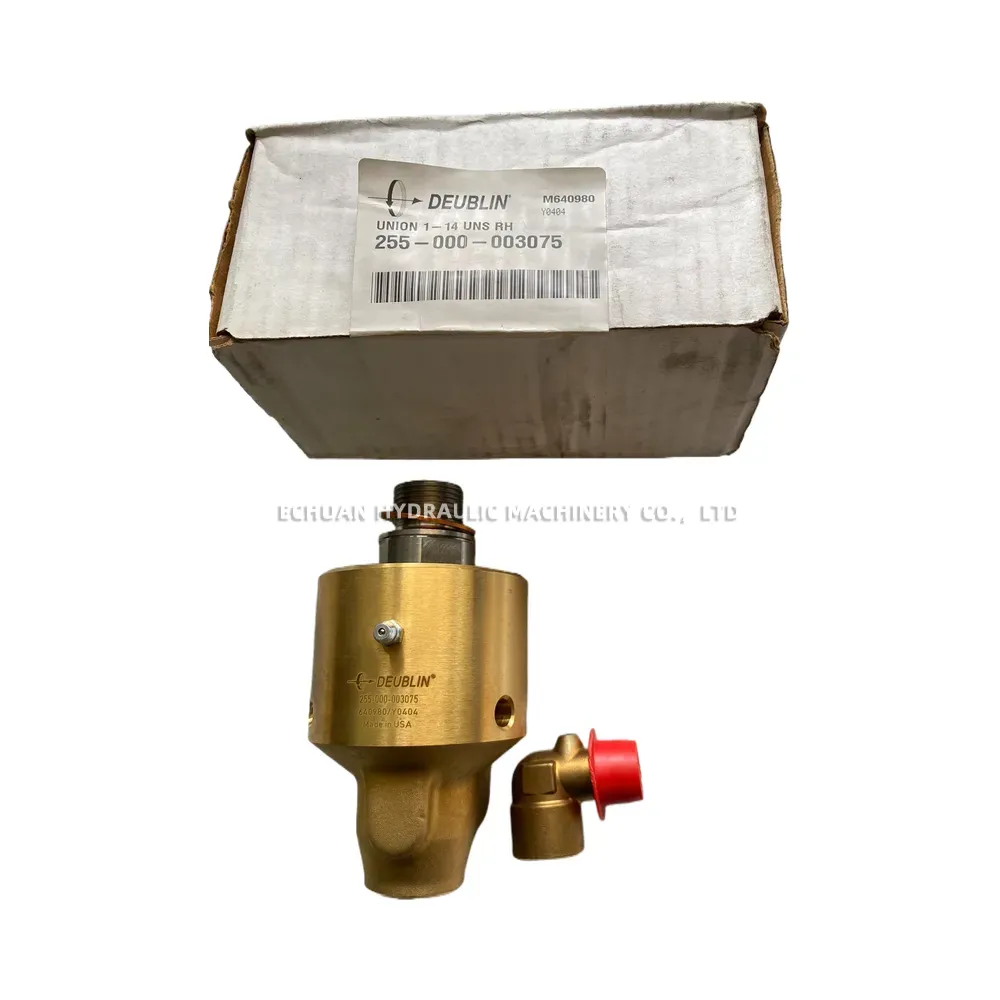

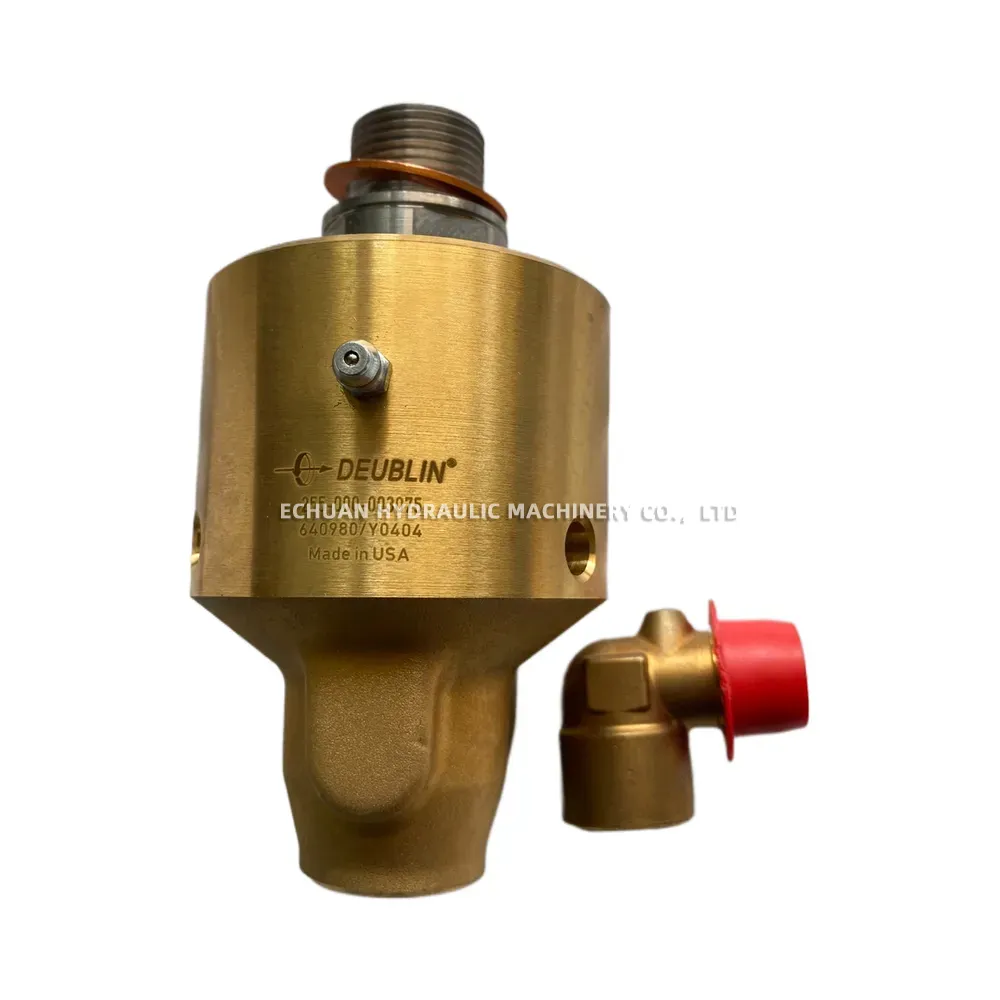

DEUBLIN 255-000-03075 Rotary Union
The DEUBLIN 255-000-03075 is a single-passage rotary union specifically designed for coolant service in machine tool applications, particularly for through-spindle coolant systems. It features balanced mechanical seals, typically Silicon Carbide to Silicon Carbide, ensuring reliable operation and extended seal life even at high speeds and pressures. This model is engineered for closed-seal operation and is suitable for handling filtered coolant.
Technical Specifications:
- Model Series: 255
- Passage: Single
- Media Type: Coolant
- Seal Type: Balanced Mechanical Seal (Closed Seal)
- Maximum Speed: 15,000 RPM
- Maximum Pressure: 100 bar (1450 PSI)
- Maximum Temperature: 71°C (160°F)
- Rotor Connection: M16x1.5 LH
- Housing Connection: 1/2″ NPT
- Bearing Type: Deep Groove Ball Bearings
DEUBLIN 255-000-003075
Model:DEUBLIN 255-000-003075
| Brand | Deublin |
|---|---|
| Model | 255-000-003075 |
| Part No. | DEUBLIN 255-000-003075 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/deublin-255-000-003075 |
