Product Description

DEUBLIN 1114-838-188 Rotating Union

The DEUBLIN 1114-838-188 is a rotating union designed primarily for water service applications. It features balanced mechanical seals made from Ethylene Propylene (E.P.) for reliable performance and extended seal life, even under less-than-ideal water conditions. This model incorporates a specific configuration within the 1114 series, known for its robust construction and suitability for various industrial applications requiring fluid transfer to rotating equipment.

Technical Specifications:

  • Model Series: 1114
  • Service Type: Water
  • Rotor Connection: 1/2″ NPT RH
  • Housing Connection: 1/2″ NPT LH
  • Seal Material: E.P. (Ethylene Propylene) / Carbon Graphite
  • Max Water Pressure: 10 bar (150 PSI)
  • Max Speed: 3,500 RPM
  • Max Temperature: 120°C (250°F)
  • Mounting: Monoflow
  • Construction: Stainless Steel / Brass

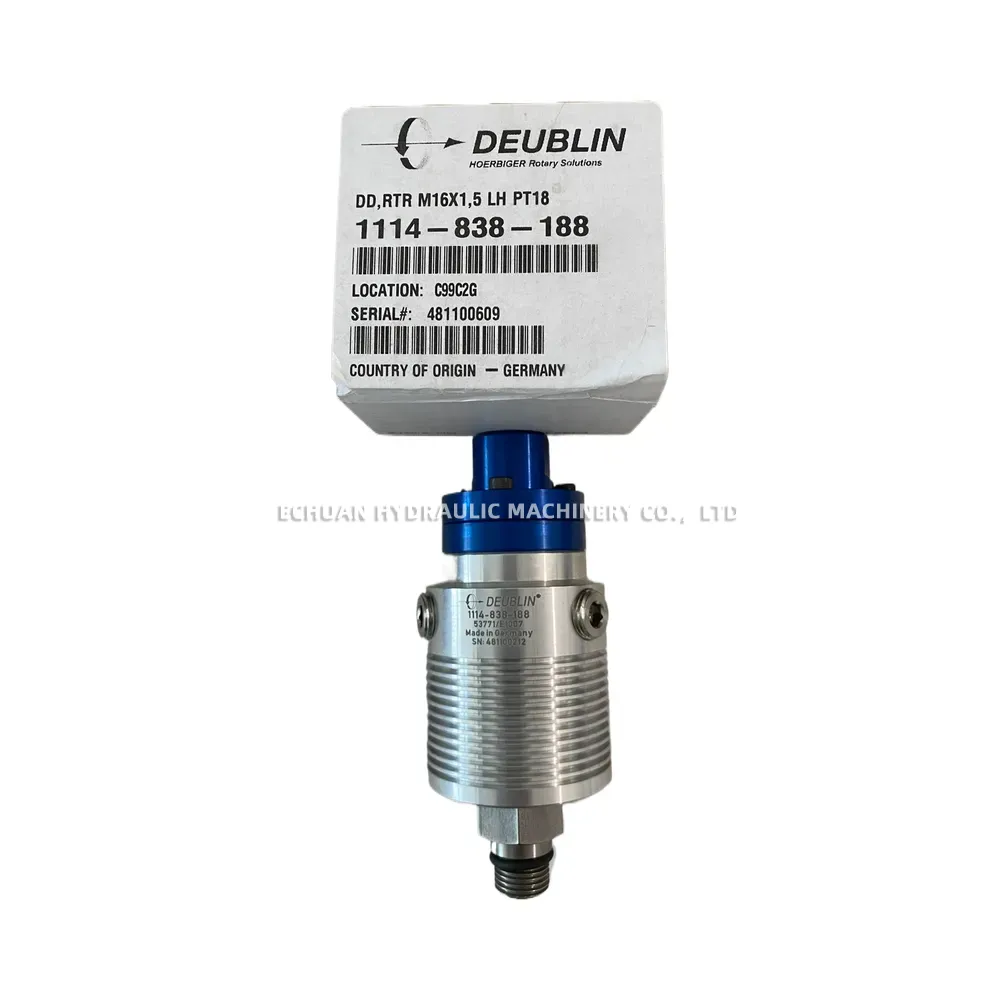

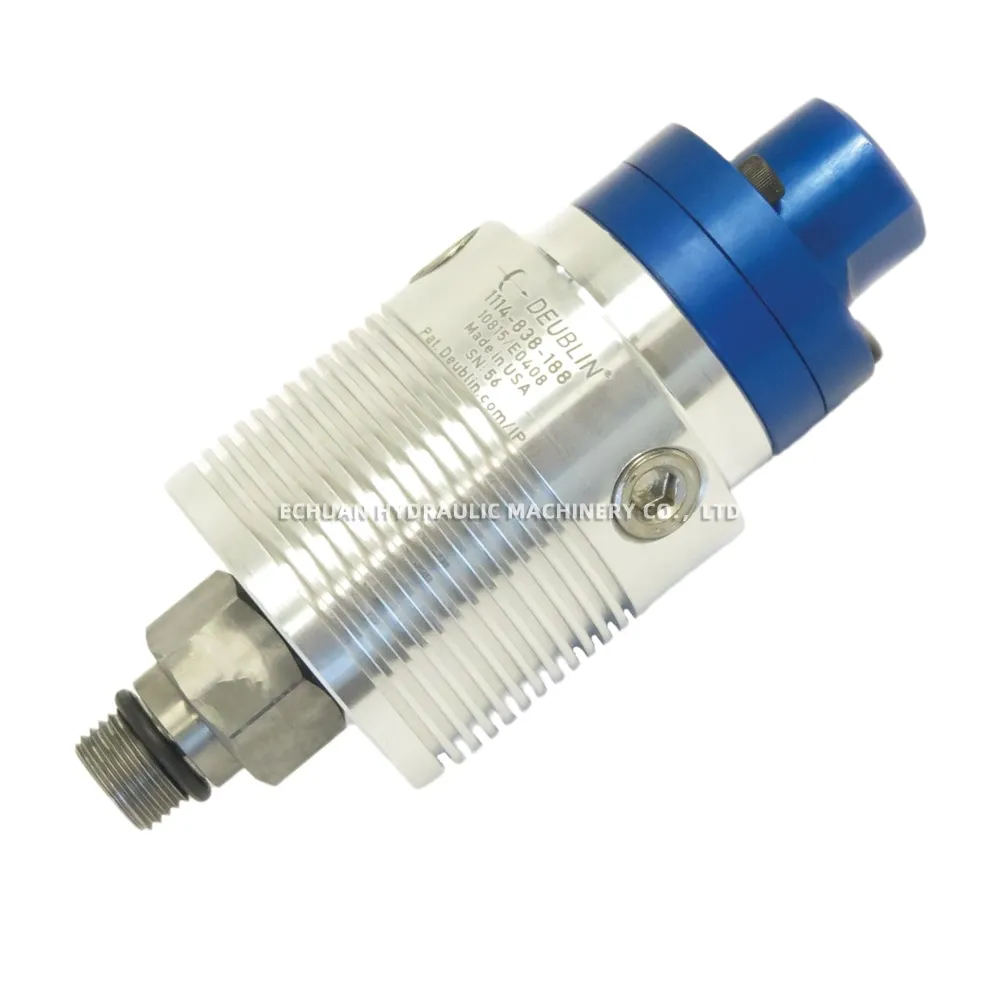

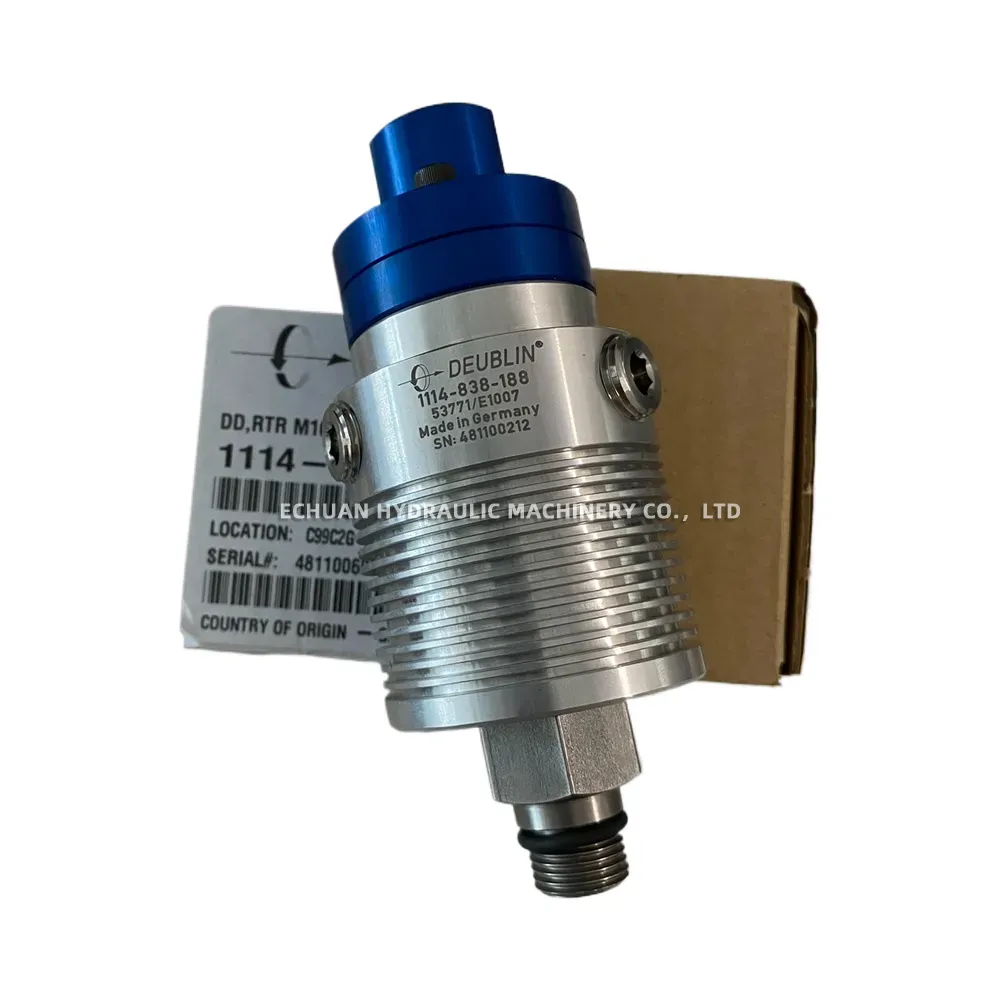

DEUBLIN 1114-838-188 - Image 1

DEUBLIN 1114-838-188 - Image 2

DEUBLIN 1114-838-188 - Image 3

DEUBLIN 1114-838-188 - Image 4

DEUBLIN 1114-838-188

Model:DEUBLIN 1114-838-188

BrandDeublin
Model1114-838-188
Part No.DEUBLIN 1114-838-188
CategoryOther products
