Product Description

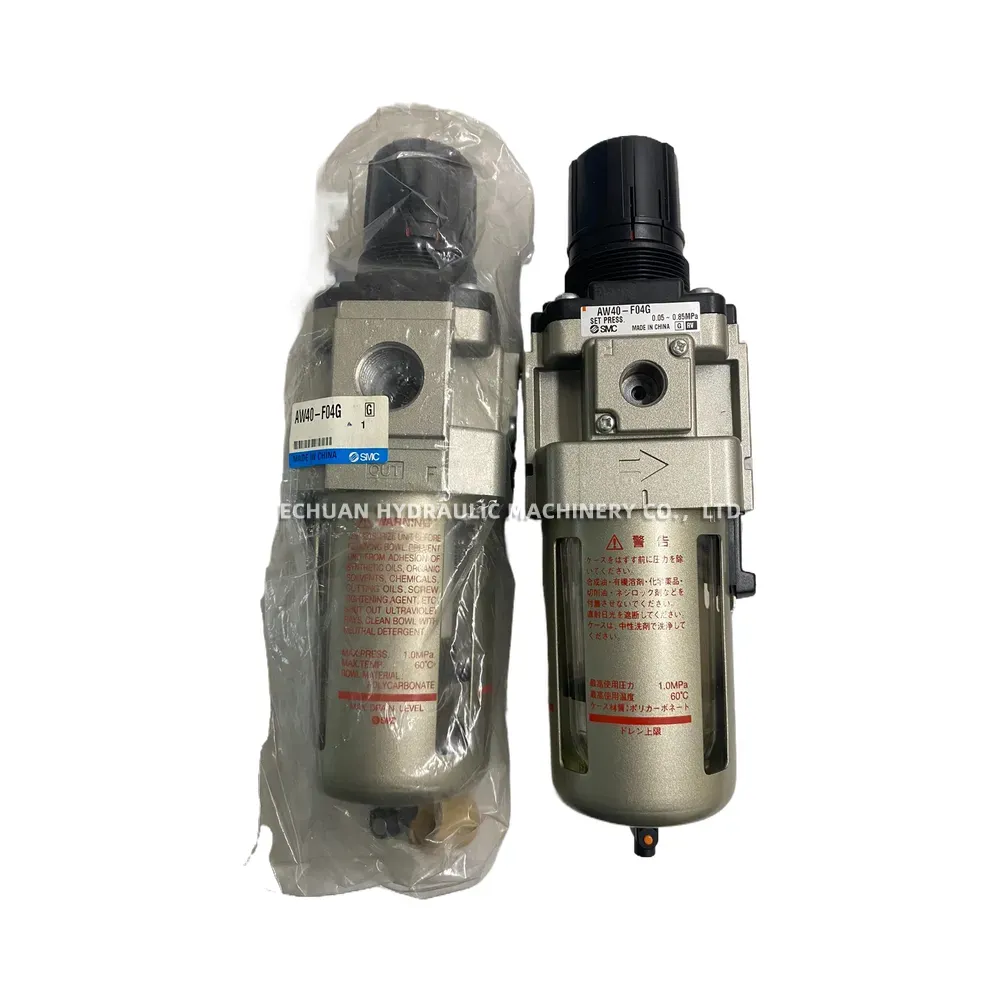

SMC AW40-F04G Filter Regulator
The SMC AW40-F04G is a combination filter and regulator unit designed for compressed air systems. It belongs to the AW series, offering efficient moisture and particle removal along with precise pressure control in a single component. This model features a body size of 40, Rc(PT) 1/2 port size, a standard 5µm filtration element, and includes a square embedded pressure gauge with a limit indicator for easy monitoring and setting. Ideal for various industrial pneumatic applications requiring clean, regulated air.
Technical Specifications:
- Series: AW
- Type: Filter Regulator
- Body Size: 40
- Port Size: Rc(PT) 1/2
- Fluid: Air
- Filtration Rating: 5 µm (Standard)
- Set Pressure Range: 0.05 to 0.85 MPa
- Maximum Operating Pressure: 1.0 MPa
- Proof Pressure: 1.5 MPa
- Ambient and Fluid Temperature: -5 to 60°C (No freezing)
- Bowl Material: Polycarbonate (Standard)
- Bowl Guard: Standard
- Pressure Gauge Port Size: 1/8 (for embedded gauge)
- Pressure Gauge Type: Square embedded type pressure gauge with limit indicator
- Drain Type: Manual Drain Cock (Standard)
- Rated Flow: Varies based on pressure conditions (Refer to SMC catalog for specific curves)
SMC AW40-F04G AF40-03D
Model:SMC AW40-F04G AF40-03D
| Brand | SMC |
|---|---|
| Model | AW40-F04G AF40-03D |
| Part No. | SMC AW40-F04G AF40-03D |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/smc-aw40-f04g-af40-03d |
