Product Description

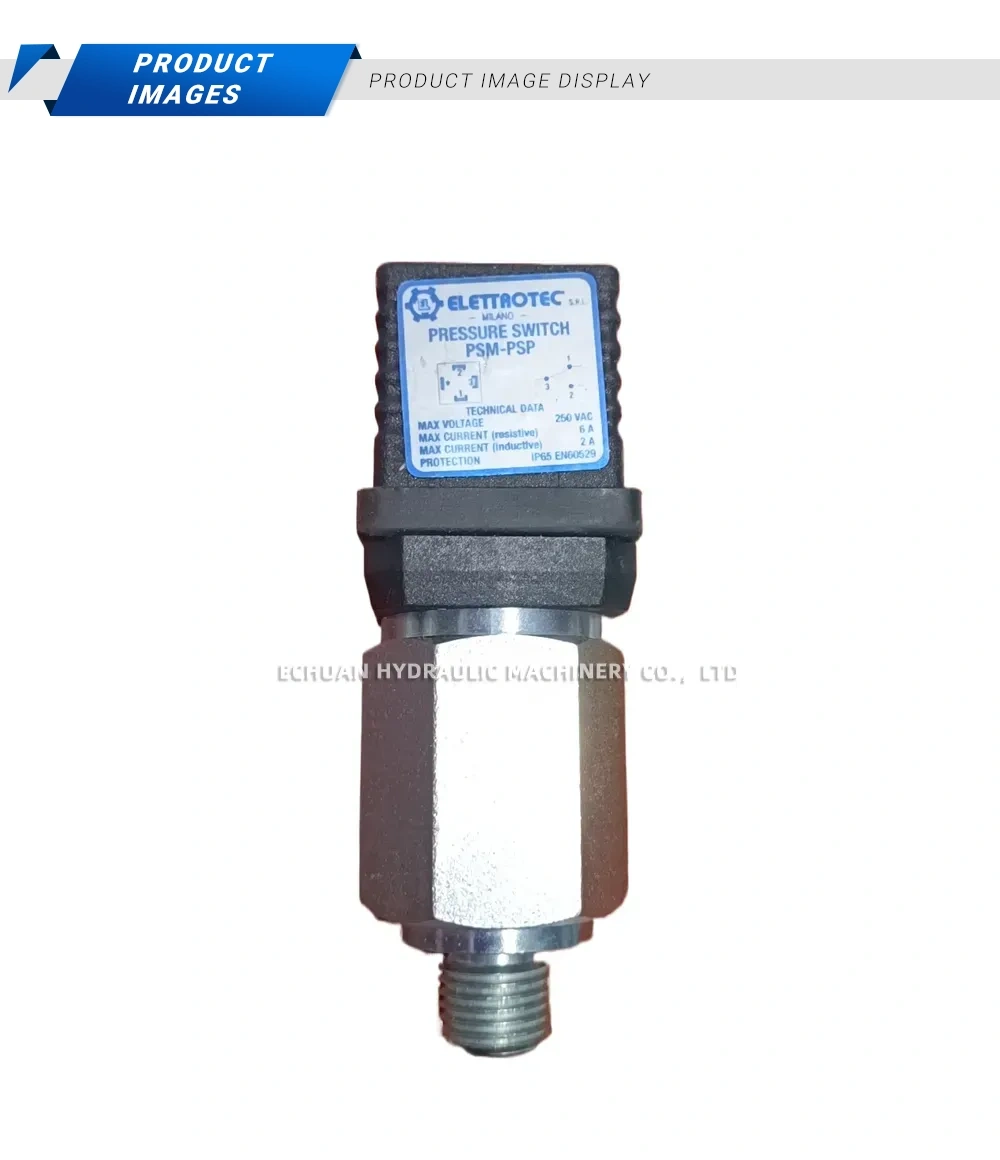

ELETTROTEC PSM-PSP

The ELETTROTEC PSM-PSP series consists of adjustable membrane and piston pressure switches designed for reliable pressure monitoring in hydraulic and pneumatic systems. These compact and robust switches feature a mechanical set point adjustment, allowing users to define a specific pressure threshold. When the system pressure reaches the set value, the internal microswitch is actuated, providing a dependable electrical signal for control or alarm functions. The PSM models utilize a membrane for lower pressure ranges, while the PSP models employ a piston design for high-pressure applications, ensuring versatility across a wide range of industrial uses.

Technical Specifications:

  • Body Material: Anodized aluminum (PSM), zinc-plated steel (PSP)

  • Max Pressure: Up to 150 bar (PSM), up to 600 bar (PSP)

  • Electrical Connection: DIN 43650-A/B, various terminals

  • Protection Class: IP65 with appropriate connector

ELETTROTEC PSM-PSP Description

ELETTROTEC PSM-PSP

Discover the reliable ELETTROTEC PSM-PSP adjustable pressure switch, ideal for precise pressure control and monitoring in hydraulic and pneumatic circuits. Available in membrane and piston versions for various pressure ranges.
