Product Description

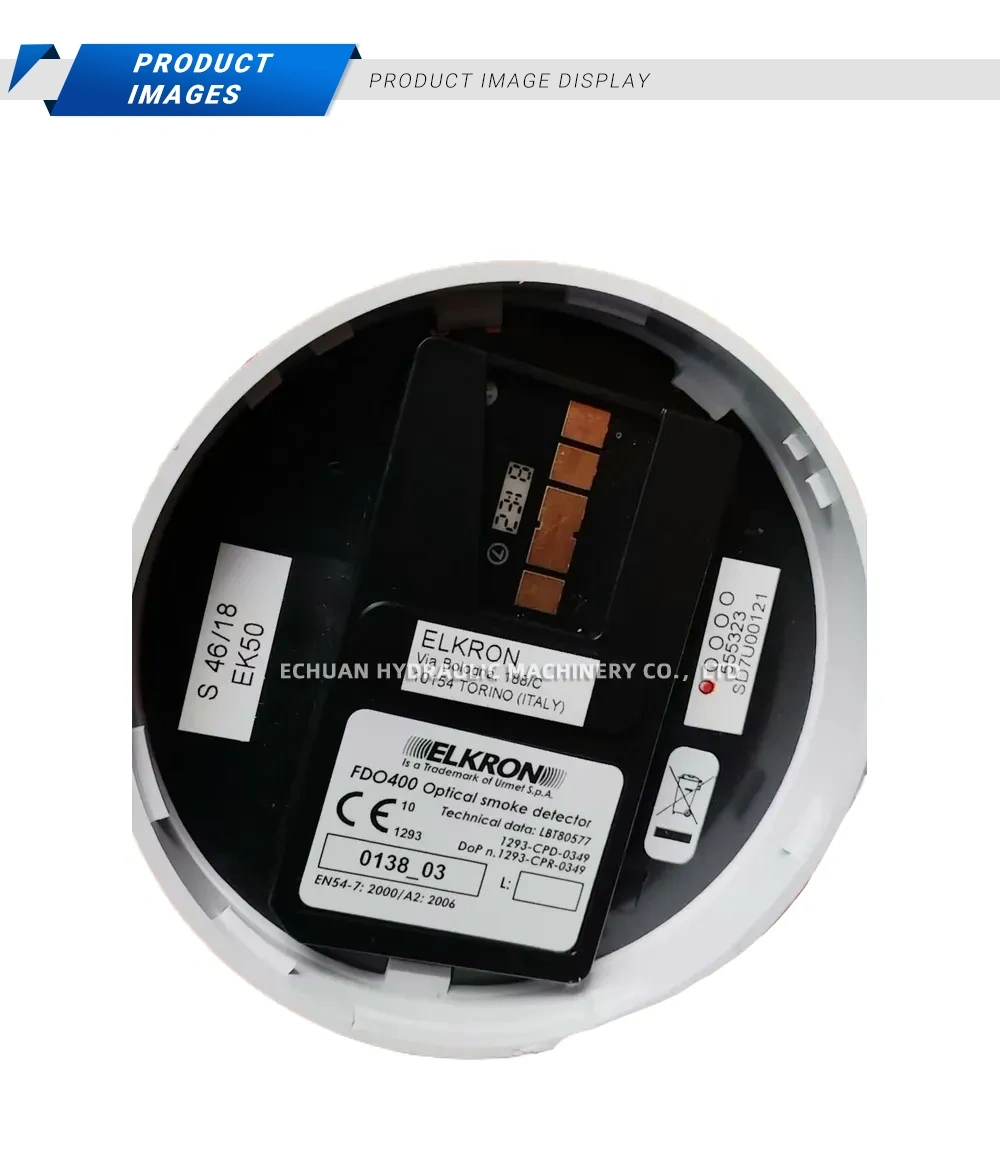

ELKRON FDO400 S 46/18 EK50
The ELKRON FDO400 S is an advanced analogue addressable optical smoke detector designed for seamless integration with Elkron fire alarm control panels. It operates on the light scattering principle (Tyndall effect), enabling early and reliable detection of smoke particles generated by smoldering fires. This detector features a built-in short-circuit isolator to maintain system integrity and a dual-color LED for clear visual status indication (green for polling, red for alarm). Certified to EN 54-7, the FDO400 S is a dependable choice for fire safety in commercial, industrial, and public buildings.
Technical Specifications:
- Model: FDO400 S 46/18 EK50
- Detector Type: Analogue Addressable Optical Smoke Detector
- Operating Voltage: 18 Vdc to 30 Vdc
- Standby Current Consumption: < 100 µA @ 24V
- Alarm Current Consumption: 5 mA @ 24V
- Operating Temperature: -5°C to +40°C
- Protection Rating: IP40
- Standards Compliance: EN 54-7
ELKRON FDO400 S 46/18 EK50
Purchase the ELKRON FDO400 S 46/18 EK50, a high-performance analogue addressable optical smoke detector. Featuring a built-in isolator and EN 54-7 certification, it offers reliable fire detection for professional security systems.
| Brand | ELKRON |
|---|---|
| Model | FDO400 S 46/18 EK50 |
| Category | Electrical |
