Product Description

FATEK FBs-24MC Programmable Controller

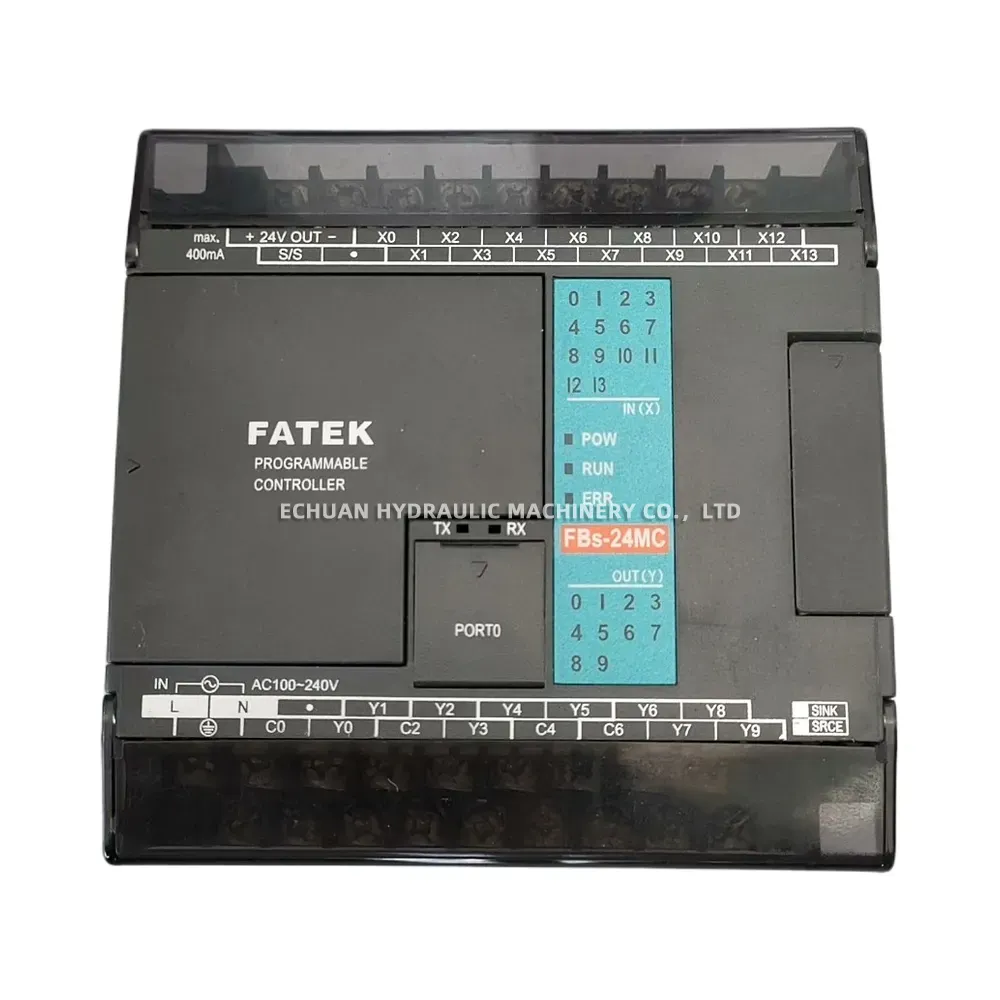

The FATEK FBs-24MC is a highly reliable and versatile Programmable Logic Controller (PLC) engineered for advanced industrial automation and control systems. Manufactured by FATEK Automation Corp in Taiwan, this robust main unit delivers exceptional performance with 14 digital inputs (X0-X13) and 10 digital outputs (Y0-Y9), offering a total of 24 I/O points for comprehensive machine control. Operating on a universal AC power supply (100V-240V), it is designed to integrate seamlessly into various global industrial environments. The FBs-24MC also features a built-in communication port (PORT0) and comprehensive LED diagnostics (POW, RUN, ERR, and I/O status) to ensure simplified troubleshooting, real-time monitoring, and maximum uptime for your critical operations.

Technical Specifications:

  • Brand & Model: FATEK FBs-24MC
  • Power Supply: 100V~240V AC, 50/60Hz, 30VA
  • Digital Inputs: 14 Points (X0 – X13)
  • Digital Outputs: 10 Points (Y0 – Y9)
  • Communication: PORT0 with TX/RX data indicators
  • Diagnostic LEDs: POW (Power), RUN (Operation), ERR (Error), and individual I/O status
  • Certification & Origin: CE Marked, Manufactured in Taiwan

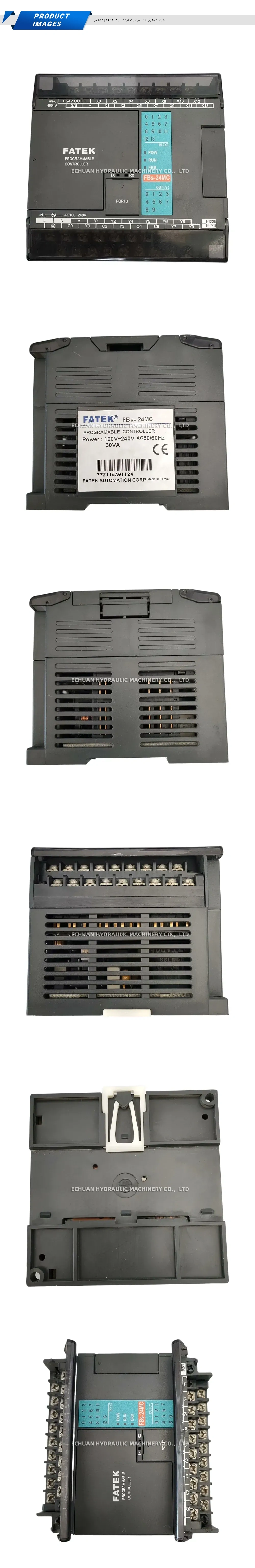

FATEK FBs-24MC Programmable Controller Description

FATEK FBs-24MC Programmable Controller

Upgrade your industrial automation with the FATEK FBs-24MC Programmable Logic Controller (PLC). Featuring 24 I/O points (14 inputs, 10 outputs), universal 100-240V AC power, and built-in PORT0 communication, this CE-certified controller delivers reliable, high-speed performance for diverse manufacturing applications.
