Product Description

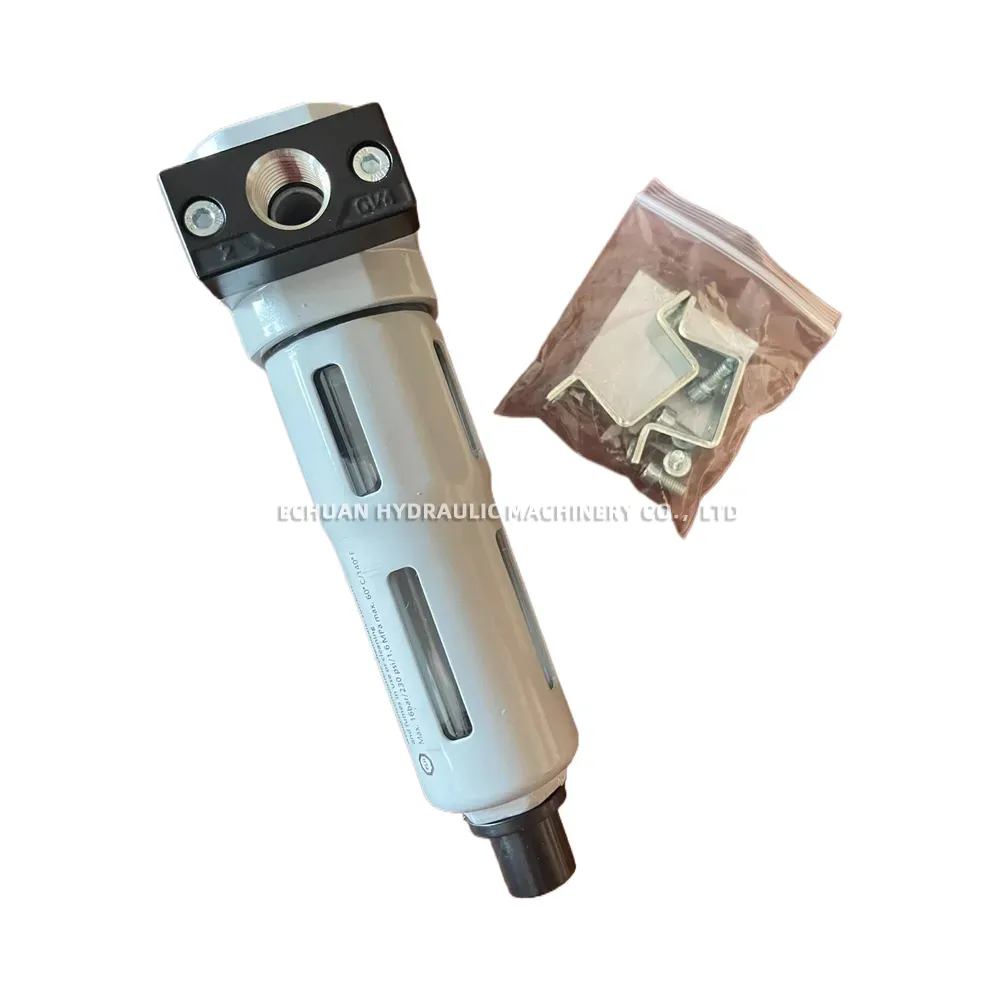

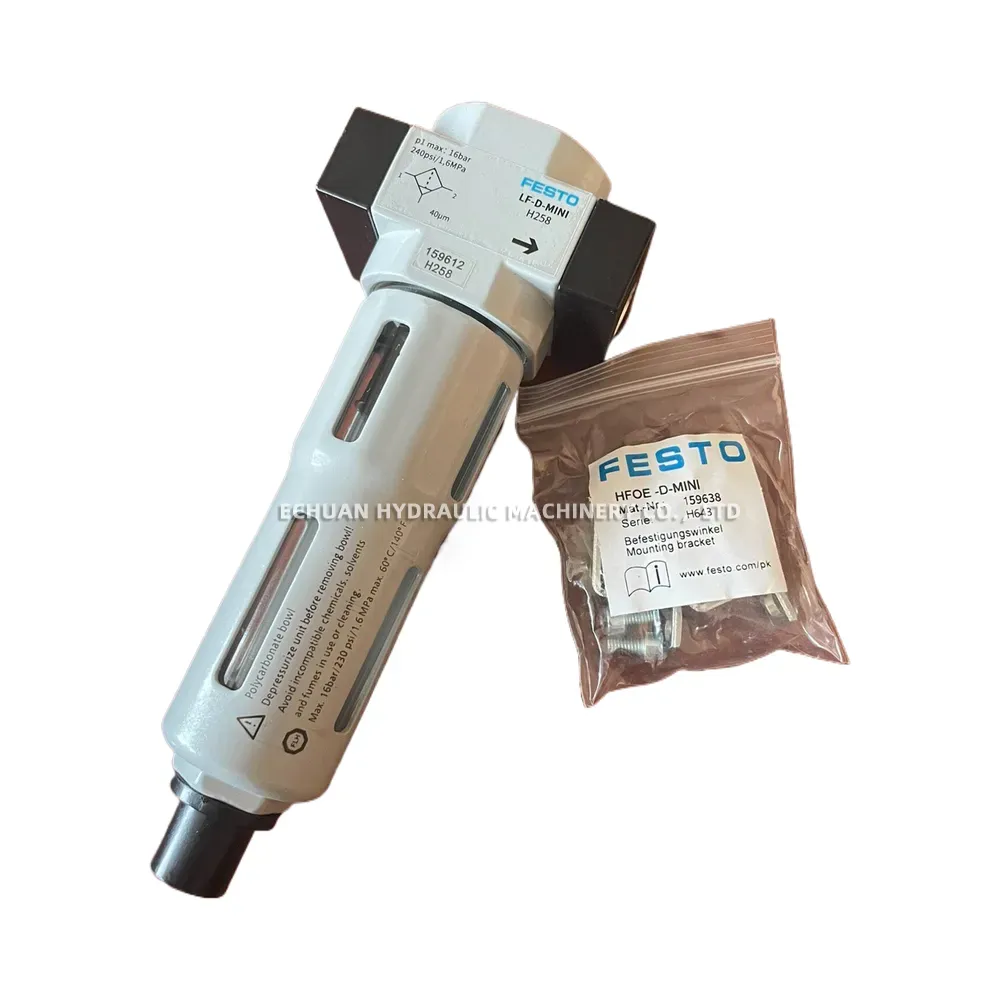

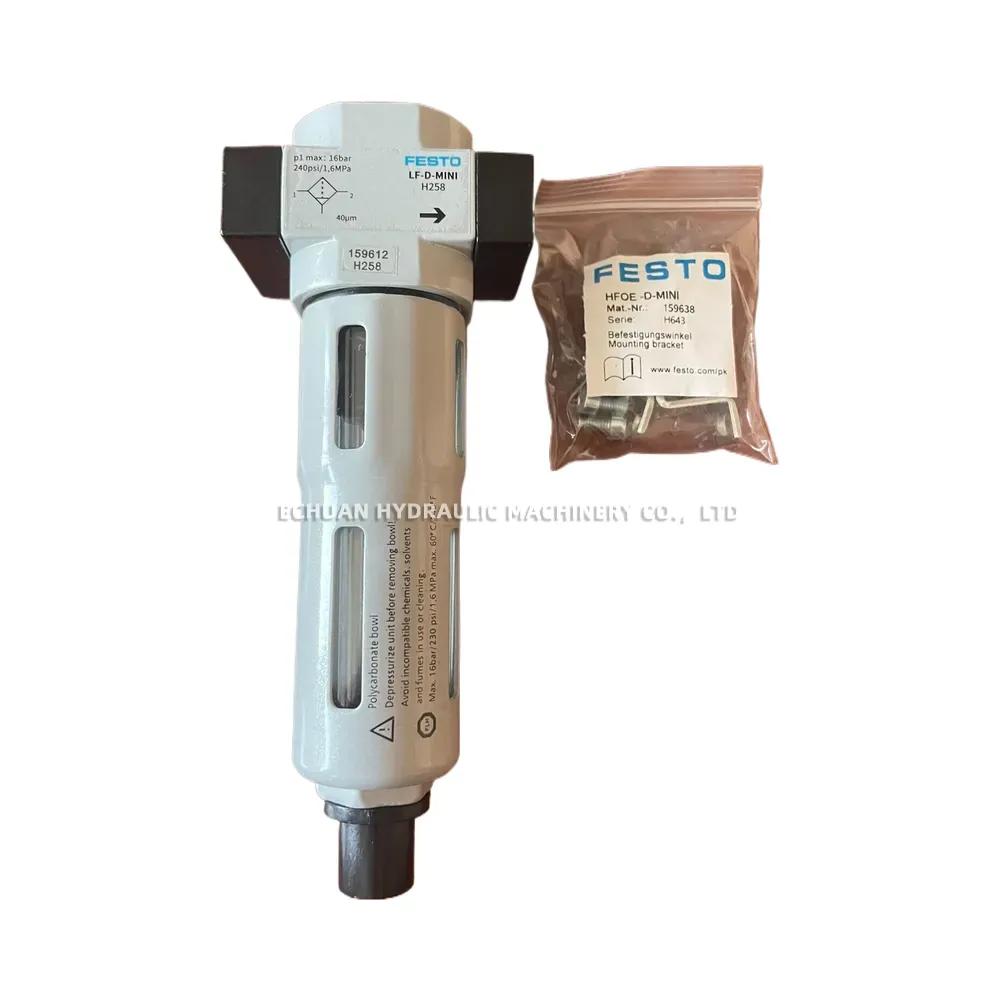

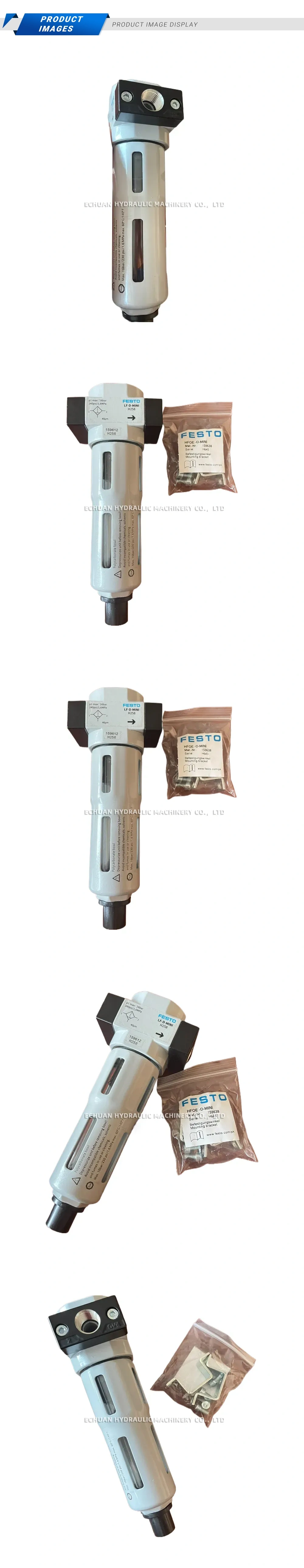

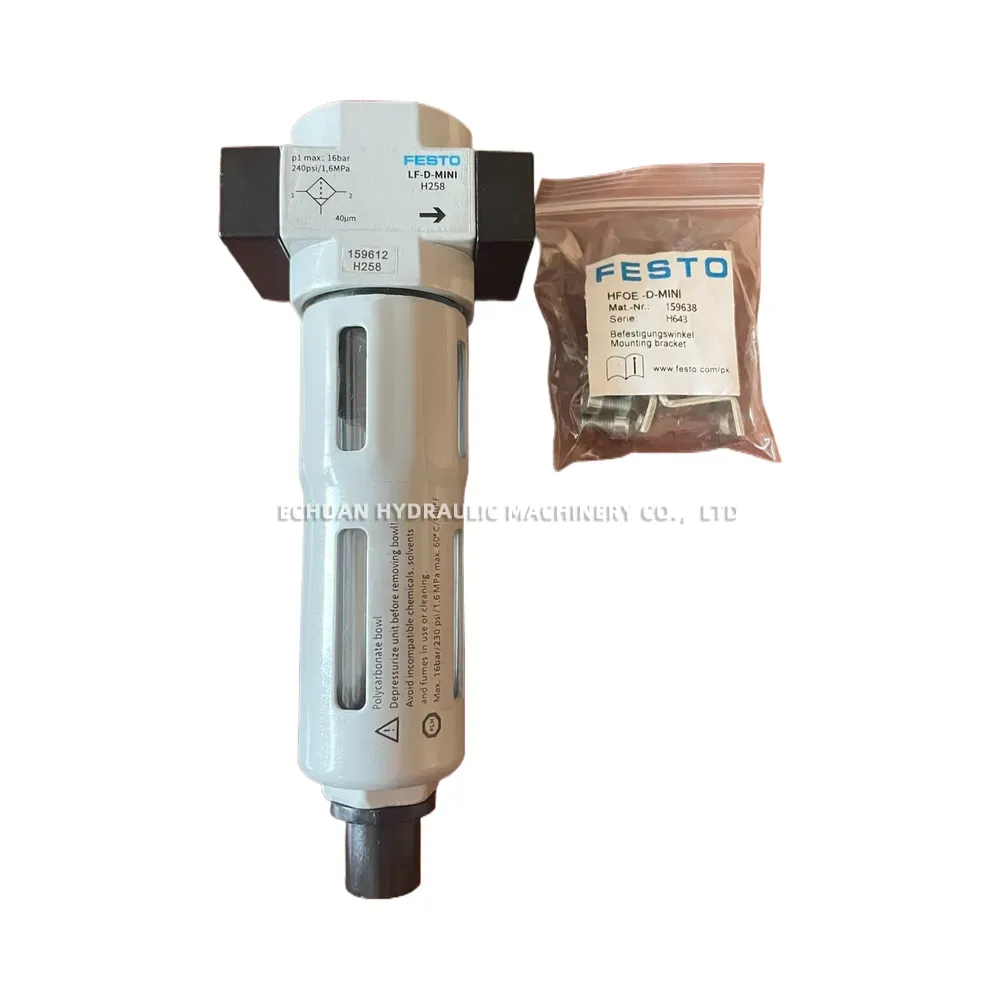

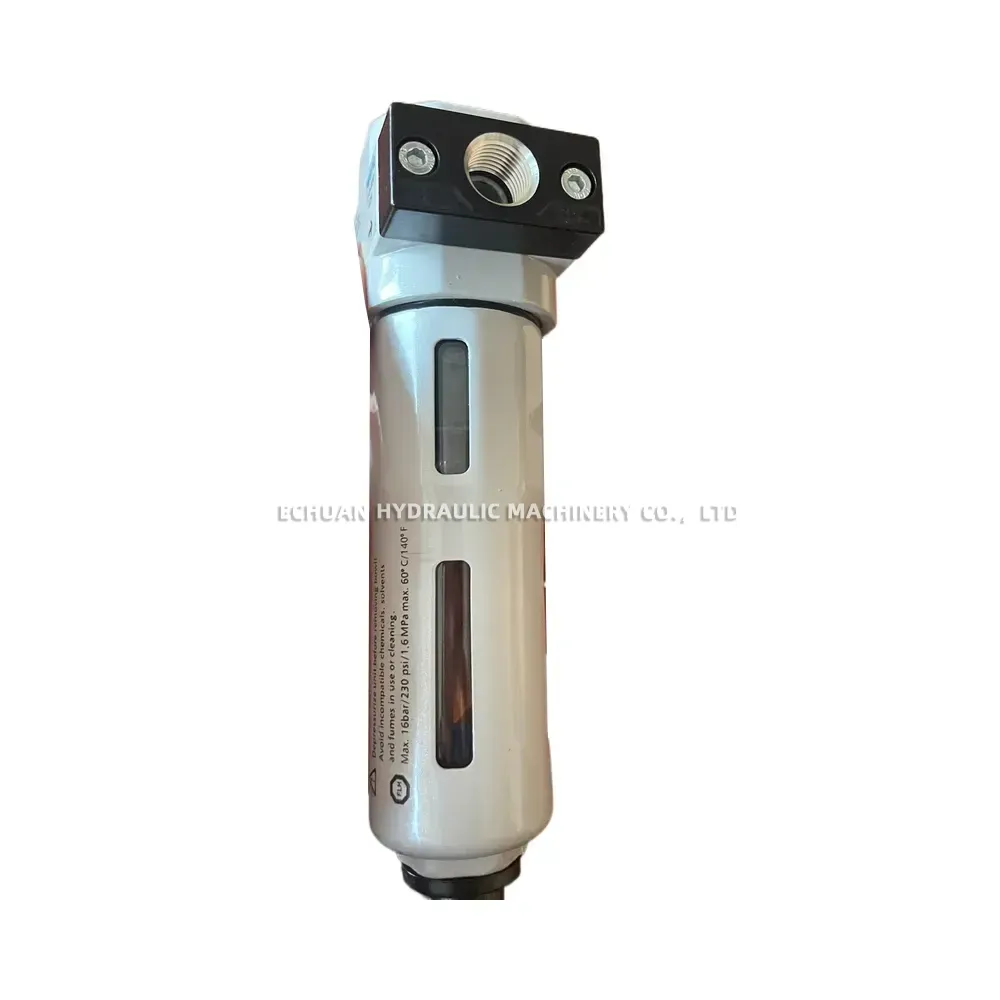

FESTO LF-D-MINI Compressed Air Filter
The FESTO LF-D-MINI (Part No. 159612) is a highly reliable compressed air filter designed to deliver clean, contaminant-free air for your pneumatic systems. Equipped with a robust polycarbonate bowl, this unit provides an efficient 40µm filtration rating to protect downstream valves and cylinders from particulates and moisture. Built for industrial durability, it easily handles a maximum operating pressure of 16 bar (240 psi / 1.6 MPa) and operates safely in ambient temperatures up to 60°C (140°F). For fast and convenient installation, this assembly includes the FESTO HFOE-D-MINI mounting bracket kit.
Technical Specifications:
- Brand: FESTO
- Model: LF-D-MINI (Part Number: 159612)
- Filtration Grade: 40 µm
- Maximum Operating Pressure: 16 bar / 240 psi / 1.6 MPa
- Maximum Operating Temperature: 60°C / 140°F
- Bowl Material: Polycarbonate (Requires depressurization before removal; avoid incompatible chemicals)
- Included Accessories: HFOE-D-MINI Mounting Bracket Kit (Part Number: 159638)
FESTO LF-D-MINI Compressed Air Filter
Optimize your pneumatic air preparation with the FESTO LF-D-MINI Compressed Air Filter (159612). Featuring a 40µm filtration rating, 16 bar maximum pressure capacity, and a durable polycarbonate bowl. Includes the HFOE-D-MINI mounting bracket kit for quick and easy installation.
