Product Description
Festo LFR-1/2-D-MIDI Pneumatic Filter Regulator with Water Separator
The Festo LFR-1/2-D-MIDI (Part Number: 159584) is a premium-grade pneumatic filter regulator with an integrated water separator, engineered to deliver precise pressure control and reliable air preparation for industrial automation systems. Equipped with a durable polycarbonate bowl and a high-efficiency 40 µm filter, it effectively strips moisture and particulate contaminants from compressed air lines. This robust unit is capable of handling a maximum inlet pressure of 16 bar (240 psi) and allows for an adjustable outlet pressure of up to 12 bar (180 psi). For immediate integration, the assembly includes an HFOE-D-MIDI mounting bracket and a PAGN-50-1,6M-G14 pressure gauge. Please note that the unit must be mounted in an upright position and should not be operated in the vicinity of strong solvents.
Technical Specifications:
- Brand: Festo
- Model: LFR-1/2-D-MIDI (Part Number: 159584)
- Filtration Rating: 40 µm
- Maximum Inlet Pressure (p1): 16 bar / 240 psi / 1.6 MPa
- Maximum Outlet Pressure (p2): 12 bar / 180 psi / 1.2 MPa
- Maximum Operating Temperature: 60°C (140°F)
- Bowl Material: Polycarbonate

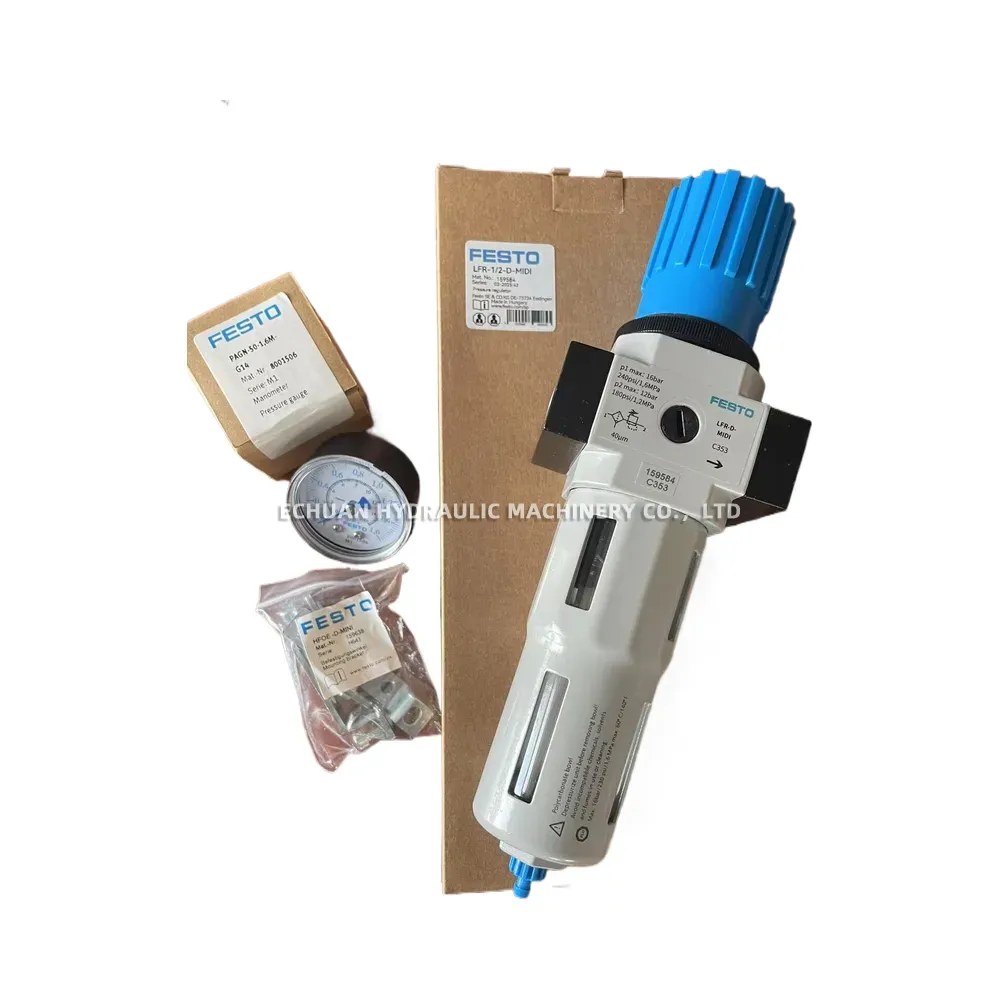

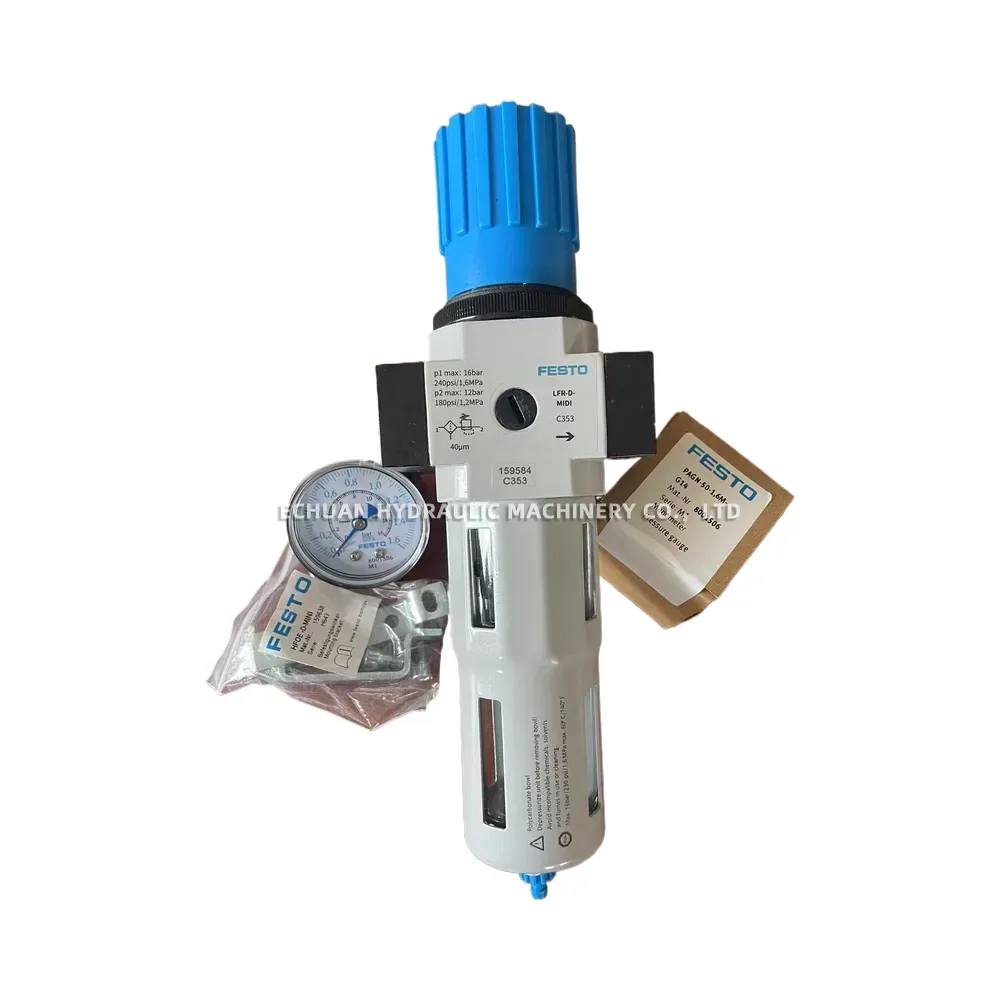

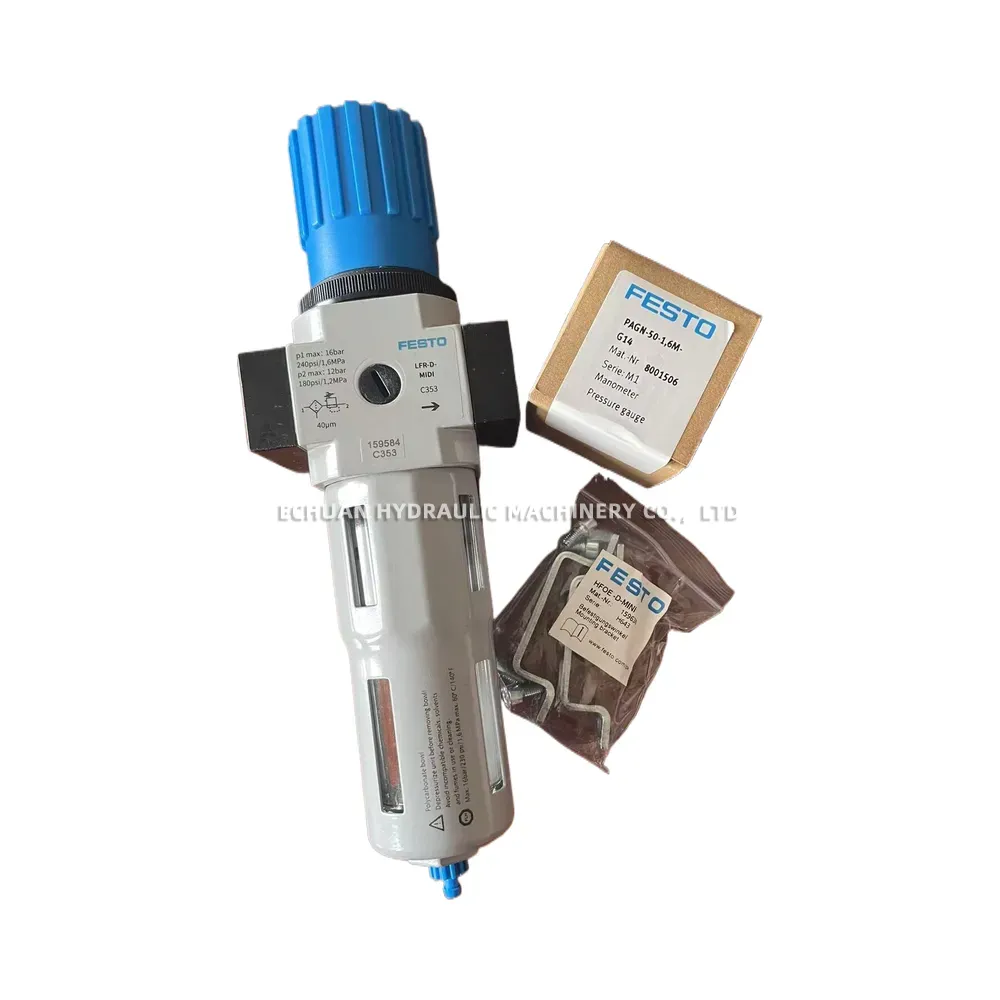

- Included Components: Mounting bracket (HFOE-D-MIDI) and pressure gauge (PAGN-50-1,6M-G14)
- Installation Requirements: Must be mounted upright; Do not use near strong solvents
Festo LFR-1/2-D-MIDI Pneumatic Filter Regulator with Water Separator
Optimize your pneumatic systems with the Festo LFR-1/2-D-MIDI Filter Regulator (Part No. 159584). Featuring 40µm filtration, a durable polycarbonate bowl, 16 bar max inlet pressure, and included pressure gauge and mounting bracket for reliable air preparation.
