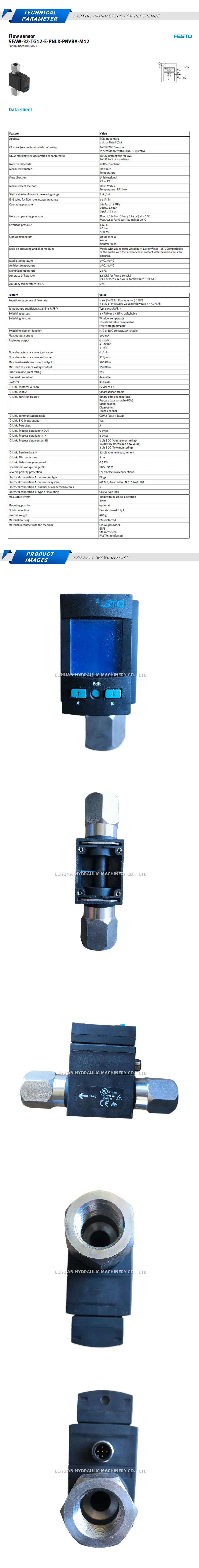

Product Description
Festo SFAW-32-TG12-E-PNLK-PNVBA-M12
The Festo SFAW-32-TG12-E-PNLK-PNVBA-M12 is a highly versatile and robust flow sensor designed for monitoring liquid media in industrial applications. Operating on the vortex measuring principle, it accurately measures flow rate, cumulative volume, and media temperature. This sensor features a clear, backlit LCD display that can be rotated for optimal readability from any angle. With configurable PNP/NPN switching outputs and multiple analogue output options (voltage and current), it offers exceptional flexibility for integration into various control systems. Its durable housing with IP65/IP67 protection ensures reliable performance even in demanding environments, making it an ideal solution for cooling circuits, process control, and consumption monitoring.
Technical Specifications:
- Measured Variables: Flow rate, Volume, Temperature
- Flow Measuring Range: 3 l/min … 32 l/min
- Operating Pressure: 0 … 16 bar
- Medium Temperature: 0 °C … 90 °C
- Switching Output: PNP / NPN (switchable)
- Analogue Output: 4-20 mA / 1-5 V / 0-10 V
- Electrical Connection: M12x1, 5-pin Plug
- Process Connection: G1/2 Thread
Festo SFAW-32-TG12-E-PNLK-PNVBA-M12
Discover the Festo SFAW-32-TG12-E-PNLK-PNVBA-M12 flow sensor for precise monitoring of liquid flow, volume, and temperature. Features flexible PNP/NPN and analogue outputs, a rotatable LCD display, and robust IP67 protection for industrial use.
