Product Description

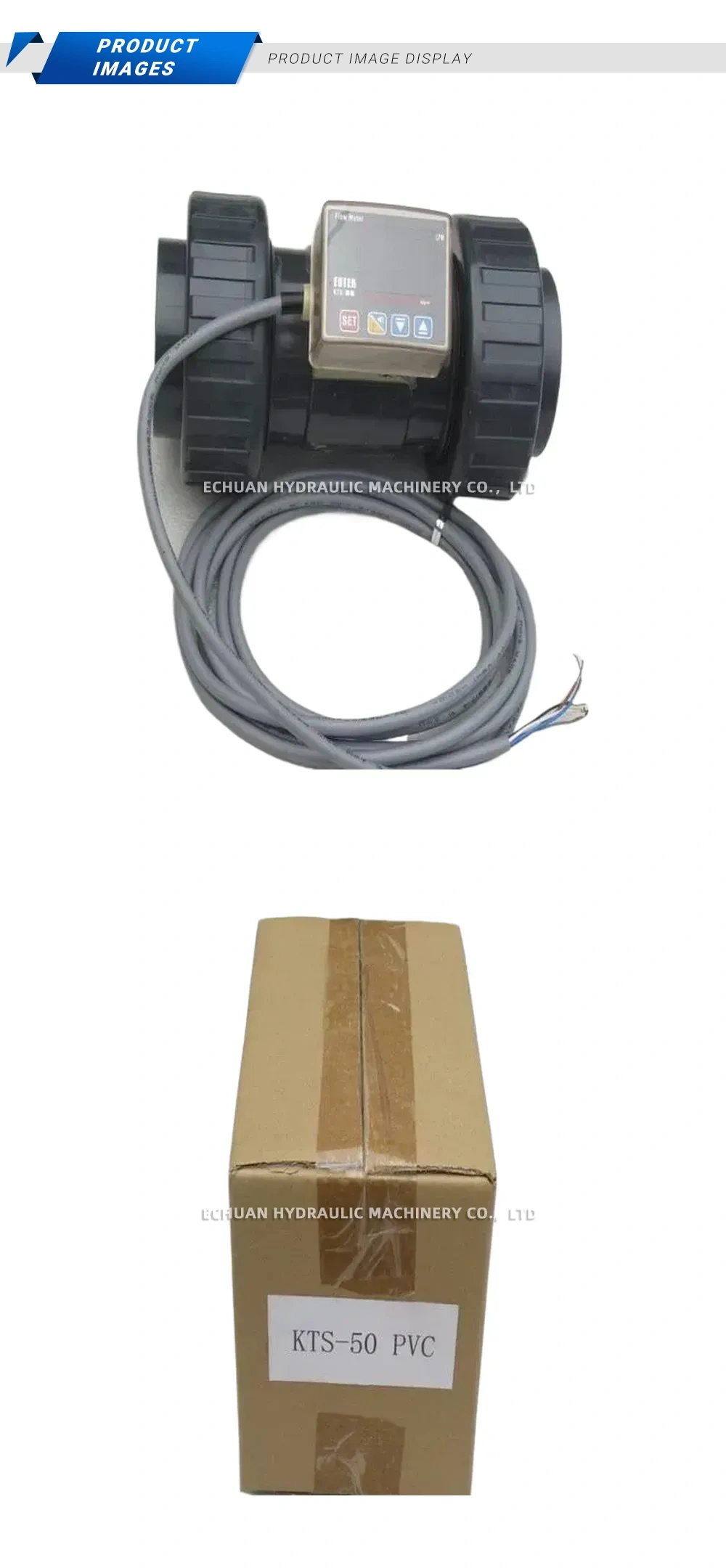

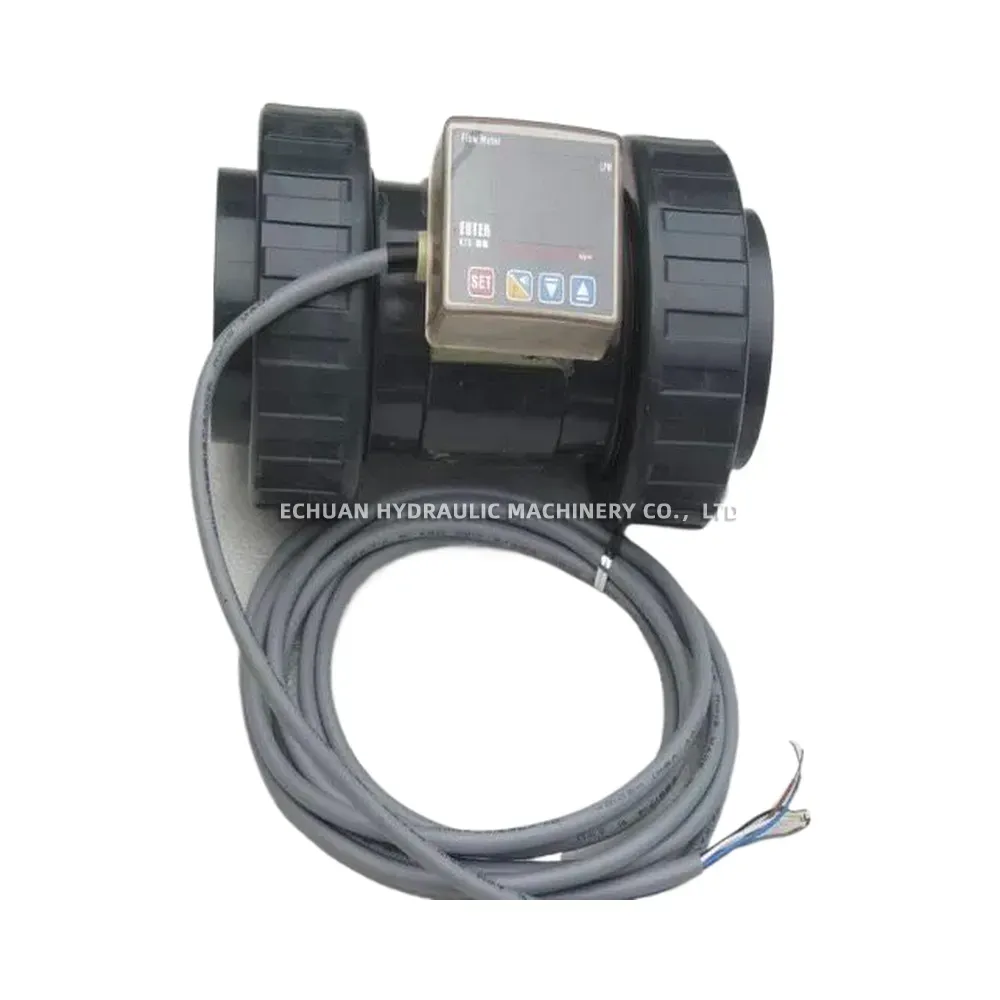

FOTEK KTS-50 PVC Flow Switch
The FOTEK KTS-50 is a robust and reliable target-type flow switch designed for monitoring liquid flow in piping systems. Constructed with a durable PVC body, it is highly resistant to corrosion, making it ideal for water treatment, chemical processing, and various industrial applications. This model includes a separate digital display controller, allowing for easy setup, real-time flow status monitoring, and precise adjustment of set points. The target (paddle) mechanism provides a simple yet effective method for detecting flow, while the cable connection ensures a secure and stable signal output for integration into control systems.
Technical Specifications:
- Model: KTS-50
- Sensing Type: Target Type Flow Switch
- Body Material: PVC
- Operating Voltage: 12 – 24V DC ±10%
- Output Method: NPN NO+NC
- Applicable Pipe Size: 1/2″, 3/4″, 1″
- Max. Operating Pressure: 5 kg/cm²
- Protection Class: IP65

FOTEK KTS-50 Flow Switch
Monitor liquid flow accurately with the FOTEK KTS-50 PVC Flow Switch. This target-type sensor features a digital controller, NPN output, and is suitable for 1/2″ to 1″ pipes in corrosive environments.
