Product Description

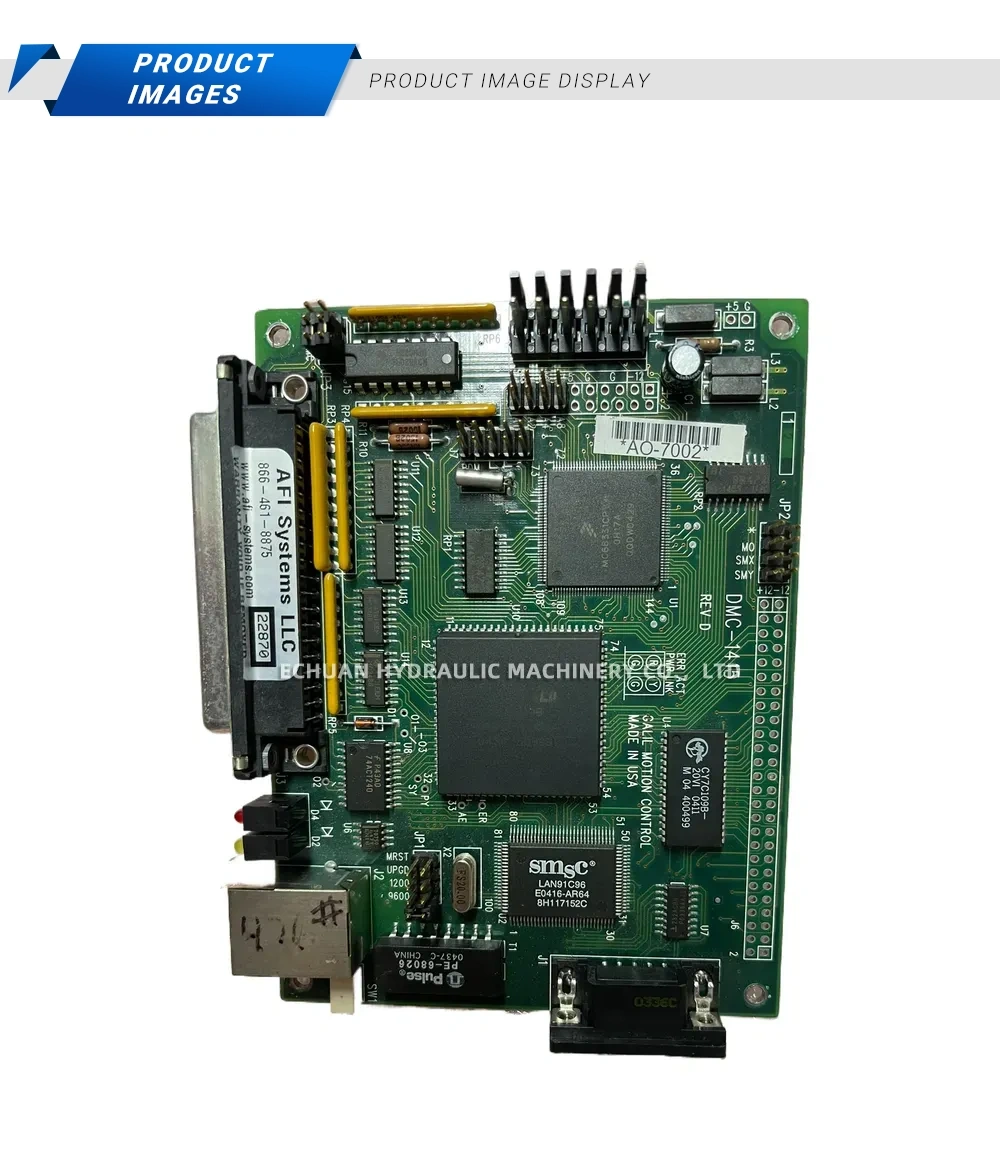

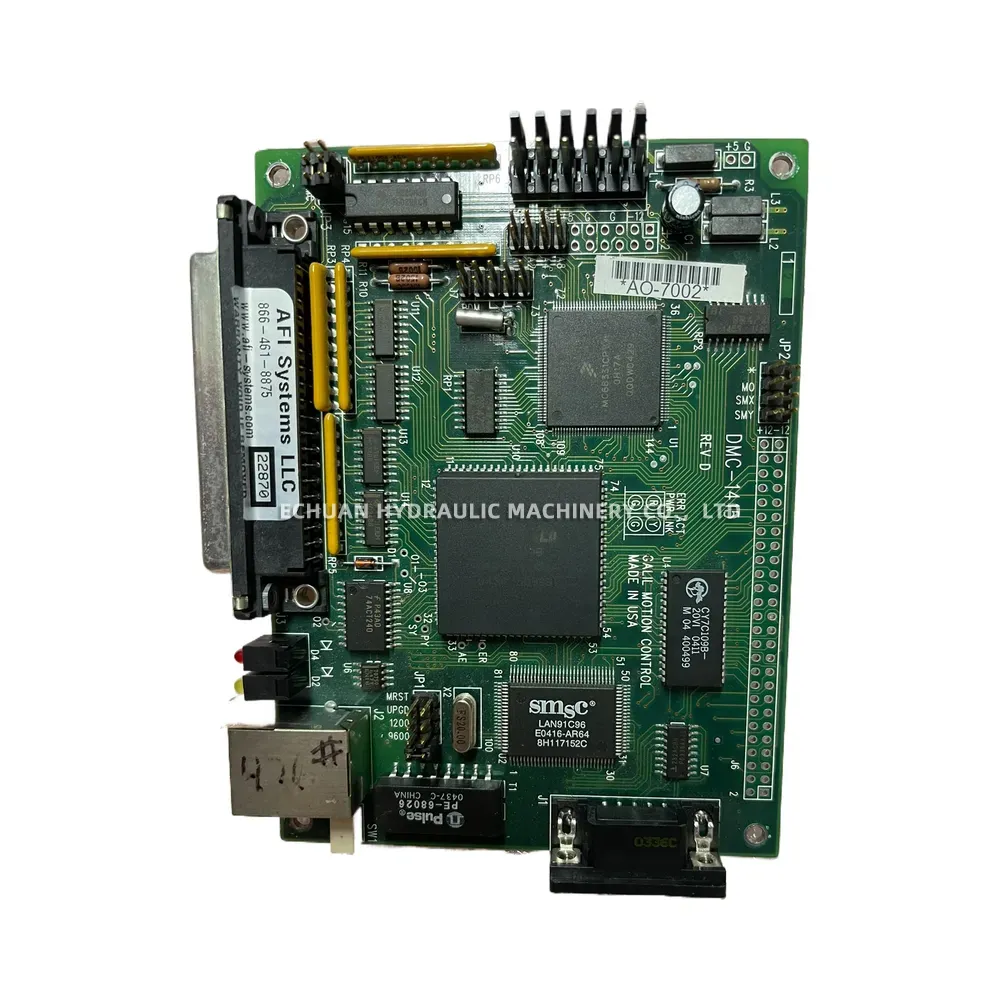

Galil Motion Control DMC-1415 Motion Controller Board
The Galil DMC-1415 is a high-performance, single-axis motion controller designed for the PCI bus. It provides a cost-effective and powerful solution for applications requiring precise control of a single servo or stepper motor. Equipped with versatile communication options including a 10Base-T Ethernet port, a USB port, and an RS232 serial port, the DMC-1415 offers exceptional flexibility for integration into various automation systems. This Revision D board includes ample uncommitted digital and analog I/O, accessible via a D-sub connector and terminal block, making it ideal for handling complex machine control tasks. Its robust design and powerful command set make it a reliable choice for industries ranging from medical and semiconductor to general automation.
Technical Specifications:
- Number of Axes: 1
- Bus Interface: PCI
- Communication Ports: 10Base-T Ethernet (SMSC LAN91C96 controller), USB, RS232/422/485
- Motor Type Supported: Servo or Stepper
- Encoder Feedback: Quadrature, up to 12 MHz
- Digital I/O: 8 uncommitted inputs, 8 uncommitted outputs
- Analog I/O: 2 uncommitted inputs, 2 uncommitted outputs
- Connectors: D-sub, USB port, Terminal block, RJ45 Ethernet
Galil Motion Control DMC-1415 Motion Controller Board
Buy the Galil DMC-1415, a high-performance single-axis motion controller with a PCI interface. Features Ethernet, USB, and extensive I/O for advanced automation and machine control applications.
