Product Description

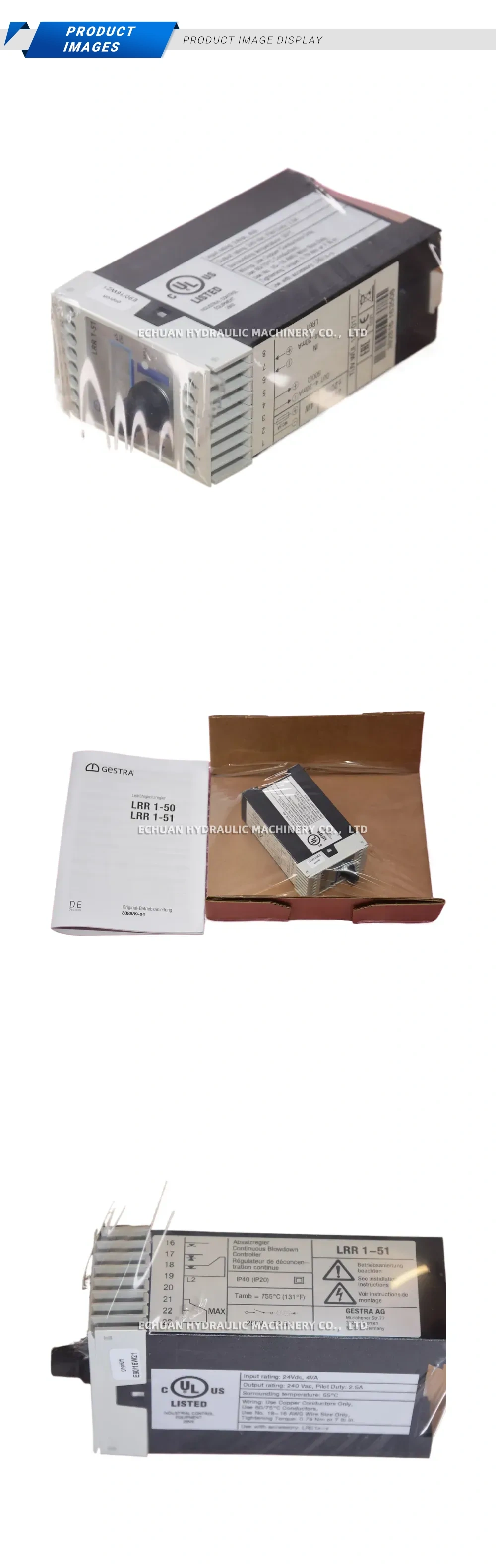

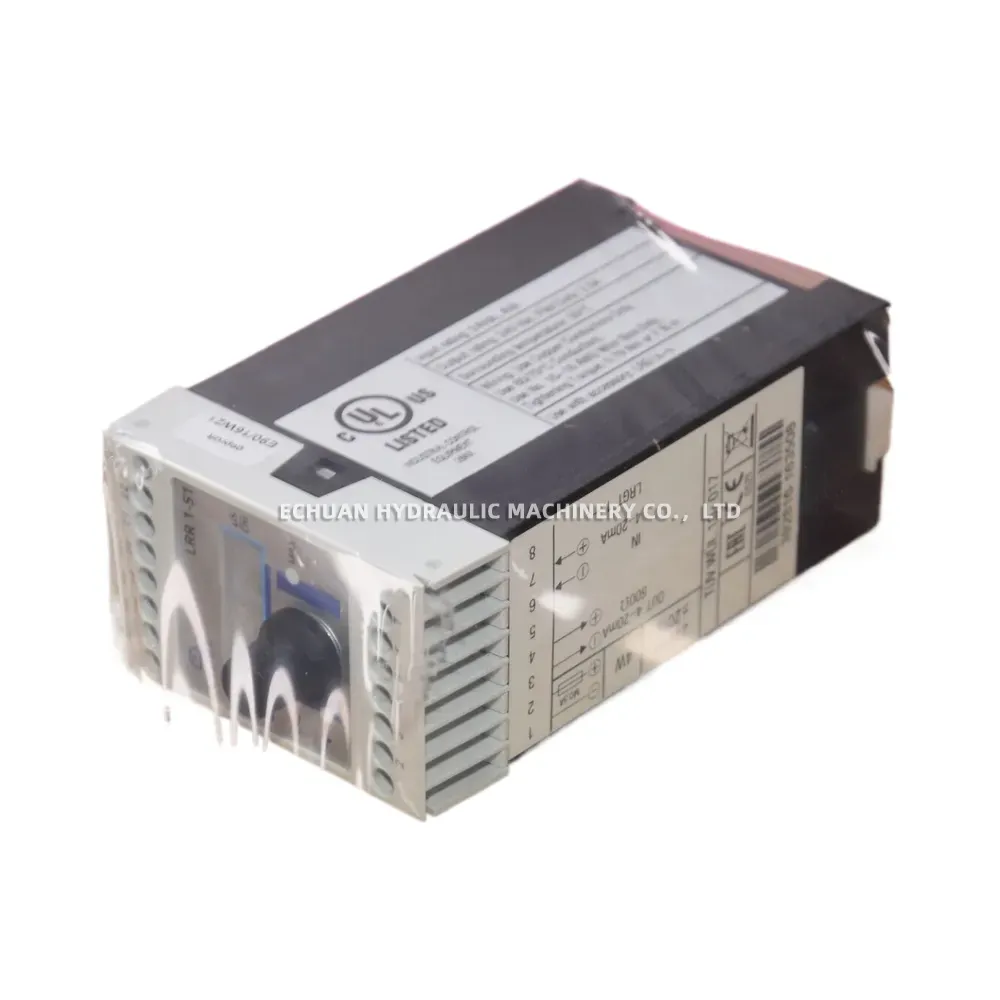

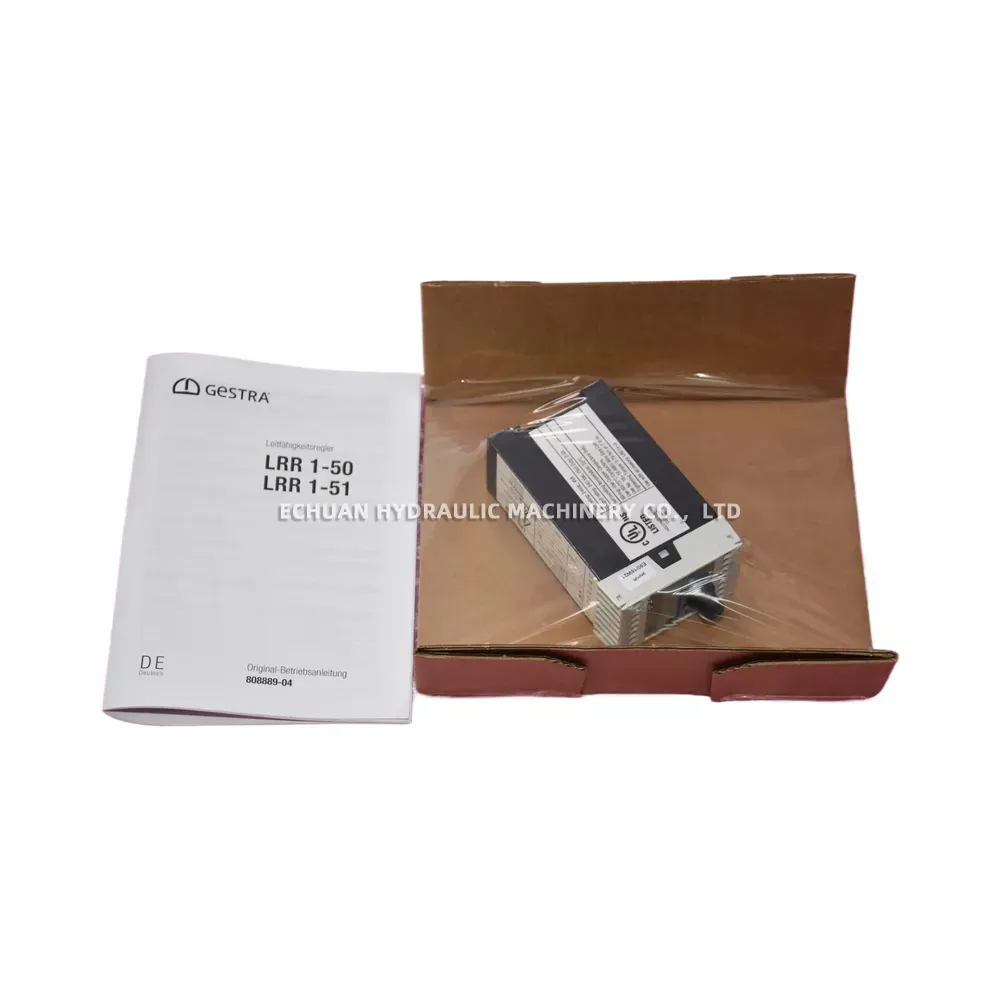

GESTRA LRR 1-51 Continuous Blowdown Controller
The GESTRA LRR 1-51 is a high-performance continuous blowdown controller designed to automatically monitor and regulate the conductivity of boiler water in steam boiler plants. By continuously measuring the Total Dissolved Solids (TDS) via a connected conductivity electrode (e.g., GESTRA LRG series), the LRR 1-51 precisely controls the blowdown valve. This process ensures optimal boiler operation by preventing scaling, corrosion, and carry-over of solids into the steam system. Its precise control helps to minimize energy and water losses, leading to significant cost savings and improved plant efficiency and safety.

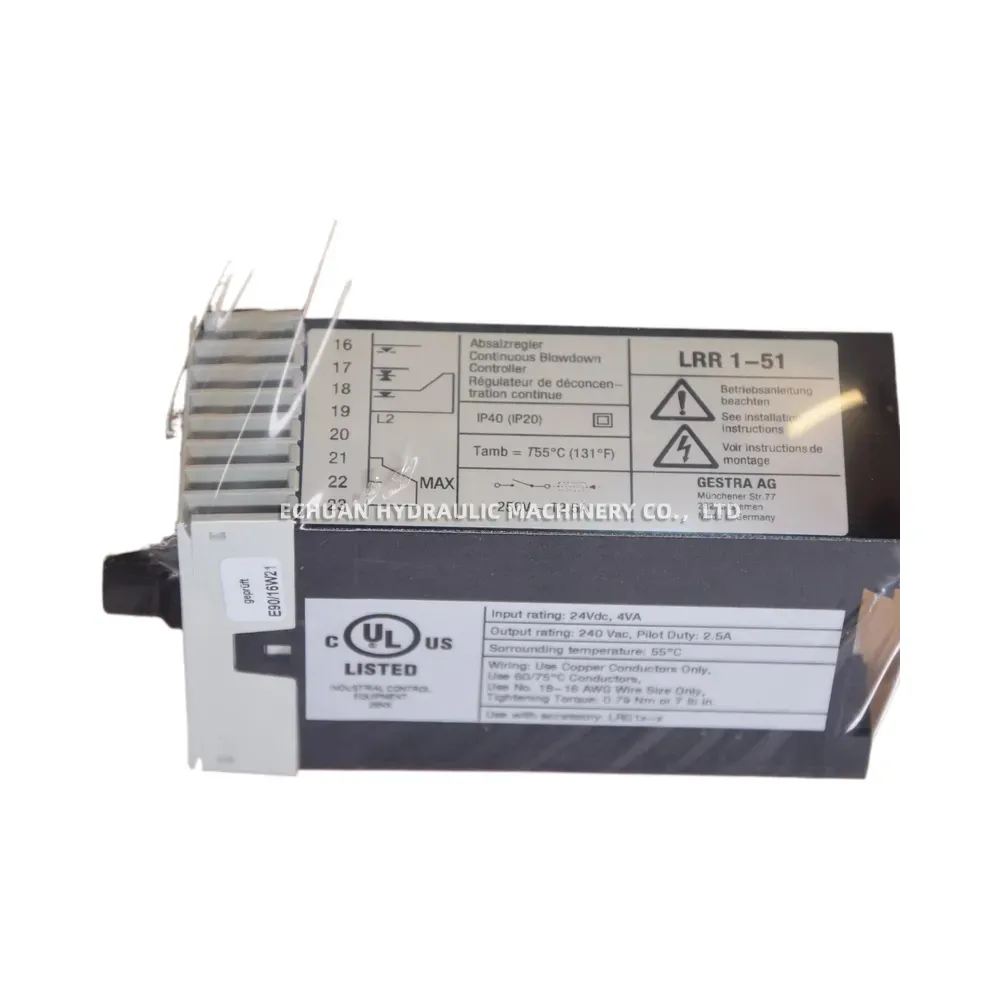

Technical Specifications:
- Input Rating: 24V DC, 4VA
- Output Rating: 240V AC, Pilot Duty: 2.5A
- Signal Input: 4-20mA (from conductivity electrode)
- Max. Ambient Temperature: 55°C (131°F)
- Protection Class: IP40 (housing), IP20 (terminals)
- Wiring Requirements: Use Copper Conductors Only, 18-16 AWG
- Compatible Accessory: GESTRA LRG1x-x series conductivity electrodes
GESTRA LRR 1-51 Continuous Blowdown Controller
Enhance boiler efficiency with the GESTRA LRR 1-51 Continuous Blowdown Controller. This unit automatically regulates boiler water conductivity (TDS) to prevent scaling, reduce energy consumption, and ensure safe, reliable steam generation.
