Product Description
GESTRA DRR 42 e Electronic Process Controller

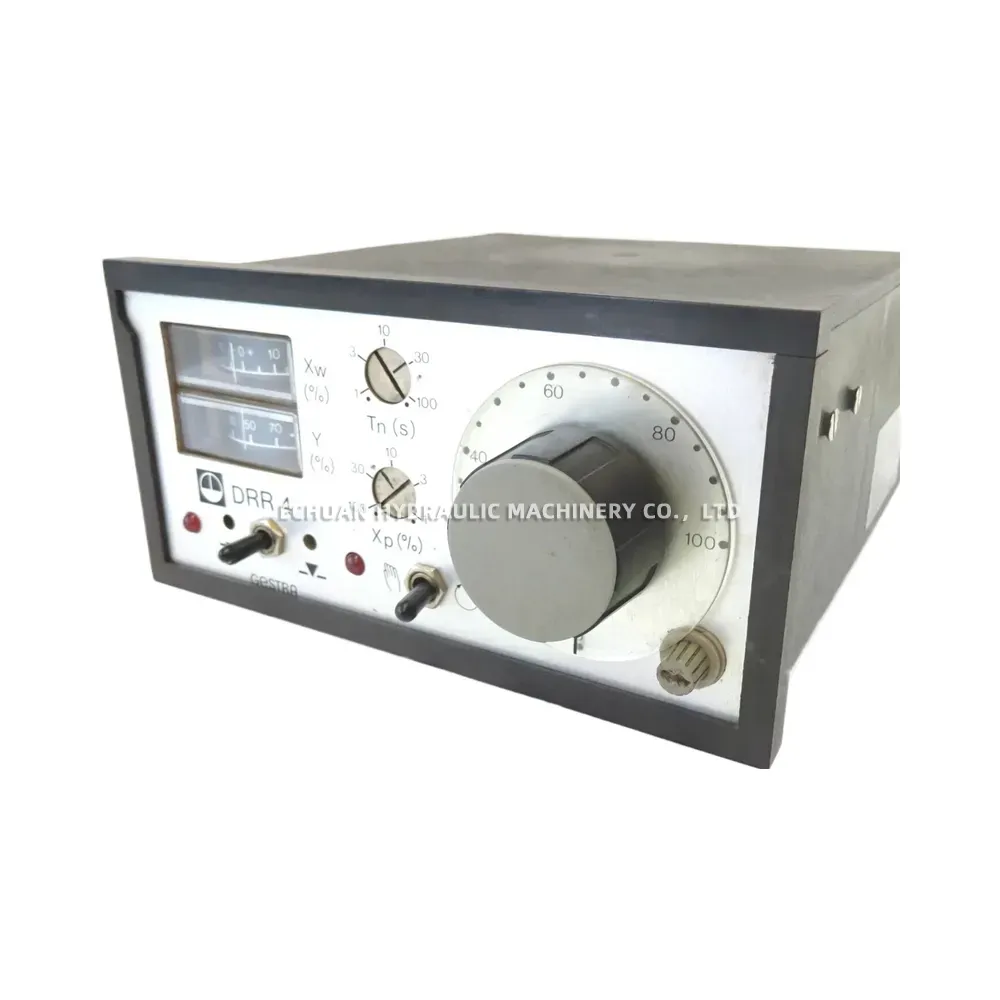

The GESTRA DRR 42 e is a robust electronic process controller designed for precise and reliable regulation in industrial environments. This analog regulator is specifically engineered for valve position control, featuring intuitive analog display meters for monitoring deviation (Xw) and output (Y). Operators can easily fine-tune performance using the front-panel adjustment knobs for the proportional band (Xp) and reset time (Tn), alongside a large, clear dial for setpoint adjustment. Built for compatibility with standard industrial sensors, the DRR 42 e accepts input signals from 0-20mA pressure transmitters or resistance transmitters, making it a versatile solution for various control loops.
Technical Specifications:

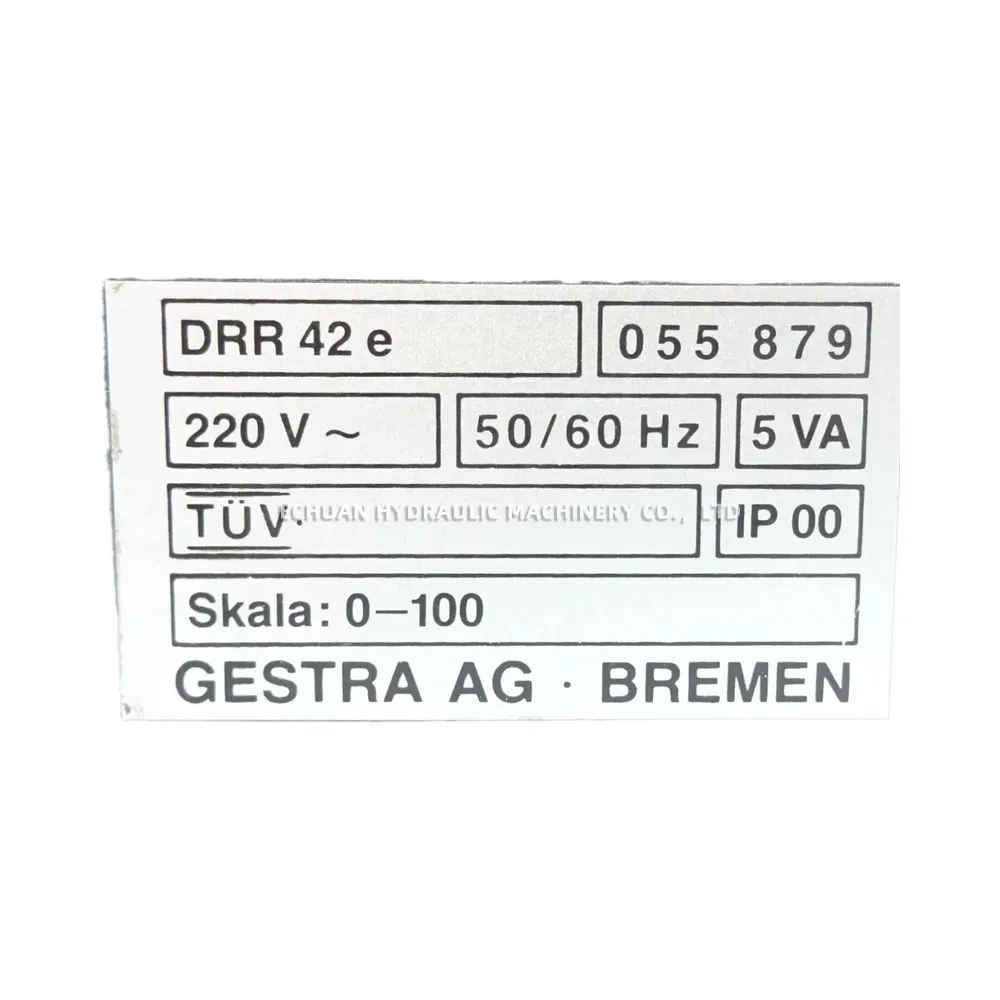

- Model: DRR 42 e
- Power Supply: 220V AC, 50/60 Hz
- Power Consumption: 5 VA

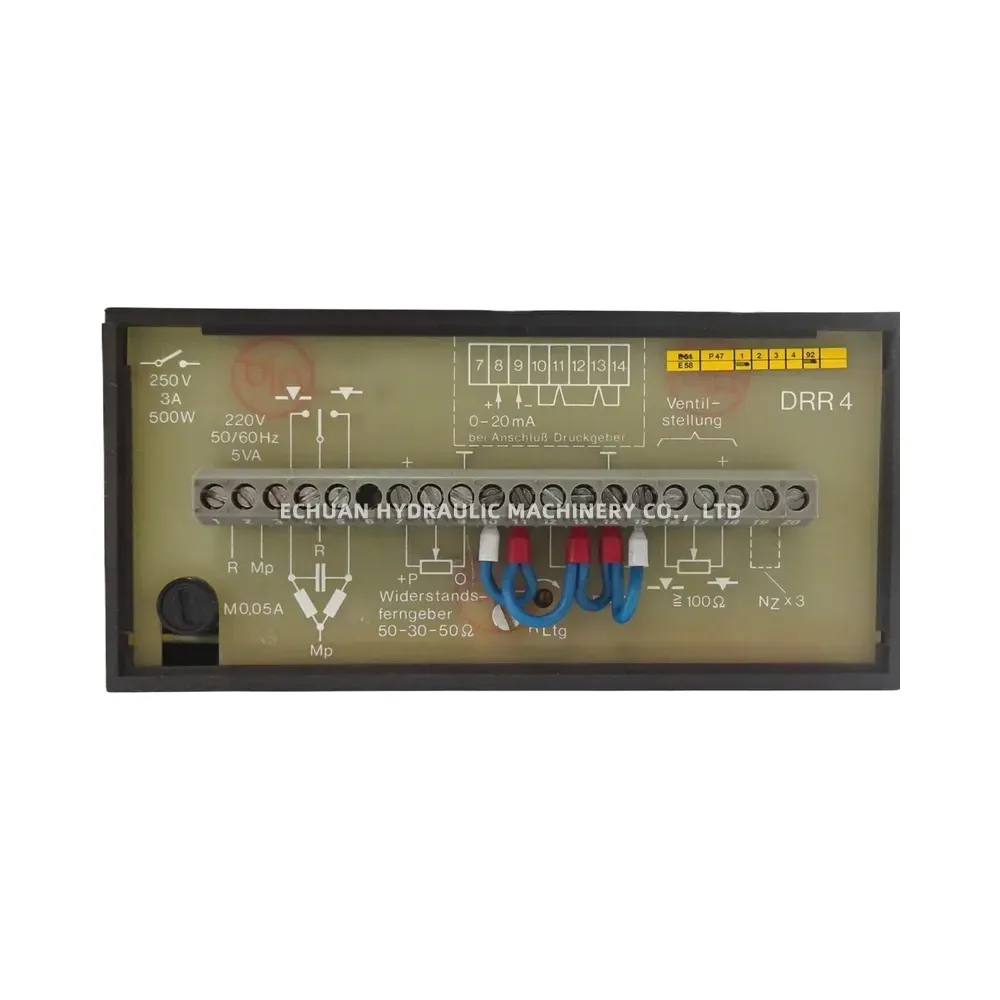

- Input Signals: 0-20mA (Pressure Transmitter) or 50-30-50 Ohm (Resistance Transmitter)
- Adjustable Parameters: Proportional Band Xp (1-100%), Reset Time Tn (1-100s)

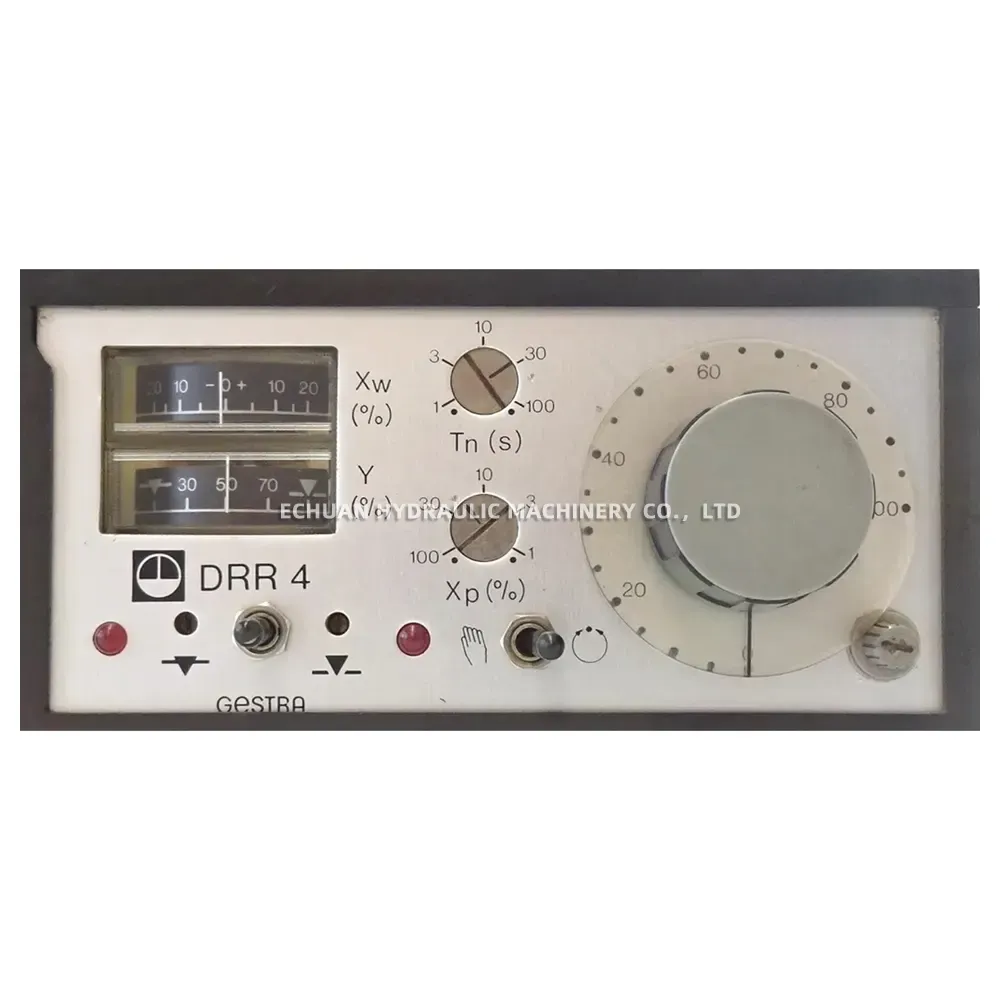

- Display: Analog meters for Deviation (Xw) and Output (Y); Setpoint dial (0-100 scale)
- Application: Valve Position Control
- Protection Rating: IP00
