Product Description

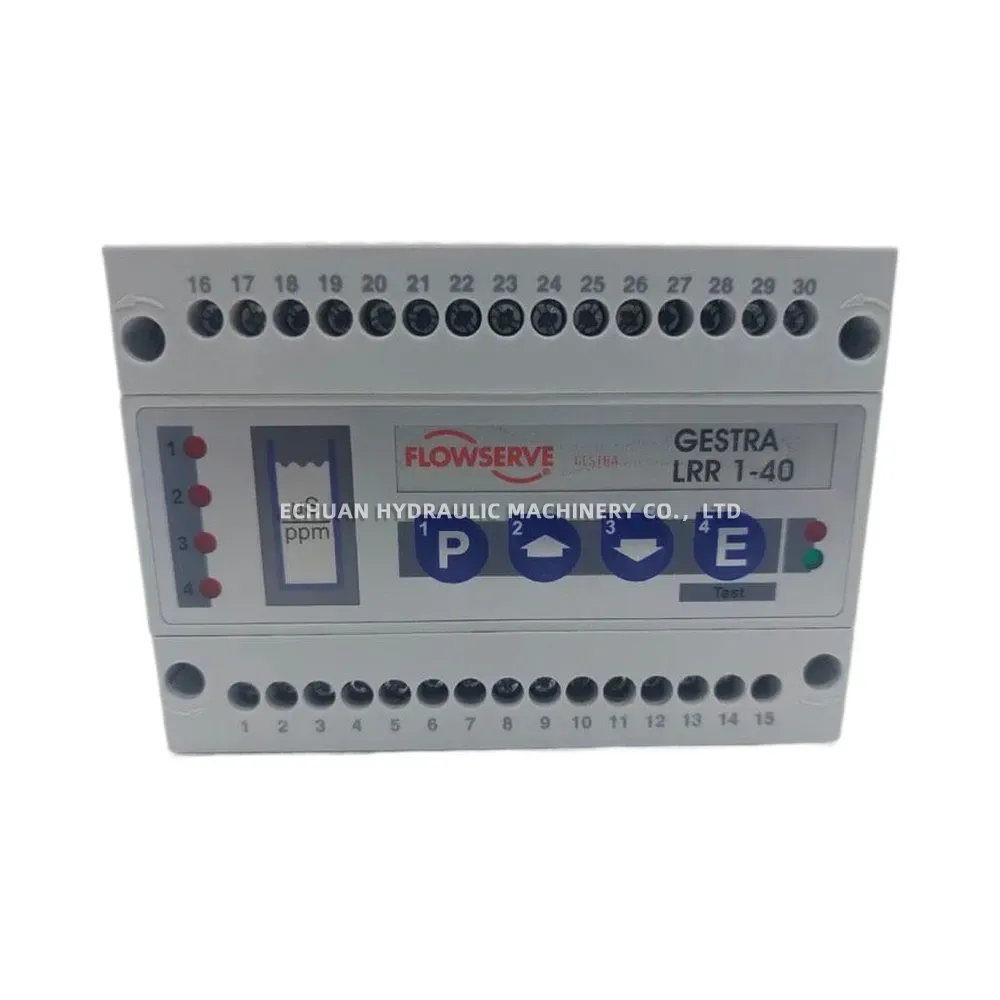

Gestra LRR 1-40 Conductivity Controller

The Gestra LRR 1-40 is a versatile conductivity controller and limit switch designed for precise monitoring and control of water quality in industrial applications. Primarily used in steam boiler plants, it continuously measures the conductivity (TDS level) of boiler water to automatically manage continuous or intermittent blowdown, preventing scaling and corrosion. It can also be utilized for monitoring condensate return, feedwater, and cooling water systems. The unit features a clear 4-digit LED display showing values in µS/cm or ppm, intuitive push-button controls for easy parameter setting, and LED indicators for operational status. Housed in a compact enclosure for DIN rail mounting, the LRR 1-40 ensures reliable process control, enhances plant safety, and optimizes energy and water consumption.

Technical Specifications:

  • Supply Voltage: 24 V DC, or 24 V, 115 V, 230 V AC, 50/60 Hz

  • Measuring Range: 0.5 to 10,000 µS/cm or 0.25 to 5,000 ppm (TDS), adjustable

  • Outputs: One limit value relay (change-over contact), optional 4-20 mA analog output for actual value

  • Display: 4-digit, 7-segment LED display for conductivity and status

  • Enclosure Protection: IP 40 (housing), IP 20 (terminals)

  • Mounting: For control cabinet installation on a 35 mm DIN rail

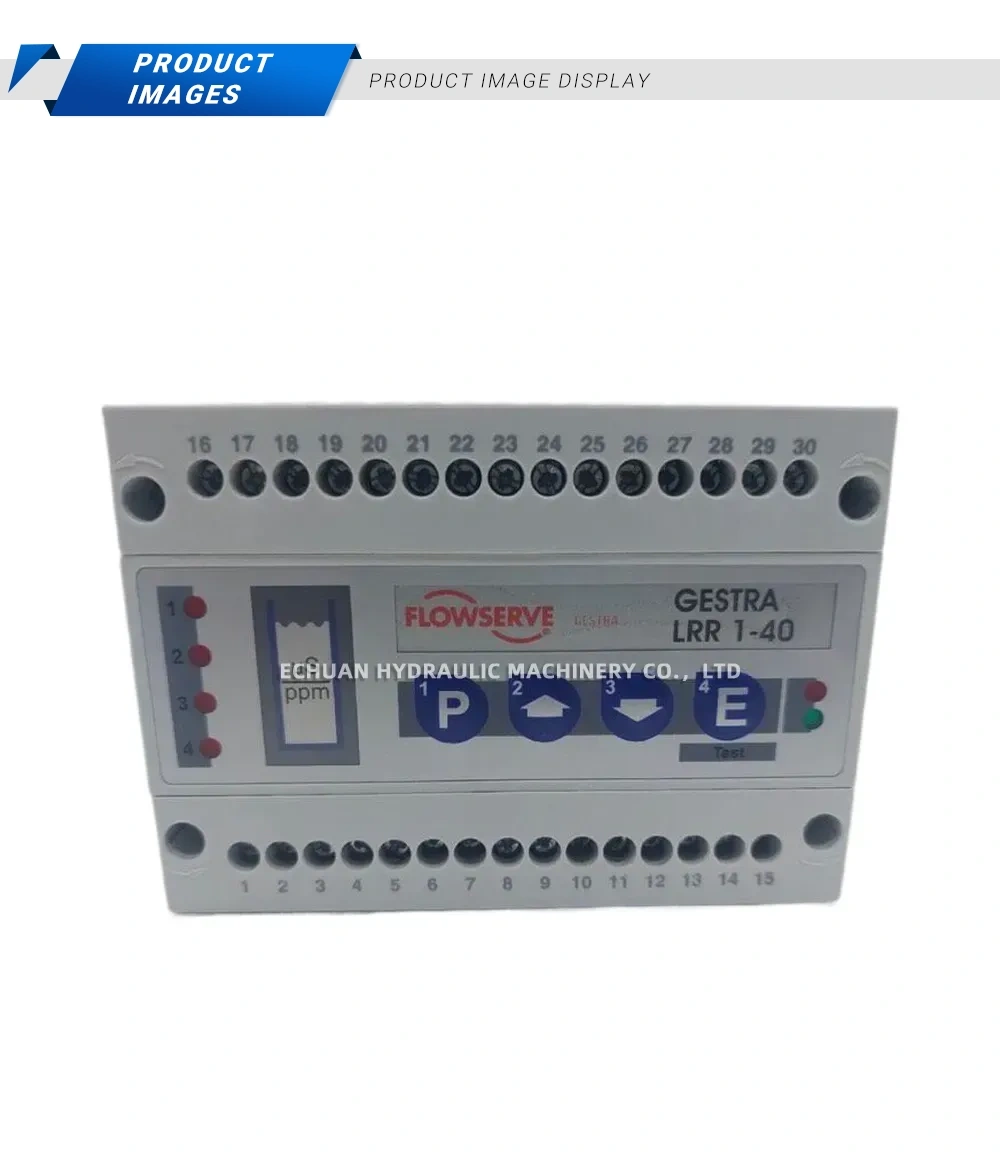

Gestra LRR 1-40 Conductivity Controller Description

Gestra LRR 1-40 Conductivity Controller

Gestra LRR 1-40 industrial conductivity controller for TDS monitoring and automatic boiler blowdown control. Features a digital display, limit relay, and DIN rail mounting for enhanced water quality management.
