Product Description
GESTRA LRR 1-5 Level Electrode
The GESTRA LRR 1-5 is a conductive level electrode designed for monitoring liquid levels in steam boilers and tanks containing conductive fluids. It operates in conjunction with GESTRA level controllers (LRS 1 series) or level limiters (LRS 2 series) to detect minimum or maximum liquid levels reliably. The electrode measures the electrical resistance between the electrode rod(s) and the boiler shell or reference electrode. When the electrode tip is immersed in water, the resistance decreases, triggering the connected controller or limiter. It is suitable for various pressure and temperature ranges depending on the specific model configuration.
Technical Specifications:
- Type: Conductive Level Electrode
- Application: Level detection (Min/Max limit)
- Medium: Conductive liquids (e.g., boiler water, condensate)
- Nominal Pressure: PN 40 (Standard, other ratings available)
- Max. Permissible Temperature: 238 °C @ PN 40 (Higher temperatures possible with different pressure ratings)
- Process Connection: Typically Thread G 3/4 A ISO 228 or 3/4″ NPT (Varies by model)
- Electrode Material: Stainless Steel 1.4571 (AISI 316Ti) or similar
- Insulation: PTFE or Gylon® (depending on application/temperature)
- Electrical Connection: Terminal box with cable gland M 20 x 1.5
- Protection Class: IP65
- Compatibility: GESTRA Level Controllers (LRS 1-x), Level Limiters (LRS 2-x)
- Electrode Length: Made to order (Specify required length)

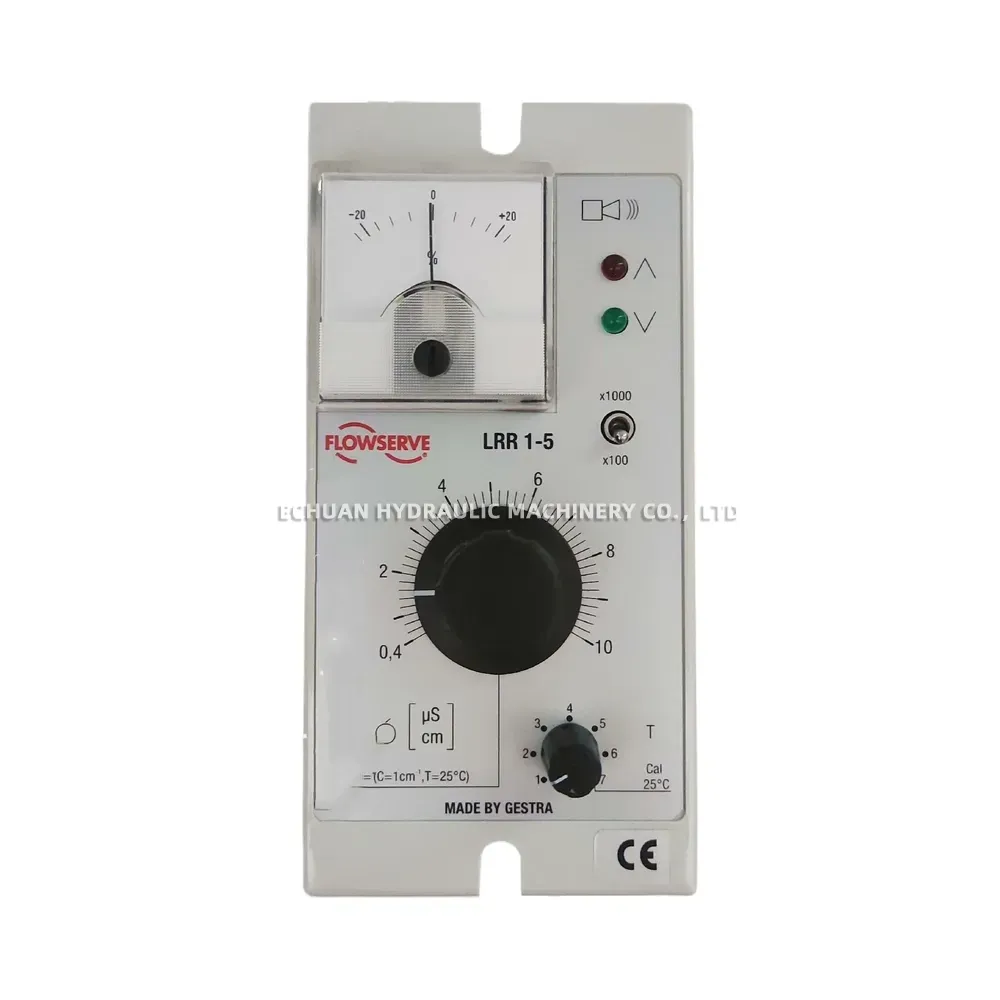

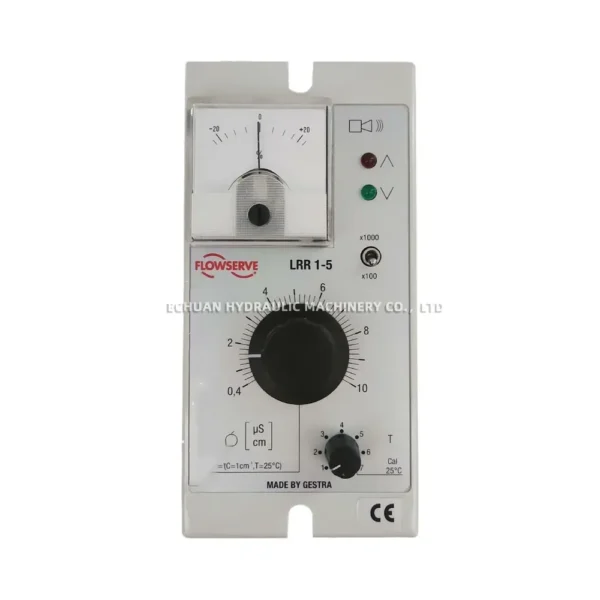

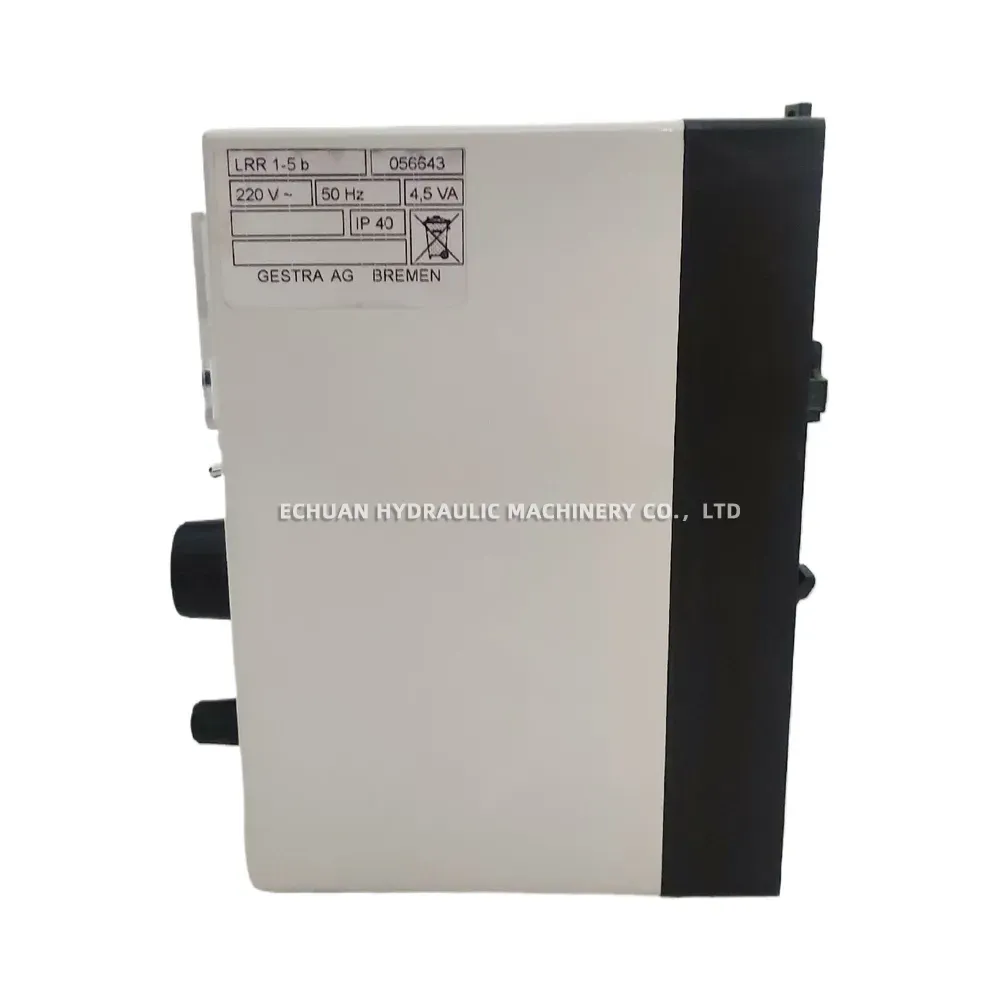

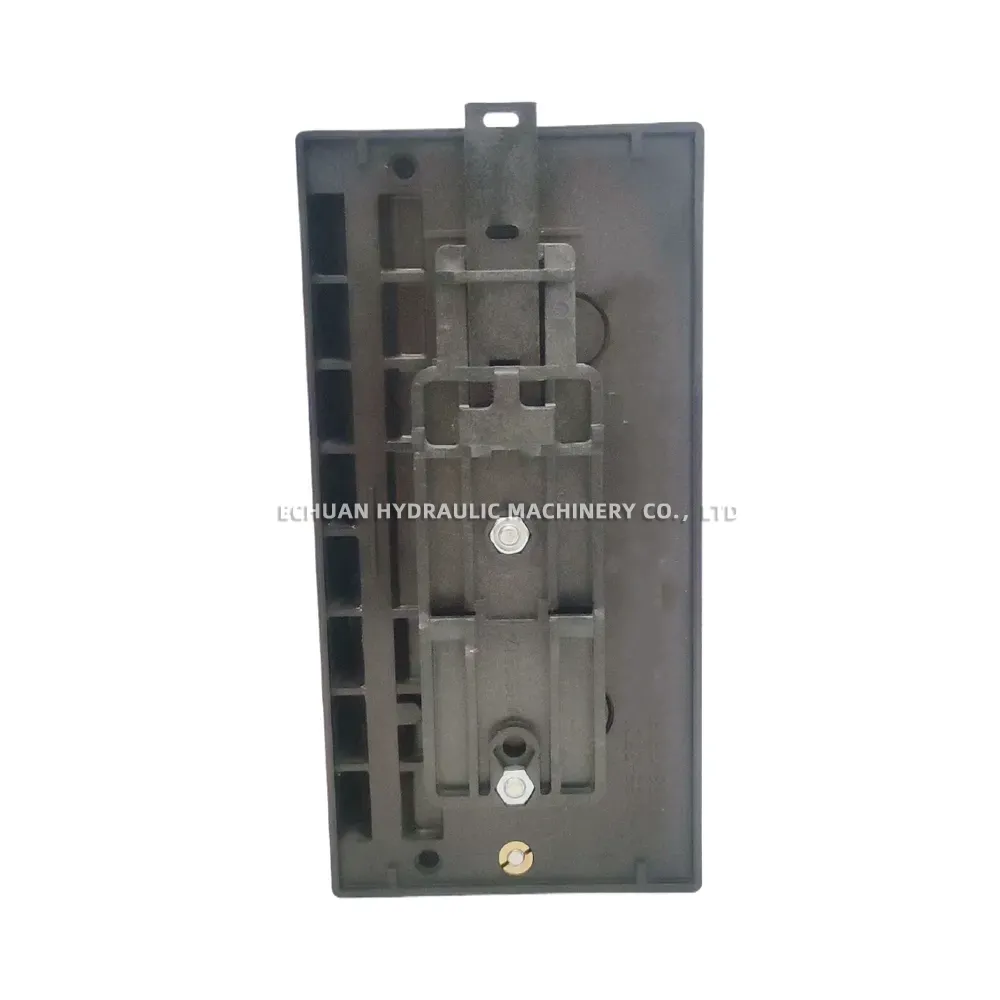

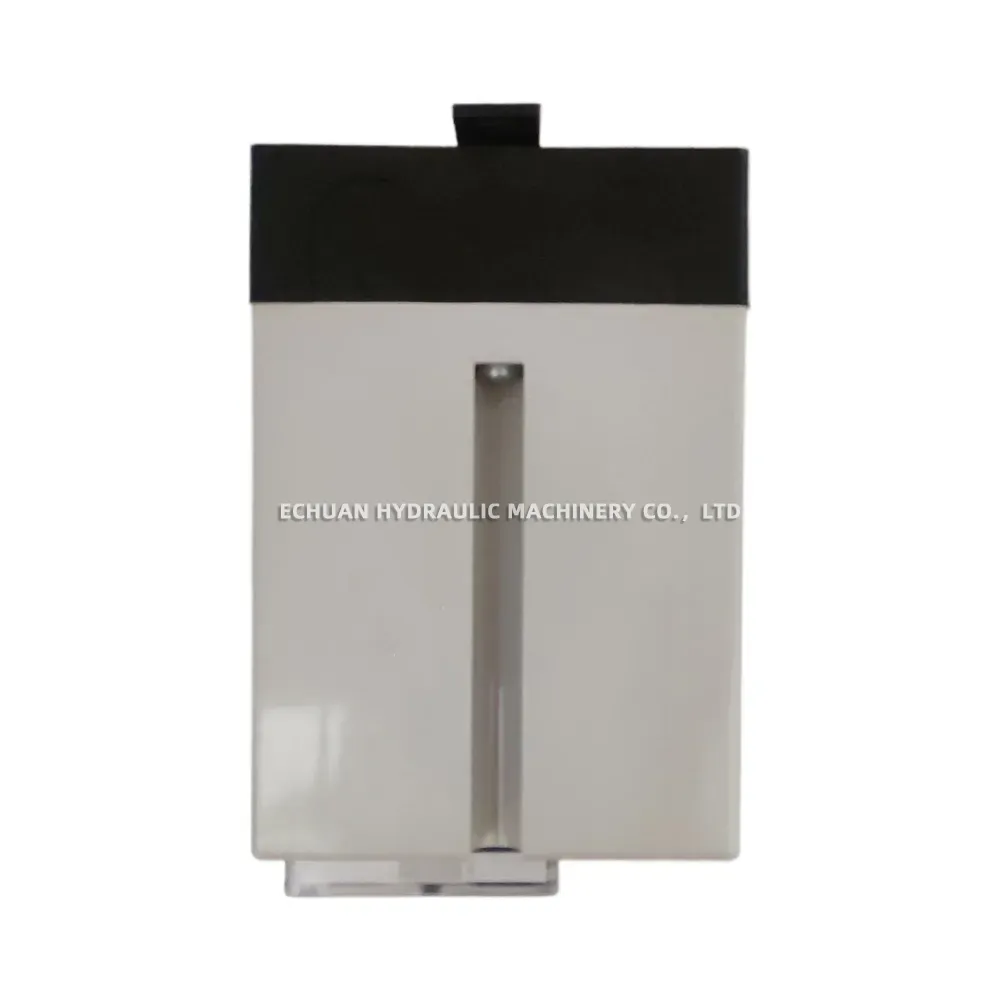

GESTRA LRR 1-5
Model:GESTRA LRR 1-5
| Brand | Gestra |
|---|---|
| Model | LRR 1-5 |
| Part No. | GESTRA LRR 1-5 |
| Category | Other products |
