Product Description

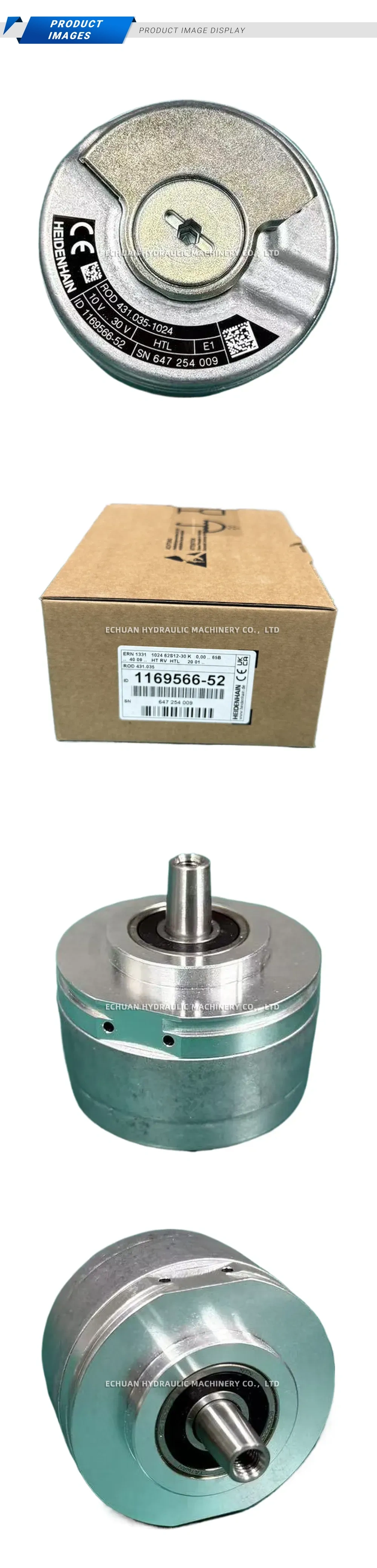

Heidenhain 1169566-52 ERN 1331 1024 62S12-30 K
The Heidenhain ERN 1331 1024 62S12-30 K is a high-performance incremental rotary encoder designed for integration into servo motors and other precision motion control systems. Featuring an integral bearing and a stator coupling, this encoder offers a compact design and high reliability, even in demanding environments with significant vibration. It provides HTL (Push-pull) output signals with a resolution of 1024 lines per revolution, ensuring accurate position and speed feedback. The robust construction and M23 flange socket connection make it a durable and versatile solution for industrial automation applications.
Technical Specifications:
- Model: ERN 1331 1024 62S12-30 K
- ID Number: 1169566-52
- Resolution: 1024 lines per revolution
- Output Signal: HTL (High-voltage Transistor-Transistor Logic)
- Power Supply: 10 V to 30 V DC
- Mechanical Interface: Tapered shaft, for integral mounting
- Electrical Connection: Flange socket, M23, 12-pin, radial
- Maximum Rotational Speed: 12000 rpm
Heidenhain 1169566-52 ERN 1331 1024 62S12-30 K
Buy the Heidenhain ERN 1331 1024 62S12-30 K (ID 1169566-52), a robust incremental rotary encoder with 1024 lines, HTL output, and an M23 connector, ideal for reliable motor feedback in industrial applications.
| Brand | HEIDENHAIN |
|---|---|
| Model | 1169566-52 ERN 1331 1024 62S12-30 K |
| Category | Electrical |
