Product Description

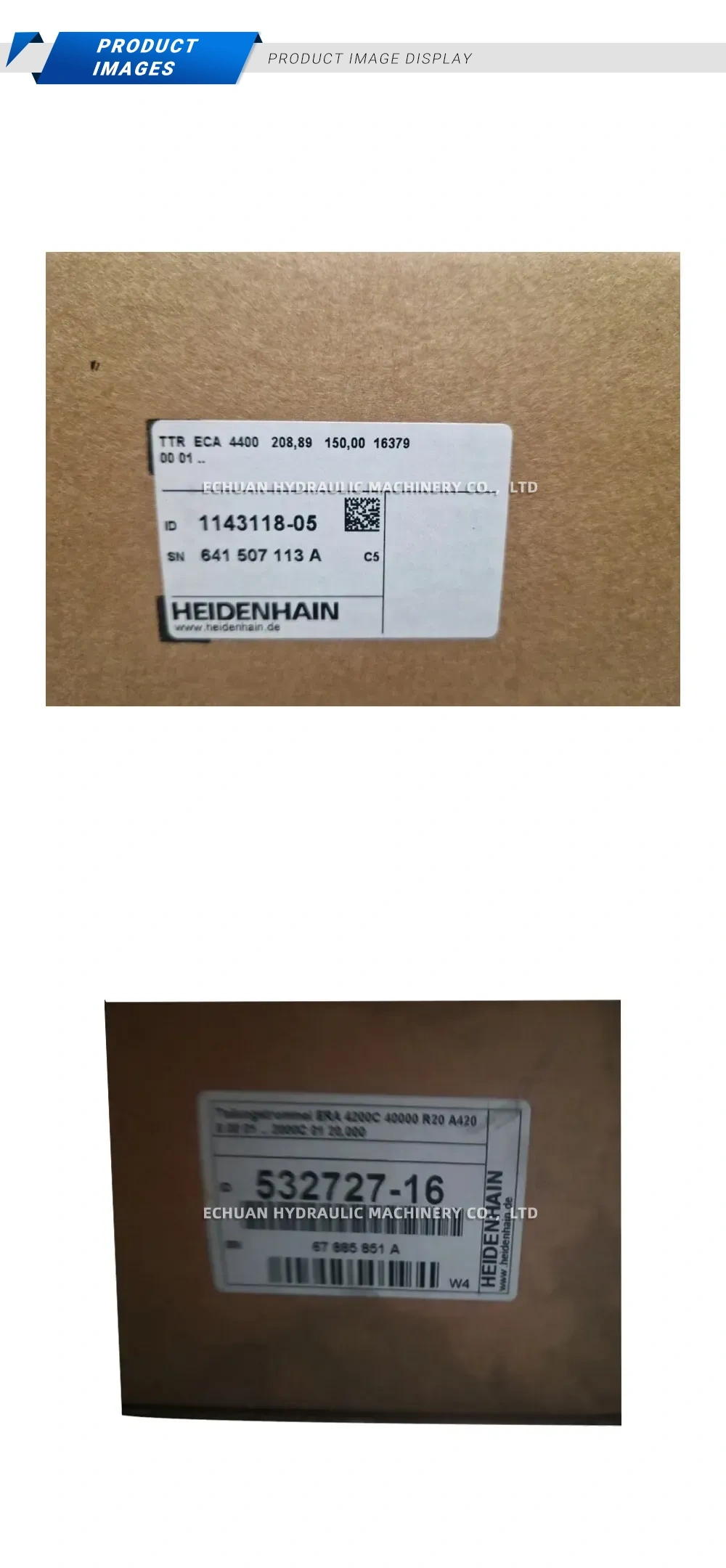

HEIDENHAIN 532727-16 / 1143118-05 Angle Encoder Components (Scale Drum and Module)
This is a set of genuine HEIDENHAIN components for building a high-precision, bearingless absolute angle encoder system. The kit includes the HEIDENHAIN 532727-16 scale drum (Teilungstrommel) designed for the ERA 4200C series, featuring an impressive 40,000 line count for exceptional resolution. Paired with it is the HEIDENHAIN 1143118-05 TTR ECA 4400 scanning module, engineered to read the scale drum with utmost accuracy. Together, these components form a robust and reliable modular angle encoder ideal for demanding industrial automation applications such as direct drives, machine tools, and high-accuracy rotary axes where precise angular measurement is critical.
Technical Specifications:
- Brand: HEIDENHAIN
- Component 1: Scale Drum (Teilungstrommel)

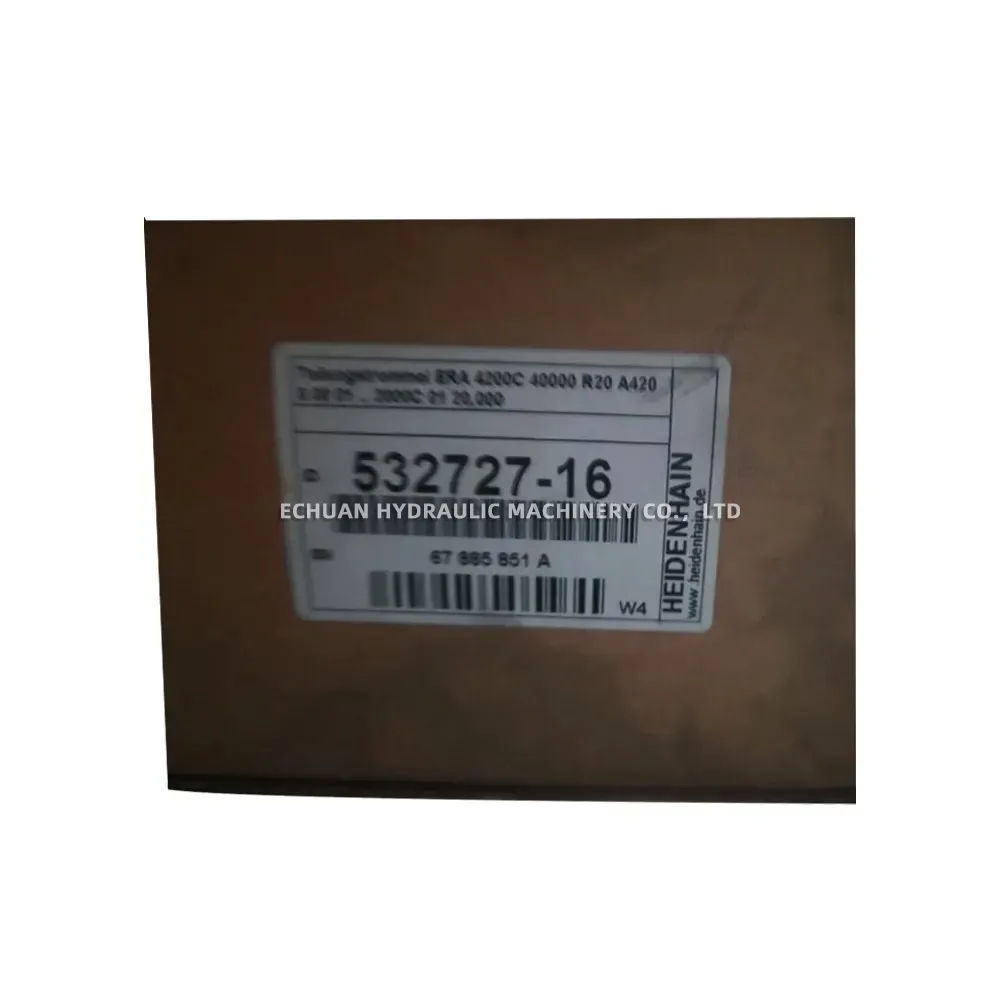

- Scale Drum Part Number (ID): 532727-16
- Scale Drum Model: ERA 4200C 40000 R20 A420
- Line Count: 40,000
- Component 2: Scanning Module

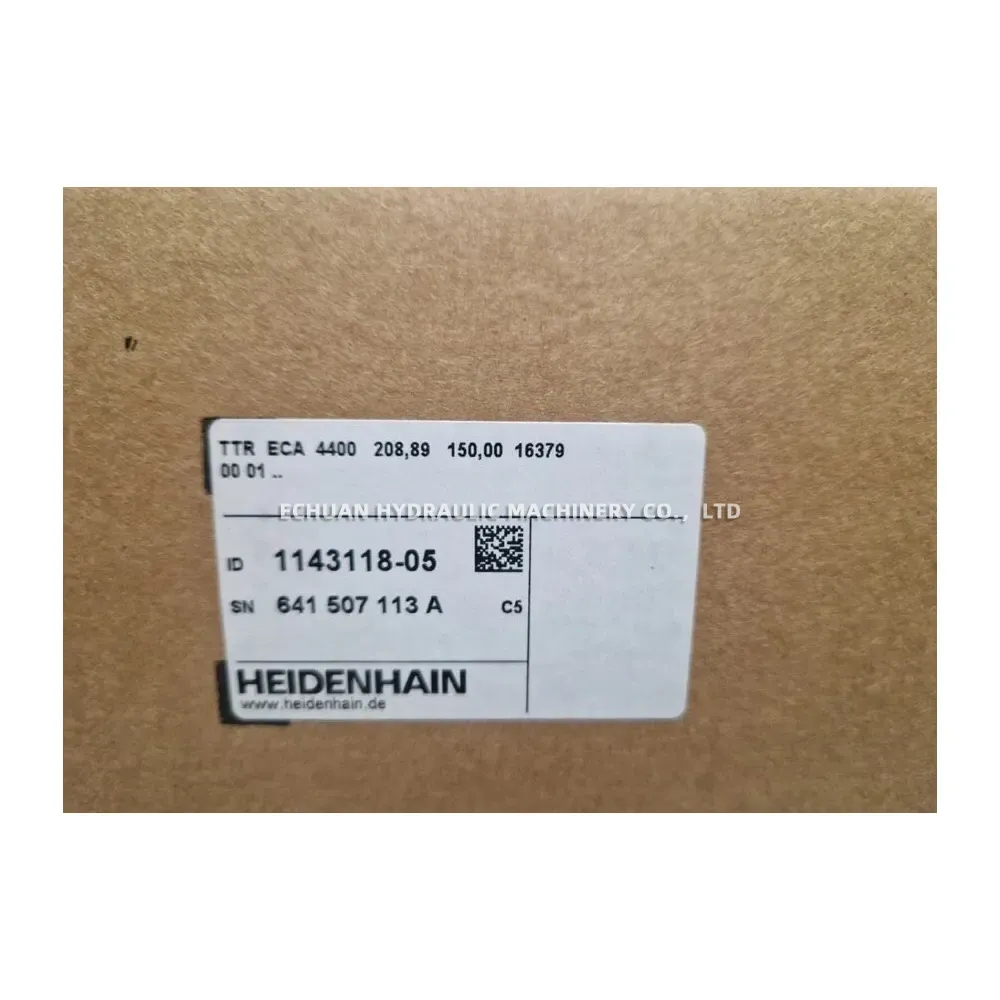

- Module Part Number (ID): 1143118-05
- Module Model: TTR ECA 4400
HEIDENHAIN 532727-16 / 1143118-05 Angle Encoder Components (Scale Drum and Module)
Purchase the genuine HEIDENHAIN 532727-16 / 1143118-05 angle encoder component kit. This set includes the ERA 4200C 40,000-line scale drum and the TTR ECA 4400 scanning module for high-resolution absolute angular positioning in industrial automation.
| Brand | HEIDENHAIN |
|---|---|
| Model | 532727-16 / 1143118-05 |
| Category | Other products |
