Heidenhain ROD 426.000B - 2500 Rotary Encoder
Product Description

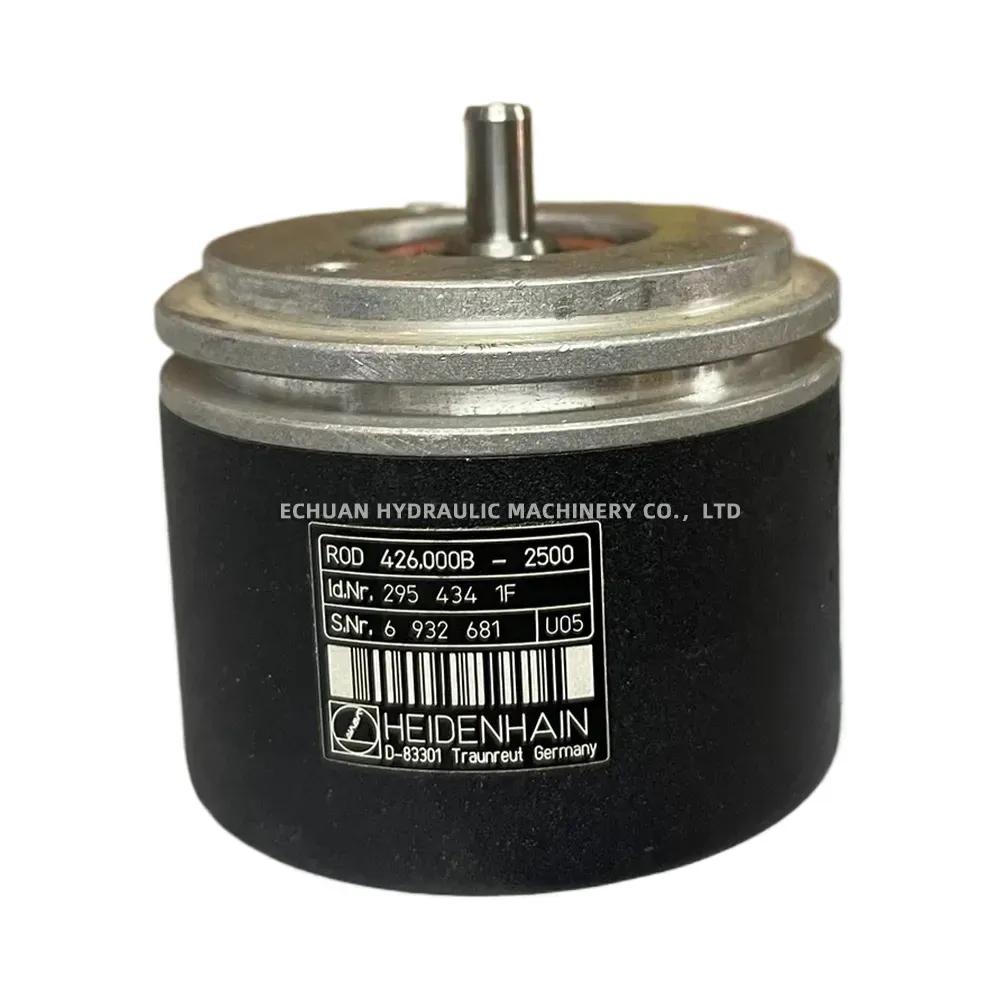

Heidenhain ROD 426.000B – 2500 Rotary Encoder

The Heidenhain ROD 426.000B – 2500 is a high-precision incremental rotary encoder designed for demanding industrial applications. Manufactured in Germany, this encoder is renowned for its robust construction, reliability, and accuracy. It provides 2500 lines per revolution, delivering precise speed and position feedback essential for motion control systems, machine tools, and automation. The solid shaft design and TTL-compatible output signals ensure seamless integration into a wide range of control systems. This specific model, with ID number 295 434 1F, is a benchmark for quality and performance in industrial measurement technology.

Technical Specifications:

  • Model: ROD 426.000B – 2500
  • Heidenhain Id.Nr.: 295 434 1F
  • Line Count: 2500 lines per revolution
  • Output Signal: TTL (RS-422 compatible)
  • Power Supply: DC 5V (± 5%)
  • Shaft Type: Solid shaft, 6mm diameter
  • Max. Scanning Frequency: 160 kHz
  • Protection Class (EN 60529): IP64 (Housing)

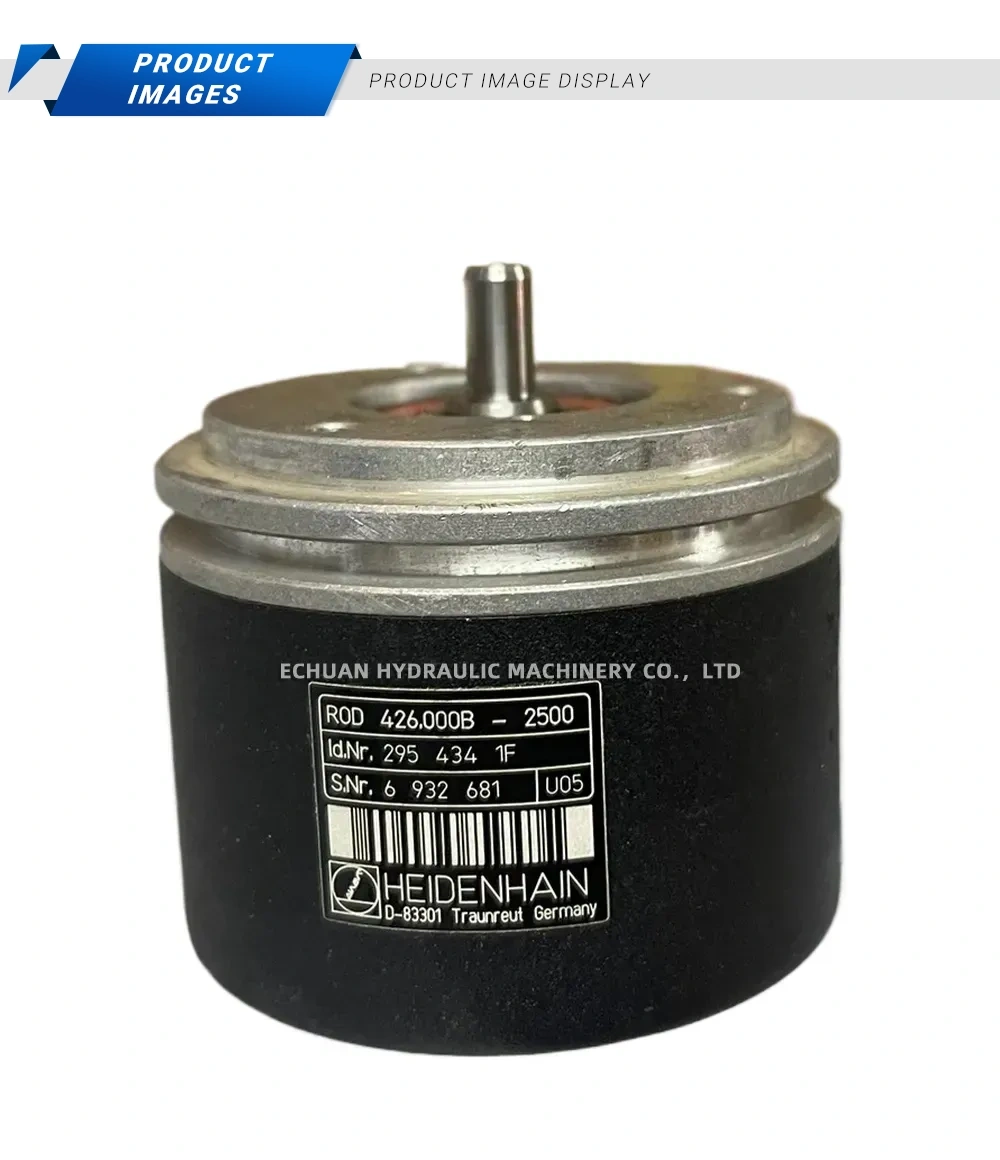

Heidenhain ROD 426.000B - 2500 Rotary Encoder Description

Heidenhain ROD 426.000B – 2500 Rotary Encoder

Genuine Heidenhain ROD 426.000B – 2500 incremental rotary encoder (Id.Nr. 295 434 1F) featuring 2500 lines, a 6mm solid shaft, and TTL output signals. Ideal for precise motion control and speed feedback in industrial automation and machinery.
