Product Description
Heidenhain LC485
The Heidenhain LC 485 is a high-performance, sealed absolute linear encoder designed for use on machine tools and other precision applications. Its robust construction ensures high resistance to vibration and reliable operation even in harsh industrial environments. Featuring a DIADUR glass scale, the LC 485 provides exceptional accuracy and thermal stability. With the advanced EnDat 2.2 digital interface, it delivers absolute position values immediately upon power-up, eliminating the need for reference runs and enhancing machine efficiency and safety.

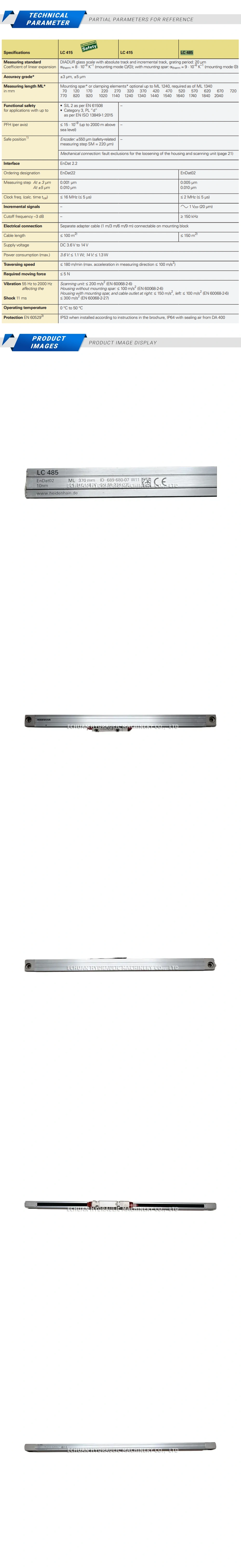

Technical Specifications:
- Measuring Standard: DIADUR glass scale with absolute track
- Accuracy Grade: ± 3 µm or ± 5 µm
- Measuring Lengths: 170 mm to 3040 mm
- Interface: EnDat 2.2 (purely serial)
- Protection Class (EN 60529): IP53 (IP64 with sealing air from a DA 400 unit)
- Max. Traversing Speed: Up to 180 m/min
Heidenhain LC485
Shop the Heidenhain LC485, a robust and high-accuracy absolute sealed linear encoder. Ideal for demanding machine tool applications, it features the reliable EnDat 2.2 interface for superior performance and precision.
