Product Description

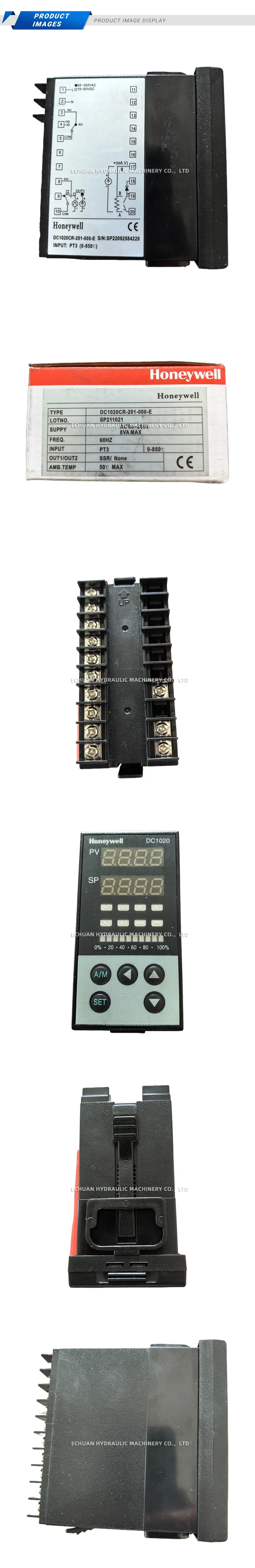

Honeywell DC1020CR-201-000-E Digital PID Controller
The Honeywell DC1020CR-201-000-E is a microprocessor-based digital PID controller designed for precise regulation of temperature and other process variables in a wide range of applications, including plastics processing, packaging machinery, and heat treatment. This 1/4 DIN controller features a user-friendly interface with a large dual display showing both the process value (PV) and setpoint value (SV). Its advanced PID control algorithm with auto-tuning capability ensures stable and accurate process management with minimal operator intervention. The universal input accepts various thermocouple, RTD, and linear signals, while the dual relay outputs provide versatile control and alarm functionality, making it a reliable and cost-effective solution for industrial process control.
Technical Specifications:
- Model: DC1020CR-201-000-E
- Controller Size: 48 x 96 mm (1/4 DIN)
- Power Supply: 100-240 VAC, 50/60 Hz
- Input Type: Universal (Thermocouple, RTD, Linear V/mA)
- Output 1: Relay (SPDT, 2A/240VAC)
- Output 2: Relay (SPST, 2A/240VAC)
- Control Method: PID with Auto-tuning (Fuzzy Logic) or On/Off
- Display: Dual 4-digit, 7-segment LED (PV and SV)
- Front Panel Protection: IP65
Honeywell DC1020CR-201-000-E
Honeywell DC1020CR-201-000-E is a 1/4 DIN digital PID temperature controller with a universal input, dual relay outputs, and a 100-240 VAC power supply. Ideal for precise and reliable industrial process control.
| Brand | Honeywell |
|---|---|
| Model | DC1020CR-201-000-E |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/honeywell-dc1020cr-201-000-e |
