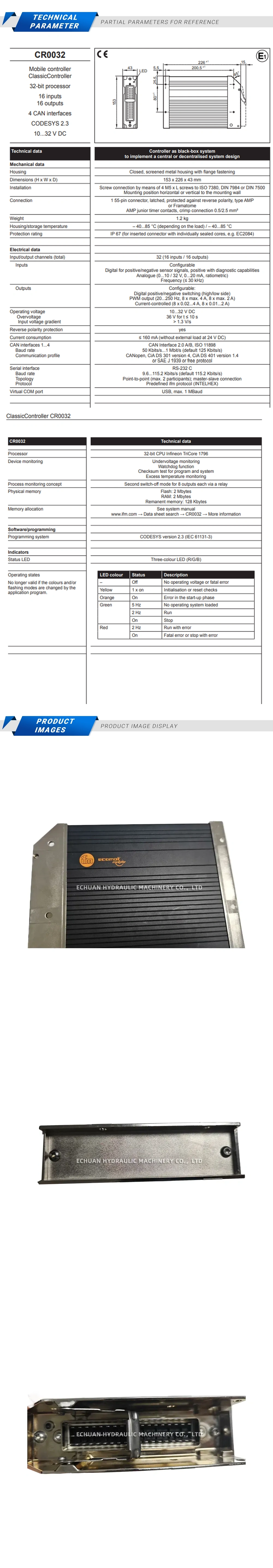

Product Description
IFM ECOMAT CR0032
The IFM ECOMAT CR0032 is a robust and compact ClassicController designed for control applications in mobile machinery and off-highway vehicles. Engineered to withstand harsh environmental conditions, this powerful controller features a high protection rating and a wide operating temperature range. It offers a flexible combination of digital, analog, and frequency inputs, along with powerful digital and PWM outputs. With two integrated CAN interfaces supporting protocols like CANopen and J1939, the CR0032 provides seamless communication and integration into complex control systems. It is freely programmable with CODESYS according to the IEC 61131-3 standard, making it a versatile solution for demanding mobile control tasks.
Technical Specifications:
- Operating voltage: 8…32 V DC
- Inputs: 12 multi-function inputs (digital / analogue / frequency)
- Outputs: 8 digital outputs (4 of which are PWM-capable)
- Communication Interface: 2 x CAN (CANopen and J1939 protocols)
- Programming: CODESYS V2.3 (according to IEC 61131-3)
- Protection Rating: IP65 / IP67
- Operating Temperature: -40…85 °C
IFM ECOMAT CR0032
Discover the robust IFM ECOMAT CR0032 ClassicController, a compact PLC designed for mobile machinery. Features versatile I/Os, dual CAN interfaces, and CODESYS programming for reliable control in harsh environments.
| Brand | Ifm |
|---|---|
| Model | ECOMAT CR0032 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/ifm-ecomat-cr0032 |
