Product Description

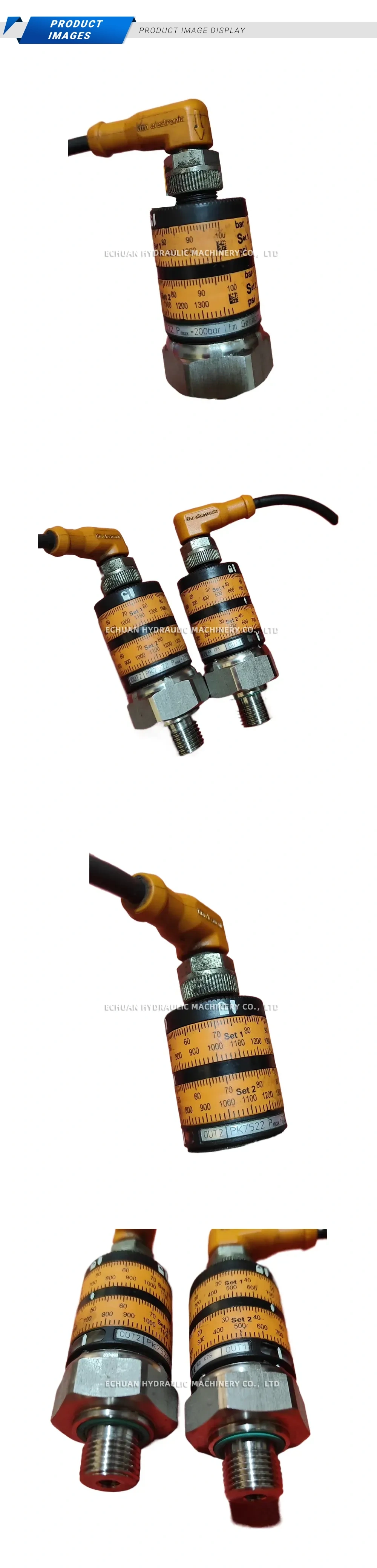

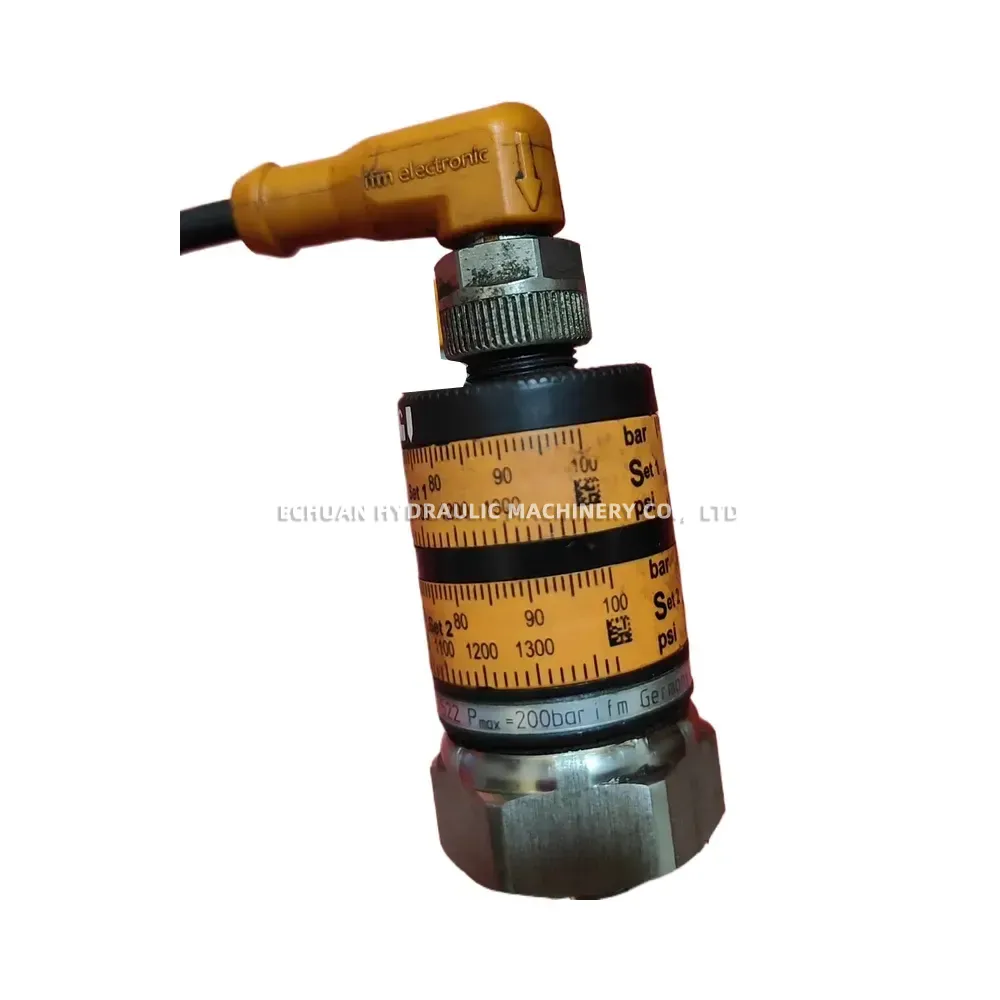

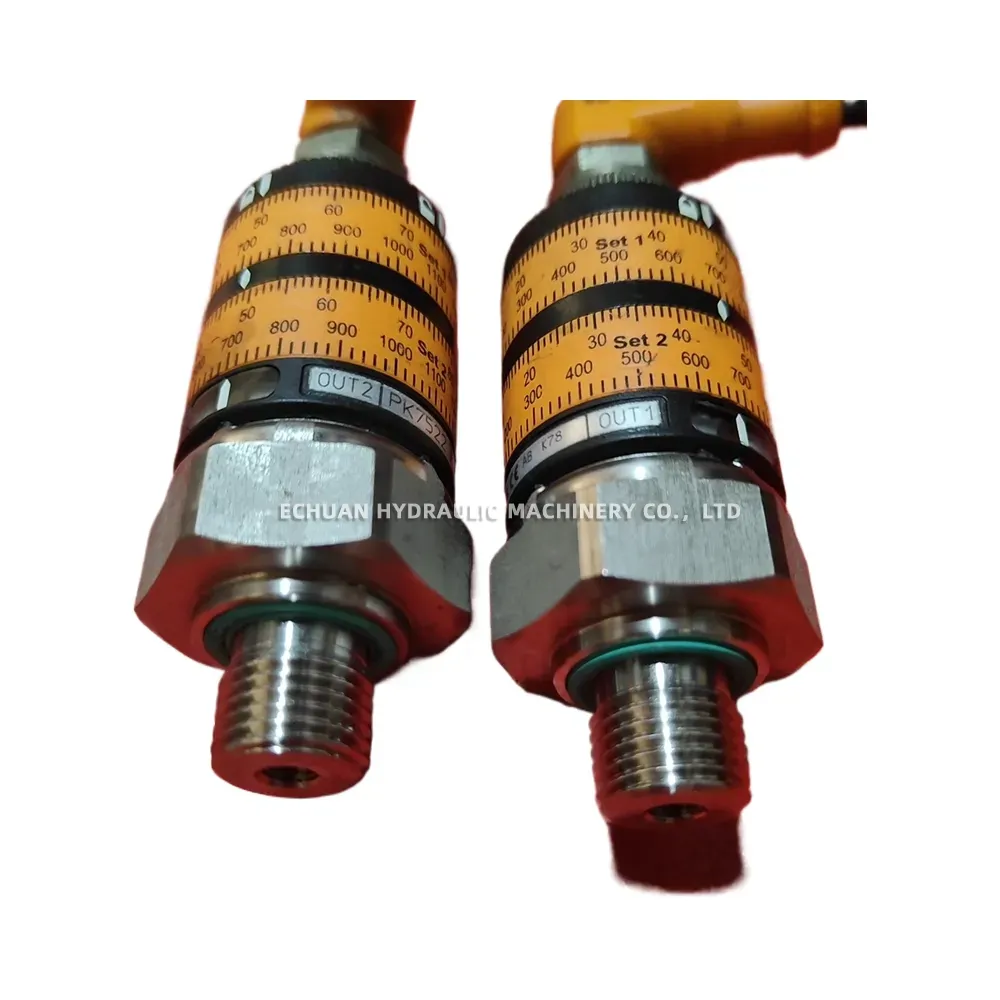

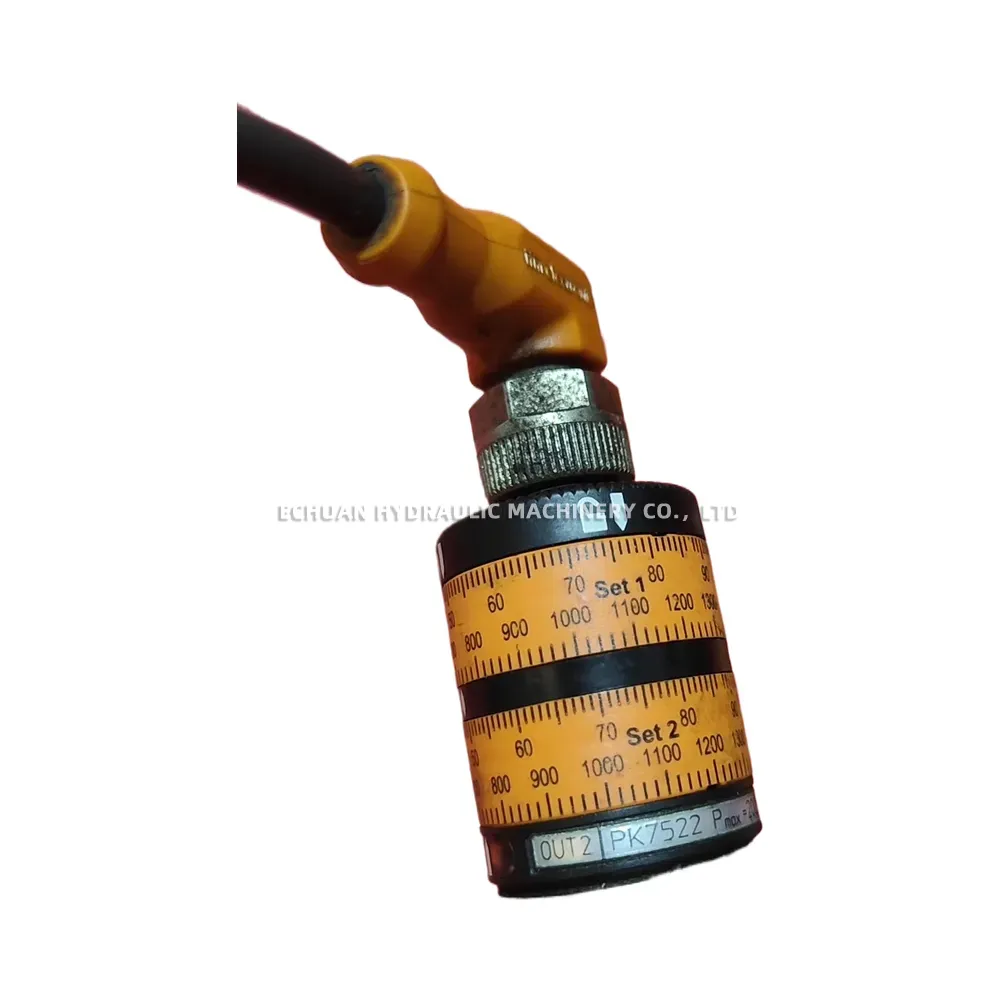

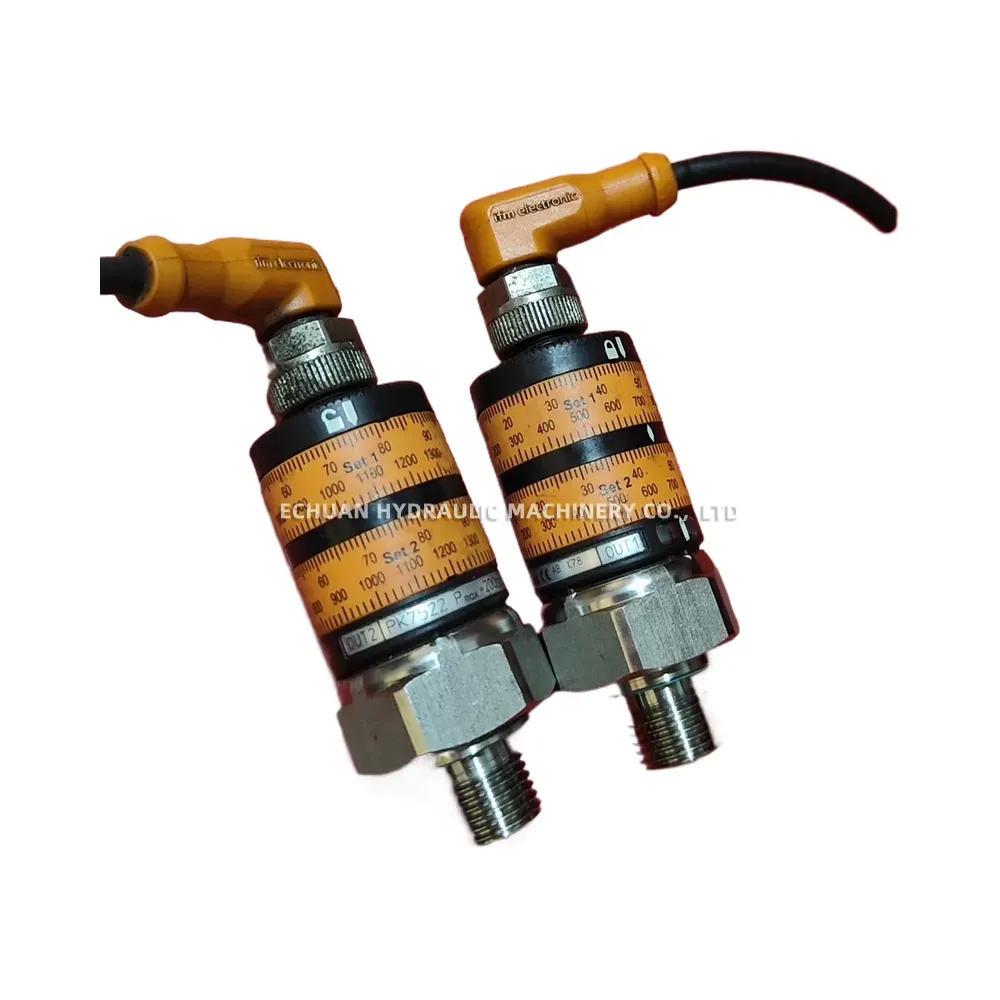

ifm electronic PK7522 Pressure Sensor / Electronic Pressure Switch
The ifm electronic PK7522 is a highly reliable electronic pressure sensor and switch designed for demanding industrial applications. It features a robust stainless steel hex housing and offers two independently adjustable switching points (OUT1 and OUT2) using intuitive dual-scale adjustment rings graduated in both bar and psi. With a maximum system pressure of 200 bar and an adjustable setting range of up to 100 bar (1300 psi), this sensor ensures precise monitoring and control for your fluid or gas systems. The unit includes a male threaded process connection with a sealing ring and an angled electrical connector with a molded cable for secure, straightforward installation. Manufactured in Germany, the PK7522 delivers exceptional durability, accuracy, and ease of setup.
Technical Specifications:
- Brand: ifm electronic
- Model: PK7522
- Maximum System Pressure (Pmax): 200 bar
- Setting Range (Set 1): 60 – 100 bar / 800 – 1300 psi
- Setting Range (Set 2): 20 – 50 bar / 300 – 700 psi
- Outputs: 2 independently adjustable switching outputs (OUT1 and OUT2)
- Housing Design: Stainless steel hex housing
- Process Connection: Male threaded with sealing ring
- Approvals / Origin: CE / Made in Germany
ifm electronic PK7522 Pressure Sensor / Electronic Pressure Switch
Shop the ifm electronic PK7522 Electronic Pressure Switch. Features a 200 bar maximum pressure rating, dual adjustable switching points (20-100 bar / 300-1300 psi), two outputs, and a durable stainless steel housing. Perfect for reliable and precise industrial pressure monitoring.
| Brand | ifm electronic |
|---|---|
| Model | PK7522 |
| Part No. | 907751349309 |
| Category | Electrical |
