Product Description

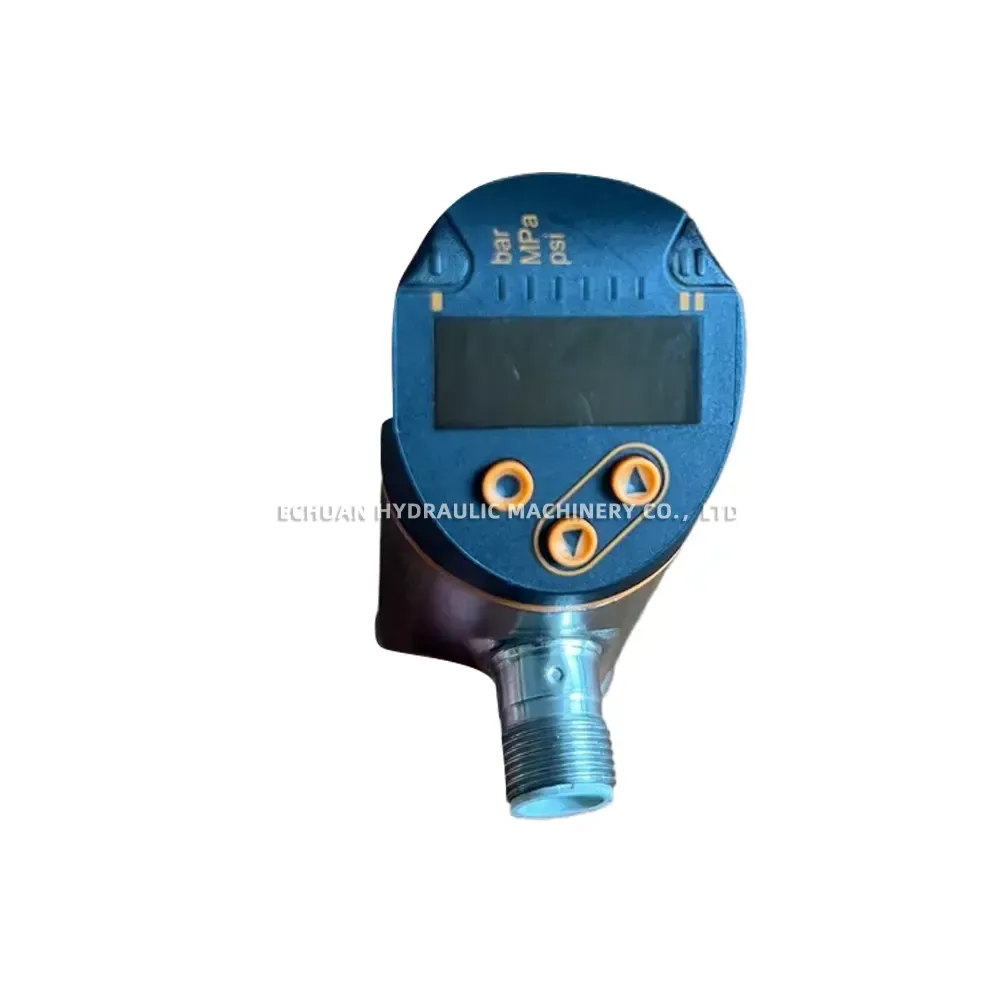

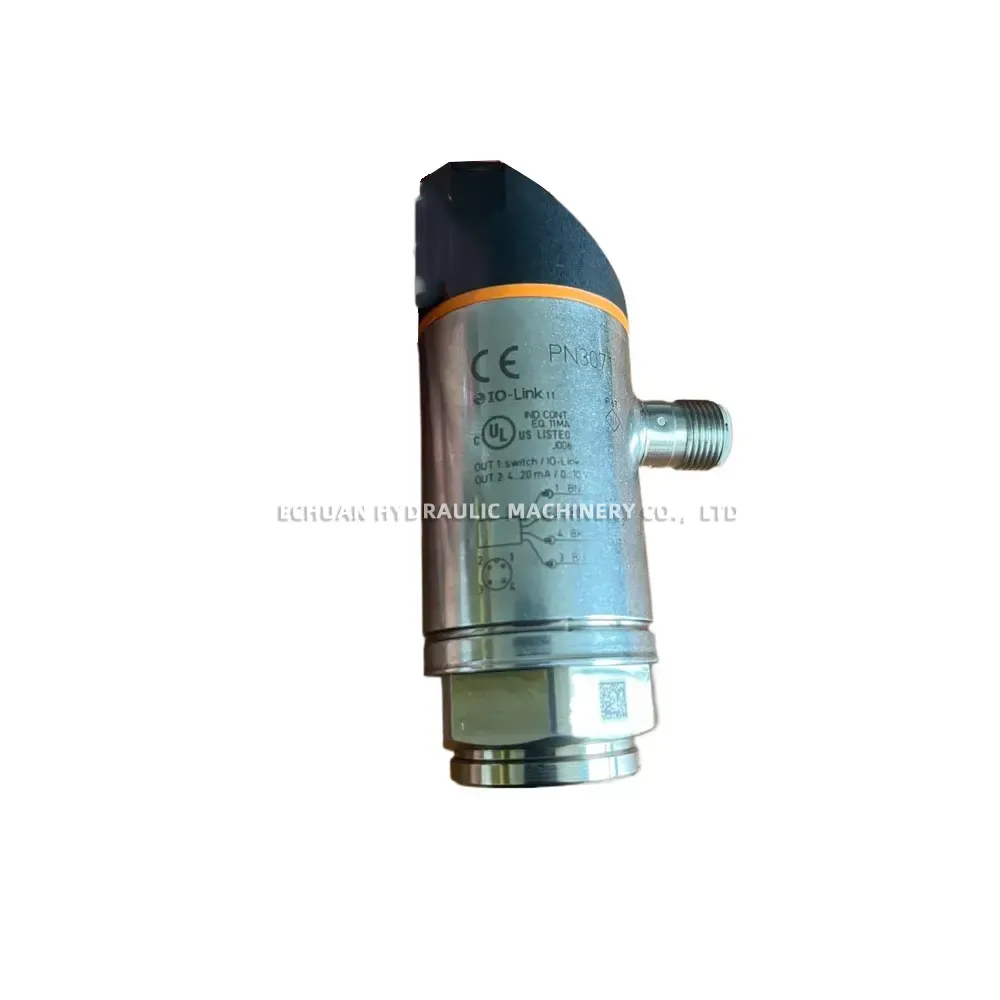

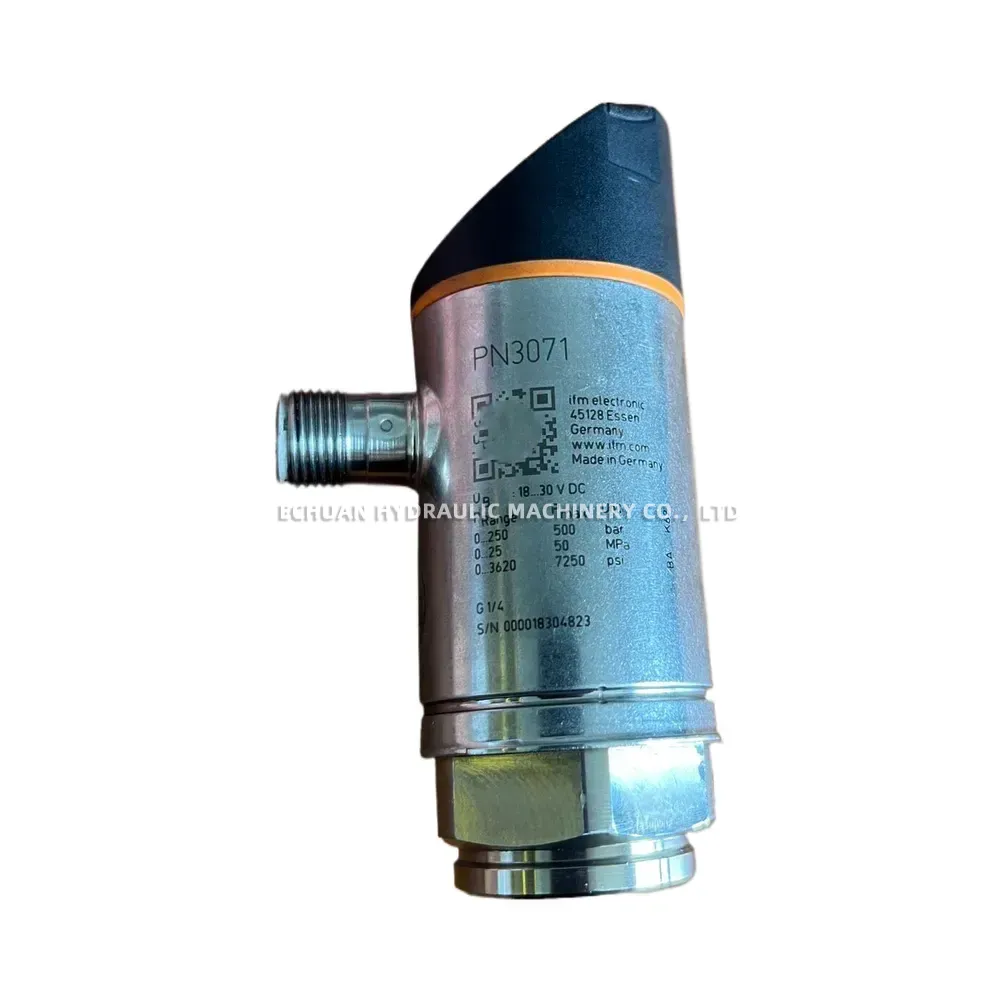

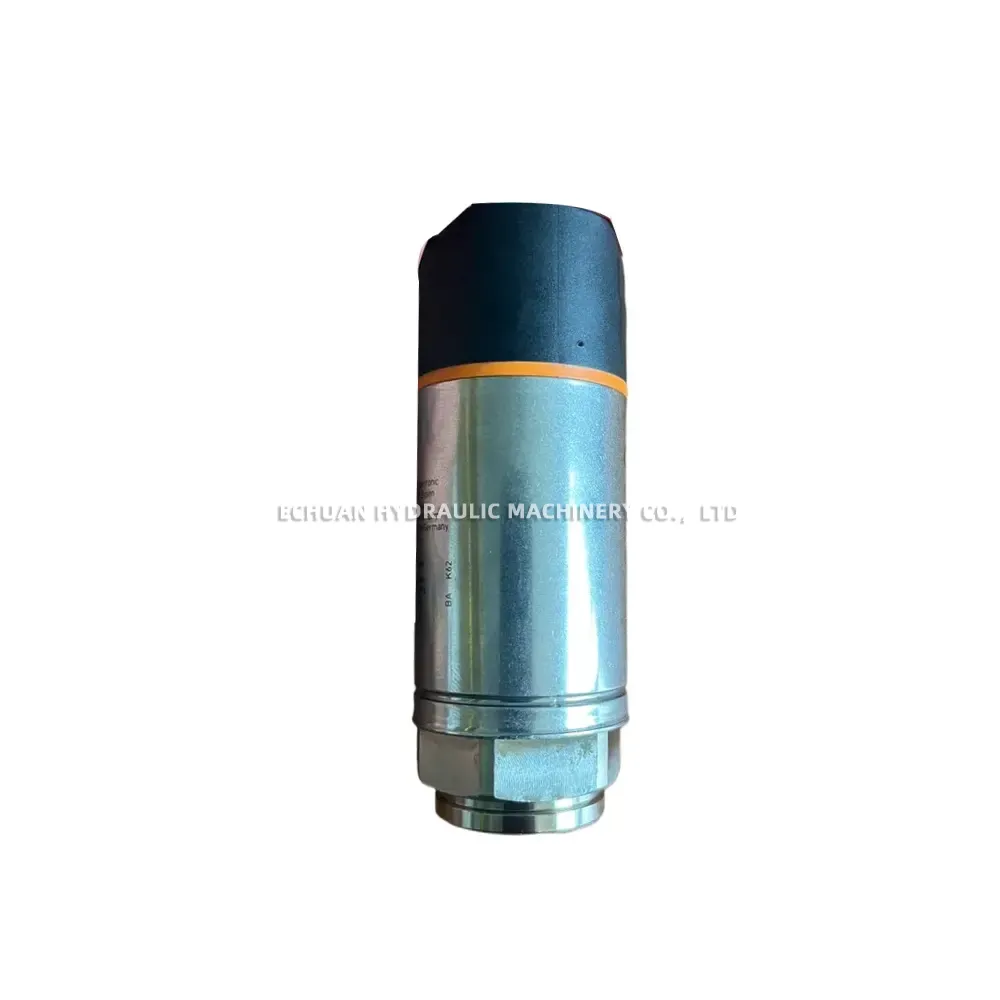

ifm electronic PN3071 Pressure Sensor
The ifm electronic PN3071 is a highly reliable digital pressure sensor engineered for robust industrial automation and fluid control applications. Manufactured in Germany, this advanced sensor features a highly visible integrated display for clear on-site monitoring and supports modern IO-Link communication for seamless integration into Industry 4.0 environments. It is equipped with versatile dual programmable outputs: OUT 1 serves as a switching output or IO-Link interface, while OUT 2 provides an analog signal configurable for 4…20 mA or 0…10 V. With a broad measuring range of 0 to 250 bar (0…3620 psi) and an exceptional overload limit of 500 bar, the PN3071 guarantees precision and durability even in demanding conditions. Installation is straightforward thanks to its standard G 1/4 process connection and secure M12 electrical connector.
Technical Specifications:
- Brand: ifm electronic
- Model: PN3071
- Operating Voltage: 18…30 V DC
- Measuring Range: 0…250 bar / 0…25 MPa / 0…3620 psi
- Maximum Pressure Rating: 500 bar / 50 MPa / 7250 psi
- Output 1: Switching output / IO-Link
- Output 2: Analog (4…20 mA / 0…10 V)
- Process Connection: G 1/4
- Electrical Connection: M12 connector (Pins: 1 BN, 2 WH, 3 BU, 4 BK)
- Certifications: CE, cULus Listed (IND. CONT. EQ. 11MA)
- Country of Origin: Germany
ifm electronic PN3071 Pressure Sensor
Shop the ifm electronic PN3071 digital pressure sensor featuring IO-Link, an integrated display, and a 0-250 bar measuring range. Designed with dual programmable outputs (switch/analog) and a G 1/4 process connection for reliable, precision industrial automation.
