Product Description

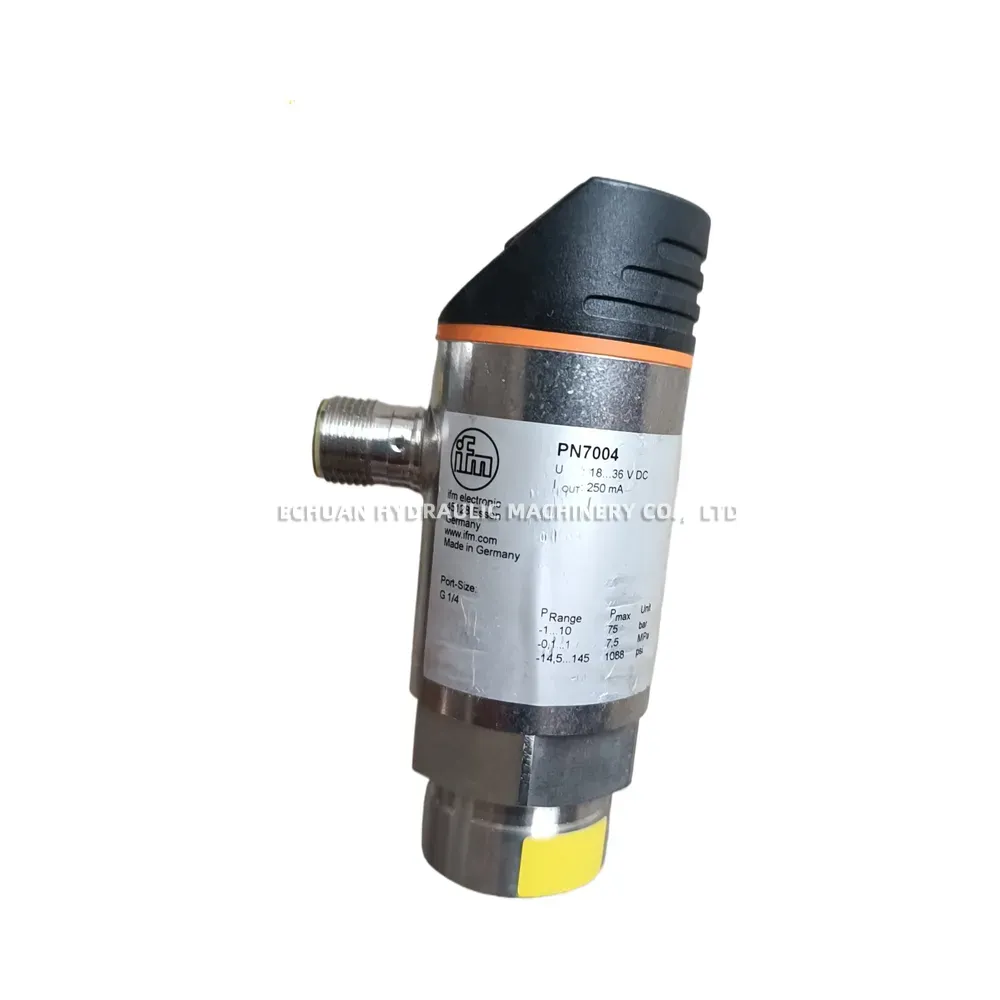

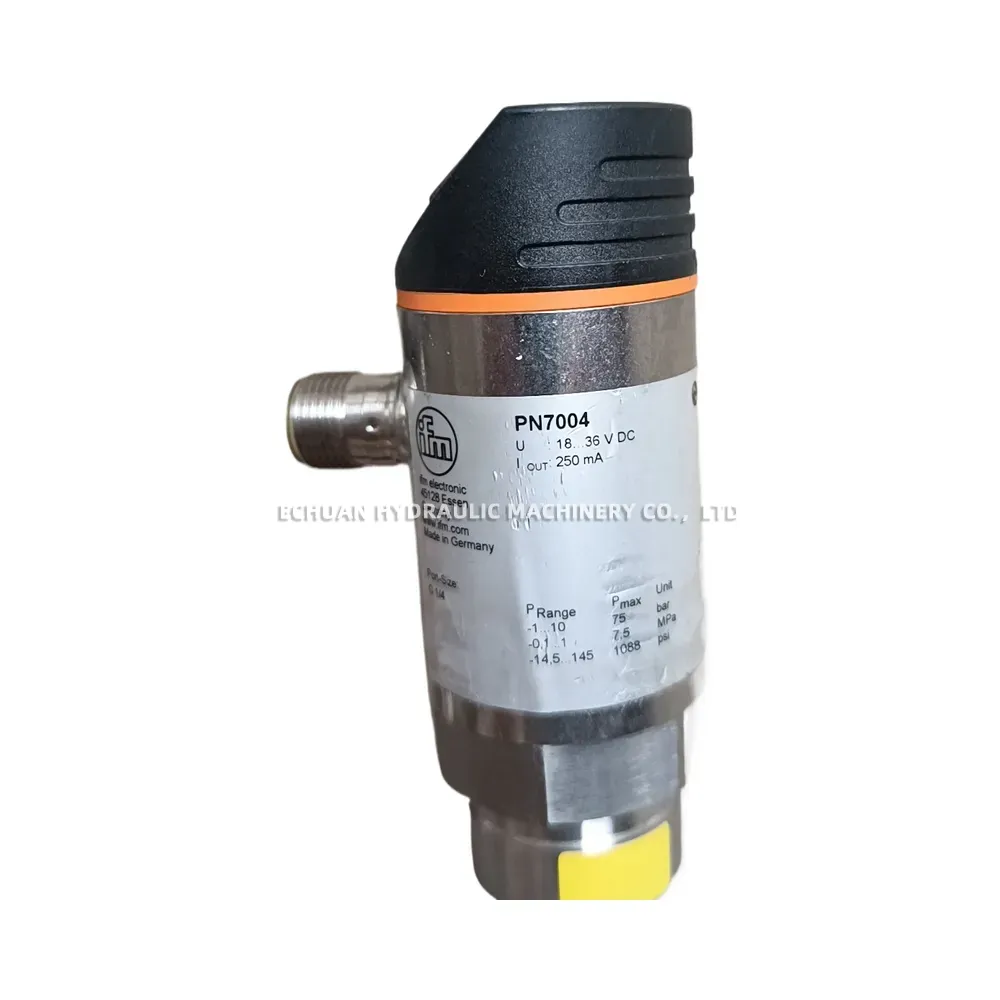

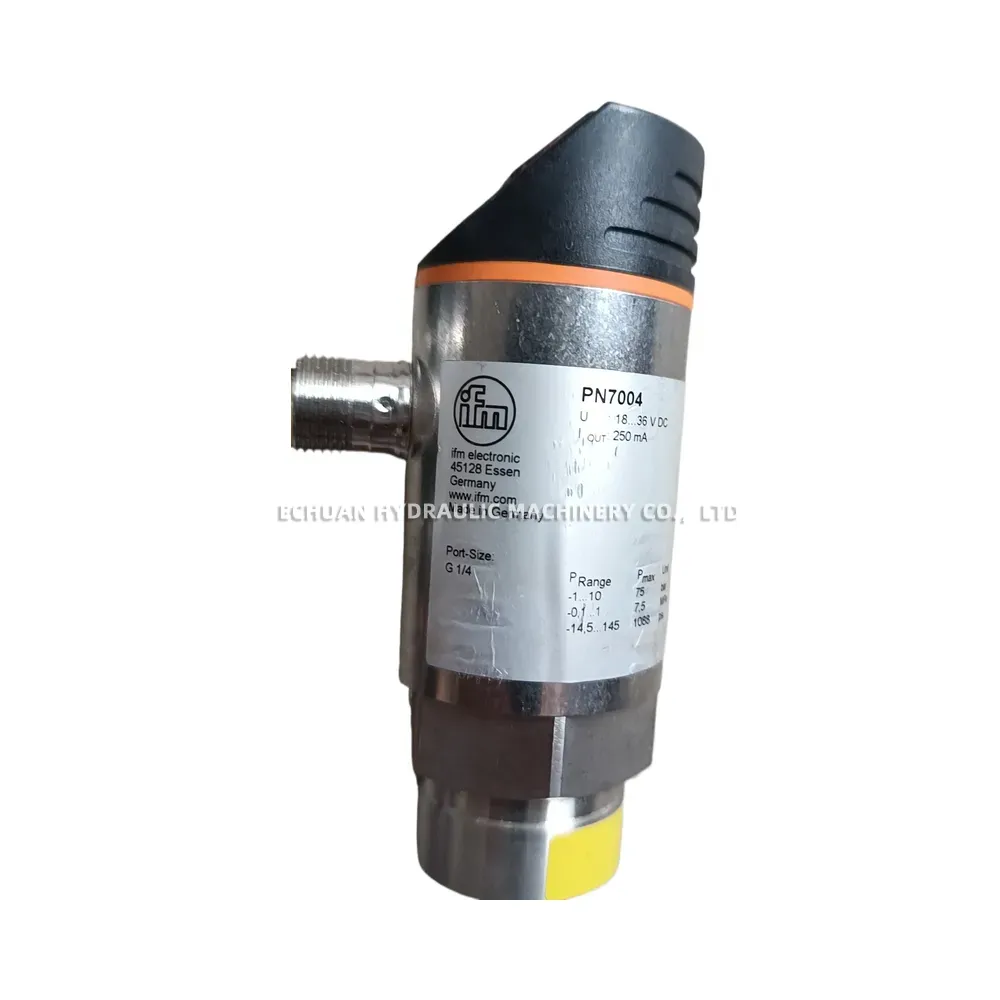

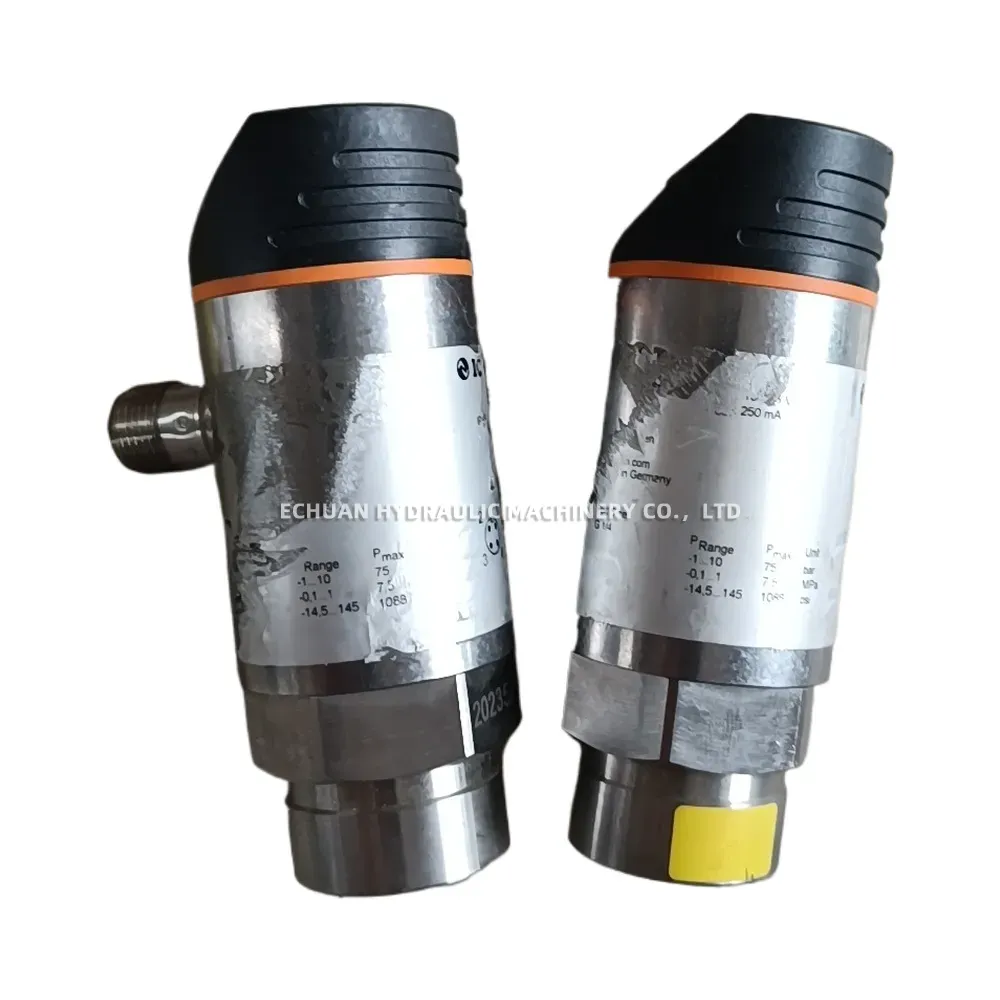

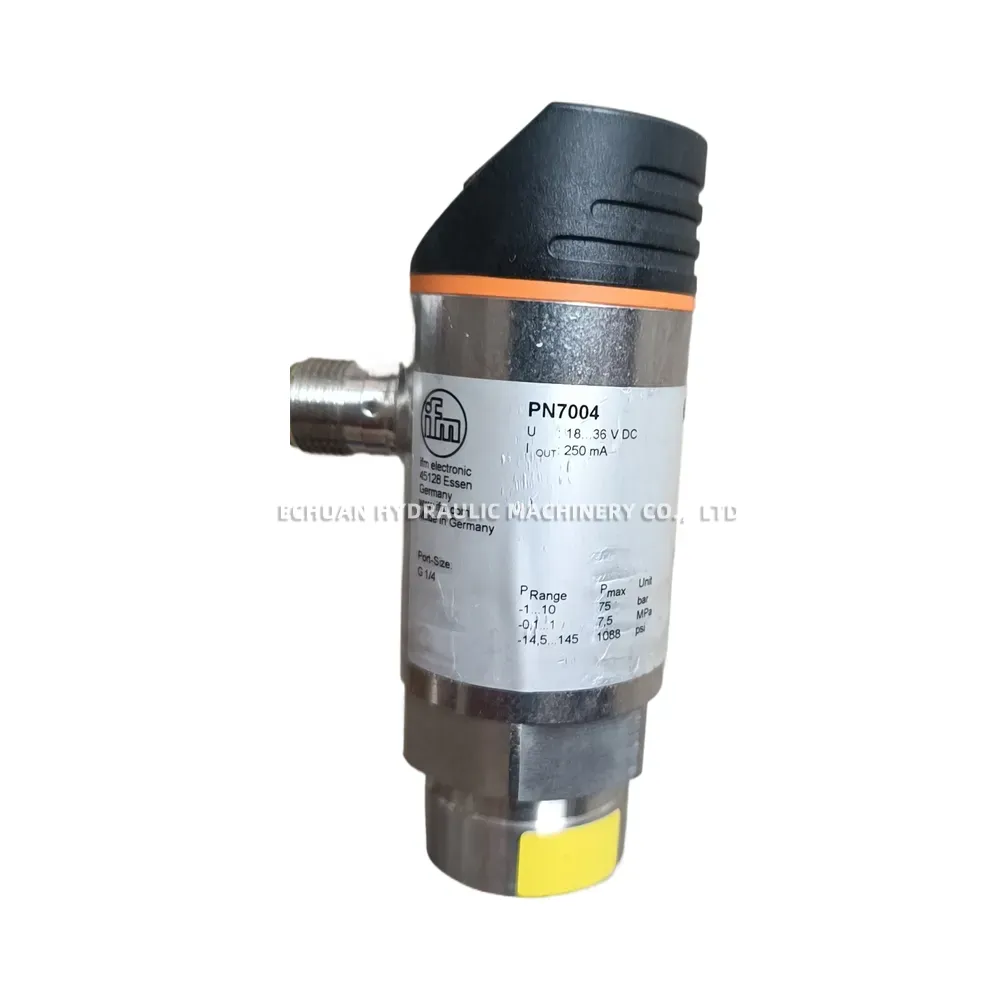

Ifm PN7004 Electronic Pressure Sensor
The Ifm PN7004 is a versatile and robust electronic pressure sensor designed for industrial applications requiring reliable pressure monitoring. It features a clear, rotatable 4-digit alphanumeric display for easy on-site reading of pressure values and system status. This sensor offers two programmable switching outputs, with one output also configurable for IO-Link communication, enabling advanced diagnostics, parameter setting, and seamless integration into modern automation systems. Its compact design and G1/4 I process connection allow for straightforward installation in various pneumatic and hydraulic systems.

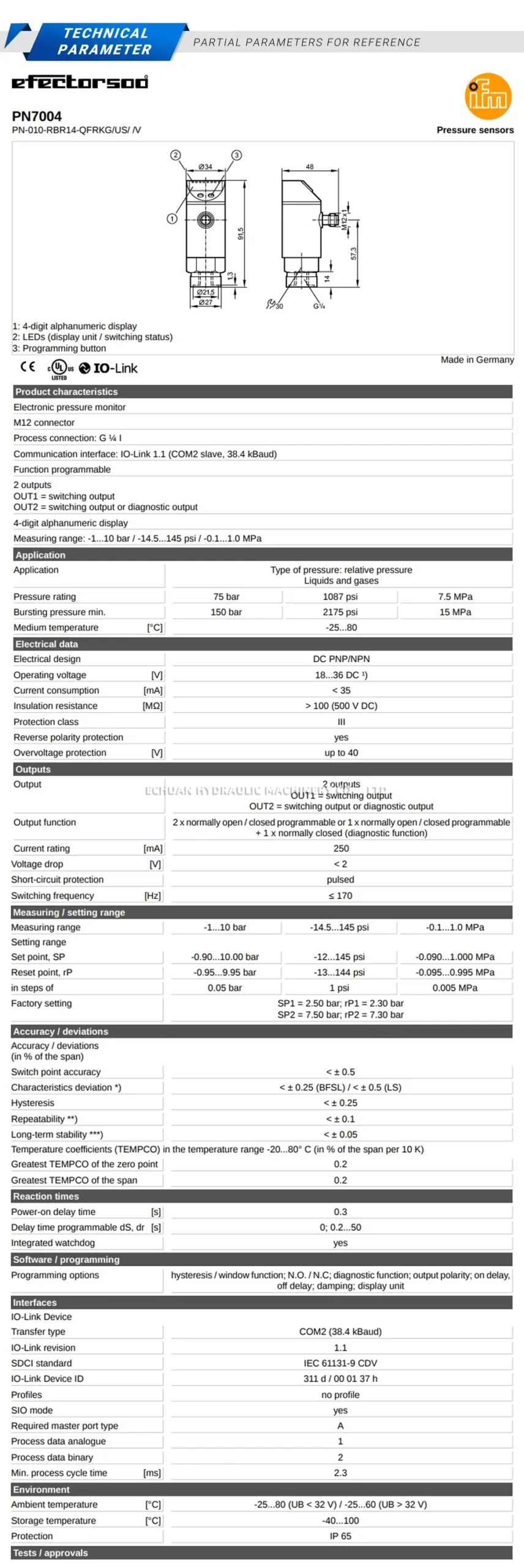

Technical Specifications:
- Operating voltage: 18…30 V DC
- Measuring range: -1…10 bar / -14.5…145 psi / -0.1…1 MPa

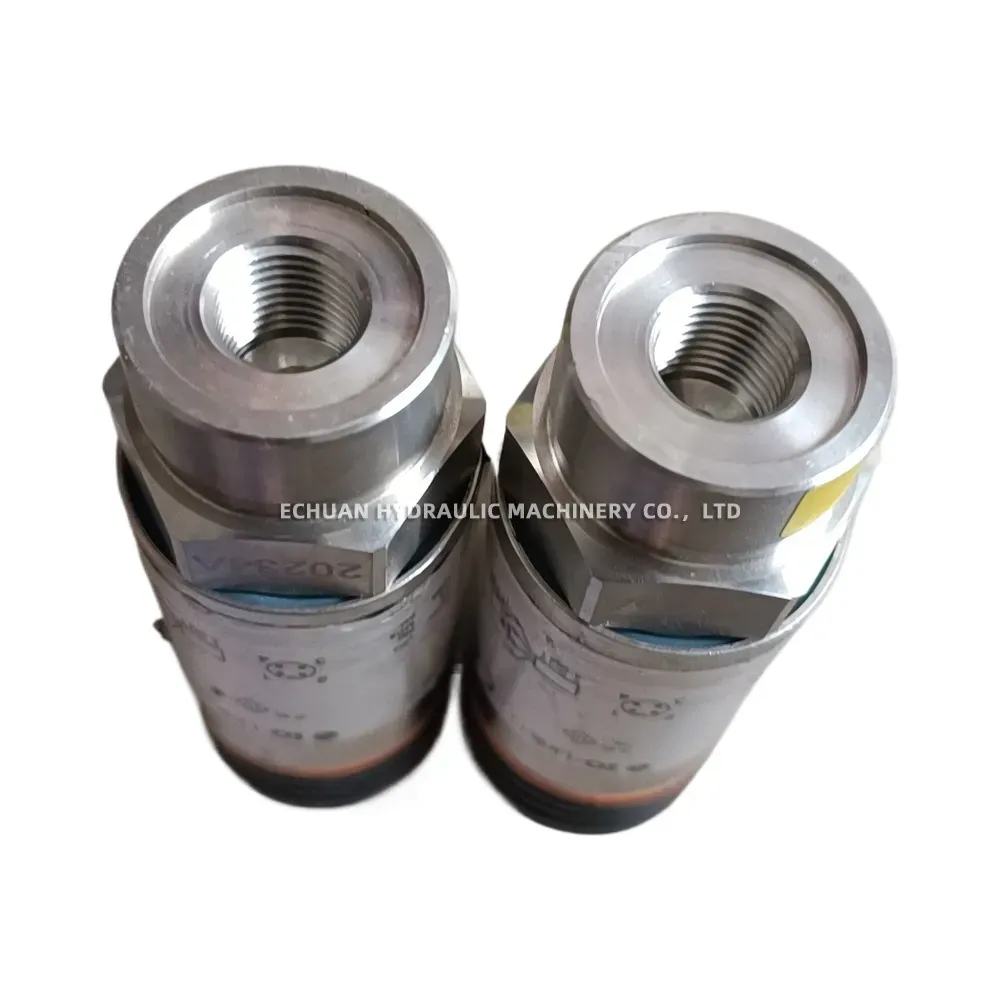

- Process connection: Threaded connection G 1/4 Internal (DIN EN ISO 1179-2)
- Output function: 2 x normally open / normally closed programmable; or 1 x normally open / normally closed programmable + 1 x IO-Link
- Switching frequency DC: < 170 Hz
- Display: 4-digit alphanumeric display, rotatable
- Protection: IP 65 / IP 67
- Ambient temperature: -25…80 °C ( -13…176 °F)
- Medium temperature: -25…80 °C ( -13…176 °F)
- Materials (wetted parts): Stainless steel (1.4301 / 304), FKM
- Housing materials: Stainless steel (1.4301 / 304); PBT; PC; FKM; EPDM/X
- IO-Link revision: 1.1
IFM PN7004
Model:IFM PN7004
| Brand | Ifm |
|---|---|
| Model | PN7004 |
| Part No. | IFM PN7004 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/ifm-pn7004 |
