ifm LR3000 Radar Level Sensor

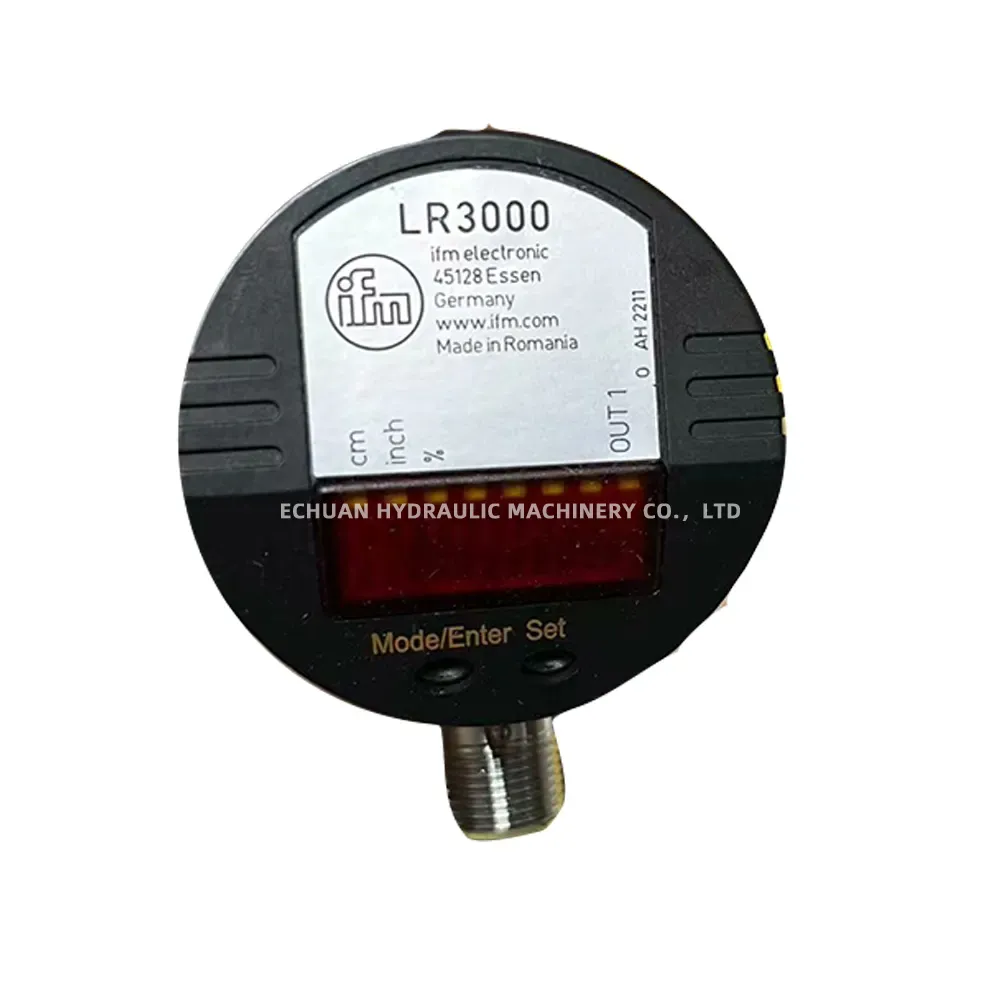

The ifm LR3000 is a high-performance radar level sensor designed for reliable, non-contact continuous level measurement in industrial applications. Utilizing 80 GHz radar technology, it delivers precise and stable readings for both liquids and bulk materials, even in challenging conditions with dust, steam, or condensation. The sensor features a compact design with a G1 process connection for easy installation. An integrated 4-digit alphanumeric display allows for clear on-site visualization of levels in cm, inches, or percent, while simple push-button configuration makes setup intuitive. With its robust IP67/IP69K rated housing and IO-Link 1.1 communication, the LR3000 offers advanced diagnostics and seamless integration into modern automation systems.
Technical Specifications:

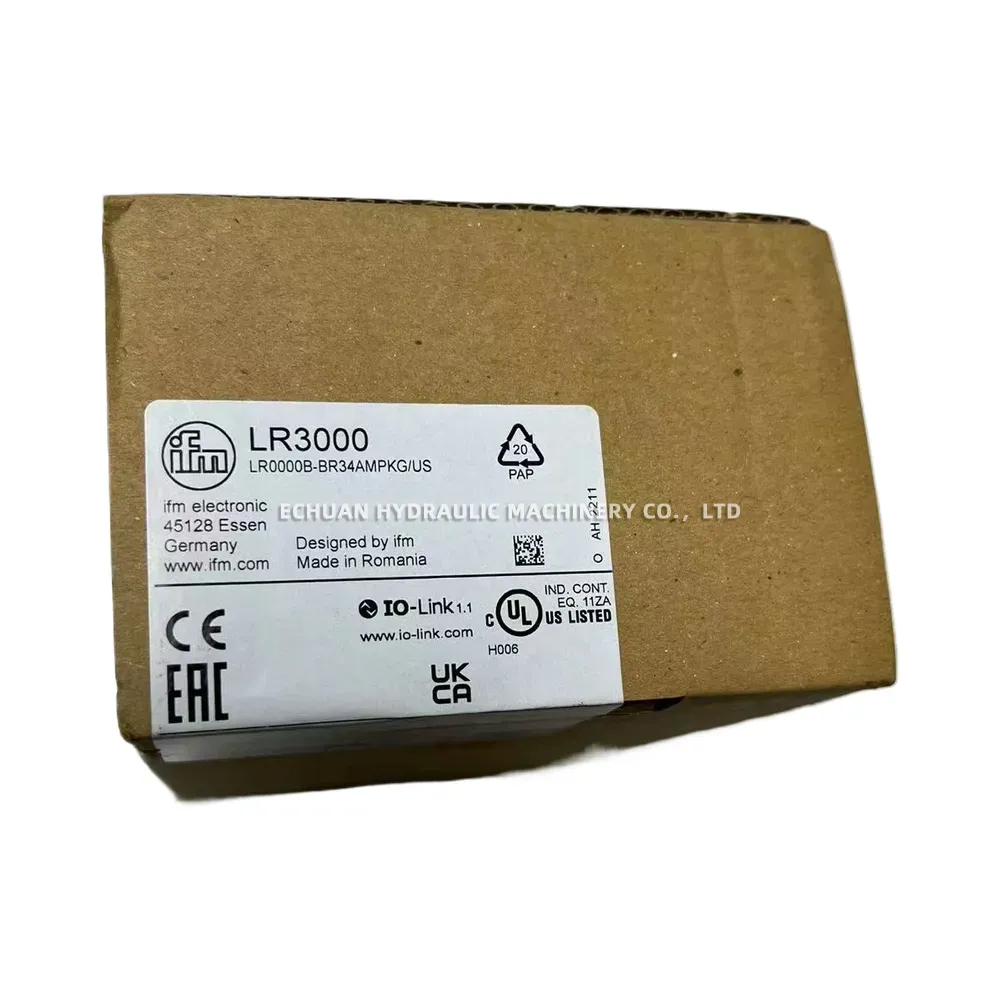

- Model: LR0000B-BR34AMPKG/US
- Measuring Range: 0.05…10 m (for liquids); 0.05…8 m (for bulk materials)
- Process Connection: Threaded connection G 1 A / NPT 1 A
- Output Signal: IO-Link; switching signal; analogue signal (4…20 mA / 0…10 V)
- Communication Interface: IO-Link 1.1
- Operating Voltage: 18…30 V DC
- Protection Rating: IP 67 / IP 69K
- Certifications: CE, UL Listed (IND. CONT. EQ. 112A), EAC, UKCA
ifm LR3000 Radar Level Sensor
Discover the ifm LR3000, a compact 80 GHz radar sensor for reliable, non-contact continuous level measurement of liquids and bulk solids. Features IO-Link communication, a clear LED display, and a robust IP69K housing for demanding industrial environments.
