Product Description
PILZ PNOZmulti Configurable Safety System / Safety PLC
The PILZ PNOZmulti is a highly flexible, modular, and configurable safety system designed to monitor a wide range of safety functions in industrial machinery and plant engineering. This specific assembly combines a PNOZ m B1 base unit (772101) with multiple PNOZ m EF 8DI4DO digital input/output expansion modules and an Ethernet communication module. It provides a powerful and scalable solution for implementing safety logic for applications such as E-stops, safety gates, light curtains, and two-hand controls. The system is easily configured via the intuitive PNOZmulti Configurator software, allowing users to create, simulate, and commission safety circuits without complex wiring. With its clear diagnostics via status LEDs and network communication capabilities, the PNOZmulti system enhances machine availability and simplifies troubleshooting.
Technical Specifications:
- System Assembly: Modular system including Base Unit, I/O Expansions, and Communication Module
- Base Unit (PNOZ m B1 / 772101): 20 configurable digital inputs, 4 semiconductor outputs, 2 relay outputs. Achieves up to PL e (EN ISO 13849-1) and SIL CL 3 (IEC 62061).
- Expansion Modules (PNOZ m EF 8DI4DO): Each module provides 8 digital inputs and 4 digital semiconductor outputs.
- Communication Module (PNOZ m ES ETH type): Provides Ethernet connectivity for diagnostics, visualization, and communication with standard fieldbus networks (e.g., Modbus/TCP, EtherNet/IP).
- Supply Voltage: 24 V DC
- Configuration: Via USB interface using PNOZmulti Configurator software
- Mounting: DIN Rail mounting
- Certifications: CE, cULus Listed, TÜV, KOSHA

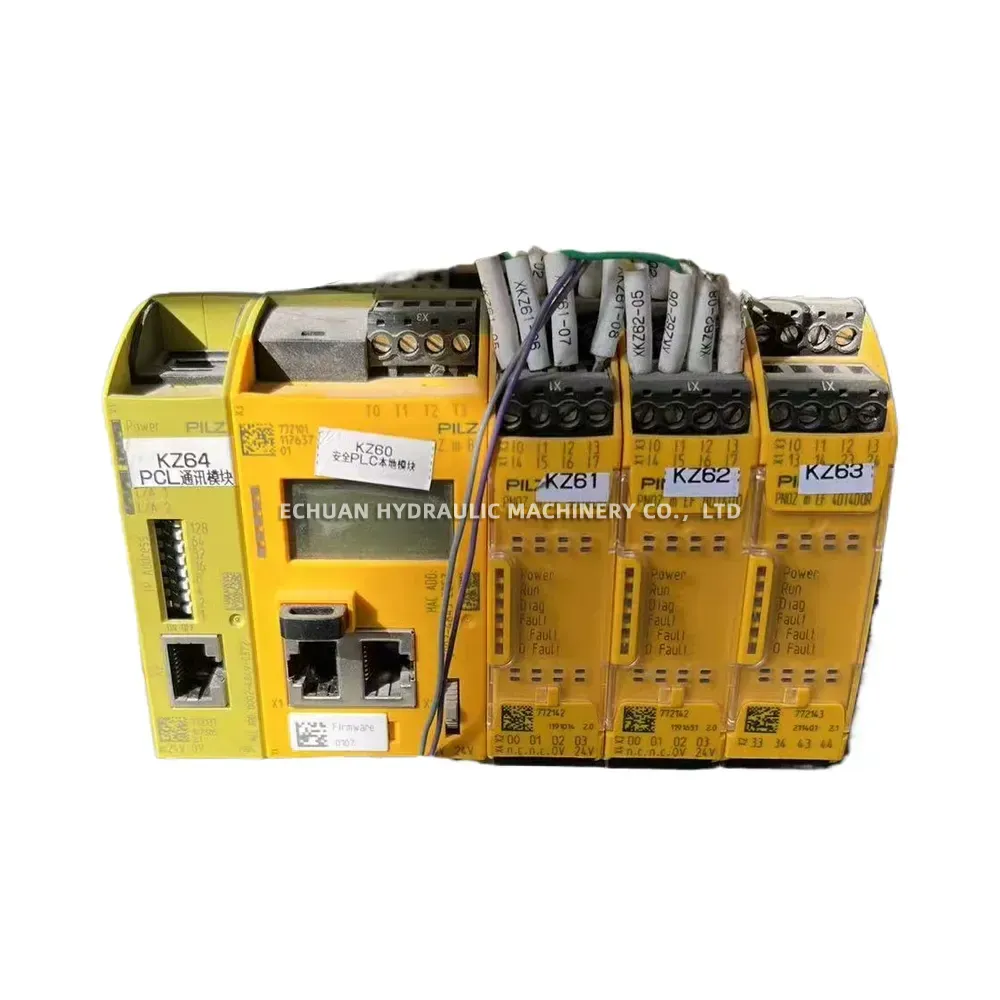

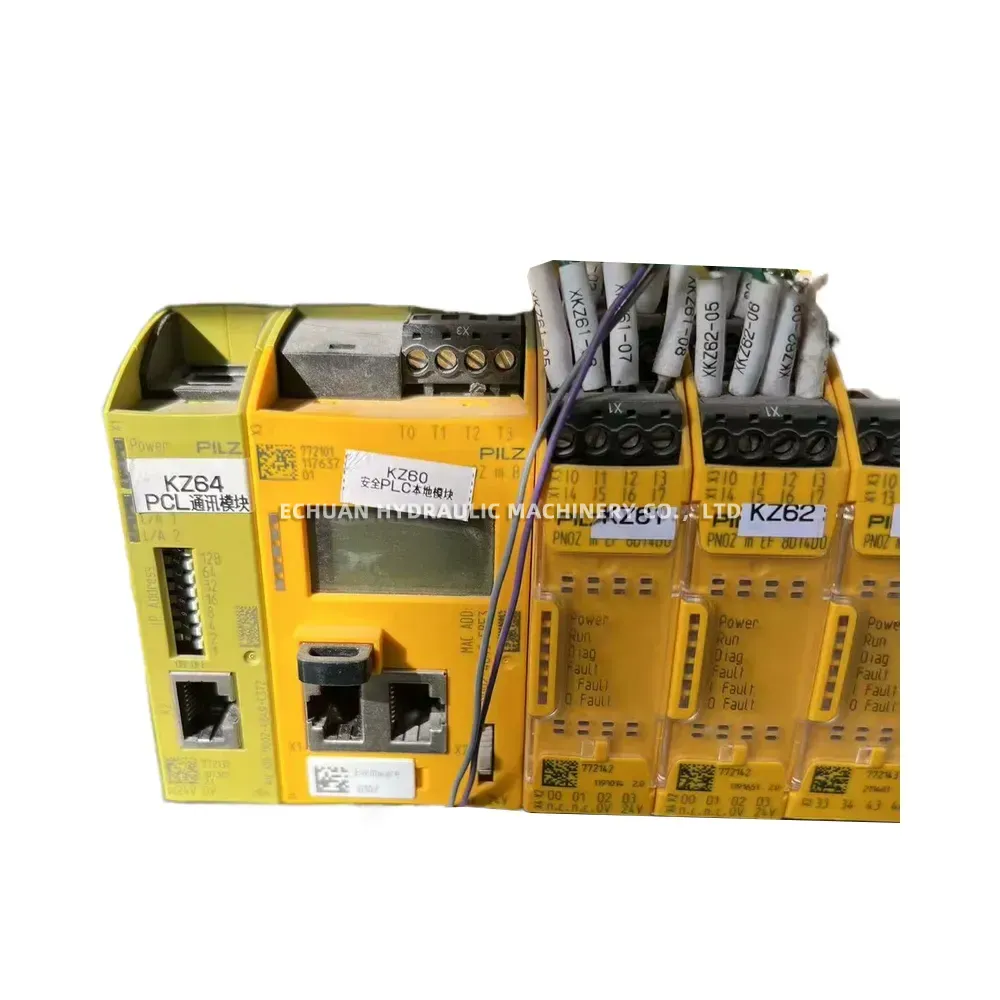

PILZ PNOZmulti (KZ60, KZ61, KZ62, KZ63, KZ64) Configurable Safety System / Safety PLC
Discover the PILZ PNOZmulti, a versatile and modular configurable safety PLC system. This assembly features a PNOZ m B1 base unit, digital I/O expansion modules, and an Ethernet module for robust machine safety control and network integration.
