Product Description

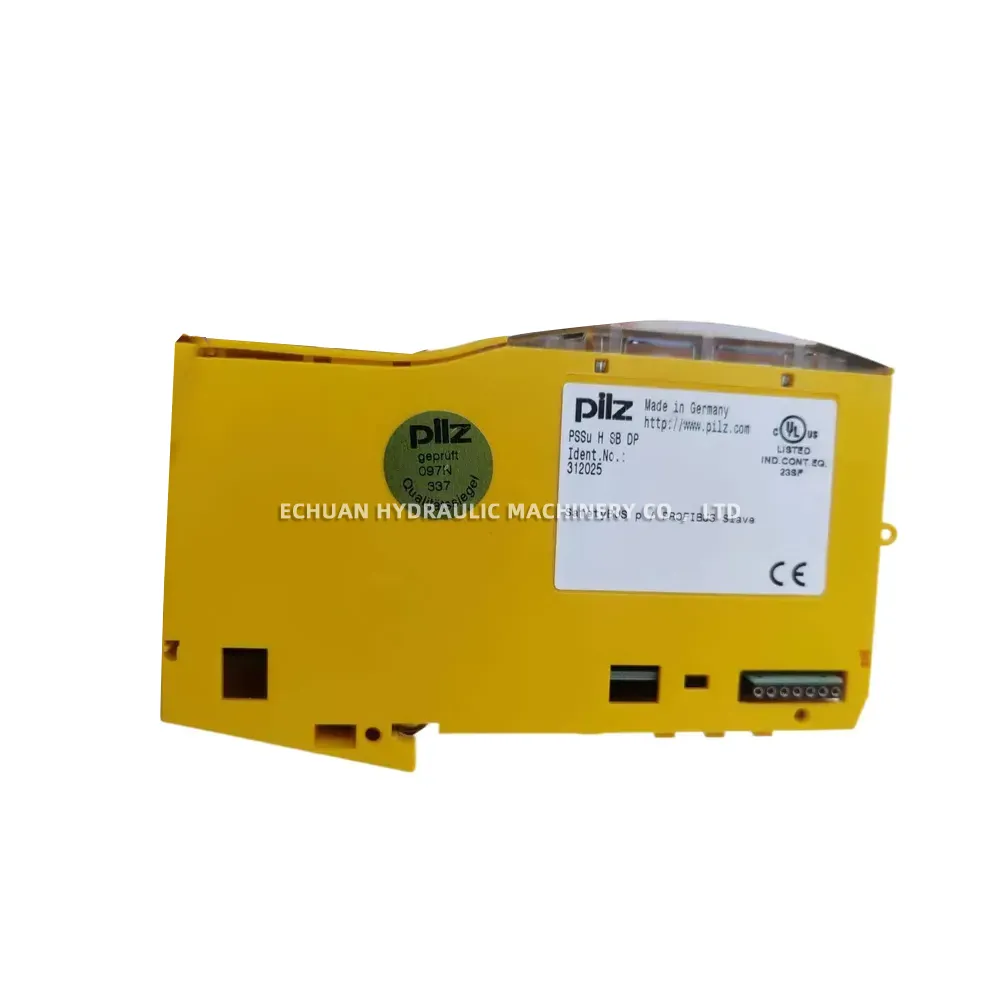

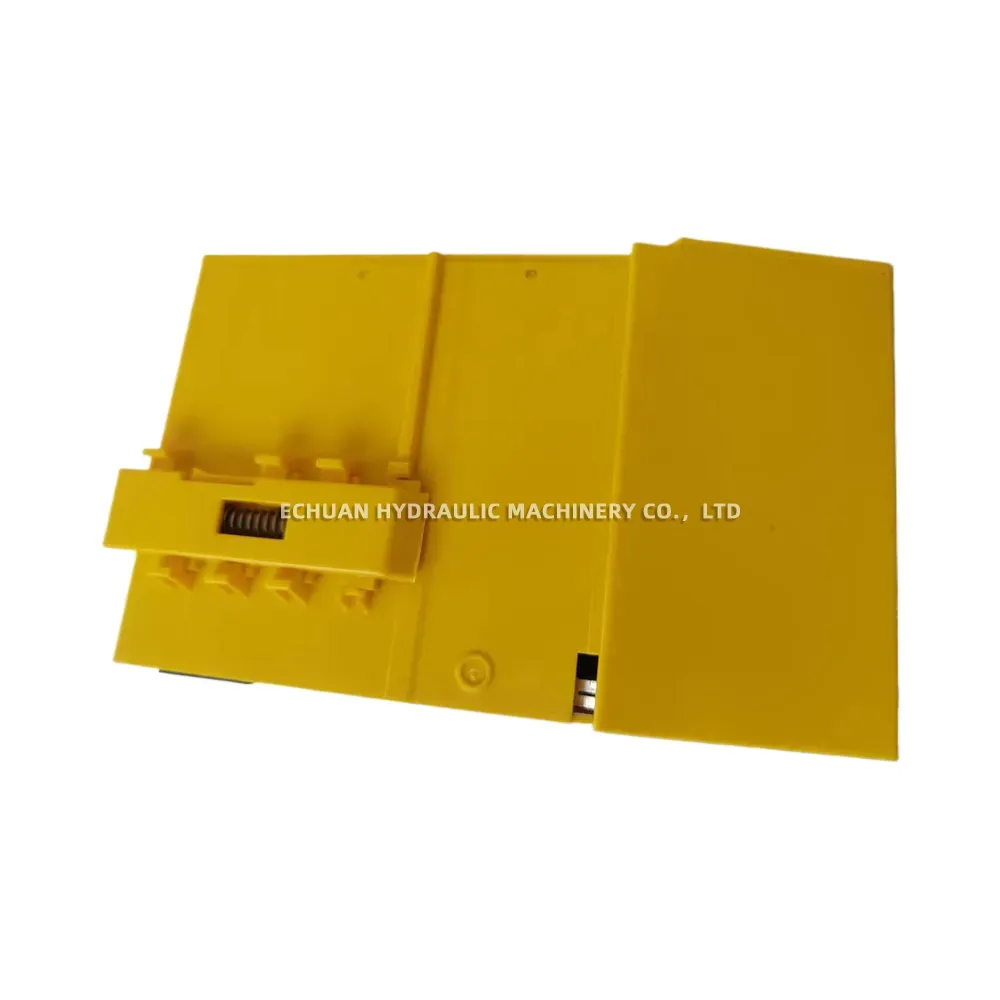

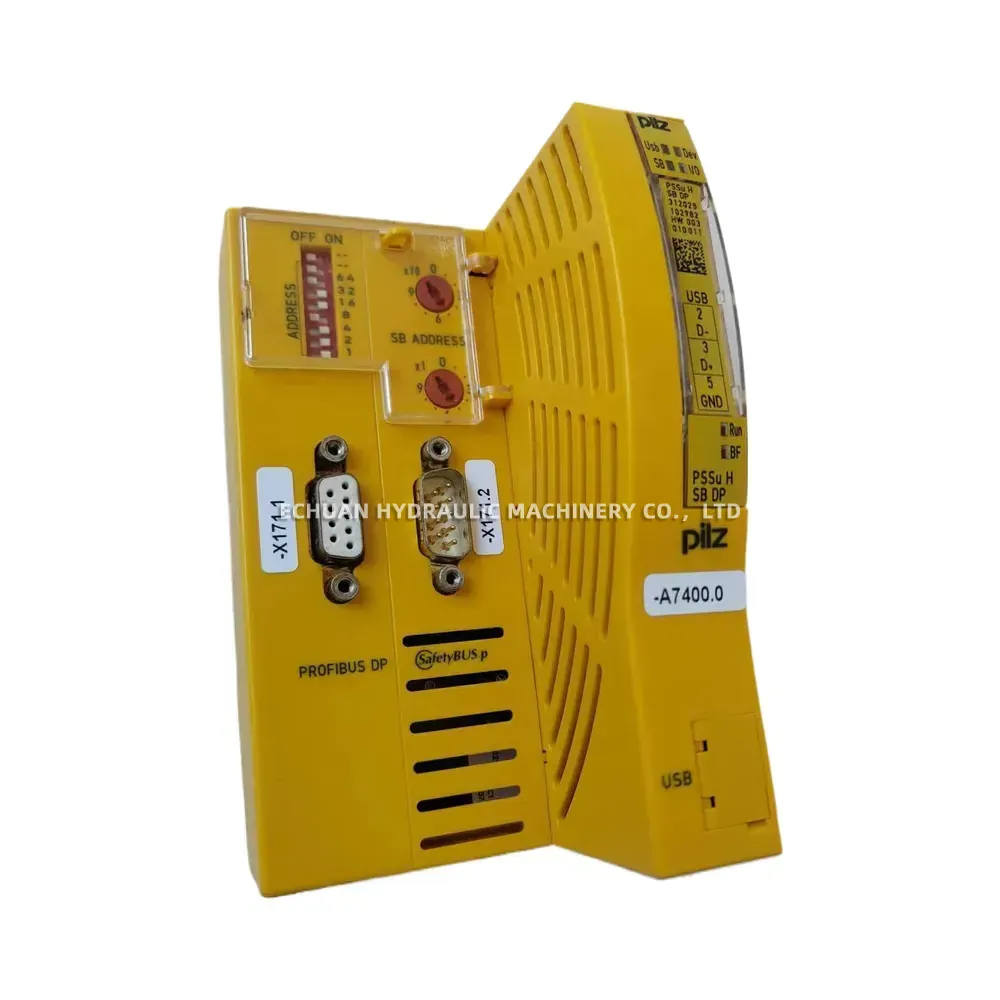

Pilz 312025 PSSu H SB DP
The Pilz 312025 PSSu H SB DP is a standard head module designed for the PSSuniversal decentralized I/O system. It serves as an interface to connect PSSuniversal I/O modules to a PROFIBUS DP network, where it functions as a slave device. This module supports various transmission rates and allows for the integration of the PSSuniversal system into PROFIBUS DP-based automation environments, enabling reliable communication and data exchange for industrial control applications.
Technical Specifications:
- Product type: Head module PSSuniversal PROFIBUS DP
- Order number: 312025
- Supply voltage (UB): 24 V DC
- Power consumption DC: 4.0 W
- PROFIBUS DP interface type: RS485
- PROFIBUS DP connection: 9-pin D-Sub female connector
- Transmission rate: 9.6 kBit/s … 12 MBit/s
- Max. length of data: 244 Byte In / 244 Byte Out
- Station type PROFIBUS DP: Slave
- Permitted messages PROFIBUS DP: DPV0, DPV1
- Potential isolation PROFIBUS DP: Yes
- Operating temperature: 0 °C to 60 °C
- Storage temperature: -25 °C to 70 °C
- Protection type, housing: IP20
- Dimensions (H x W x D): 121.5 mm x 45 mm x 80 mm
- Weight: 180 g
- Approvals: CE, cULus Listed, TÜV, KOSHA, EAC (EurAsian Conformity)
