Product Description
IFM PN7070 Pressure Sensor
The IFM PN7070 is a robust electronic pressure sensor designed for reliable monitoring of pressure in industrial applications, suitable for both liquid and gaseous media. It features a highly visible 4-digit alphanumeric display that can show the current system pressure in bar, psi, or MPa. With two programmable switching outputs and a durable stainless steel housing, the PN7070 offers high accuracy and long-term stability. Its G 1/4 internal thread process connection and M12 connector ensure easy integration into a wide range of pneumatic and hydraulic systems.

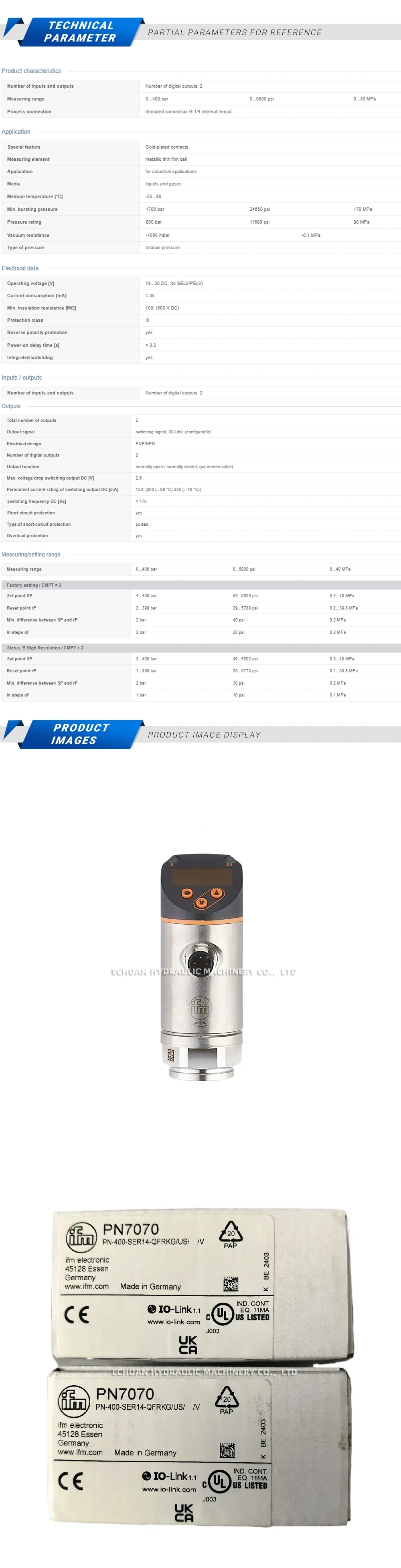

Technical Specifications:
- Measuring range: 0…100 bar / 0…1450 psi / 0…10 MPa
- Process connection: Threaded connection G 1/4 Internal thread
- Operating voltage: 18…36 V DC
- Output function: 2 x normally open / normally closed; (programmable)
- Protection rating: IP 67
- Display: 4-digit alphanumeric display
IFM PN7070
Discover the IFM PN7070 pressure sensor, offering a measuring range of 0-100 bar for precise monitoring of industrial fluids and gases. Features a clear 4-digit display, programmable switching outputs, and a robust IP67-rated housing for reliable performance.
