Product Description

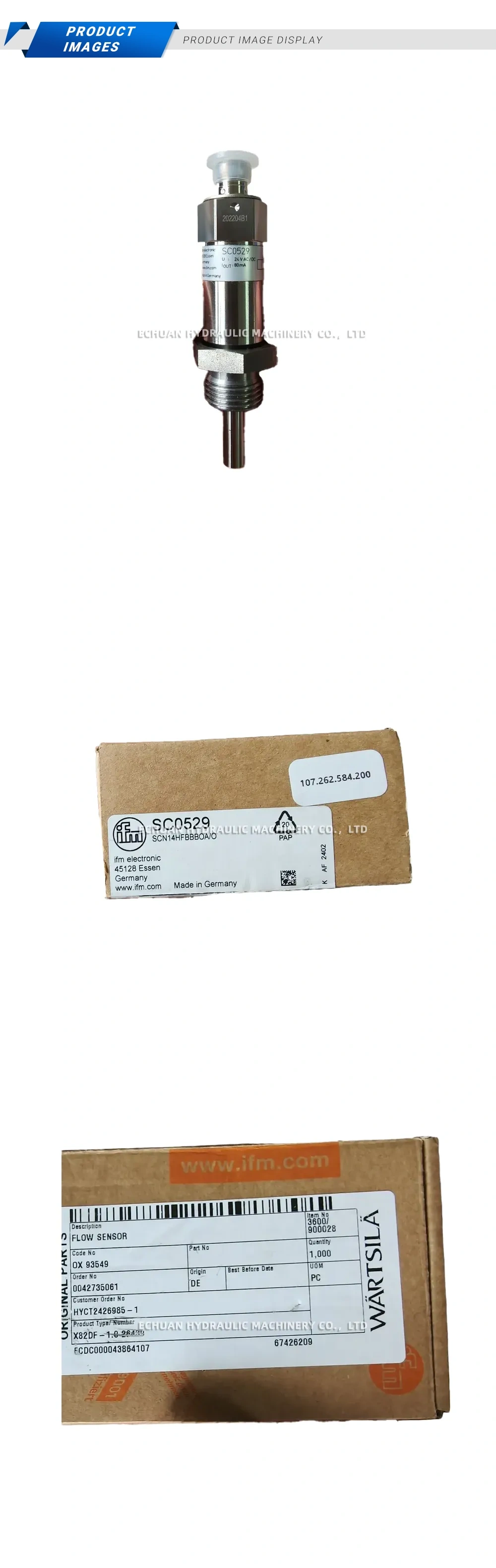

IFM SC0529 Compact Speed Monitor
The IFM SC0529 is a compact and robust speed monitor designed for reliable detection of underspeed and overspeed conditions in standard industrial applications. Utilizing an inductive sensing principle, it accurately monitors rotational speeds from 5 to 36,000 pulses per minute. Housed in a durable M30 threaded metal body, this sensor features a programmable switching output and an M12 connector for easy integration. Its IP67 rating ensures protection against dust and water ingress, making it suitable for harsh environments. The SC0529 is an ideal solution for monitoring conveyors, fans, and other rotating machinery to prevent damage and downtime.
Technical Specifications:
- Operating voltage: 10…36 V DC
- Measuring range: 5…36000 [pulses/min]
- Output function: normally open / normally closed; (programmable)
- Sensing range: 10 mm
- Housing: Threaded type, M30 x 1.5
- Protection rating: IP 67
- Connection: M12 connector
IFM SC0529
Buy the IFM SC0529 compact speed monitor. This inductive sensor reliably monitors rotational speed from 5-36000 pulses/min with a programmable output. M30 housing, IP67 rating.
