Product Description
IFM PT5302
The IFM PT5302 is a robust pressure transmitter designed for industrial applications. It features a ceramic-capacitive measuring cell known for its long-term stability and high resistance to overload and pressure peaks. This sensor is suitable for measuring pressure in both liquid and gaseous media. Housed in a compact, high-grade stainless steel body, the PT5302 offers excellent reliability and a high protection rating, making it ideal for use in harsh environments such as hydraulics and pneumatics.

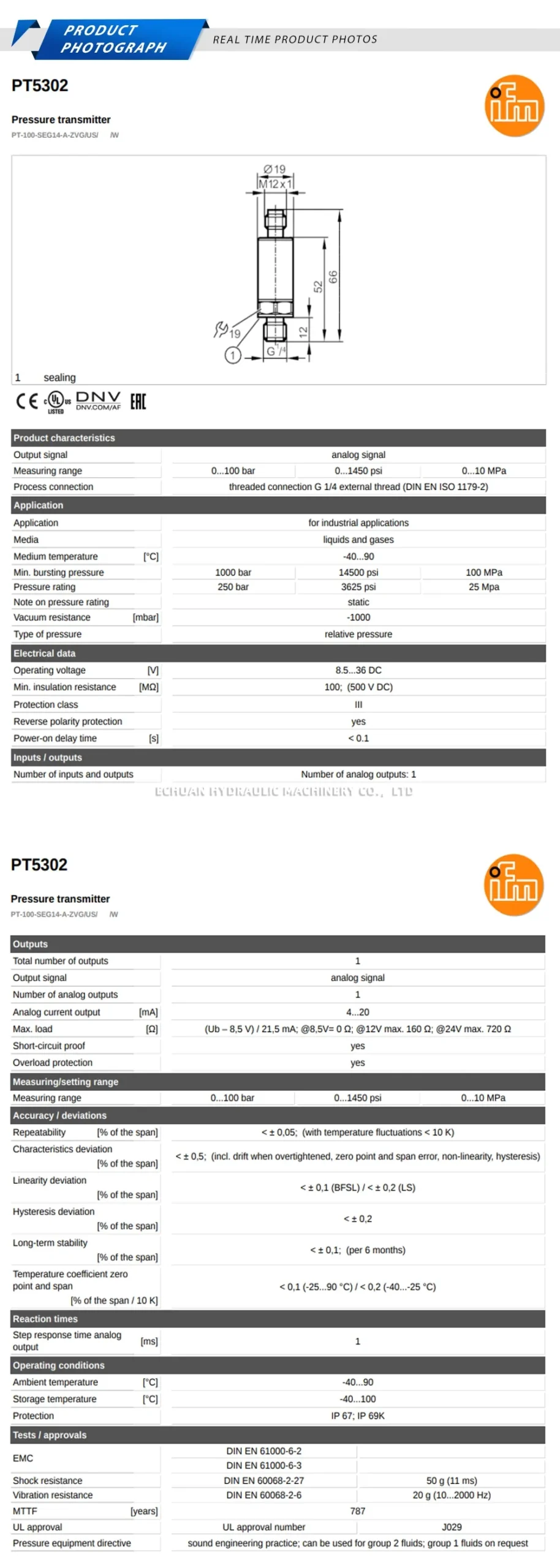

Technical Specifications:
- Measuring range: 0…100 bar / 0…1450 psi
- Process connection: Threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)
- Output signal: Analogue signal; 4…20 mA
- Operating voltage: 9.6…32 V DC
- Electrical connection: M12 Connector
- Medium temperature: -25…90 °C
- Protection rating: IP 67 / IP 69K
- Materials (wetted parts): Stainless steel (1.4404 / 316L); ceramics (99.9% Al2O3); FKM
- Accuracy / deviation: < ± 0.5 % (of the span)
IFM PT5302
Model：IFM PT5302
| Brand | Ifm |
|---|---|
| Model | PT5302 |
| Part No. | IFM PT5302 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/ifm-pt5302 |
