Product Description

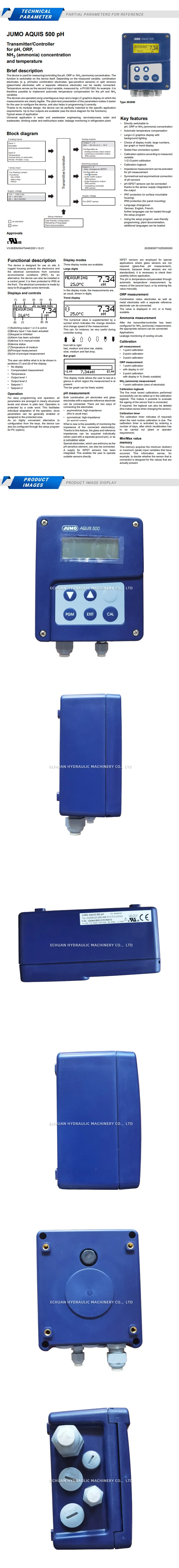

JUMO AQUIS500ph
The JUMO AQUIS 500 pH is a sophisticated microprocessor-based transmitter and controller designed for the precise measurement and regulation of pH value, ORP (redox) voltage, and temperature in aqueous solutions. It features a large, backlit LCD display for clear visualization of measurements and operator guidance. This versatile device supports both symmetrical and asymmetrical pH/ORP electrodes and offers automatic temperature compensation for enhanced accuracy. With its robust IP67-rated housing, the AQUIS 500 pH is suitable for a wide range of applications, including water/wastewater treatment, industrial process technology, and environmental monitoring. Configuration is user-friendly, either directly on the device or via a PC setup program.
Technical Specifications:
- Measuring Inputs: 1x for pH/ORP electrodes (symmetrical or asymmetrical), 1x for Pt100/Pt1000 temperature probe, 1x binary input
- Outputs: 2x analog outputs (configurable as 0/4..20 mA or 0/2..10 V), 2x relay outputs (changeover contacts)
- Display: Backlit dot matrix LC display for measured value, operator guidance, and parameter display
- Protection Rating: IP67 for surface-mounted housing, IP65 for panel-mounted housing
JUMO AQUIS500ph
The JUMO AQUIS 500 pH is a high-performance transmitter and controller for reliable pH, ORP, and temperature measurement in industrial and environmental applications.
