Product Description

Keyence IL-600 CMOS Multi-Color Laser Sensor Head

The Keyence IL-600 is a high-precision, long-range laser displacement sensor head designed for demanding industrial applications. As part of the IL Series, it utilizes a state-of-the-art CMOS sensor to deliver exceptionally stable and accurate non-contact measurements, regardless of target color or surface finish. With a substantial measuring distance of 600 mm and a wide measurement range, the IL-600 is perfectly suited for tasks such as positioning, height control, and thickness measurement where distance and precision are critical. Its robust IP67-rated housing ensures reliable performance even in harsh environments with dust and moisture, making it a versatile solution for factory automation and quality control.

Technical Specifications:

  • Model: IL-600

  • Detectable Distance: 600 mm (23.62″)

  • Measurement Range: ±200 mm (±7.87″)

  • Light Source: Red semiconductor laser, Wavelength 655 nm (Class 2 Laser Product)

  • Linearity: ±0.1% of F.S. (F.S. = 400 mm)

  • Repeatability: 20 µm

  • Enclosure Rating: IP67

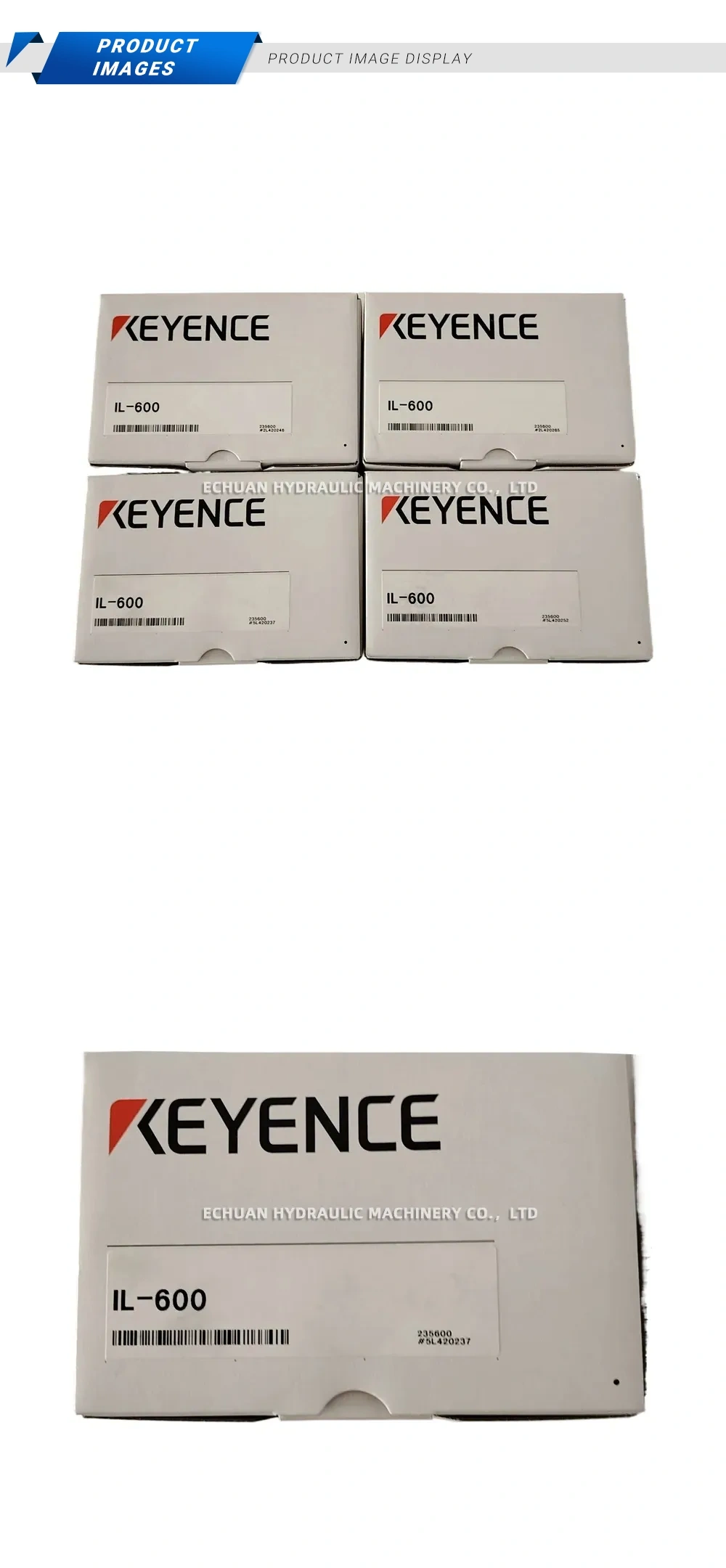

Keyence IL-600 Description

Keyence IL-600

The Keyence IL-600 is a high-performance, long-range CMOS laser displacement sensor head offering stable and precise non-contact measurements up to 600 mm. Ideal for industrial automation and quality control.
