Product Description

Keyence LK-500

The Keyence LK-500 is a high-precision laser displacement sensor head designed for non-contact measurement in a wide range of industrial applications. It offers exceptional stability and accuracy over a long measuring distance of 500 mm. Utilizing a red semiconductor laser, the LK-500 provides reliable and repeatable measurements on various target surfaces, making it an ideal solution for quality control, process automation, and positioning tasks where precision is critical. Its robust IP67-rated enclosure ensures dependable performance even in harsh manufacturing environments.

Technical Specifications:

  • Model: LK-500

  • Type: Sensor Head

  • Measuring Distance: 500 mm

  • Measuring Range: ±150 mm

  • Light Source: Red semiconductor laser (Wavelength: 655 nm)

  • Linearity: ±0.1% of F.S. (F.S. = 300 mm)

  • Repeatability: 50 µm

  • Enclosure Rating: IP67

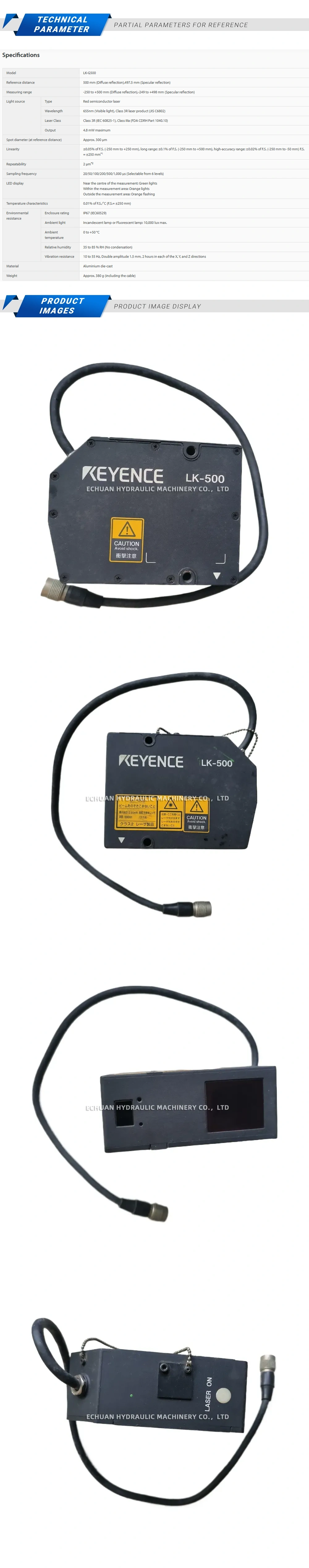

Keyence LK-500 Description

Keyence LK-500

The Keyence LK-500 is a high-accuracy laser displacement sensor head offering a 500 mm measuring distance and ±150 mm range for precise, non-contact industrial measurement and automation.
