Product Description
KEYENCE LR-W500 CMOS Laser Sensor
The KEYENCE LR-W500 is a highly versatile CMOS laser sensor from the advanced LR-W series, engineered to deliver precision detection in demanding industrial automation environments. Featuring robust IO-Link communication capabilities, this sensor ensures seamless data integration, parameterization, and diagnostics for modern smart factory setups. It operates efficiently on a 10-30V DC power supply and offers maximum flexibility with Light-ON/Dark-ON mode selection and NO/NC output configurations. Equipped with intuitive SET and FOCUS adjustment controls, along with a dedicated external input line, the LR-W500 guarantees accurate and adaptable target detection regardless of color or surface finish. Certified to global standards including CE and UKCA, it provides reliable, long-lasting performance for a wide range of complex sensing applications.
Technical Specifications:
- Brand / Model: KEYENCE LR-W500
- Sensor Type: CMOS Laser Sensor (LR-W Series)
- Operating Voltage: 10-30V DC (Class2 or LPS / 195mA)
- Control Output: 50mA max. (NO/NC configuration)
- Communication Protocol: IO-Link

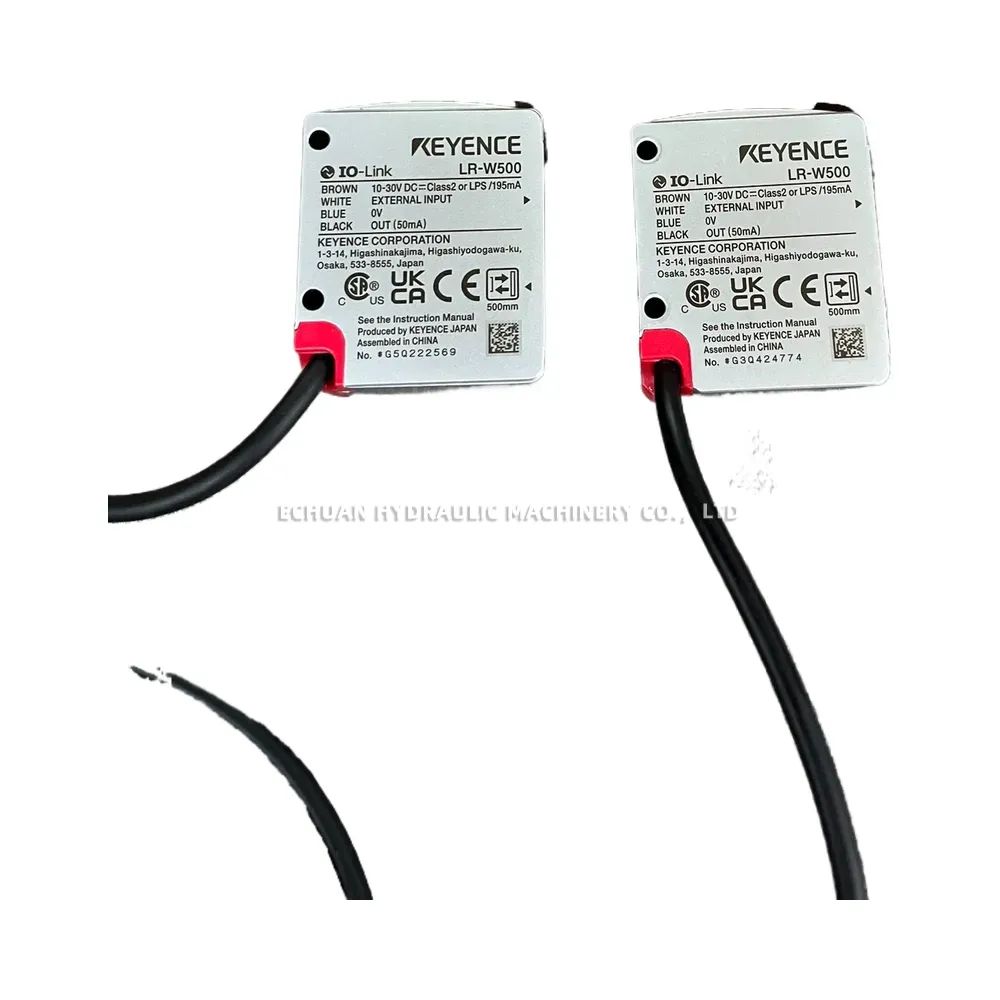

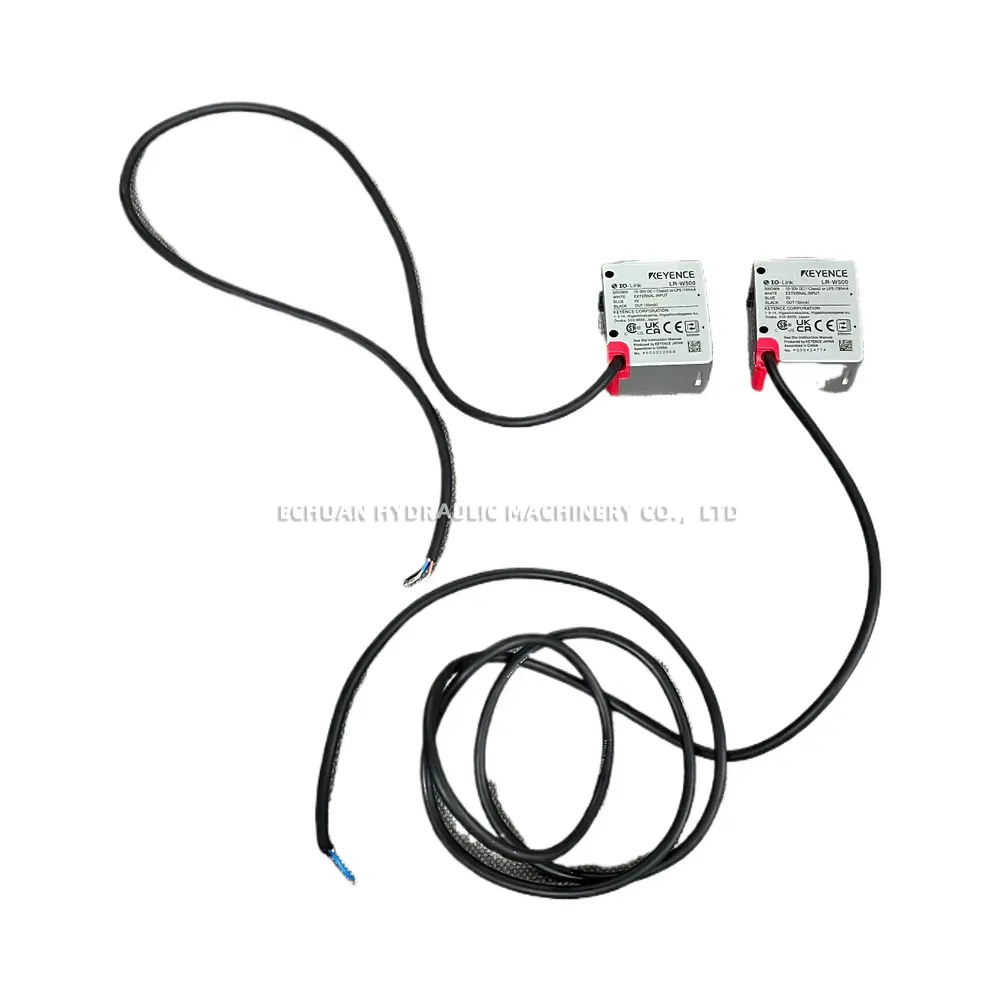

- Wiring / Connection: 500mm Cable (Brown: 10-30V DC, Blue: 0V, Black: OUT, White: External Input)

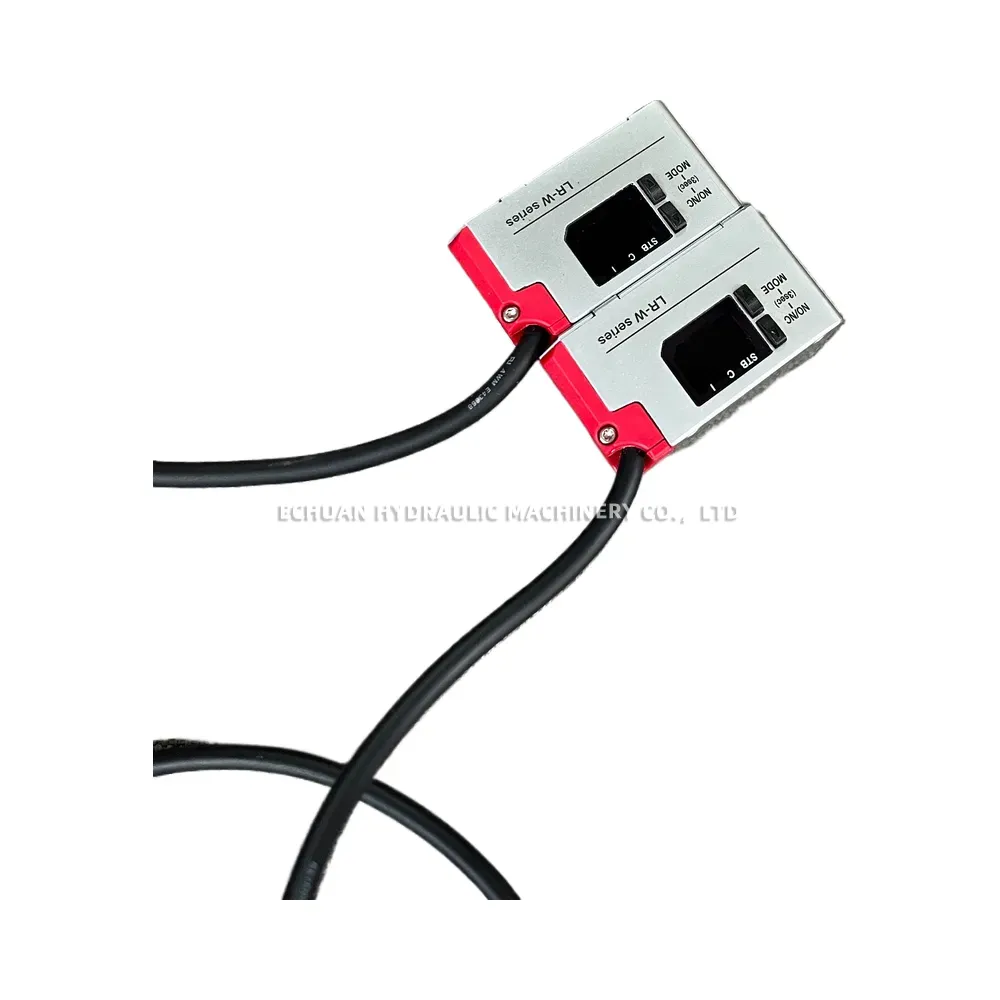

- Operation Mode: Light-ON / Dark-ON selectable

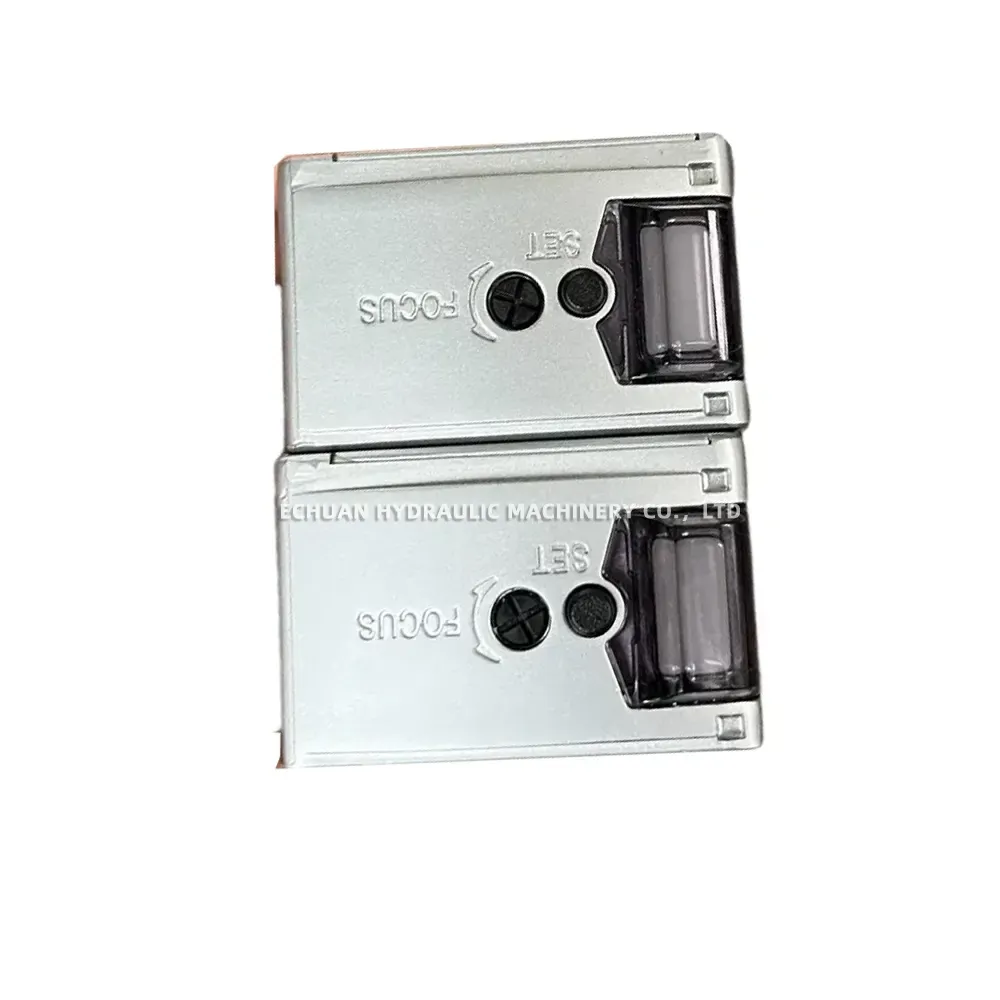

- Adjustments: SET button and FOCUS control dial
- Certifications: CE, UK CA, SP
KEYENCE LR-W500 CMOS Laser Sensor
Optimize your industrial automation with the KEYENCE LR-W500 CMOS Laser Sensor. This high-performance sensor features IO-Link compatibility, precise FOCUS/SET adjustments, and versatile NO/NC output configurations. Operating at 10-30V DC with a 500mm cable, it delivers reliable, highly accurate detection for a wide variety of complex manufacturing and packaging applications.
