Product Description

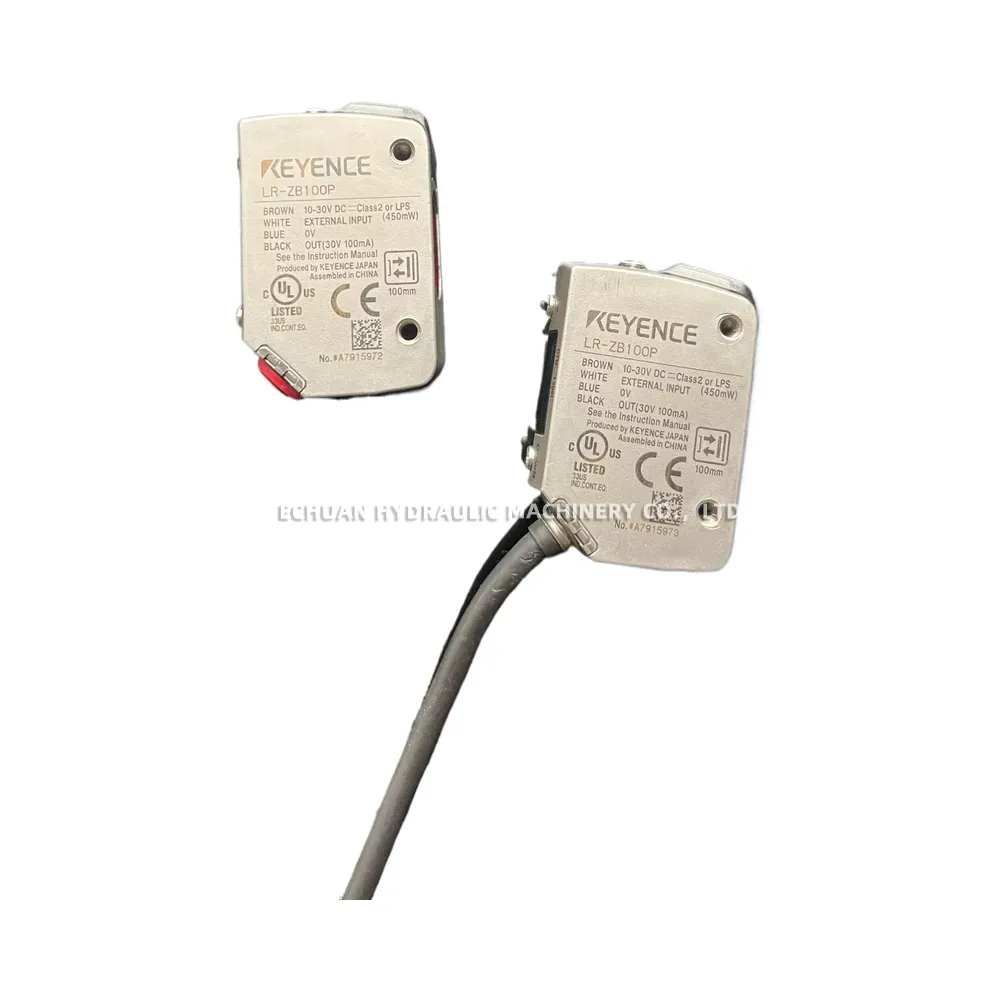

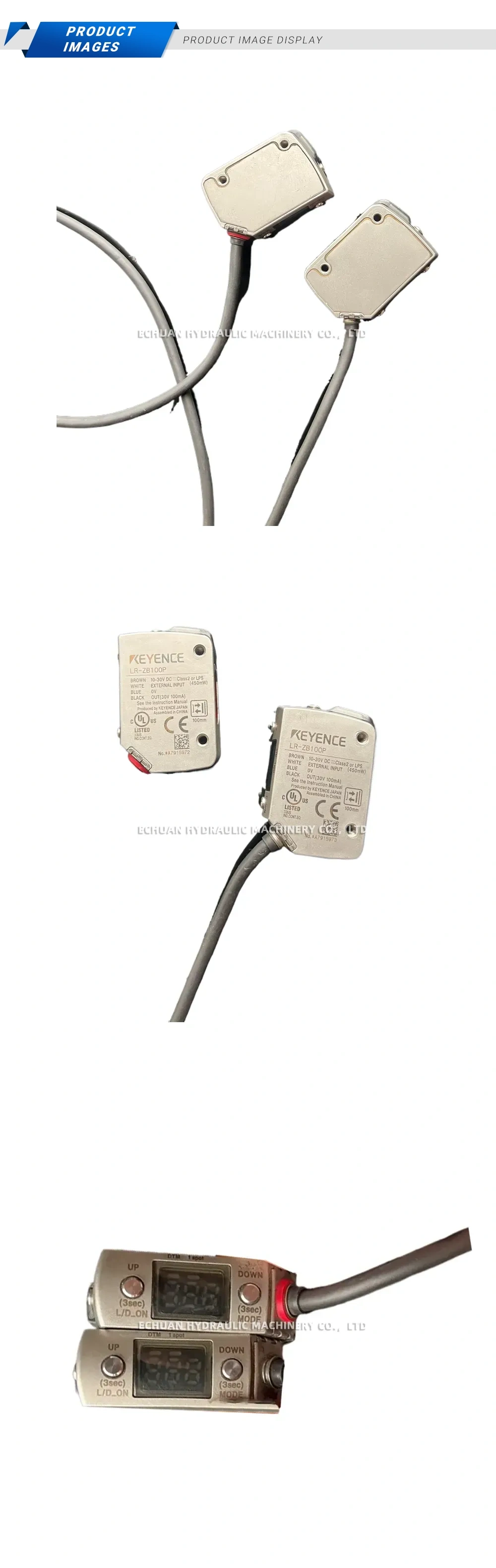

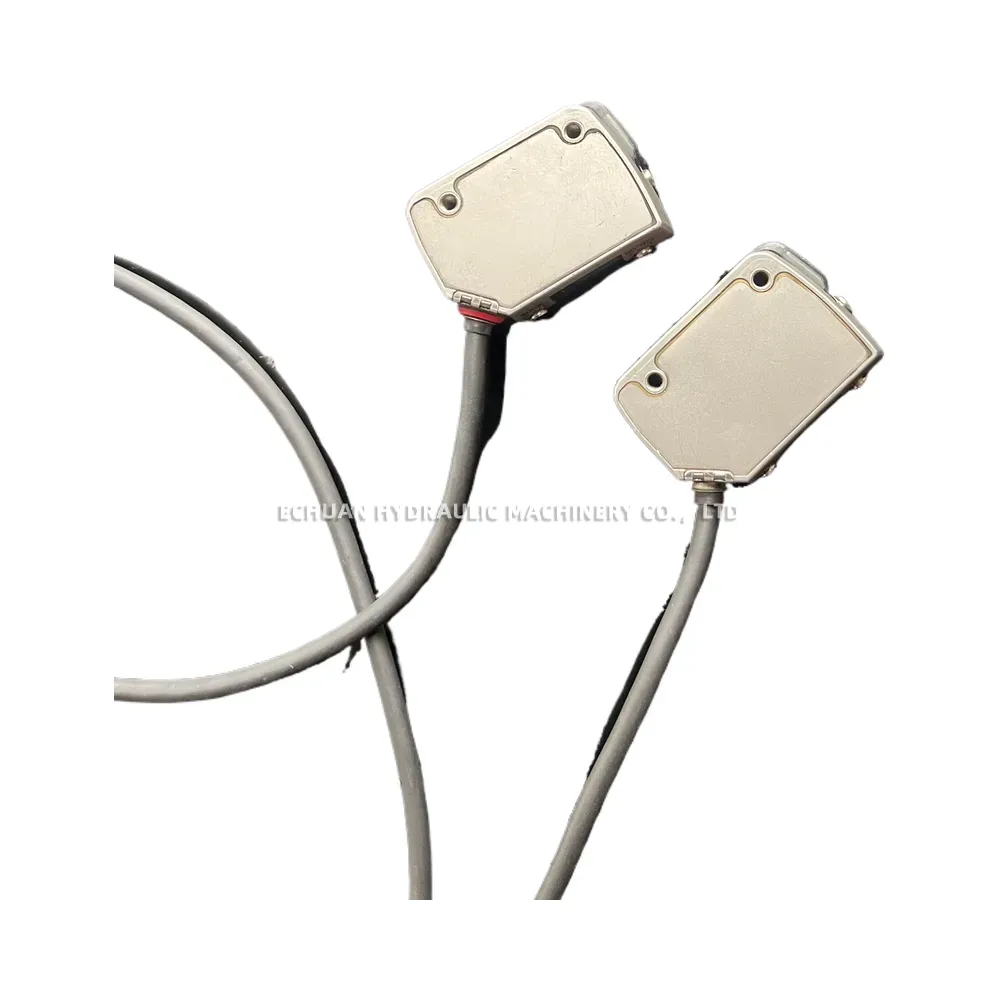

KEYENCE LR-ZB100P CMOS Laser Sensor
The KEYENCE LR-ZB100P is a highly reliable CMOS laser sensor designed for precise, distance-based detection in industrial automation. With a standard 100mm sensing range, this sensor utilizes advanced CMOS technology to provide stable target detection regardless of color, surface finish, or shape variations. It features an intuitive built-in digital display with UP, DOWN, and MODE buttons for quick setup and real-time monitoring. Engineered for durability and global compliance, the LR-ZB100P is CE marked and cULus listed, making it an excellent solution for demanding presence and position sensing applications.
Technical Specifications:
- Brand: KEYENCE
- Model: LR-ZB100P
- Sensor Type: CMOS Laser Sensor
- Sensing Distance: 100mm
- Power Supply: 10-30V DC (Class 2 or LPS) – Brown Wire
- Control Output: PNP, 30V 100mA max – Black Wire
- External Input: 450mW – White Wire
- 0V Connection: Blue Wire

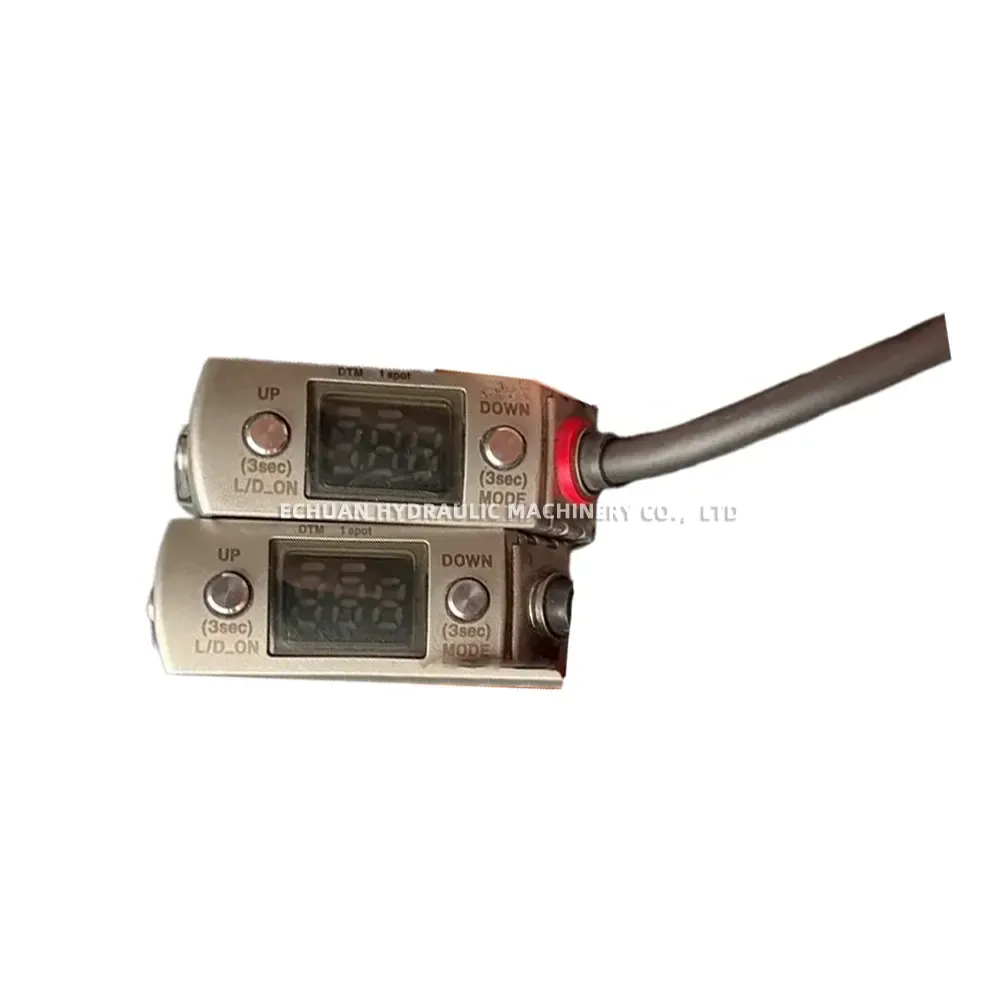

- Interface: Digital display with UP/DOWN/MODE buttons
- Certifications: CE, cULus LISTED (IND. CONT. EQ.)
- Manufacturing Origin: Produced by KEYENCE JAPAN, Assembled in CHINA
KEYENCE LR-ZB100P CMOS Laser Sensor
Shop the KEYENCE LR-ZB100P CMOS Laser Sensor. This high-precision 100mm distance-based sensor features PNP output, 10-30VDC power, and an intuitive digital display for reliable, color-independent industrial automation and detection.
