Product Description
Keyence LR-ZB100N

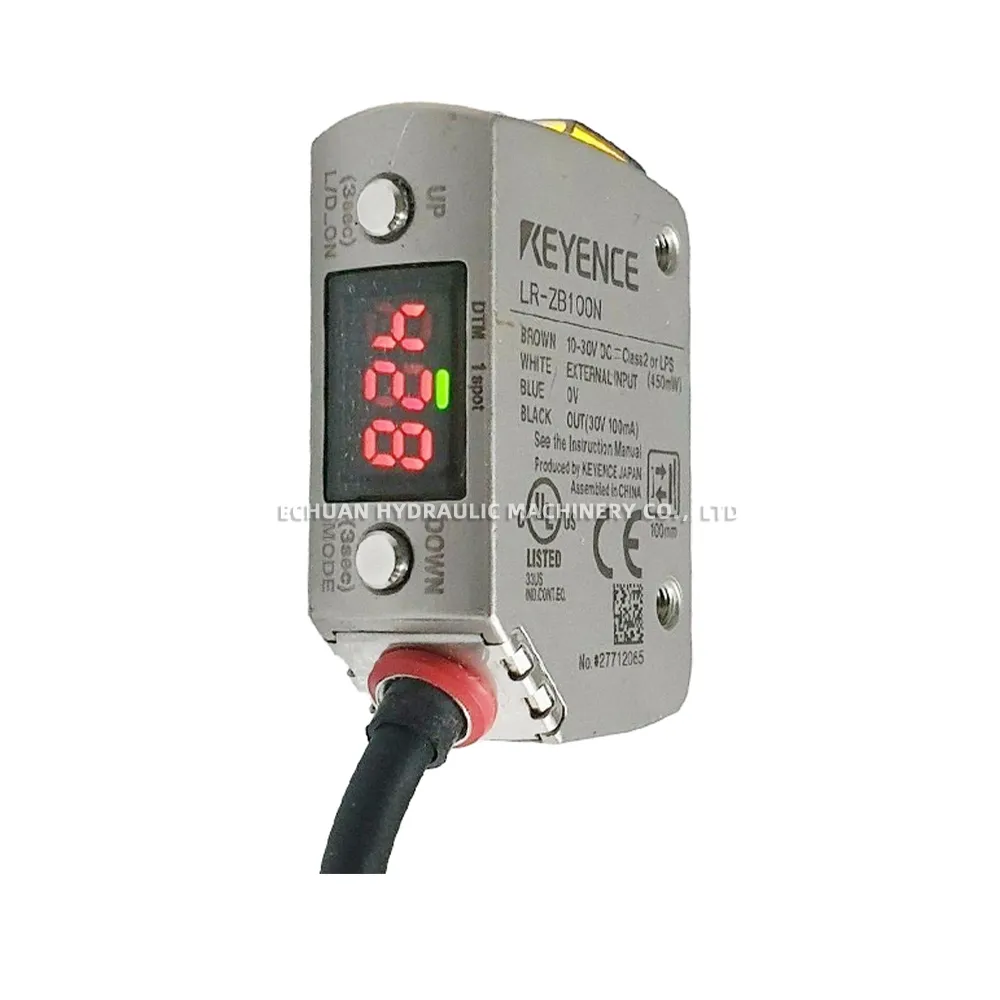

The Keyence LR-ZB100N is a versatile and robust self-contained CMOS laser sensor designed for stable and reliable detection in various industrial applications. It features a detection range of 25 to 100 mm and utilizes advanced technology to ensure accurate detection regardless of the target’s color, surface finish, or angle. The sensor is equipped with a simple one-touch calibration button for quick and easy setup. Housed in a durable stainless steel (SUS316L) body with an IP68/IP69K enclosure rating, the LR-ZB100N is built to withstand harsh environments, including washdowns and exposure to oils and chemicals, making it an ideal solution for demanding automation tasks.

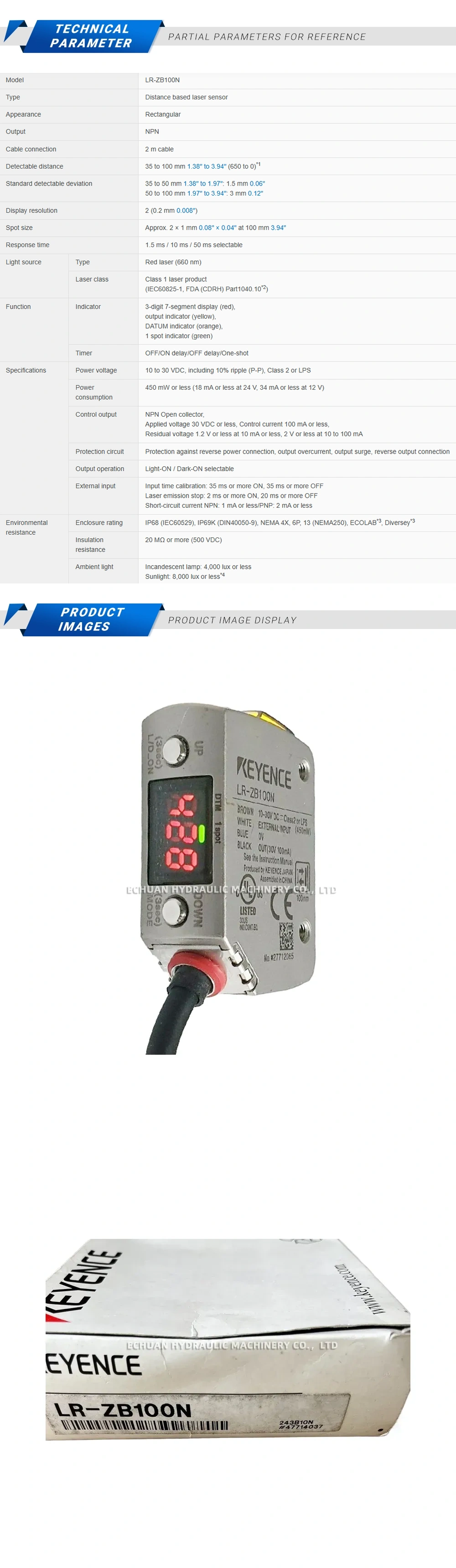

Technical Specifications:
- Type: Self-contained CMOS Laser Sensor, Square Reflective
- Detectable Distance: 25 to 100 mm
- Output Type: NPN Open Collector
- Light Source: Red laser (660 nm), Class 1
- Power Voltage: 10 to 30 VDC, including 10% ripple (P-P)
- Enclosure Rating: IP68/IP69K
- Connection: 2m cable type
Keyence LR-ZB100N
Shop the Keyence LR-ZB100N, a robust CMOS reflective laser sensor with a 100mm range and NPN output. Features an IP68/IP69K rating for reliable industrial automation.
| Brand | KEYENCE |
|---|---|
| Model | LR-ZB100N |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/keyence-lr-zb100n |
