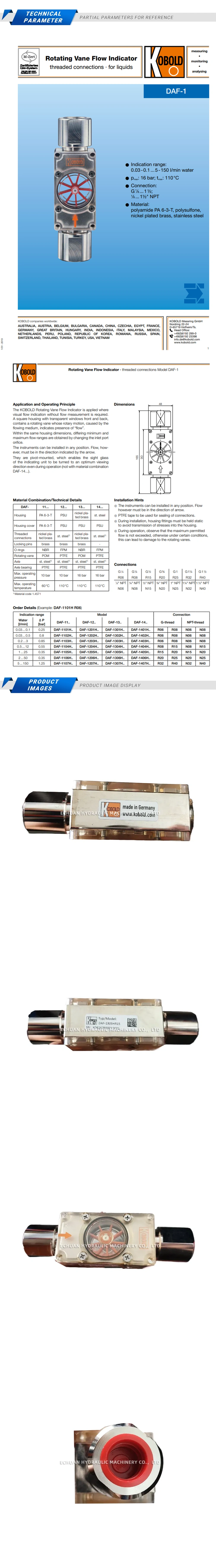

Product Description
Kobold DAF-1305HR15
The Kobold DAF-1305HR15 is a compact and reliable paddle wheel flowmeter designed for measuring the flow of low-viscosity, non-solid-bearing liquids. It operates on the paddle wheel principle, where the flow of the medium causes a rotor to spin. An integrated Hall-effect sensor detects the rotation and generates a frequency signal directly proportional to the flow rate. Constructed with a durable brass housing and a Ryton® rotor, this sensor is suitable for a wide range of monitoring and control applications in industrial environments, offering a cost-effective solution for accurate flow measurement.
Technical Specifications:
- Measuring Range: 0.2 – 5 L/min for water
- Connection: G 1/2″ male thread
- Housing Material: Brass
- Max. Pressure: 16 bar
- Max. Medium Temperature: 80°C (176°F)
- Output Signal: Frequency output, NPN open collector
- Power Supply: 10 – 30 VDC
Kobold DAF-1305HR15
The Kobold DAF-1305HR15 is a robust paddle wheel flowmeter with a brass body, G 1/2″ connection, and a measuring range of 0.2-5 L/min. It provides a reliable NPN frequency output for precise liquid flow monitoring.
