Product Description
KURODA HP10 Vane Type Rotary Actuator
The KURODA HP10 is a compact, high-performance vane type rotary actuator designed for various industrial automation applications requiring rotational motion. It utilizes a simple yet robust vane mechanism to convert pneumatic pressure into rotary torque. Known for its reliability and space-saving design, the HP10 offers precise angular positioning and is suitable for tasks such as clamping, indexing, and diverting components in automated systems.
Technical Specifications:
- Model Series: HP
- Actuator Type: Vane Type Rotary Actuator
- Model Size: 10
- Operating Fluid: Compressed Air (Non-lube or Lube)
- Operating Pressure Range: 0.2 – 0.7 MPa
- Proof Pressure: 1.05 MPa
- Operating Temperature Range: 0 – 60 °C (Non-freezing)
- Standard Rotation Angle: 90°, 180°, 270° (model dependent)
- Rotation Angle Adjustment Range: Approx. -5° to +5° (with optional adjuster bolt)
- Port Size: M5 x 0.8
- Theoretical Output Torque (at 0.5 MPa, 90° rotation): 1.0 N·m (approximate, varies slightly by specific model configuration)
- Allowable Kinetic Energy: Varies by model and cushioning option (Refer to manufacturer datasheet)

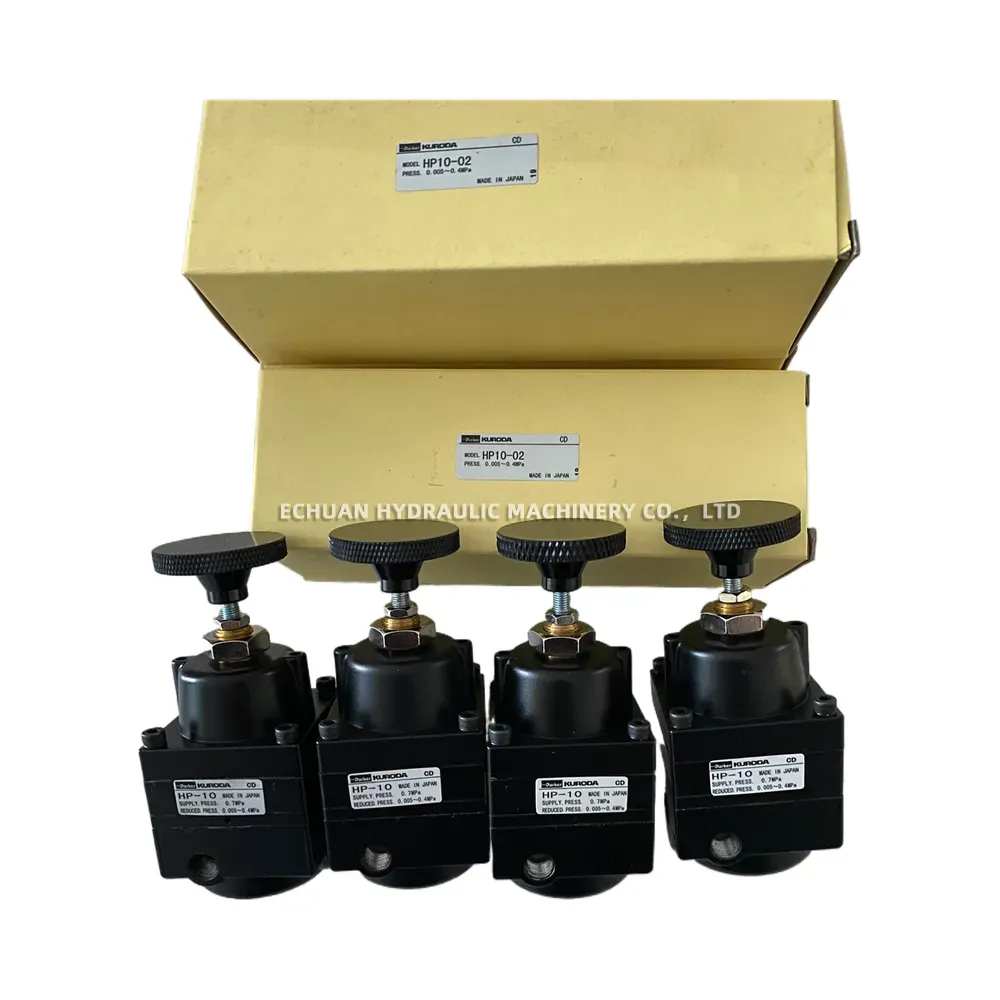

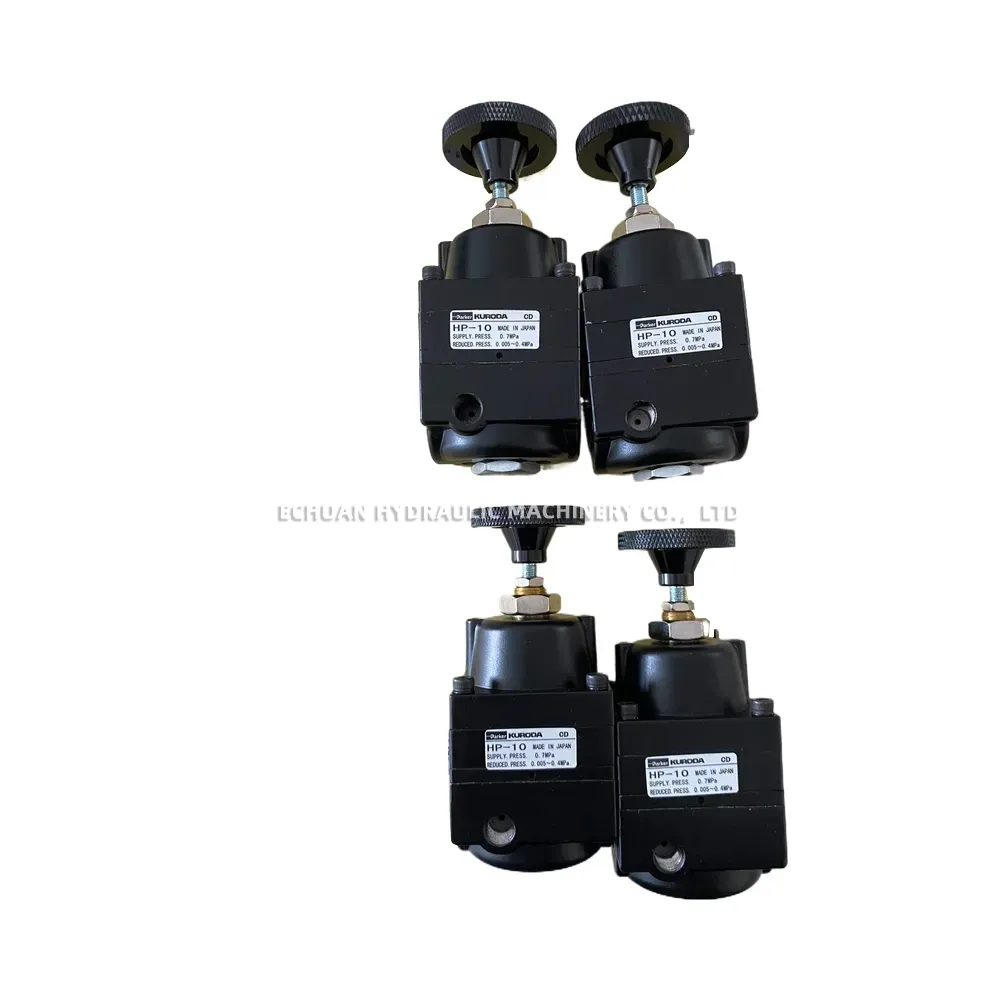

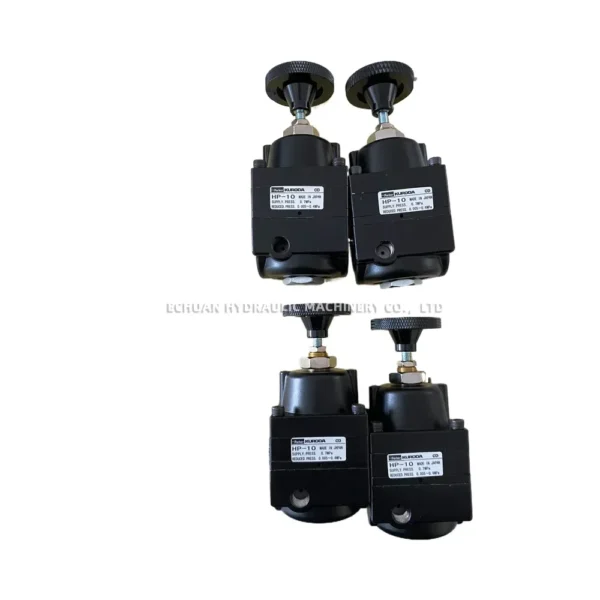

KURODA HP10
Model:KURODA HP10
| Brand | Kuroda |
|---|---|
| Model | HP10 |
| Part No. | KURODA HP10 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/kuroda-hp10 |
