Product Data Sheet

Your one-stop source for hydraulic, electrical & automation parts — shipped worldwide.

Product Description

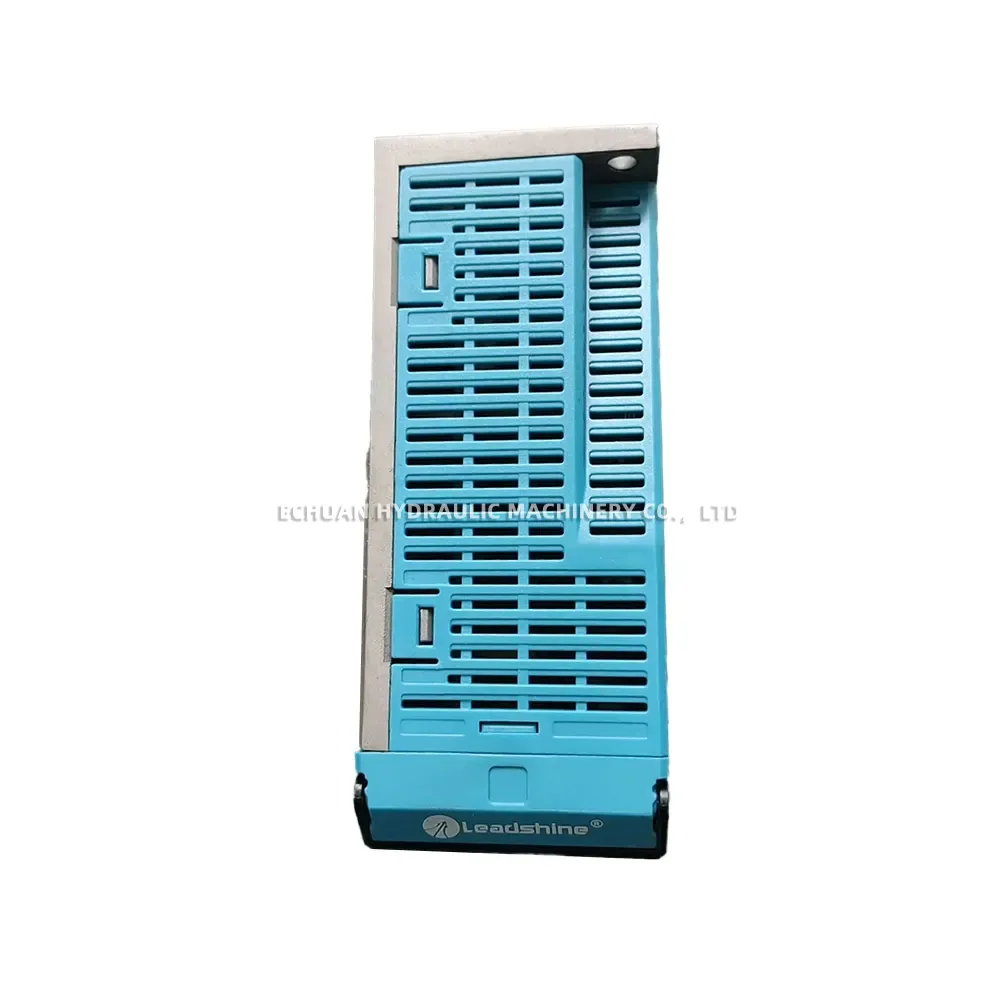

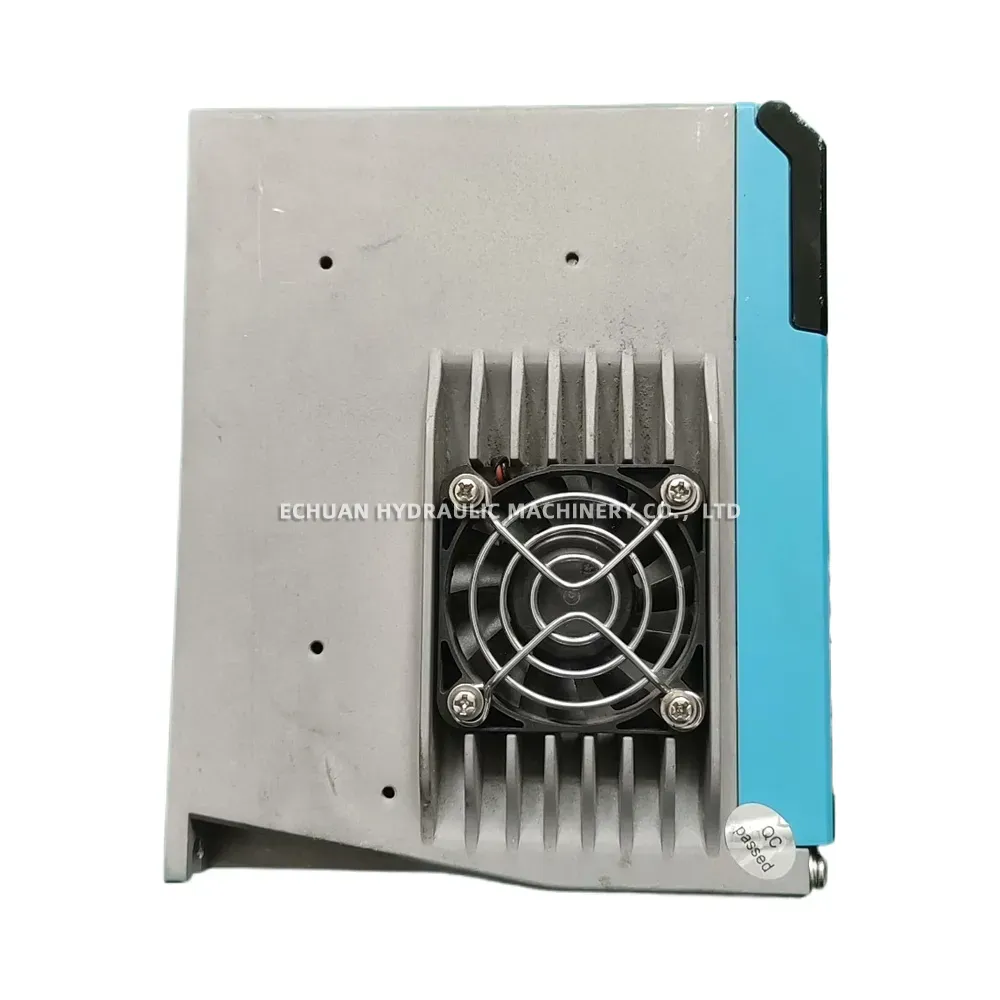

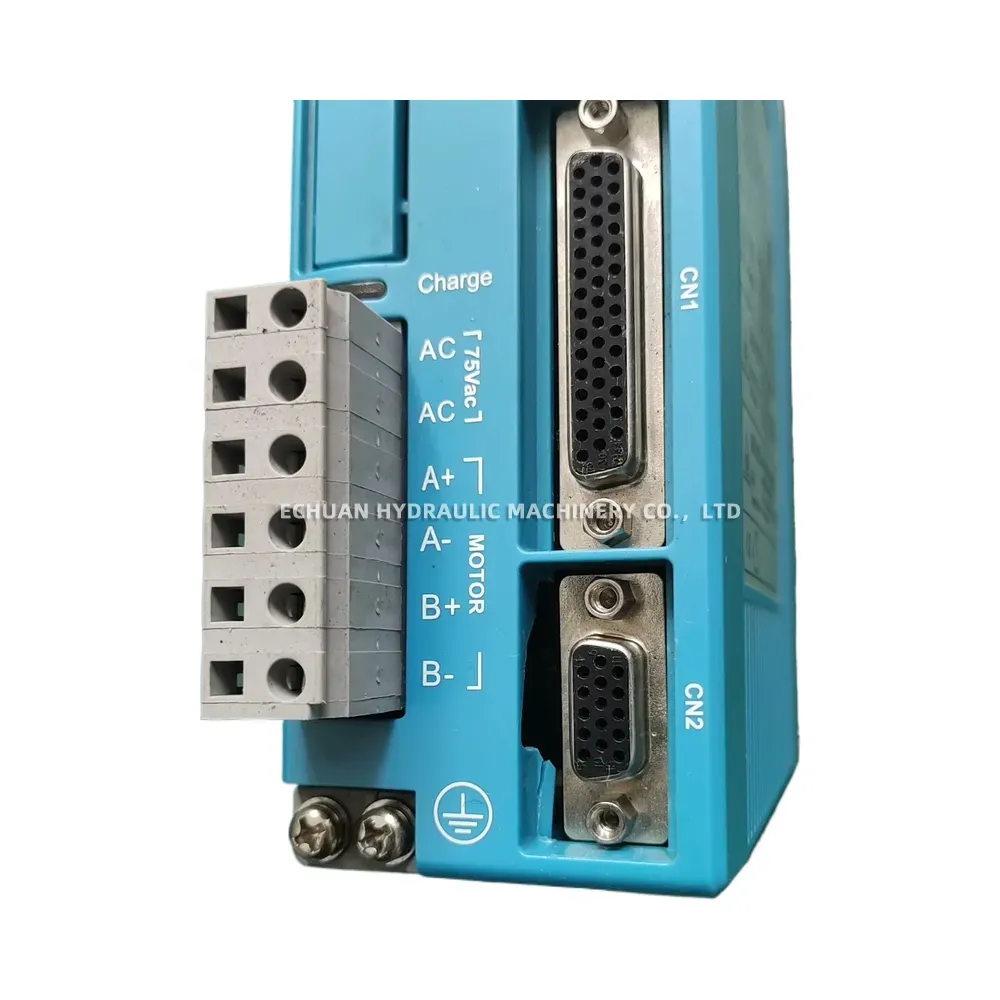

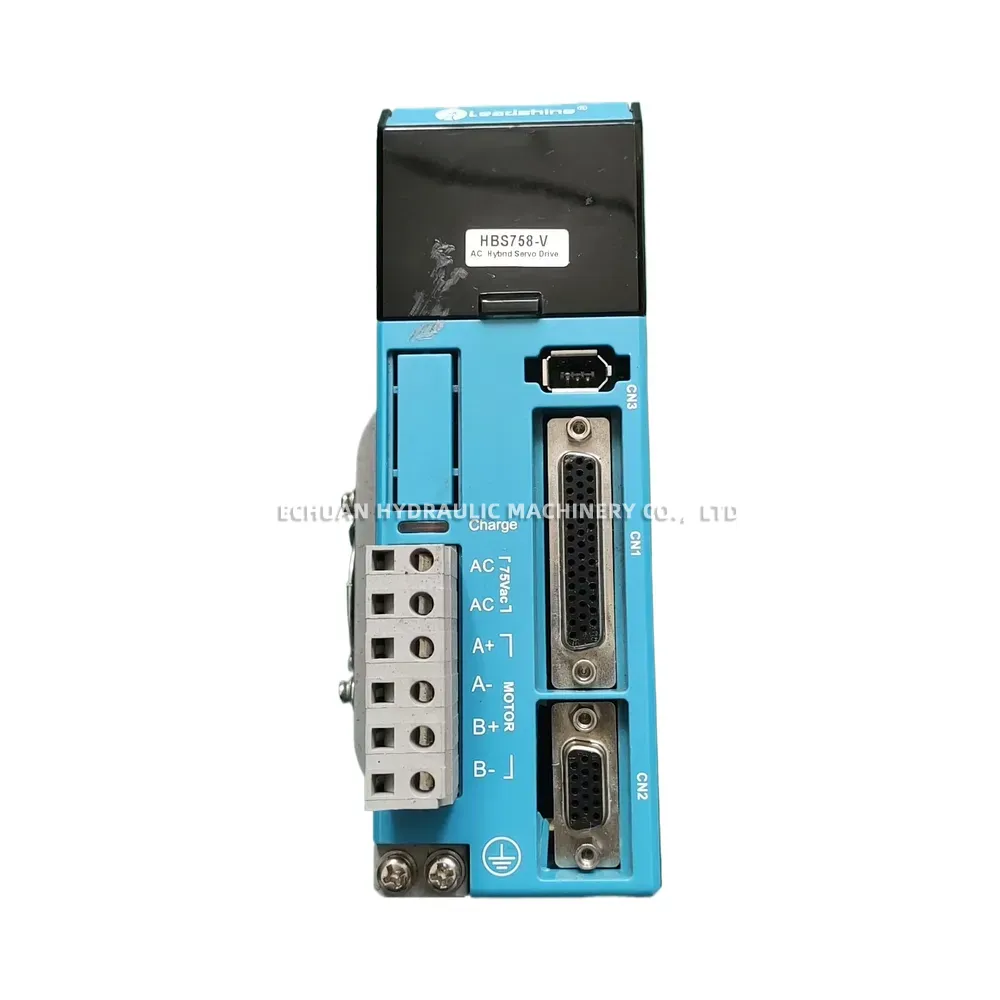

Leadshine HBS758-V AC Hybrid Servo Drive

The Leadshine HBS758-V is a high-performance AC hybrid servo drive based on advanced vector control technology. It combines the best features of both open-loop stepper and brushless servo systems, offering servo-like performance at a significantly lower cost. This drive operates in a closed-loop system with an encoder, which eliminates loss of steps, provides real-time position feedback, and automatically corrects any position errors. The HBS758-V ensures smooth motor movement with minimal noise and low motor heating, making it an ideal solution for applications requiring high speed, high torque, and precision control without hunting or overshooting.

Technical Specifications:

  • Input Voltage: 30 – 75 VAC (or 40 – 100 VDC)

  • Output Current: 0.5 – 8.0 A (Peak)

  • Control Signal Mode: Pulse/Direction (PUL/DIR), CW/CCW (double pulse)

  • Maximum Pulse Input Frequency: 200 kHz

  • Logic Signal Current: 7 – 16 mA (10 mA typical)

  • Compatible Motors: Leadshine NEMA 23, 24, and 34 closed-loop stepper motors

  • Communication: RS232 port for configuration and tuning via ProTuner software

  • Protections: Over-current, over-voltage, under-voltage, phase error, and encoder fault protection

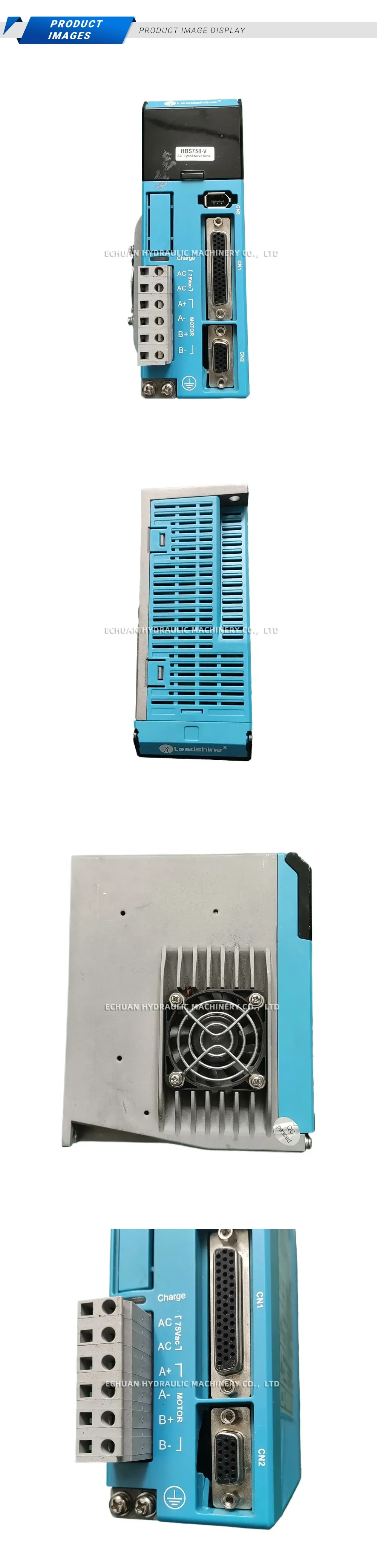

Leadshine HBS758-V AC Hybrid Servo Drive Description

Leadshine HBS758-V AC Hybrid Servo Drive

Enhance your CNC machine or automation system with the Leadshine HBS758-V AC Hybrid Servo Drive. This closed-loop driver delivers precise, high-torque performance for NEMA 23/34 stepper motors, eliminating step loss and reducing motor heat for reliable and efficient operation.

BrandLeadshine
ModelHBS758-V
Part No.743148583339
CategoryServo motors
Linkhttps://www.echuan-hydraulic.com/product/leadshine-hbs758-v-ac-hybrid-servo-drive
